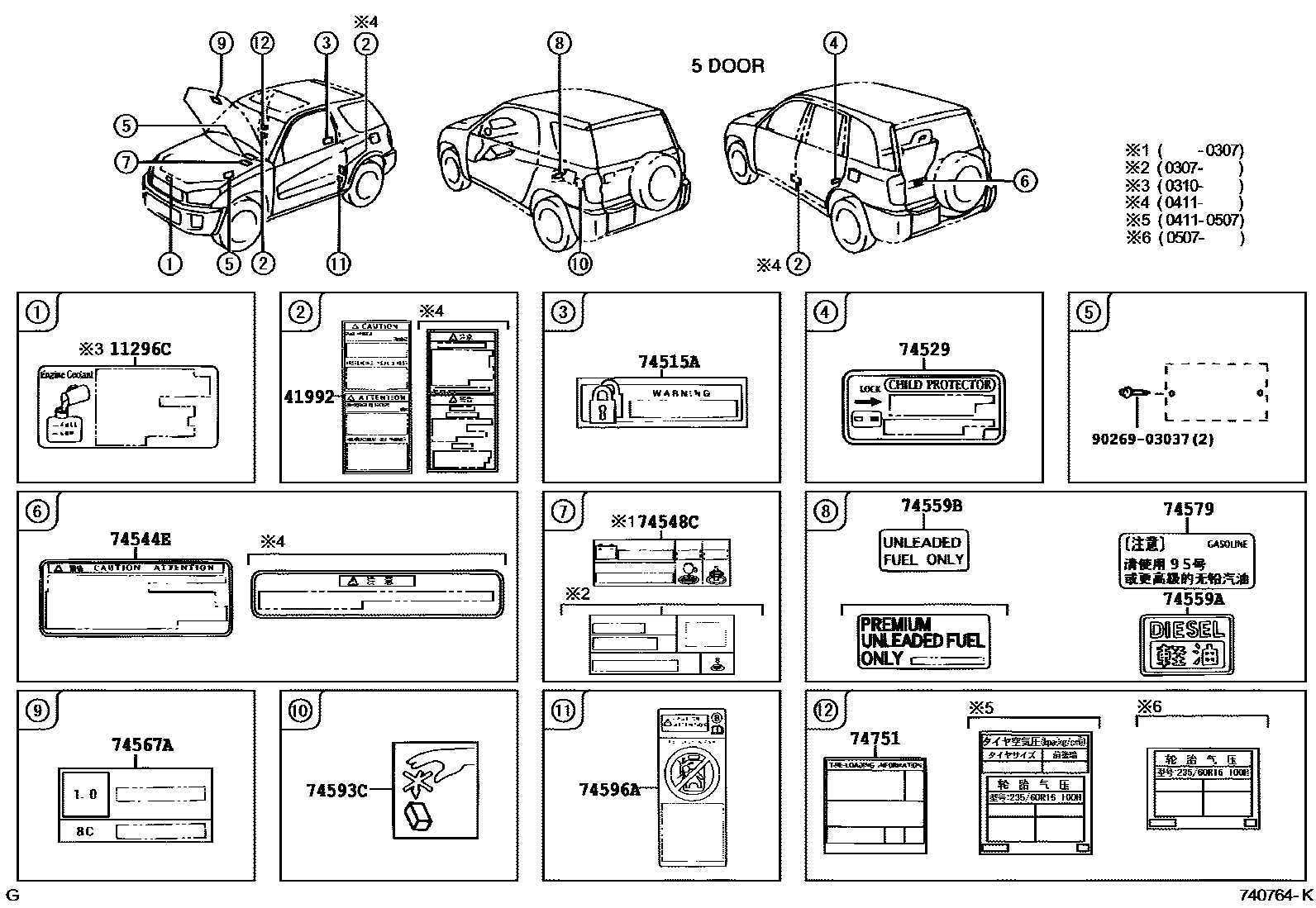

Toyota RAV4 warning nameplate — Figure 7455
Toyota RAV4 EPC diagram 7455, warning nameplate, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11296C | Engine maintenance information label | 11296-27020 |
| 41992 | Differential attention label | 41992-42020 · 41992-48020 |
| 74511F | Nameplate (laser identification label) | 74511-2B300 · 74511-33030 · 74511-48010 · 74511-48020 · 74511-48030 |
| 74515A | Anti-theft warning nameplate | 74515-20010 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-51010 · 69349-51010 |
| 74544E | Rear seat number 2 information label | 74544-42010 · 74544-42011 · 74544-42030 |
| 74548C | Battery cover warning label | 74548-42020 · 74548-42021 |
| 74559A | Fuel warning plate | 74559-14030 |
| 74559B | fuel information label | 74559-14050 · 74559-50010 |
| 74567A | E.C.E approval number plate | 74567-20261 |
| 74571 | Brake fluid warning plate | 47288-60010 |
| 74579 | Unleaded fuel warning nameplate | 74579-33010 |
| 74593C | Decorative bags note labels | 74593-42010 |
| 74596A | Side air bag warning label | 74596-12020 · 74596-12030 |
| 74751 | tire pressure information label | 42661-42111 · 42661-42130 · 42661-42140 · 42661-42151 · 42661-42160 · 42661-42170 · 42661-42410 · 42661-42420 |
| 87529B | Cabin filter information label | 87529-50010 |
| 88723E | Cooler maintenance warning label | 88723-28220 |
