Toyota RAV4 座椅和座椅滑轨 — Figure 7151

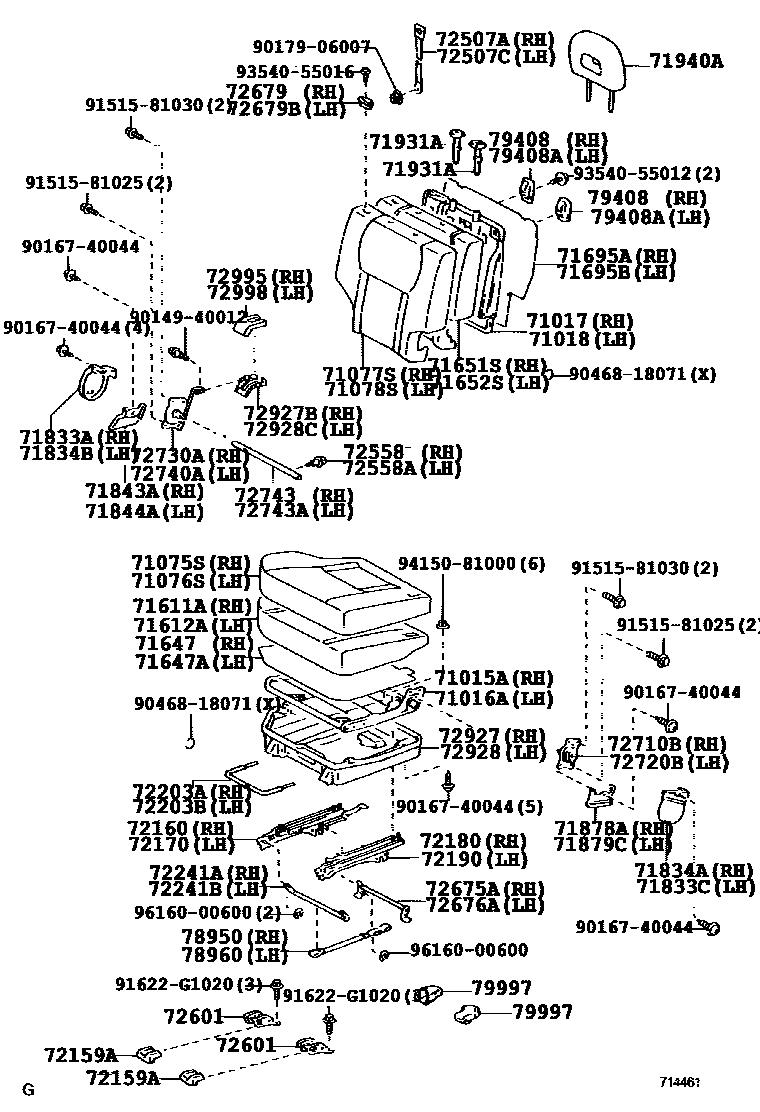

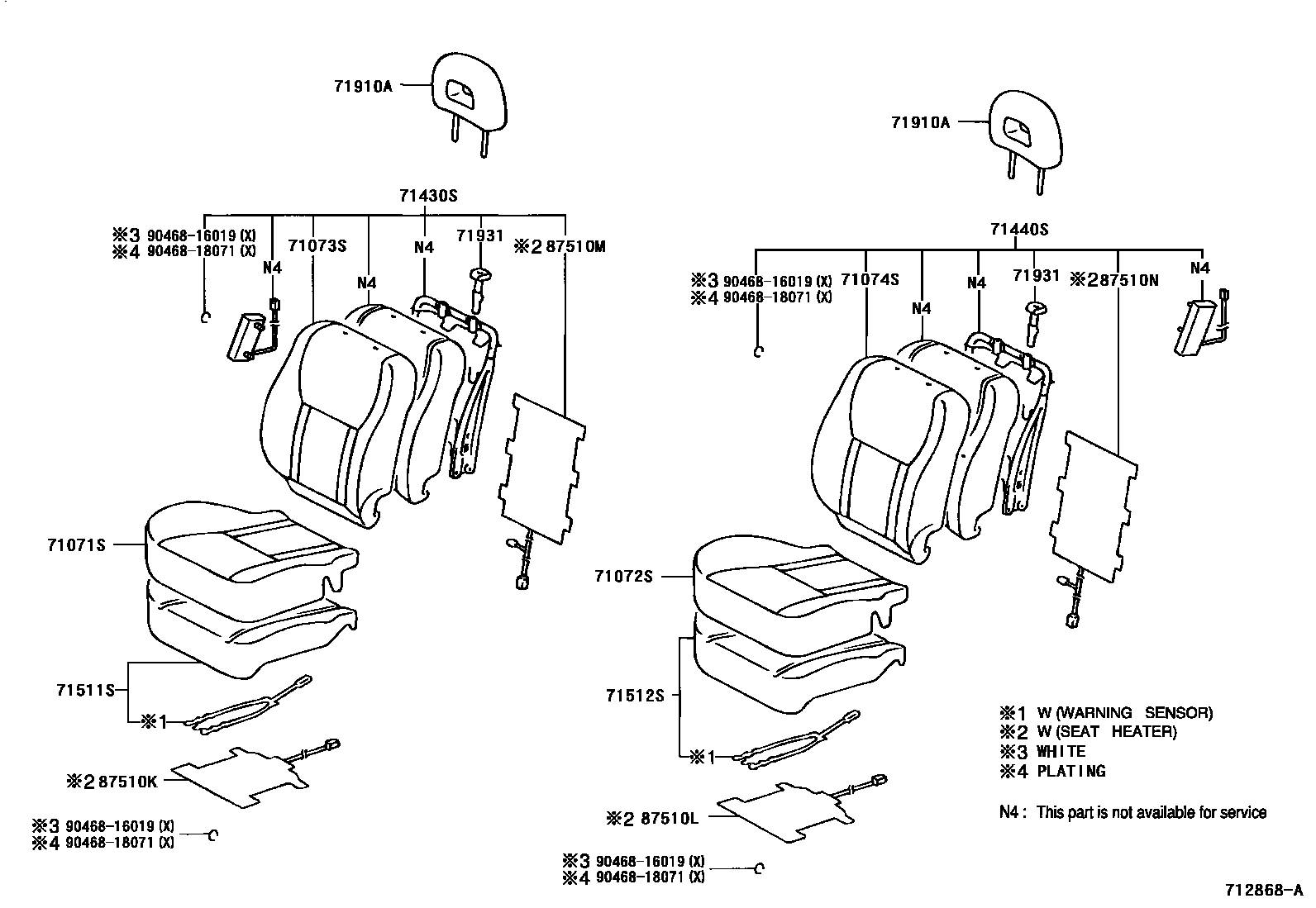

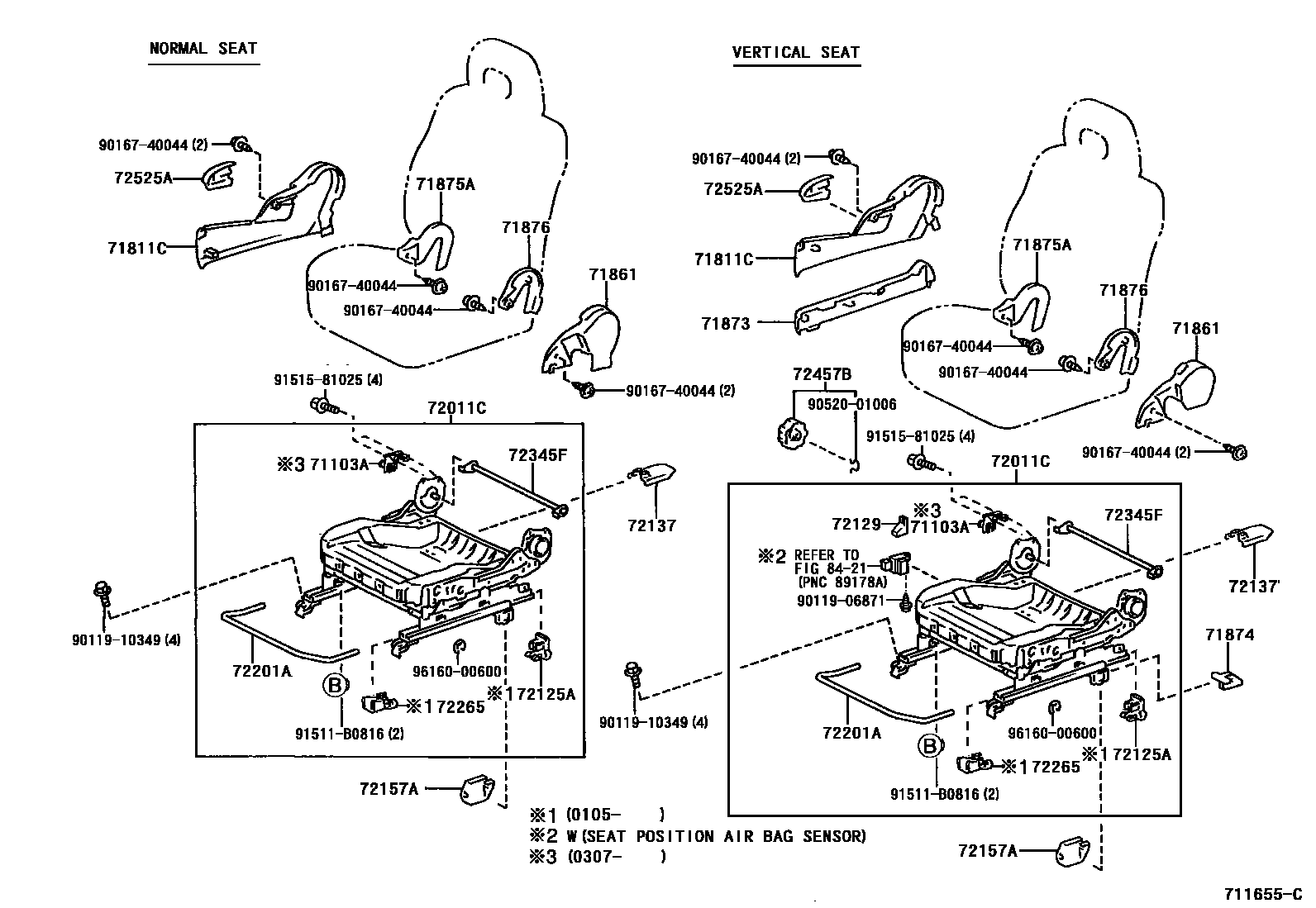

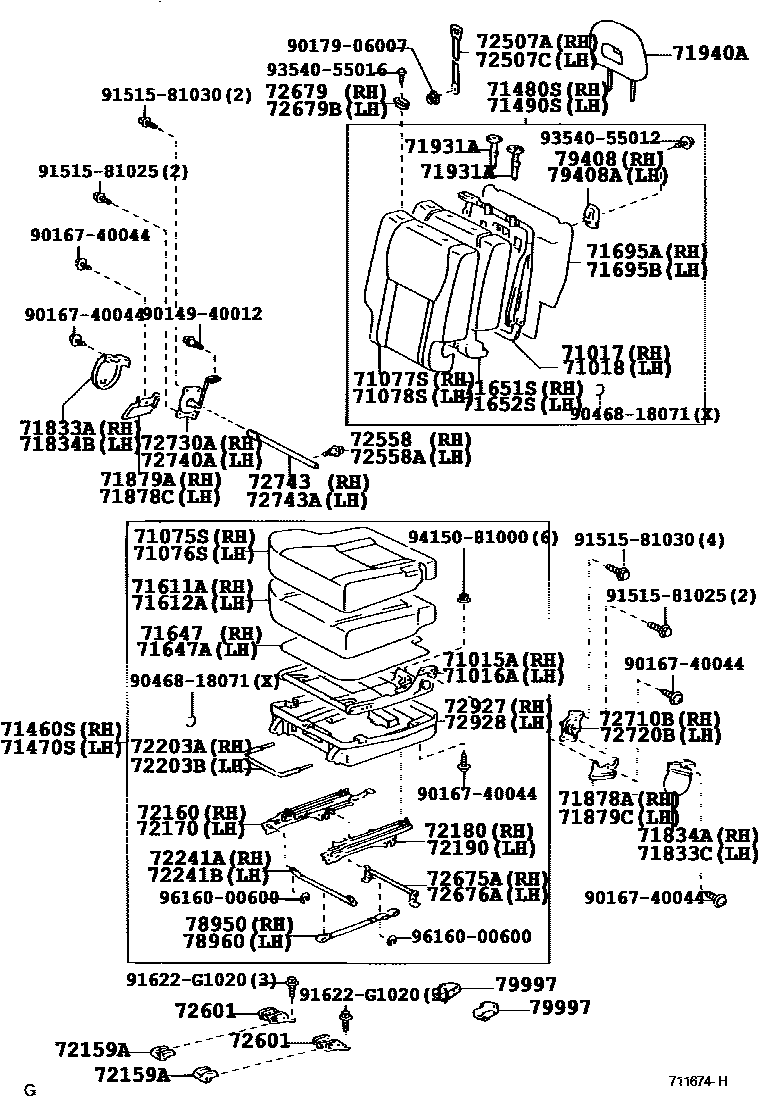

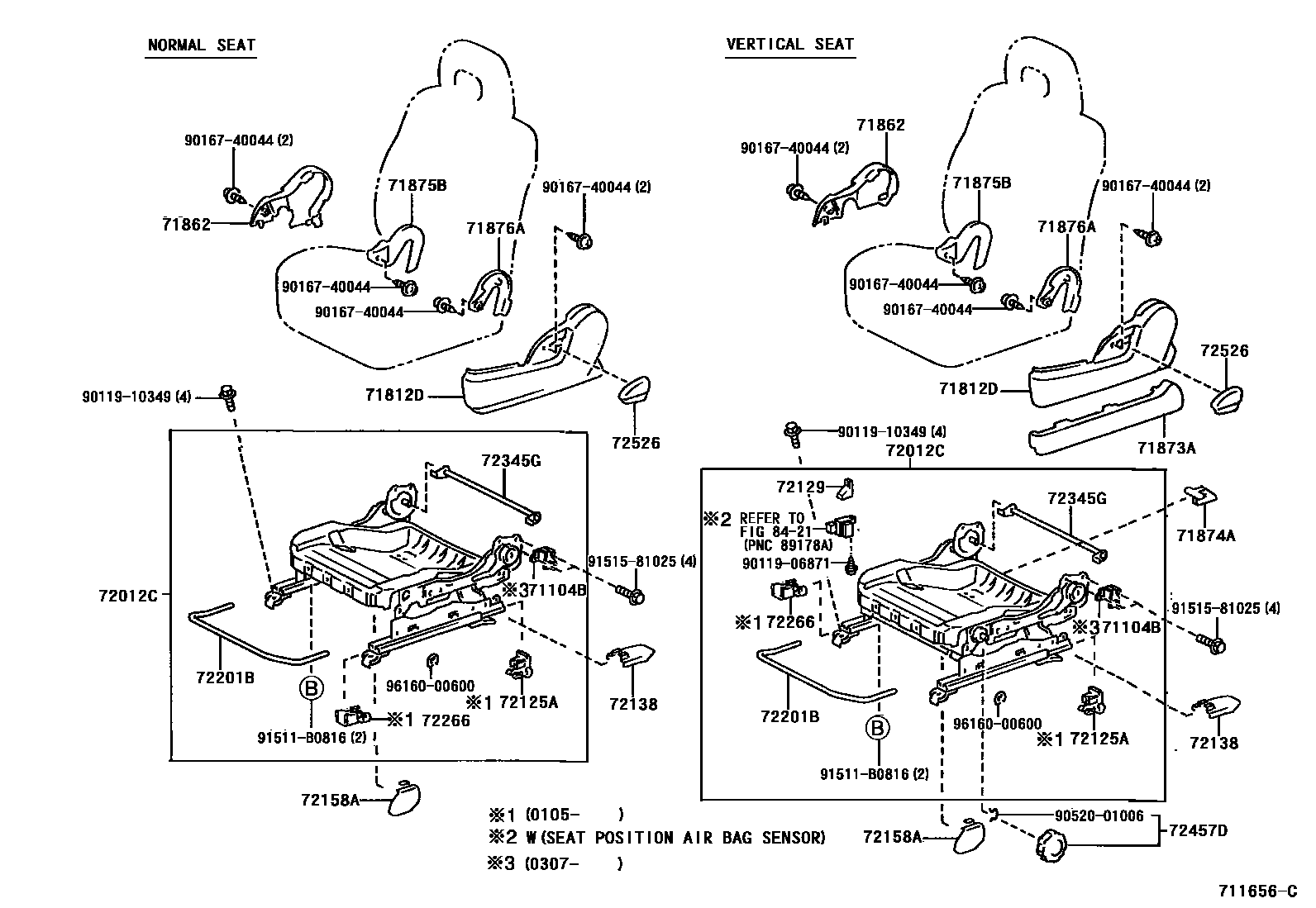

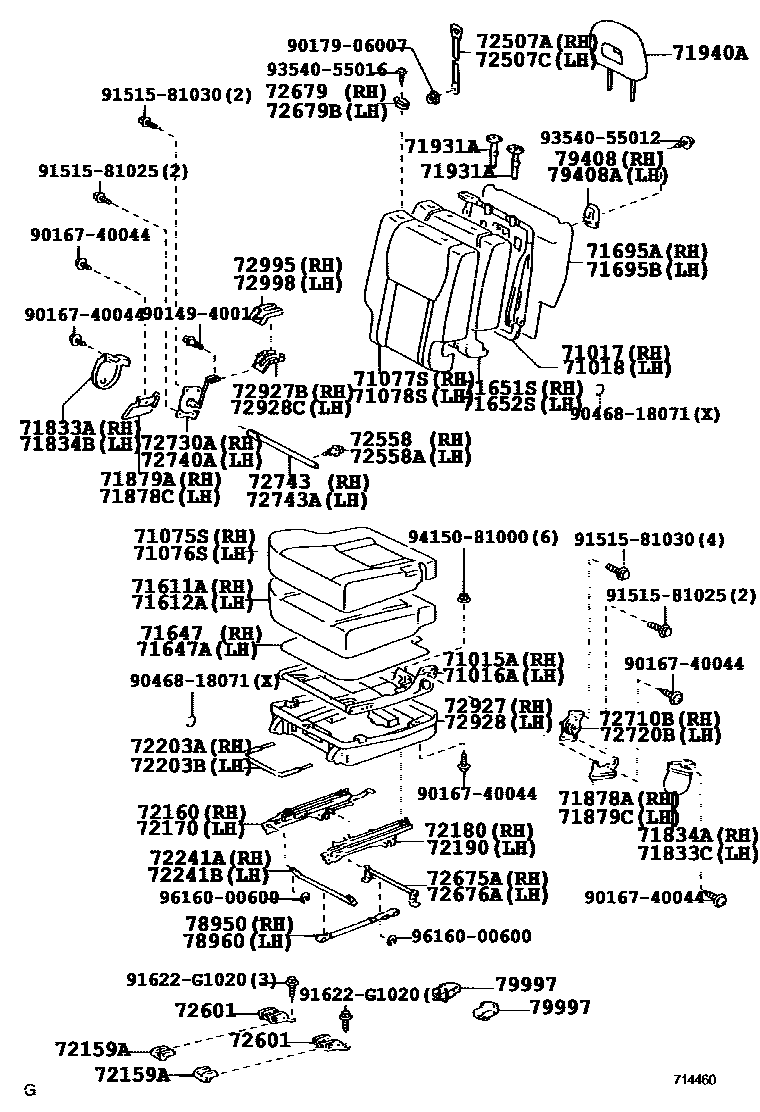

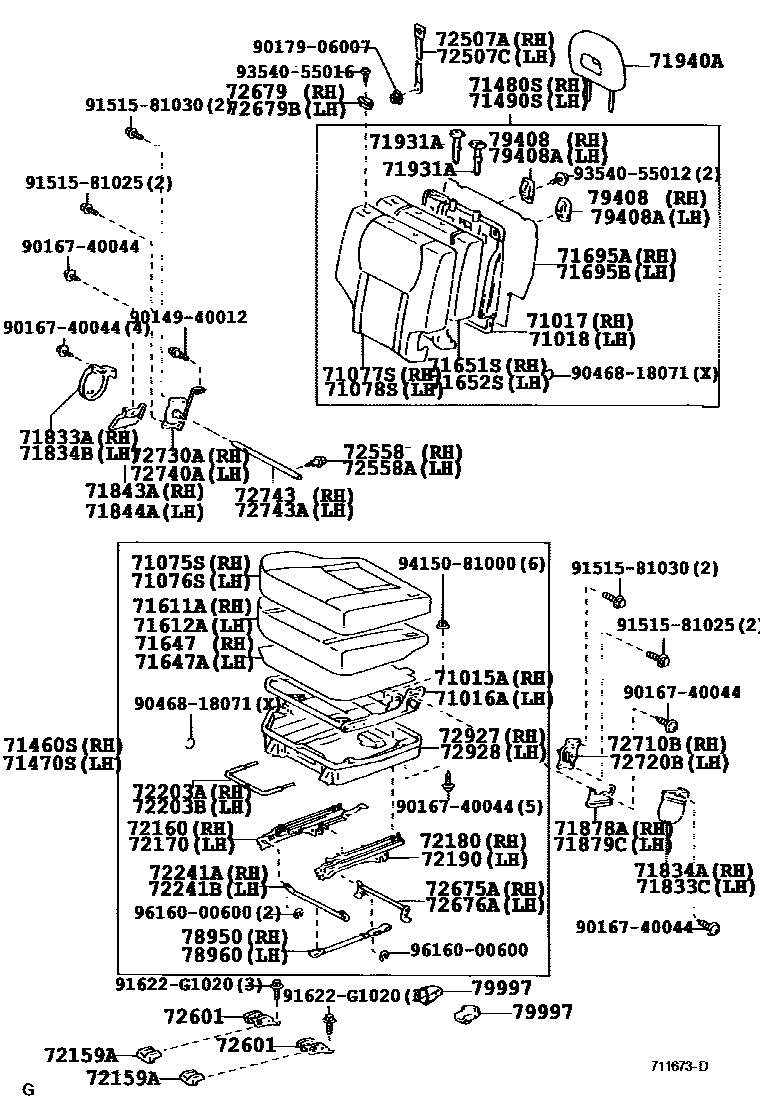

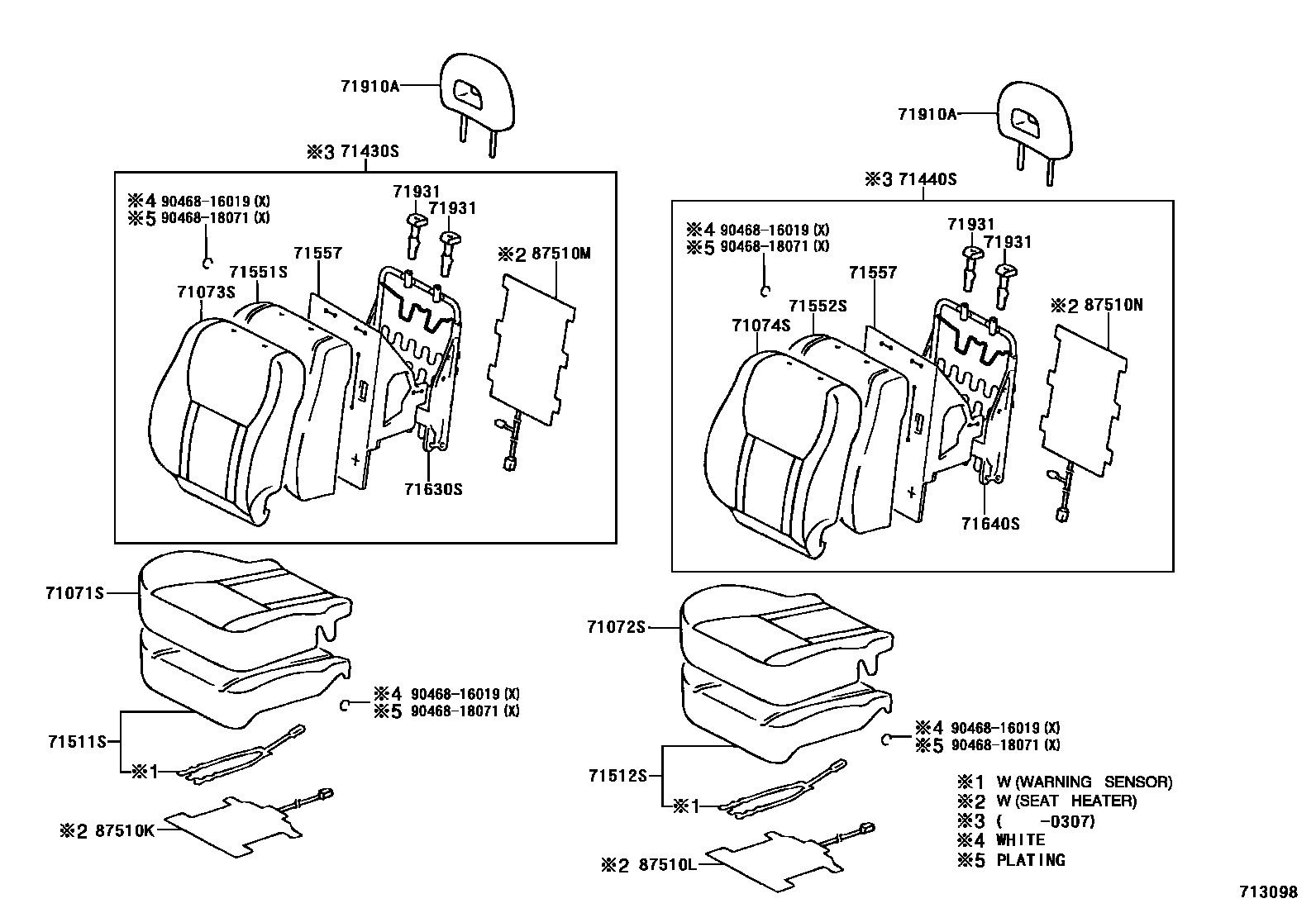

Toyota RAV4 EPC diagram 7151, 座椅和座椅滑轨, with 8 images and 59 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015A | Rear right seat cushion frame sub-assembly | 71015-42070 · 71015-42080 · 71015-42090 · 71015-42100 · 71015-42110 · 71015-42120 · 71015-42130 · 71015-42150 |
| 71016A | Rear left seat cushion frame sub-assembly | 71016-42070 · 71016-42080 · 71016-42090 · 71016-42100 · 71016-42110 · 71016-42120 · 71016-42130 · 71016-42150 |
| 71017 | Right rear seat back frame sub-assembly | 71017-42070 · 71017-42090 |
| 71018 | Rear left seat back frame sub-assembly | 71018-42070 · 71018-42090 |
| 71103A | Front right seat cushion hinge sub-assembly | 71103-42010 |
| 71104B | Front left seat cushion hinge sub-assembly | 71104-42010 |
| 71511S | Front right seat cushion cushion (for split seats) | 71052-42010 · 71052-42020 · 71511-42030 · 71511-42040 · 71511-42050 · 71511-42060 |
| 71512S | Front left seat cushion cushion (for split seats) | 71052-42010 · 71052-42020 · 71511-42030 · 71511-42040 · 71511-42050 · 71511-42060 |
| 71551S | Front right seat back cushion (for split seats) | 71551-42030 · 71551-42050 |
| 71552S | Front left seat back cushion (for split seats) | 71551-42030 · 71551-42050 |
| 71557 | Lower lining of front seat backrest | 71557-44030 · 71578-42010 |
| 71611A | Rear right seat cushion | 71611-42040 · 71611-42050 |
| 71612A | Rear left seat cushion | 71612-42040 · 71612-42050 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-42040 |
| 71640S | Front left seat back spring assembly (for split seats) | 71630-42040 |
| 71647 | Rear seat cushion edge protective cover | 71647-42010 · 71647-42020 |
| 71647A | Rear left seat cushion cover rear cushion | 71647-42010 · 71647-42020 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-42040 · 71651-42050 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-42040 · 71652-42050 |
| 71695A | Protective cover for seat No. 1 on the right side of the rear row | 71695-42010 · 71695-42020 |
| 71695B | Protective cover for seat No. 1 on the left side of the rear row | 71695-42010 · 71696-42040 |
| 71874 | Front left seat cushion lower guard | 71874-42010 |
| 71874A | Front left seat cushion lower guard | 71874-42010 |
| 71875A | Right backrest tilt adjuster inner cover | 71875-42040 |
| 71876 | Left backrest tilt adjuster inner cover | 71876-42040 |
| 72011C | Front right seat adjuster sub-assembly | 72010-42010 · 72010-42011 · 72010-42020 · 72010-42021 · 72010-42030 · 72010-42031 · 72010-42040 · 72010-42050 · 72010-42060 · 72010-42070 · 72010-42080 · 72010-42110 · 72010-42120 · 72010-42130 · 72010-42140 · 72010-42150 · 72010-42160 · 72010-42170 · 72010-42180 |
| 72012C | Front left seat adjuster sub-assembly | 72020-42010 · 72020-42011 · 72020-42020 · 72020-42021 · 72020-42030 · 72020-42031 · 72020-42040 · 72020-42050 · 72020-42060 · 72020-42070 · 72020-42080 · 72020-42110 · 72020-42120 · 72020-42130 · 72020-42140 · 72020-42150 · 72020-42160 · 72020-42170 · 72020-42180 · 72020-42190 · 72020-42200 |
| 72125A | Rear seat upper slide rail cover | 72125-13040 |
| 72129 | No. 1 seat slide rail lower rail protective cover | 72129-33040 · 72129-42010 |
| 72160 | Rear right seat outer slide rail assembly | 72160-42010 |
| 72170 | Rear left seat outer slide rail assembly | 72170-42010 |
| 72180 | Rear right seat inner slide rail assembly | 72180-42010 |
| 72190 | Rear left seat inner slide rail assembly | 72190-42010 |
| 72201A | Right seat slide rail handle sub-assembly | 72201-42020 |
| 72201B | Left seat slide rail handle sub-assembly | 72201-42030 |
| 72203A | Rear right seat slide rail handle sub-assembly | 72203-42010 |
| 72203B | Rear left seat slide rail handle sub-assembly | 72203-42010 |
| 72241A | Seat rail locking lever | 72241-42010 |
| 72241B | Seat rail locking lever | 72241-42010 |
| 72265 | Right seat rail upper rail cover | 72265-13040 |
| 72266 | Left seat rail upper rail cover | 72265-13040 |
| 72345F | Right seat back recliner connecting pipe | 72345-42020 · 72345-47010 |
| 72345G | Left seat back recliner connecting pipe | 72345-42020 · 72345-47010 |
| 72558 | Seat back tilt stop | 72558-42010 · 72558-44010 |
| 72558A | Seat back tilt stop | 72558-42010 · 72558-44010 |
| 72601 | Rear seat lock sub-assembly | 72601-42030 |
| 72675A | Right rear seat back lock control lever | 72675-42010 |
| 72676A | Rear left seat back lock control lever | 72676-42010 |
| 72710B | Rear right seat backrest inner adjuster assembly | 72710-42010 |
| 72720B | Rear left left seat backrest inner adjuster assembly | 72720-42010 |
| 72730A | Rear right seat backrest tilt adjuster assembly | 72730-42060 |
| 72740A | Rear left seat backrest angle adjuster assembly | 72740-42060 |
| 72743 | Rear seat backrest tilt lever | 72743-42010 · 72743-42020 |
| 72743A | Rear seat backrest tilt lever | 72743-42010 · 72743-42020 |
| 79997 | No. 1 seat leg box protection device | 79997-42010 · 79997-42020 |
| 87510K | Front right seat cushion heater assembly | 87510-42110 |
| 87510L | Front left seat cushion heater assembly | 87510-42110 |
| 87510M | Front right seat back heater assembly | 87510-42130 |
| 87510N | Front left seat back heater assembly | 87510-42130 |
