Toyota RAV4 锁芯组件 — Figure 6765

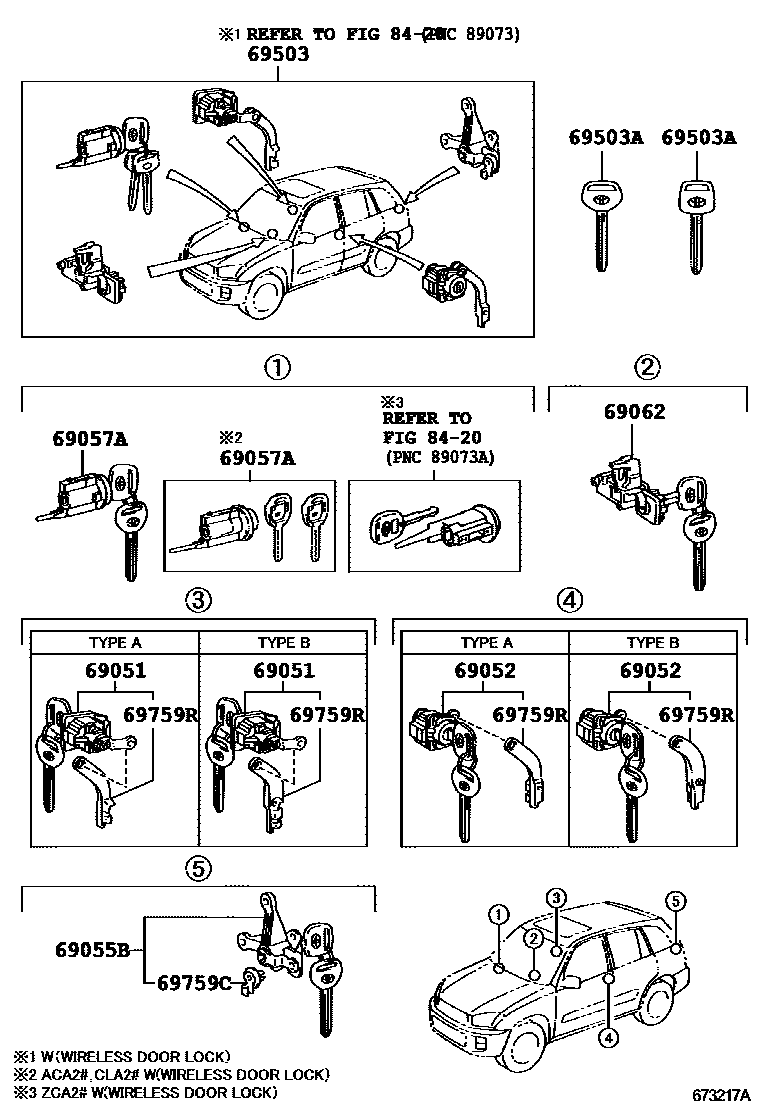

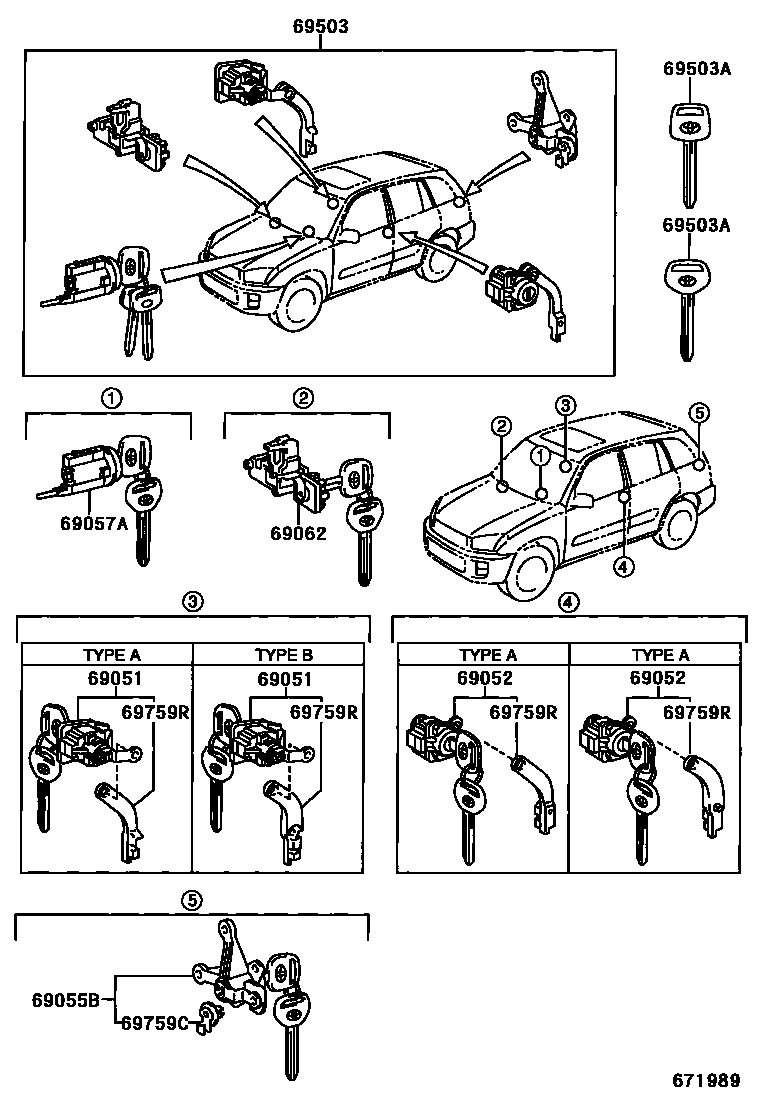

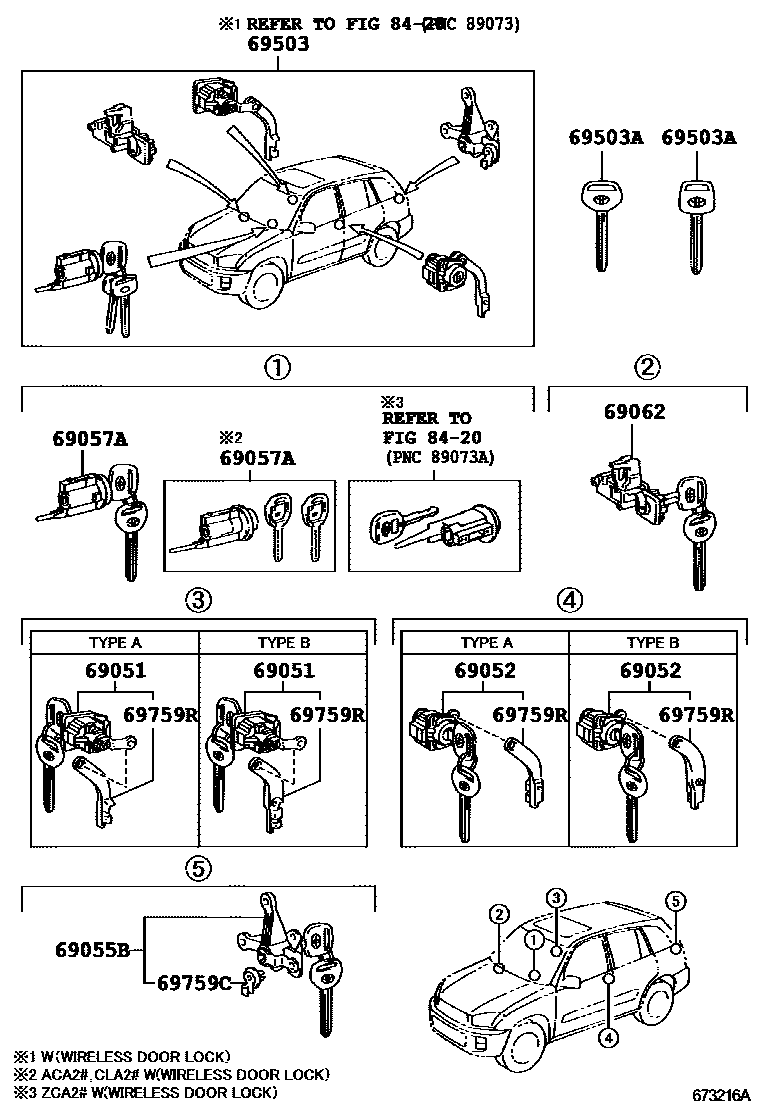

Toyota RAV4 EPC diagram 6765, 锁芯组件, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-42100 · 69051-42110 · 69051-42120 |
| 69052 | Left door lock cylinder and key assembly | 69052-42100 · 69052-42110 · 69052-42120 |
| 69055B | Rear door lock cylinder and key assembly | 69055-42070 · 69055-42080 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-42140 · 69057-42150 · 69057-42160 · 69057-42250 · 69057-42270 |
| 69062 | Glove box lock cylinder and key assembly | 69056-42020 · 69056-42030 |
| 69503 | Door lock cylinder components | 69005-42240 · 69005-42250 · 69005-42270 · 69005-42360 |
| 69503A | external tooth key | 90999-00185 · 90999-00186 · 90999-00187 · 90999-00199 · 90999-00200 |
| 69759C | Back door lock cylinder buckle | 69759-22080 |
| 69759R | Front door lock cylinder buckle | 69759-42010 · 69759-42020 · 69759-42030 · 69759-42040 |
