Toyota RAV4 前门锁和车门把手 — Figure 6753

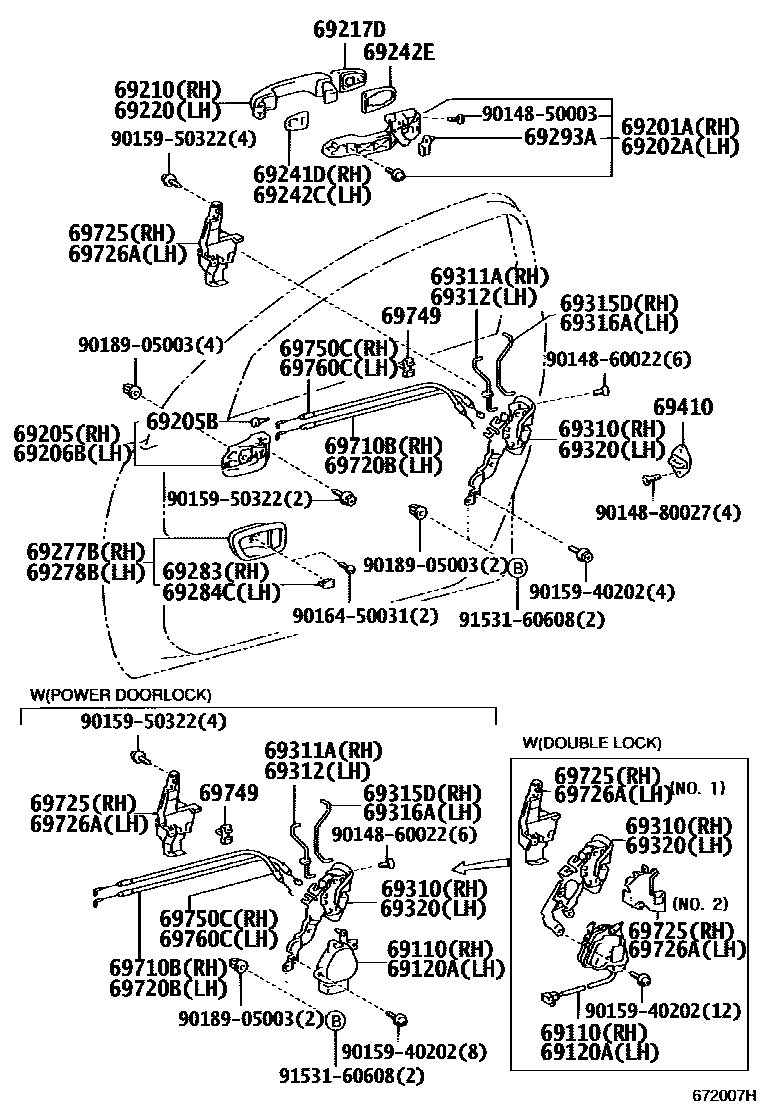

Toyota RAV4 EPC diagram 6753, 前门锁和车门把手, with 1 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69110 | Right front door lock actuator assembly | 69110-42040 · 69110-42070 · 69110-42120 |
| 69120A | Left front door lock actuator assembly | 69120-42020 · 69120-42060 · 69120-42080 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-42010 · 69201-42020 · 69201-42030 · 69201-52010 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-42010 · 69202-42020 · 69202-42030 · 69202-52010 |
| 69205B | Cushion pad (for inner front door handle) | 90541-04014 |
| 69210 | Right front door outer handle assembly | 69211-42010 |
| 69217D | Front door outer handle cover | 69217-42010 |
| 69220 | Left front door outer handle assembly | 69211-42010 |
| 69241D | Right front door outer handle pad | 69241-42020 |
| 69242C | Left front door outer handle pad | 69241-42020 |
| 69242E | Front door rear outer handle pad | 69242-42010 |
| 69293A | Front door outer handle buckle | 69293-12030 · 69293-12040 |
| 69310 | Right front door lock assembly | 69303-42090 · 69303-42100 · 69310-42330 · 69310-42360 · 69310-42370 |
| 69311A | Right front door lock opening lever | 69311-42070 · 69311-42130 |
| 69312 | Left front door lock opening lever | 69312-42070 · 69312-42130 |
| 69315D | Right front door outer locking link | 69315-42050 · 69315-42080 |
| 69316A | Left front door outer locking link | 69316-42050 · 69316-42080 |
| 69320 | Left front door lock assembly | 69304-42090 · 69304-42100 · 69320-42340 · 69320-42350 · 69320-42360 |
| 69410 | Front door lock plate assembly | 69410-20110 |
| 69710B | Right front door lock remote control cable assembly | 69710-42080 · 69710-42110 |
| 69720B | Left front door lock remote control cable assembly | 69710-42080 · 69710-42110 |
| 69725 | Right front door inner locking link guard | 69725-42100 · 69725-42110 · 69725-42120 · 69725-42130 |
| 69726A | Left front door inner locking link guard | 69726-42060 · 69726-42070 · 69726-42080 · 69726-42090 |
| 69749 | Front door lock link clip | 69749-32040 |
| 69750C | Right front door inner lock cable assembly | 69750-42060 · 69750-42070 · 69750-42120 · 69750-42130 |
| 69760C | Left front door inner lock cable assembly | 69760-42060 · 69760-42070 · 69760-42120 · 69760-42130 |
