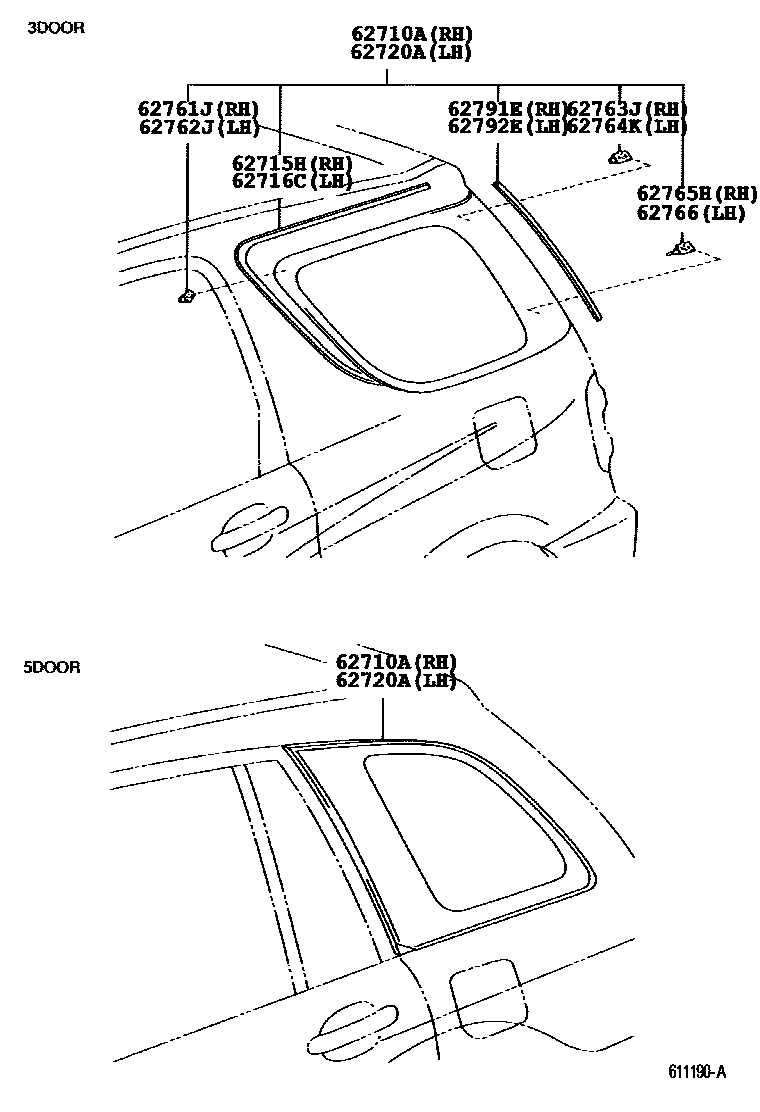

Toyota RAV4 侧窗 — Figure 6152
Toyota RAV4 EPC diagram 6152, 侧窗, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62710A | Right corner window assembly | 62710-42090 · 62710-42130 · 62710-42170 · 62710-42190 · 62710-42210 · 62710-42230 |
| 62715H | Right corner window glass adhesive seal | 62715-42010 |
| 62716C | Left corner window glass adhesive seal | 62716-42010 |
| 62720A | Left corner window assembly | 62720-42120 · 62720-42160 · 62720-42200 · 62720-42220 · 62720-42240 · 62720-42260 |
| 62761J | Right front corner window glass fixing piece | 62761-42010 |
| 62762J | Left front corner window glass fixing | 62762-42010 |
| 62763J | Fixings for corner window glass | 62763-42020 |
| 62764K | Fixings for corner window glass | 62764-42010 |
| 62765H | Corner window lower fixings | 62765-42010 |
| 62766 | Left corner window glass lower fixing piece | 62766-42010 |
| 62791E | Protective strip on right corner window | 62791-42010 |
| 62792E | Protective strip on left corner window | 62792-42010 |
