Toyota RAV4 后地板和后地板梁 — Figure 5852

Toyota RAV4 EPC diagram 5852, 后地板和后地板梁, with 2 images and 27 PNC and OE references.

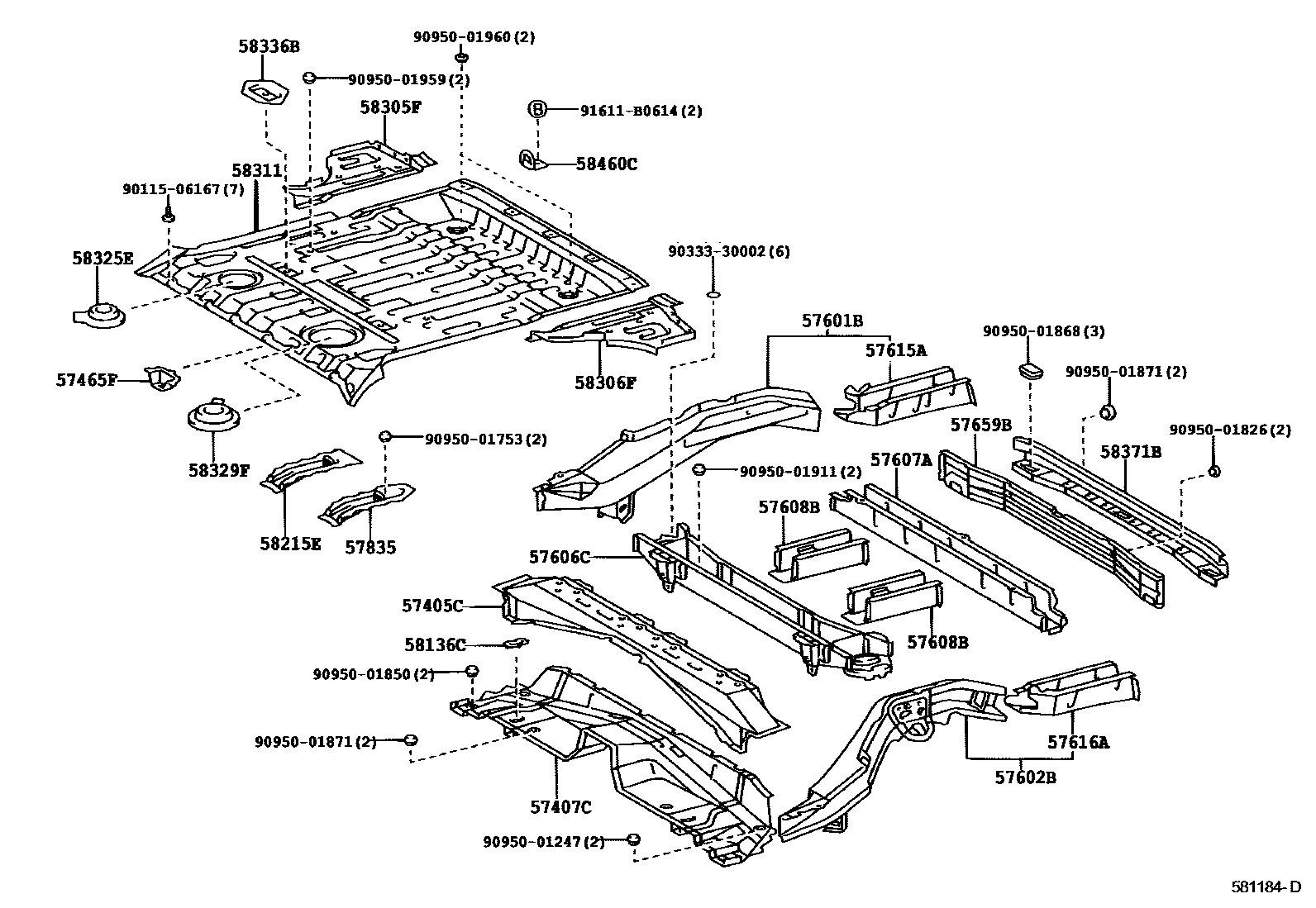

Toyota RAV4 后地板和后地板梁 EPC diagram — 581184D
后地板和后地板梁 — 581184D (200005 – 999999)

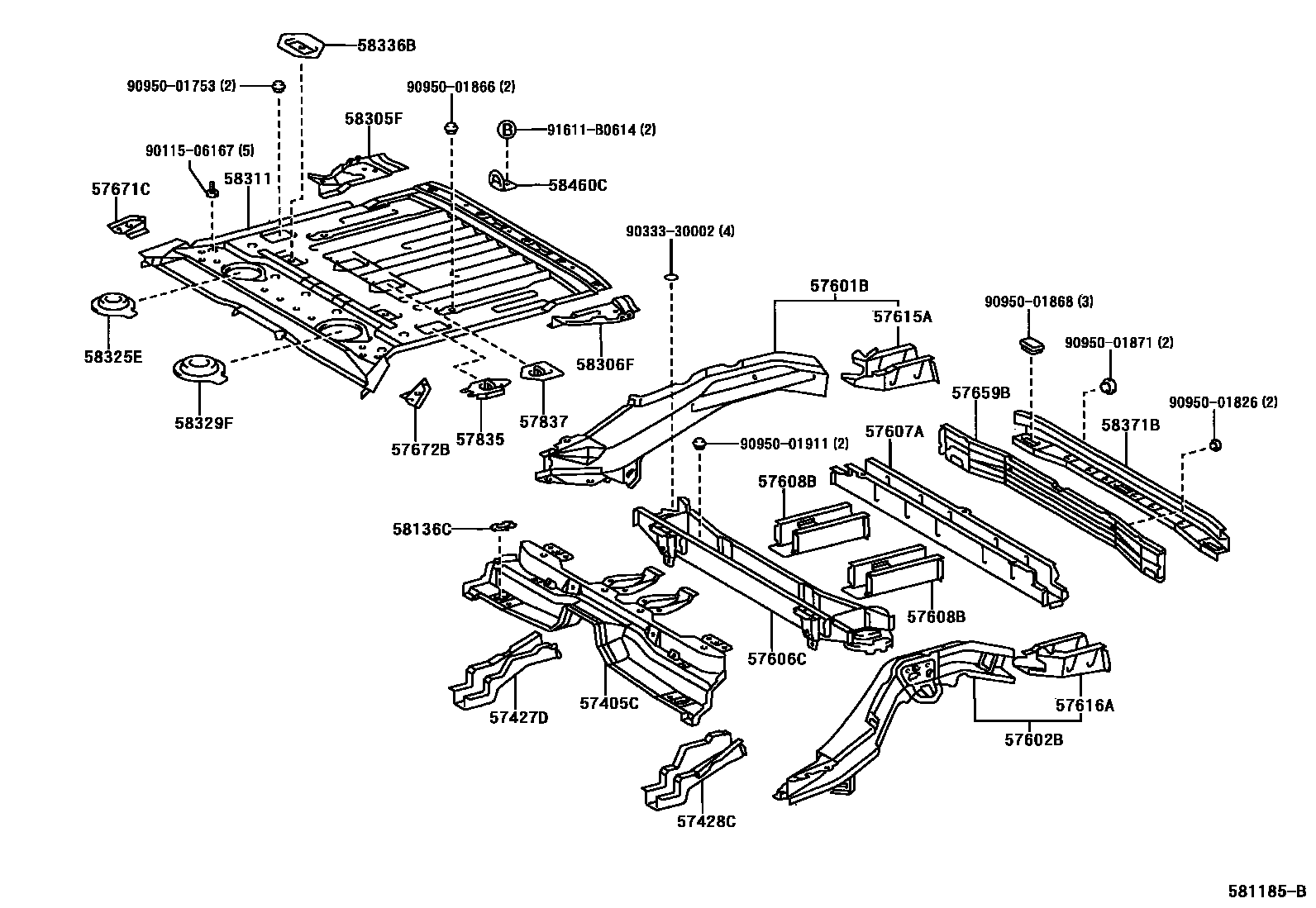

Toyota RAV4 后地板和后地板梁 EPC diagram — 581185B
后地板和后地板梁 — 581185B (200005 – 999999)

PNC and OE references

PNCPart nameOE numbers
57405CCenter floor rear cross member sub-assembly57405-42010 · 57405-42020
57407CCenter floor No. 1 beam sub-assembly57407-42010
57427DFront floor No. 3 right reinforcement57427-42050
57428CFront floor No. 3 left reinforcement57428-42040
57465FCenter floor beam gusset57465-42020
57601BRear floor right front longitudinal beam sub-assembly57601-42090 · 57601-42100
57602BRear floor left front longitudinal beam sub-assembly57602-42090 · 57602-42100
57606CRear floor No. 2 cross member sub-assembly57606-42070
57607ARear floor No. 3 cross member sub-assembly57607-42050
57608BRear floor No. 4 cross member sub-assembly57608-42020
57615ARear floor right rear longitudinal member57615-42903 · 57615-42904
57616ARear floor left rear longitudinal member57616-42903 · 57616-42904
57659BRear floor inner rear cross member57659-42030
57671CRear floor No. 1 cross member right bracket57671-42030
57672BRear floor No. 1 cross member left bracket57672-42030
57835No. 1 rear seat support No. 1 rear reinforcement57835-42010 · 57835-42020
57837Rear No. 1 seat support No. 3 rear reinforcement57837-42010
58136CRear floor hole cover58136-30040 · 58136-51010
58215ERear right seat mounting bracket58215-42030
58305FRear floor right side panel sub-assembly58305-42020 · 58305-42030
58306FRear floor left side panel sub-assembly58306-42040 · 58306-42050
58311rear floor pan58311-42900 · 58311-42901 · 58311-42902
58325ERear floor access hole cover58325-42030
58329FRear floor manhole cover No. 258329-42030
58336BRear floor pan reinforcement58336-42040
58371BBody outer lower back panel58371-42030
58460CLuggage fixing belt lock assembly58460-35012
