Toyota RAV4 前围板和挡风玻璃 — Figure 5553

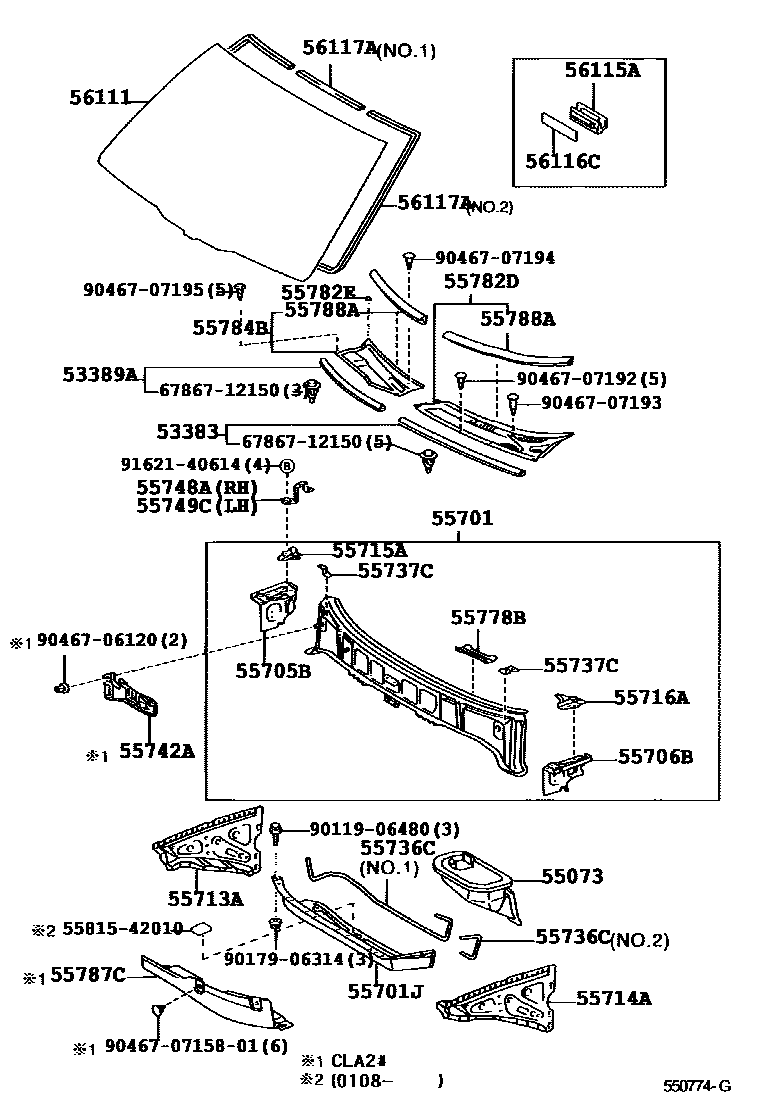

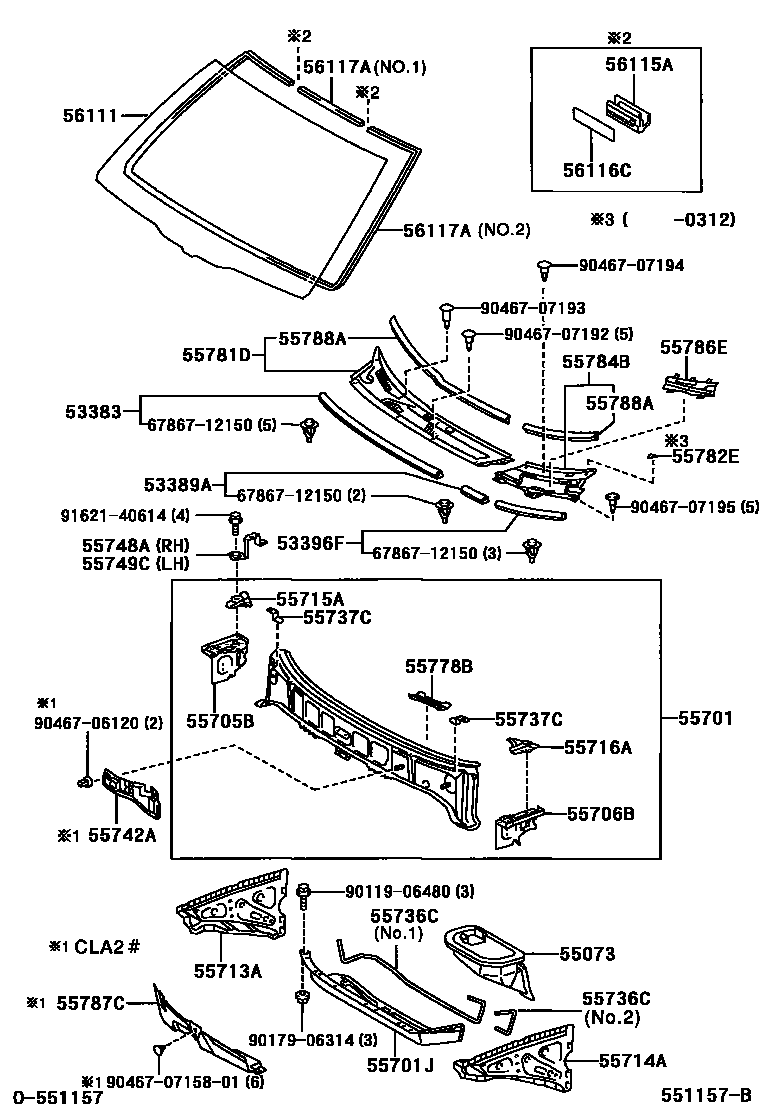

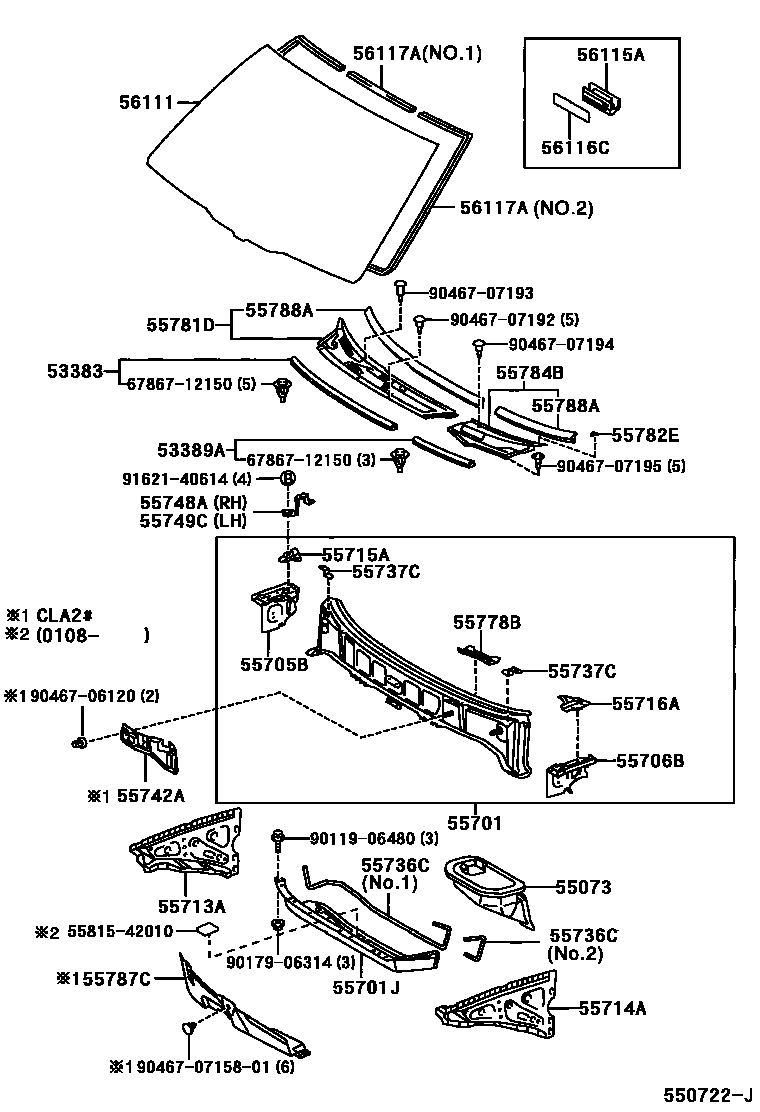

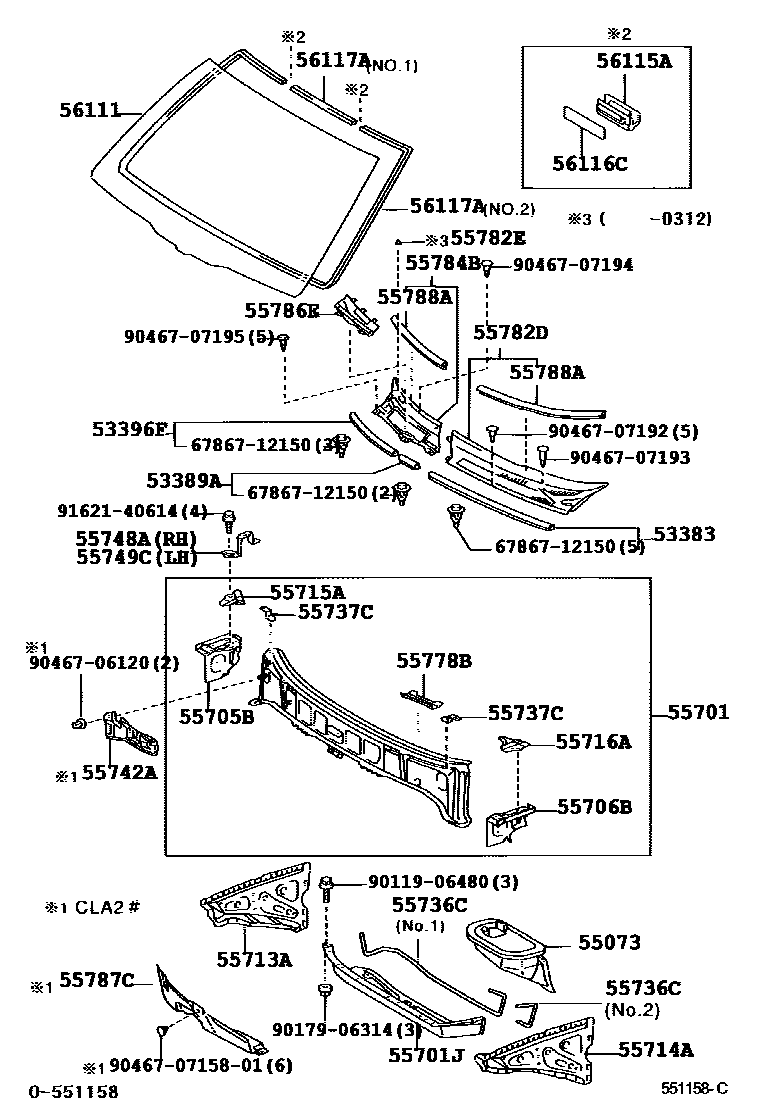

Toyota RAV4 EPC diagram 5553, 前围板和挡风玻璃, with 4 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383 | Engine cover to cowl upper cover seal | 53383-42020 |
| 53389A | No. 2 seal from engine cover to cowl upper cover | 53389-42010 · 53389-42011 |
| 53396F | No. 2 seal from engine cover to front end plate | 53396-42010 |
| 55073 | Front wall water pumping nozzle sub-assembly | 55073-42010 · 55073-42020 |
| 55701 | Front apron sub-assembly | 55700-42340 · 55700-42350 · 55700-42360 · 55700-42370 · 55700-42380 · 55700-42390 · 55700-42400 · 55700-42420 · 55700-42430 · 55700-42440 · 55700-42450 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-42320 · 55701-42321 · 55701-42330 · 55701-42331 · 55701-42340 · 55701-42341 · 55701-42350 · 55701-42351 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-42040 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-42030 |
| 55713A | Right front wall upper side panel | 55713-42040 |
| 55714A | Left front wall upper side panel | 55714-42030 |
| 55715A | From cowl upper cover to fender right stay | 55715-42020 |
| 55716A | From cowl upper cover to fender left stay | 55716-42020 |
| 55736C | Waterproof cover plate seal | 55736-42010 · 55736-42020 |
| 55737C | No. 3 cowl upper outer panel bracket | 55733-42010 · 55737-42010 |
| 55742A | Heat insulation panel on front wall | 55742-42010 · 55742-42020 |
| 55748A | Front wall upper inner panel to column bracket | 55748-42010 |
| 55749C | From the upper inner part of the cowl to the left bracket of the column | 55749-42010 |
| 55778B | Identification number plate bracket | 55778-42020 |
| 55781D | Ventilation grille on right front apron | 55781-42050 |
| 55782D | Ventilation grille on left front apron | 55781-42060 |
| 55782E | Ventilation grille protector on front apron | 55782-42050 |
| 55784B | Ventilation grille on center cowl No. 2 | 55784-42010 · 55784-42011 · 55784-42020 · 55784-42021 |
| 55786E | Ventilation grille connection plate on front apron | 55786-42030 · 55786-42040 |
| 55787C | No. 1 front wall upper cover thermal insulation pad | 55787-42020 · 55787-42030 |
| 55788A | Ventilation grille protector on front apron | 55788-42020 · 55788-42021 · 55788-42030 · 55788-42031 · 55789-42020 · 55789-42021 · 55789-42030 · 55789-42031 |
| 56111 | windshield | 56101-42010 · 56101-42020 · 56101-42040 · 56101-42050 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-42030 |
