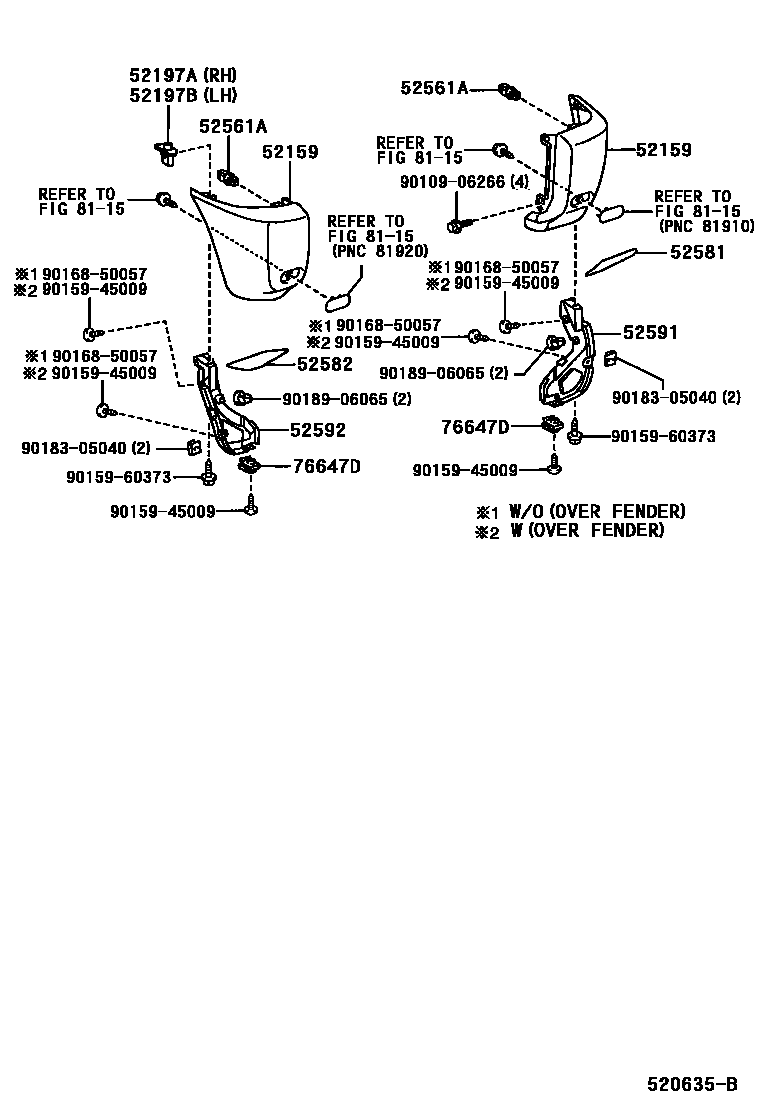

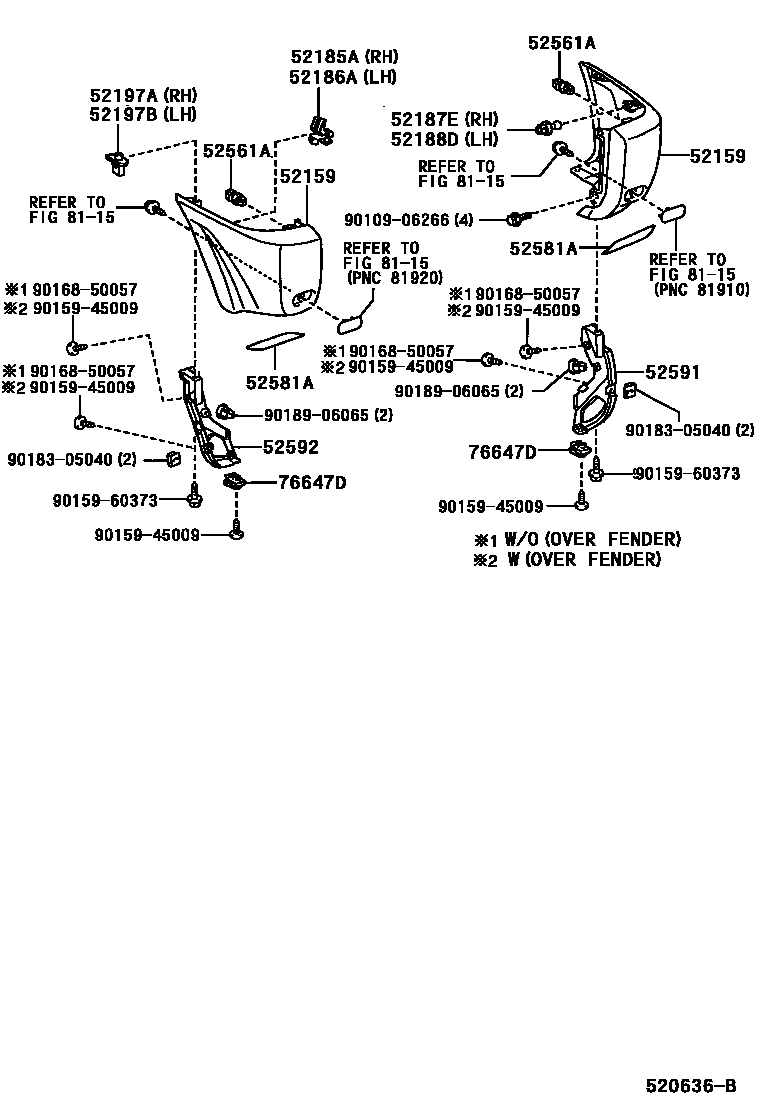

Toyota RAV4 后保险杠及附件 — Figure 5253
Toyota RAV4 EPC diagram 5253, 后保险杠及附件, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52159 | rear bumper cover | 52161-42902 · 52161-42903 · 52161-42907 · 52161-42908 · 52162-42902 · 52162-42903 · 52162-42907 · 52162-42908 |
| 52185A | Rear bumper right side bracket | 52185-42020 |
| 52186A | Rear bumper left bracket | 52185-42020 |
| 52187E | Rear bumper right positioning guide rod | 52187-16070 |
| 52188D | Rear bumper left positioning guide rod | 52187-16070 |
| 52197A | Rear bumper right seal support | 52197-16020 |
| 52197B | Rear bumper left seal support | 52197-16020 |
| 52561A | Clip (for rear bumper mount) | 90467-11063 |
| 52581 | Rear bumper right side protector | 52581-42020 |
| 52581A | Rear bumper curved filler protector | 52581-42010 |
| 52582 | Rear bumper left protector | 52582-42020 |
| 52591 | Rear bumper right seal | 52591-42020 · 52591-42030 |
| 52592 | Rear bumper left seal | 52592-42020 · 52592-42030 |
| 76647D | Front fender lining fixing parts | 53879-14030 · 76647-42010 |
