Toyota RAV4 制动助力器和真空管 — Figure 4703

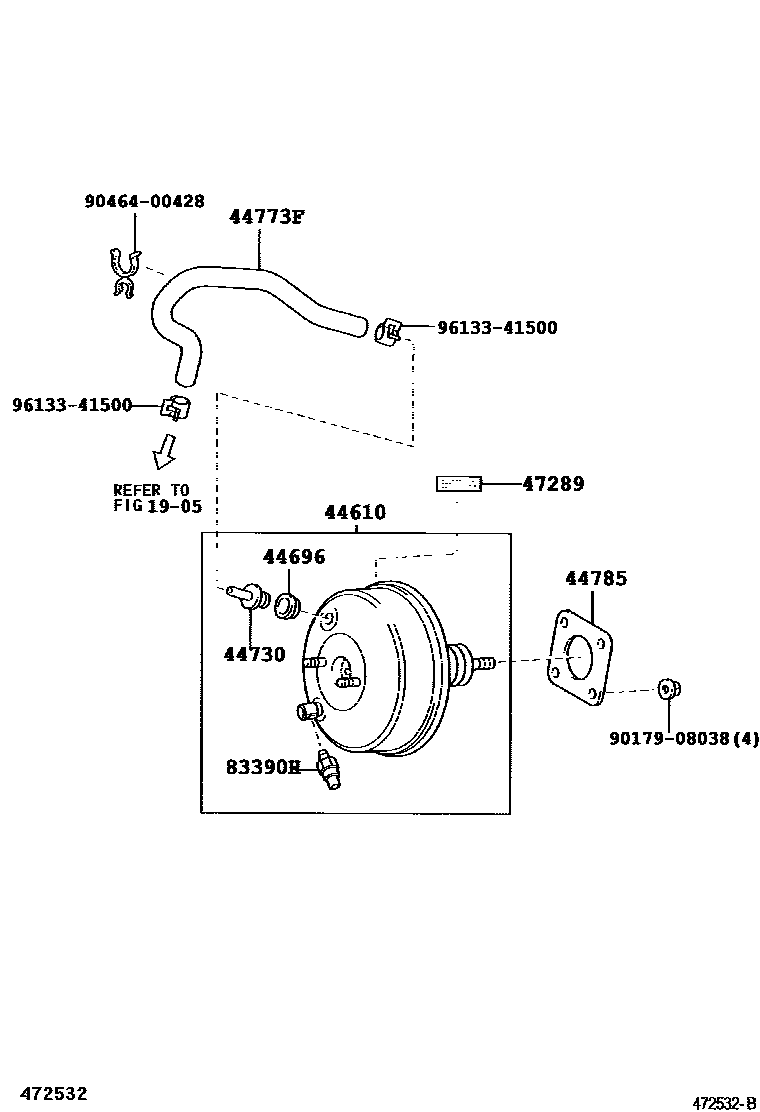

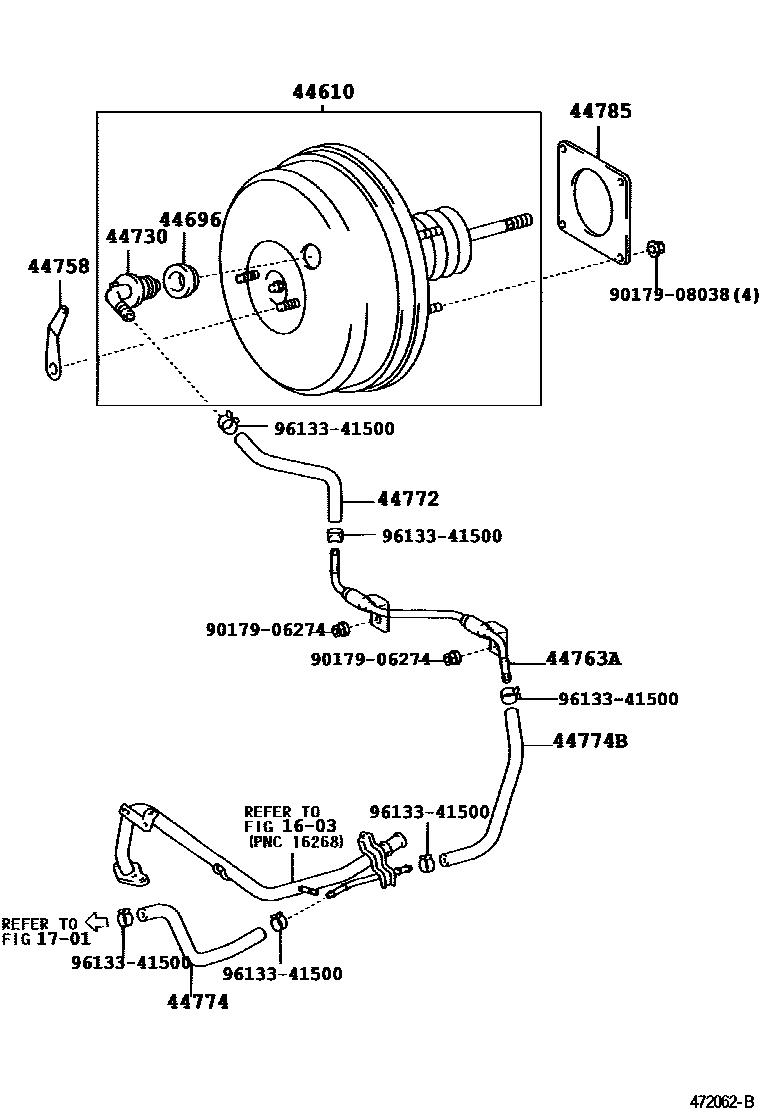

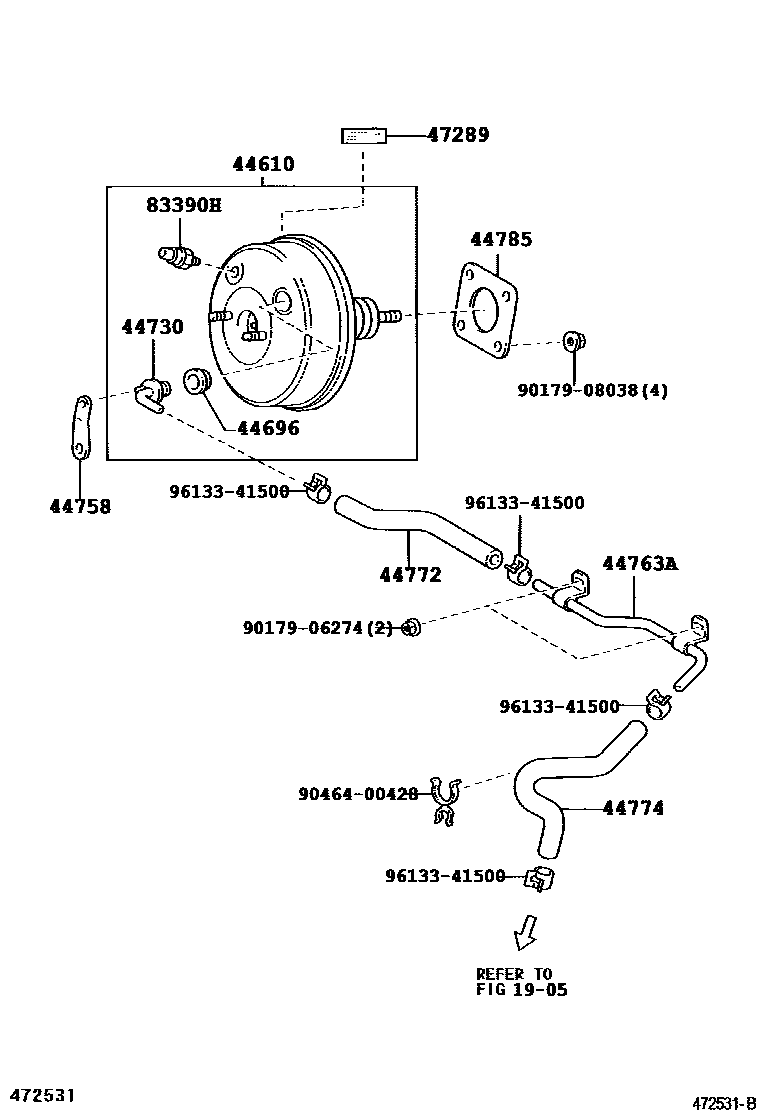

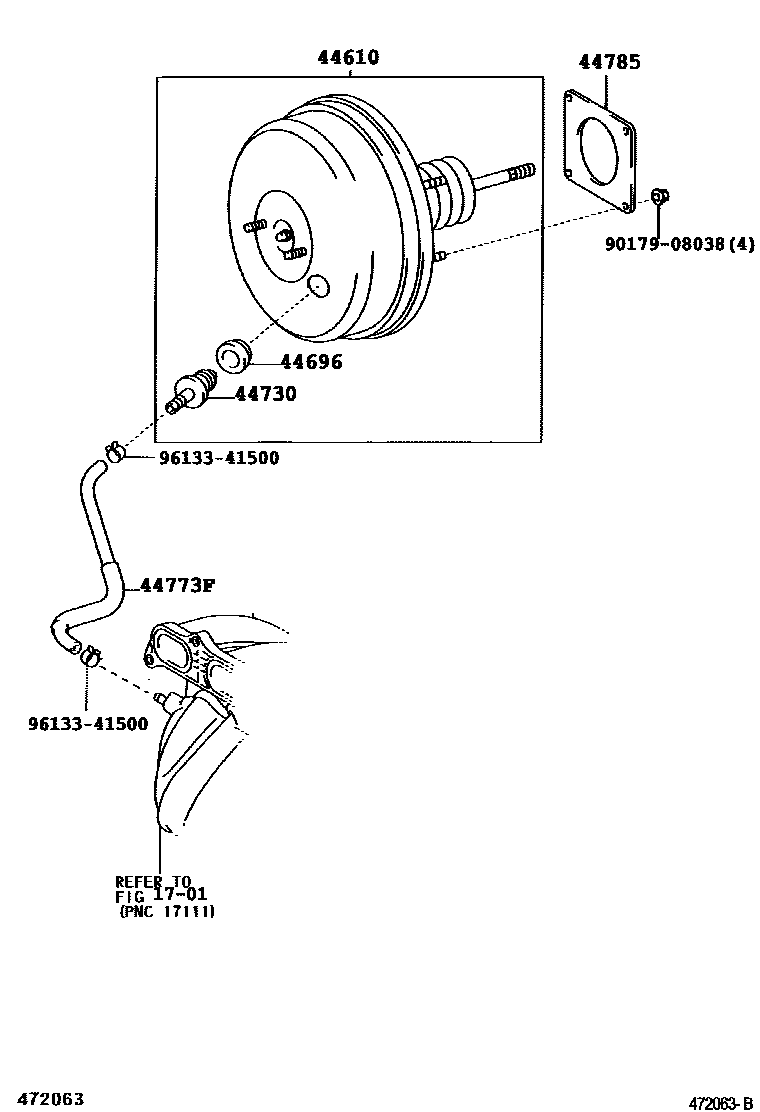

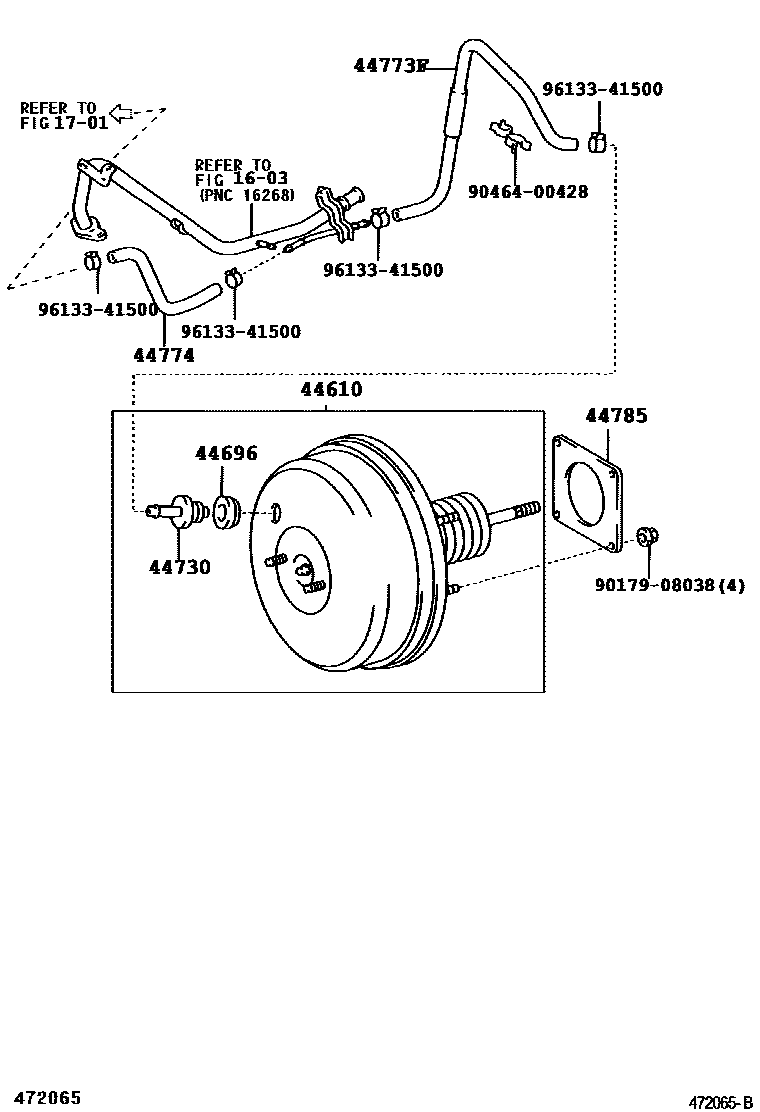

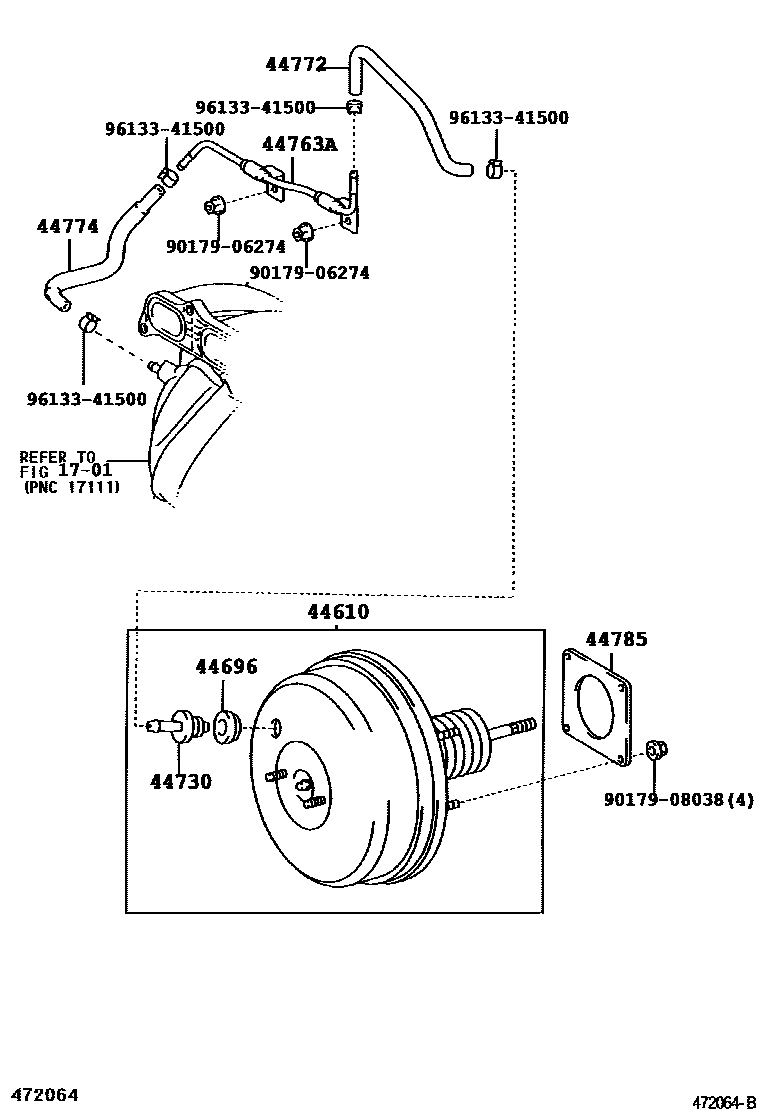

Toyota RAV4 EPC diagram 4703, 制动助力器和真空管, with 6 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-42100 · 44610-42110 · 44610-42120 · 44610-42121 · 44610-42130 · 44610-42131 · 44610-42140 · 44610-42150 · 44610-42160 · 44610-42170 · 44610-42200 · 44610-42210 · 44610-42220 · 44610-42230 |
| 44696 | One-way valve seal | 90480-24015 · 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-12040 · 44730-12070 · 44730-14050 · 44730-20080 · 44730-22150 · 44730-28030 · 44730-30010 |
| 44758 | Vacuum check valve bracket | 44758-42030 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-42030 · 44763-42040 · 44763-42050 · 44763-42051 |
| 44772 | Hoses (check valve to connector tube) | 44772-42040 · 44772-42041 · 44772-42050 · 44772-42060 |
| 44773F | Hoses (connector to check valve) | 44773-42100 · 44773-42110 · 44773-42120 |
| 44774 | Hoses (joints to connector tubes) | 44774-20310 · 44774-42030 · 44774-42050 · 44774-42051 · 44774-63010 |
| 44774B | Hoses (joints to connector tubes) | 44774-42020 |
| 44785 | brake booster pad | 44785-20020 |
| 47289 | Brake master cylinder adjustment information label | 47289-60030 |
| 83390H | Vacuum warning switch assembly | 83390-20180 |
