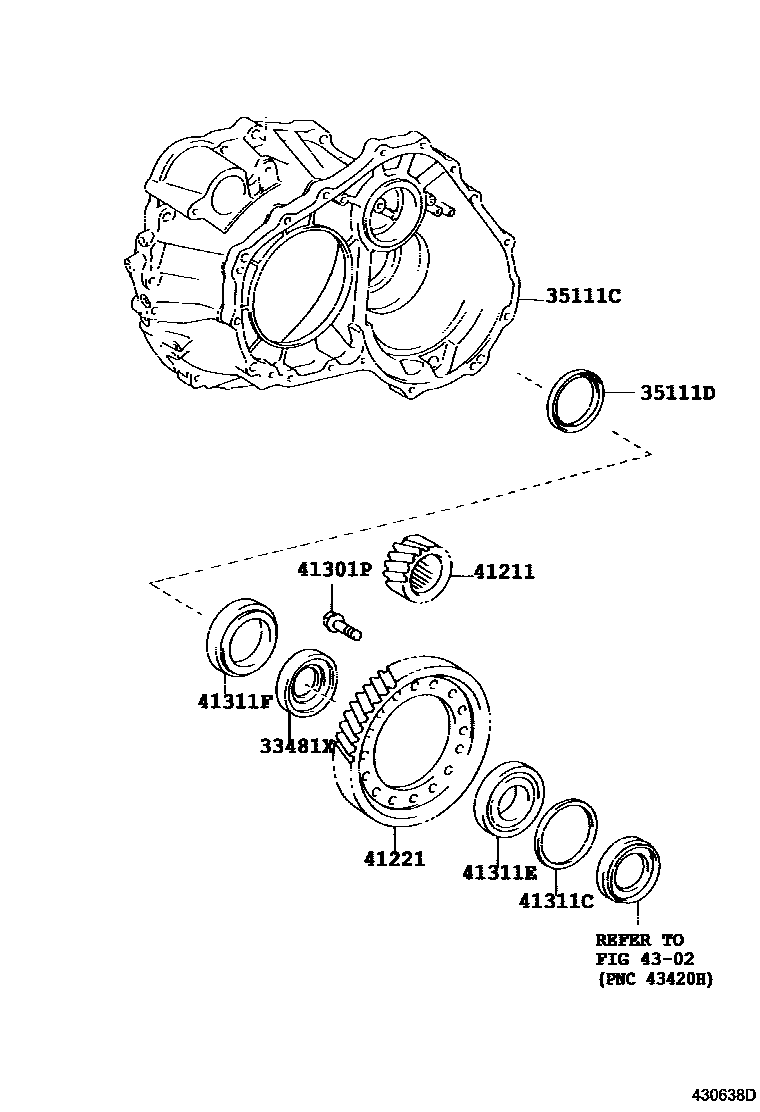

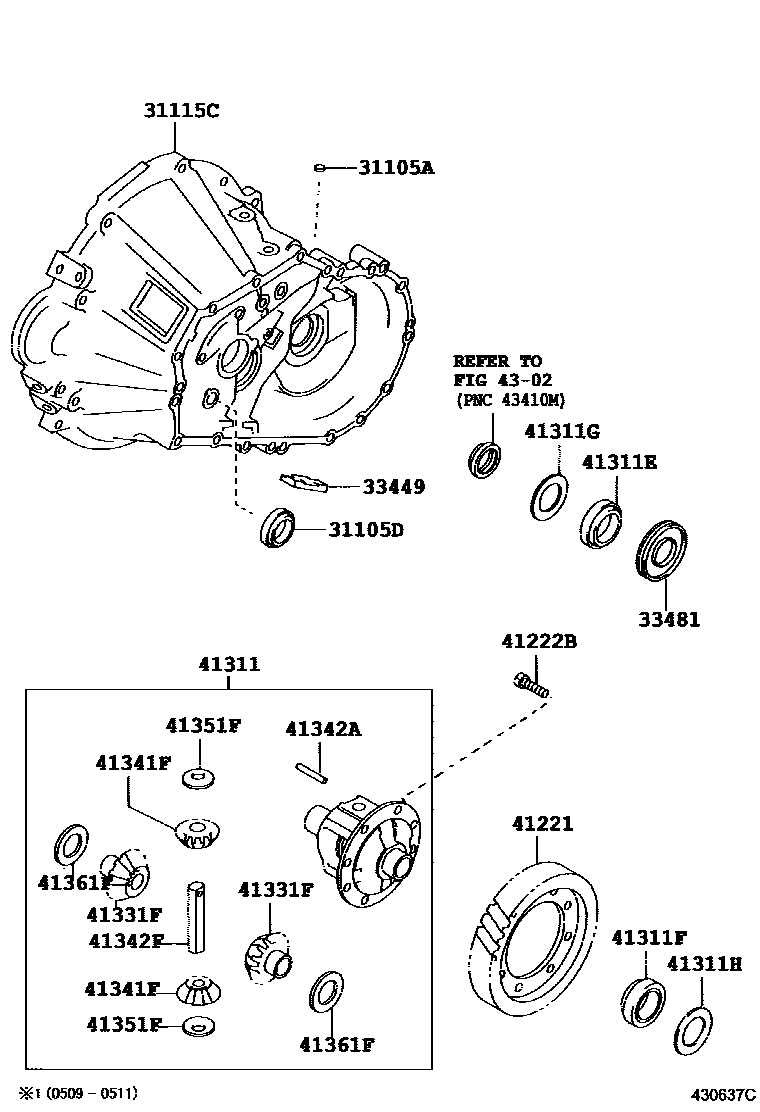

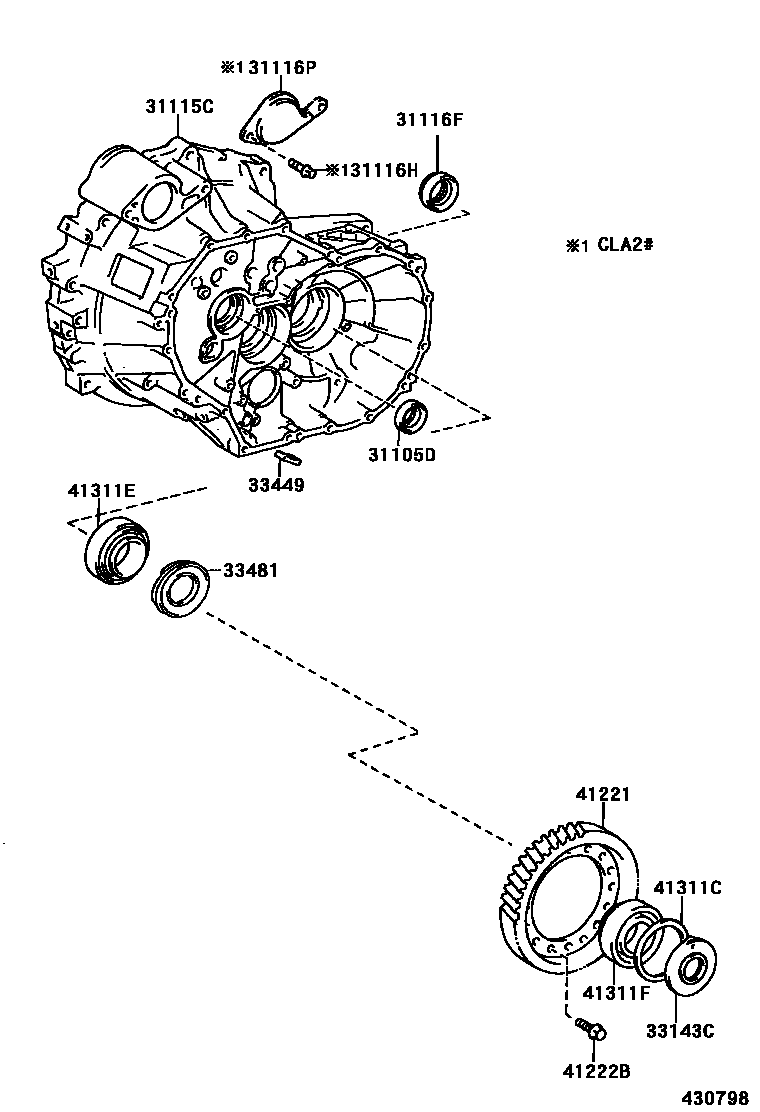

Toyota RAV4 前桥壳和差速器 — Figure 4301
Toyota RAV4 EPC diagram 4301, 前桥壳和差速器, with 3 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105A | Sealing plug (for front transaxle housing) | 90331-08002 |
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-25011 · 90311-25016 · 90311-25028 · 90311-30006 · 90311-30017 |
| 31115C | Front transmission axle housing (MTM) | 31115-20040 · 31115-20041 · 31115-42010 · 31115-42011 · 31115-42020 · 31115-42021 · 31115-42030 |
| 31116F | Oil seal (for front transmission axle housing cover) | 90311-62005 |
| 31116H | Bolts (for front transaxle housing cover) | 91511-41020 · 91622-61025 · 91622-B1025 |
| 31116P | Transmission axle housing cover | 31116-28010 |
| 33143C | Front differential oil baffle | 33143-20040 |
| 33449 | derailleur magnet | 33449-12020 · 33449-20010 |
| 33481 | Speedometer driving gear (MTM) | 33481-42030 · 33481-42031 · 33481-42060 · 33481-42061 · 33481-42080 |
| 33481X | speedometer drive gear | 33481-42090 |
| 35111C | Transmission axle housing | 35105-42010 · 35105-42011 · 35105-42012 · 35105-42013 |
| 35111D | Oil seal (for transaxle housing) | 90311-62004 |
| 41211 | Differential drive pinion | 41211-28100 · 41211-42030 |
| 41221 | Front differential ring gear | 41221-12261 · 41221-20350 · 41221-28120 · 41221-42010 · 41221-42040 · 41221-42060 · 41221-42080 |
| 41222B | Bolt (for front differential ring gear assembly) | 90105-11040 · 90105-12150 |
| 41301P | Screw (for front differential case) | 90105-12302 |
| 41311 | front differential case | 41301-32061 |
| 41311C | Rear gasket (for front differential case) | 90564-76001 · 90564-76002 · 90564-76003 · 90564-76004 · 90564-76005 · 90564-76006 · 90564-76007 · 90564-76008 · 90564-76009 · 90564-76010 · 90564-76011 · 90564-76012 · 90564-76013 · 90564-76014 · 90564-76015 · 90564-76016 · 90564-76017 · 90564-76018 · 90564-79001 · 90564-79002 · 90564-79003 · 90564-79004 · 90564-79005 · 90564-79006 · 90564-79007 · 90564-79008 · 90564-79009 · 90564-79010 · 90564-79011 · 90564-79012 · 90564-79013 · 90564-79014 · 90564-79015 · 90564-79016 · 90564-79017 · 90564-79018 |
| 41311E | Front roller tapered bearing (for front differential housing) | 90366-40097 · 90366-50014 · 90366-62004 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-40094 · 90366-50057 · 90366-62007 |
| 41311G | Front flat washer (for front differential case) | 90560-41003 |
| 41311H | Rear flat washer (for front differential case) | 90564-41014 · 90564-41015 · 90564-41016 · 90564-41017 · 90564-41018 · 90564-41019 · 90564-41020 · 90564-41021 · 90564-41022 · 90564-41023 · 90564-41024 · 90564-41025 · 90564-41026 · 90564-41027 · 90564-41028 · 90564-41029 · 90564-41030 · 90564-41031 · 90564-41032 |
| 41331F | Front differential side gear | 41331-32010 |
| 41341F | Front differential planetary gear | 41341-30011 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-32020 |
| 41351F | Front differential planetary gear thrust washer | 41351-32010 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-22020 · 41361-22030 · 41361-22040 · 41361-22140 · 41361-22150 · 41361-22160 |
