Toyota RAV4 Shift Lever & Retainer — Figure 3312

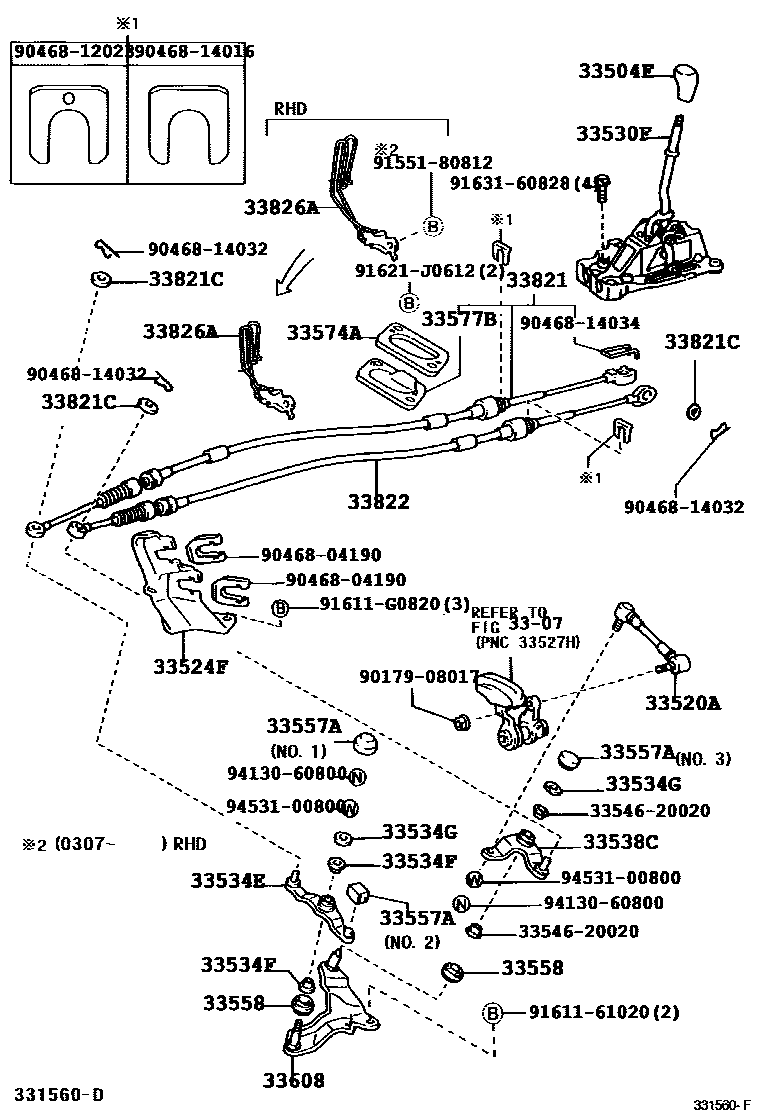

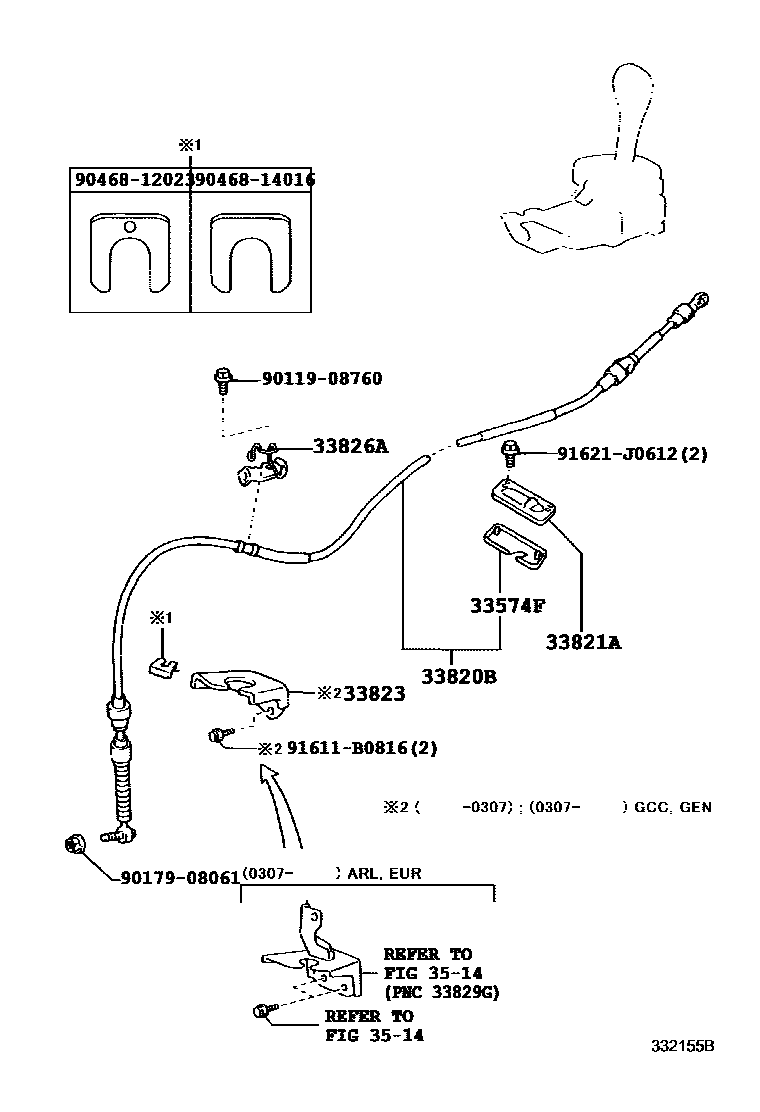

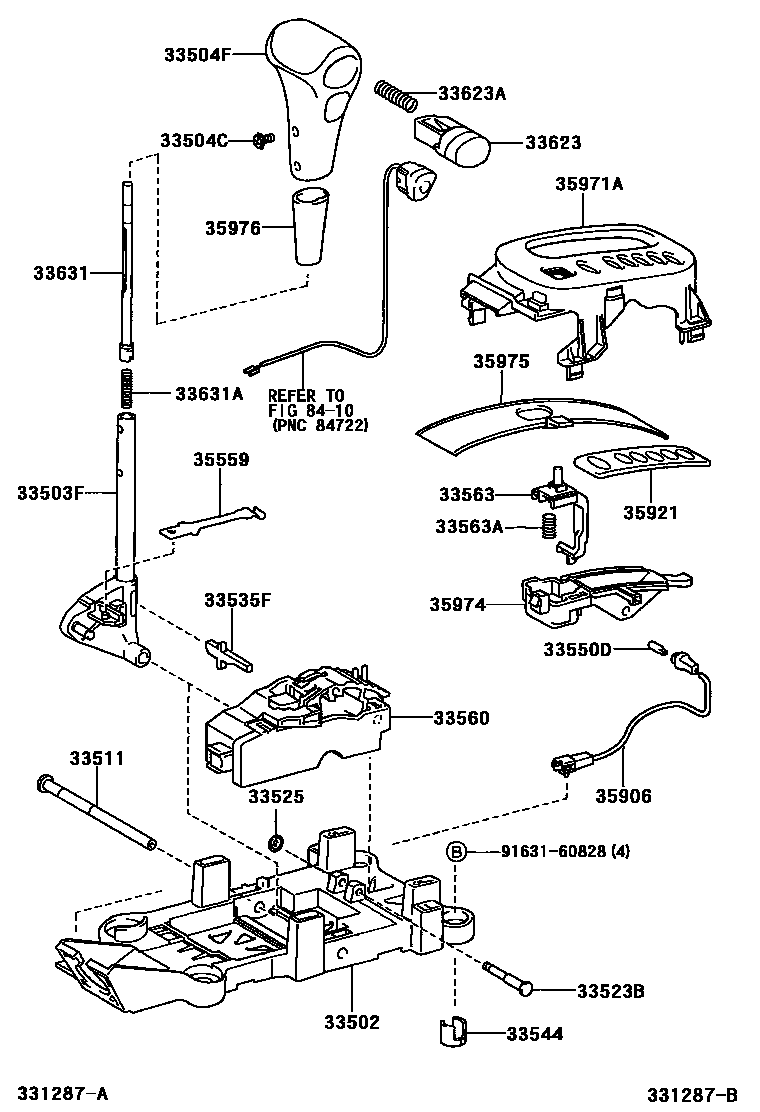

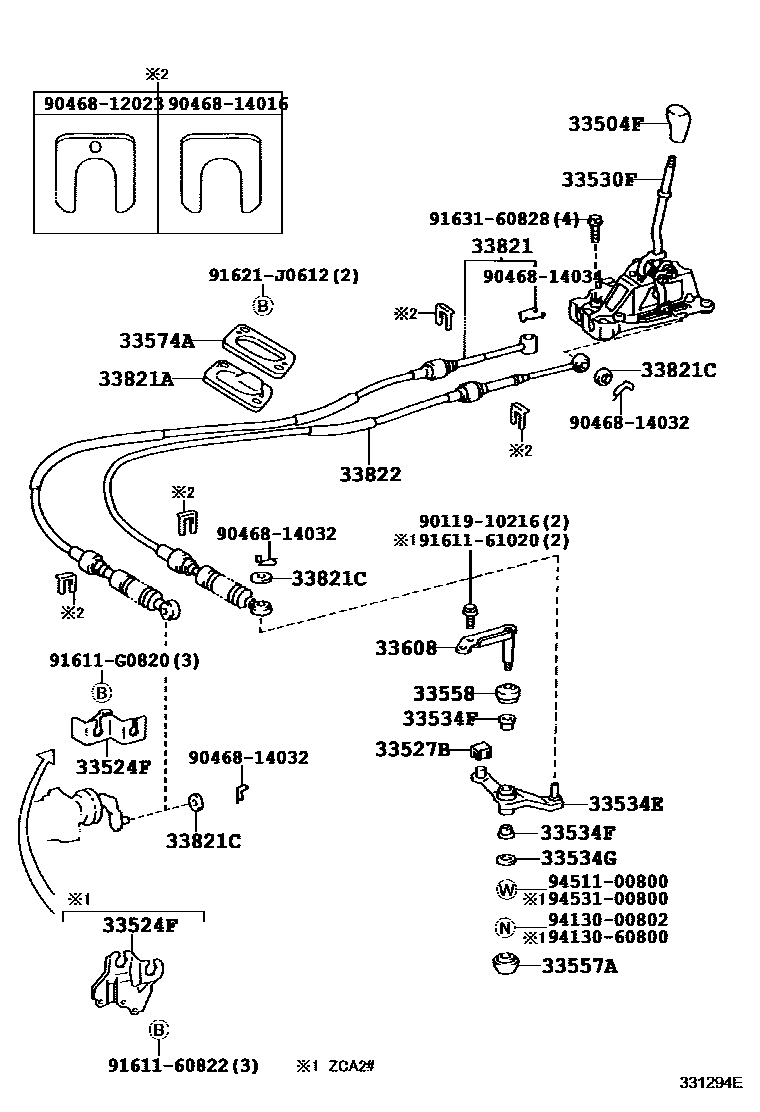

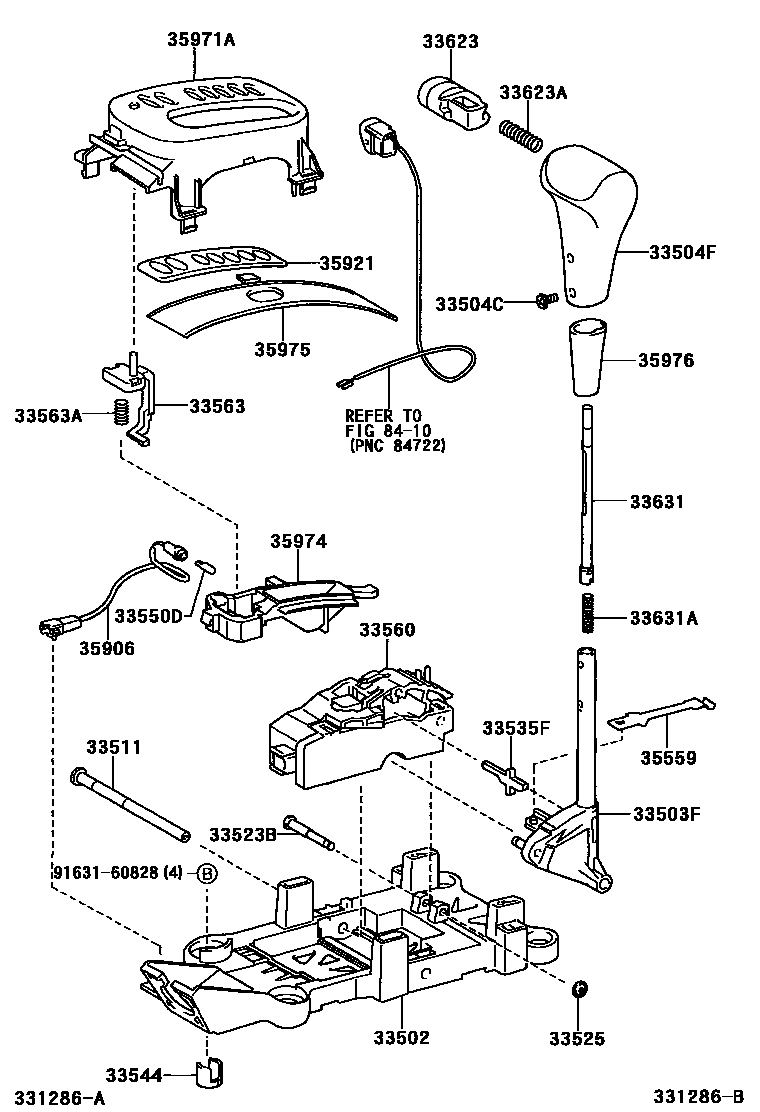

Toyota RAV4 EPC diagram 3312, Shift Lever & Retainer, with 5 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33502 | Shift lever base plate sub-assembly | 33521-42020 |
| 33503F | Shift lever sub-assembly (for floor shift) | 33055-42050 · 33055-42060 · 33055-42061 |
| 33504C | Screw (for securing shift lever knob) | 90159-40238 |
| 33504F | Shift lever handle sub-assembly | 33542-42020 · 33542-42030 · 33542-42040 · 33542-42050 |
| 33511 | Control shaft (for floor shifting) | 33511-42020 |
| 33520A | Floor type shift control shaft assembly | 33520-28210 |
| 33523B | Shift lever pin (for floor shift) | 33523-42010 |
| 33524F | Lever housing bracket (for floor shift) | 33524-42010 · 33524-42020 · 33524-42030 |
| 33525 | shift lever bracket | 33525-42010 |
| 33527B | Bushing (for shift control lever) | 33557-33010 |
| 33530F | Shift lever assembly (for floor shift) | 33530-42030 · 33530-42040 · 33530-42050 · 33530-42060 |
| 33534E | No. 2 gear selection right-angle lever | 33534-28090 · 33534-28100 · 33534-42010 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33535F | Gear selector lever (for floor shift) | 33535-42010 |
| 33538C | Gear shift right angle lever | 33538-28040 |
| 33544 | Shift lever insert No. 1 | 33544-33010 |
| 33550D | position indicator light bulb | 90981-11018 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-17010 · 33557-20010 · 33557-32010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 |
| 33560 | Shift lock control unit assembly | 33560-42010 · 33560-42011 · 33560-42012 |
| 33563 | Shift lock release button | 33563-42020 · 33563-42040 |
| 33563A | Compression spring (for shift lock release button) | 90501-06089 |
| 33574A | No. 1 shift cable retaining ring retaining ring | 33574-42030 |
| 33574F | Dust seal retainer (for floor shift) | 33574-42030 |
| 33577B | Control shaft hole cover | 33577-42060 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-12031 · 33608-28010 · 33608-42010 |
| 33623 | Shift lever handle button | 33623-42020 · 33623-42030 |
| 33623A | Compression spring (for shift lever knob button) | 90501-07144 |
| 33631 | Locking lever | 33631-42010 |
| 33631A | Compression spring (for locking lever) | 90501-07139 |
| 33820B | Transmission control cable assembly | 33820-42090 |
| 33821 | Transmission shift control cable (for floor-mounted shifting) | 33821-42100 · 33821-42110 · 33821-42120 |
| 33821A | No. 1 retaining ring (for transmission control cable) | 33577-42030 · 33577-42050 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08077 · 90201-10042 |
| 33822 | Transmission selector control cable (for floor-mounted shifting) | 33822-42040 · 33822-42050 · 33822-42060 |
| 33823 | No. 1 transmission control cable bracket | 33823-28240 |
| 33826A | No. 2 transmission control cable bracket | 33826-42030 · 33826-42050 · 33826-42060 · 33826-42081 · 33826-42091 |
| 35559 | Manual locking spring | 35559-42020 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-42030 · 35906-42040 |
| 35921 | control position indicator board | 35921-42030 · 35921-42040 |
| 35971A | Position indicator light upper shell | 35971-42020 · 35971-42040 |
| 35974 | Position indicator light lower shell | 35974-42020 · 35974-42030 |
| 35975 | Slide cover (for position indicator light) | 35975-42010 |
