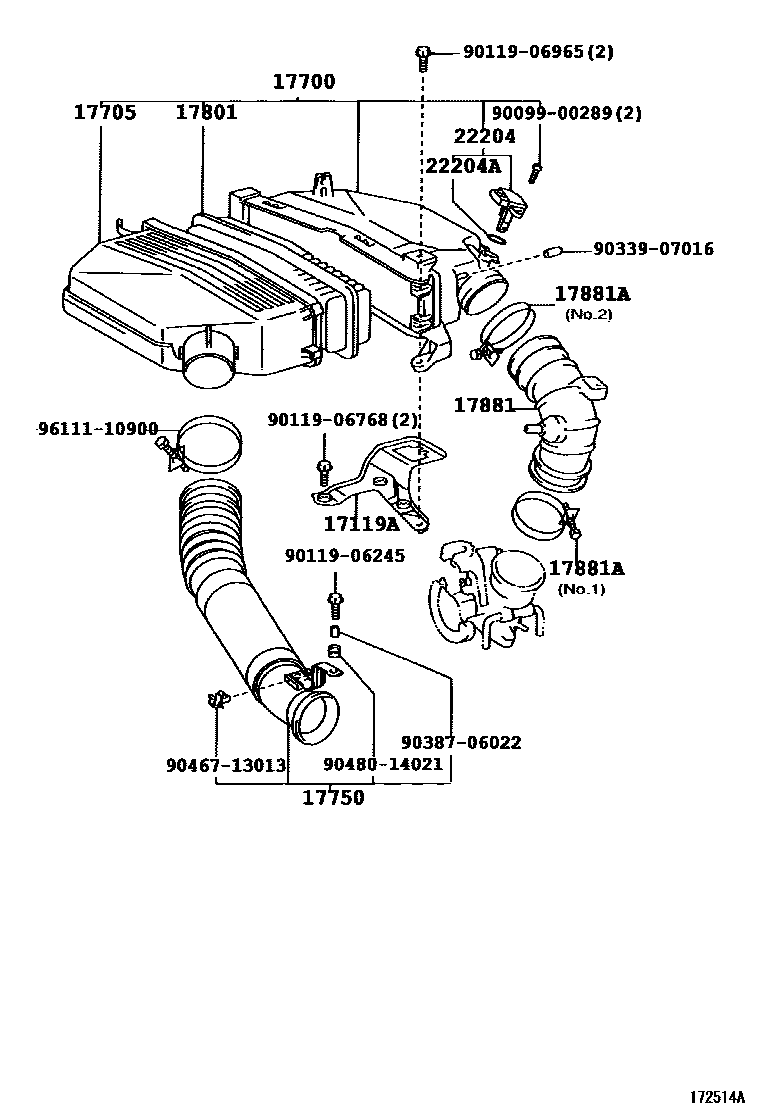

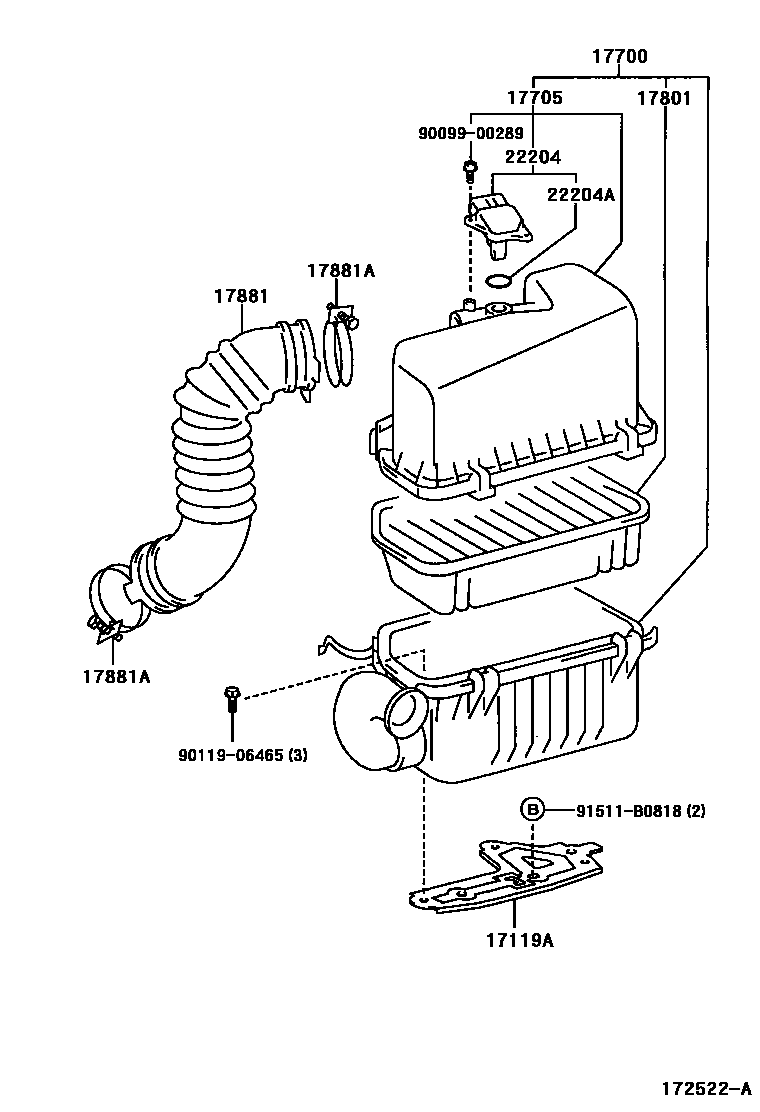

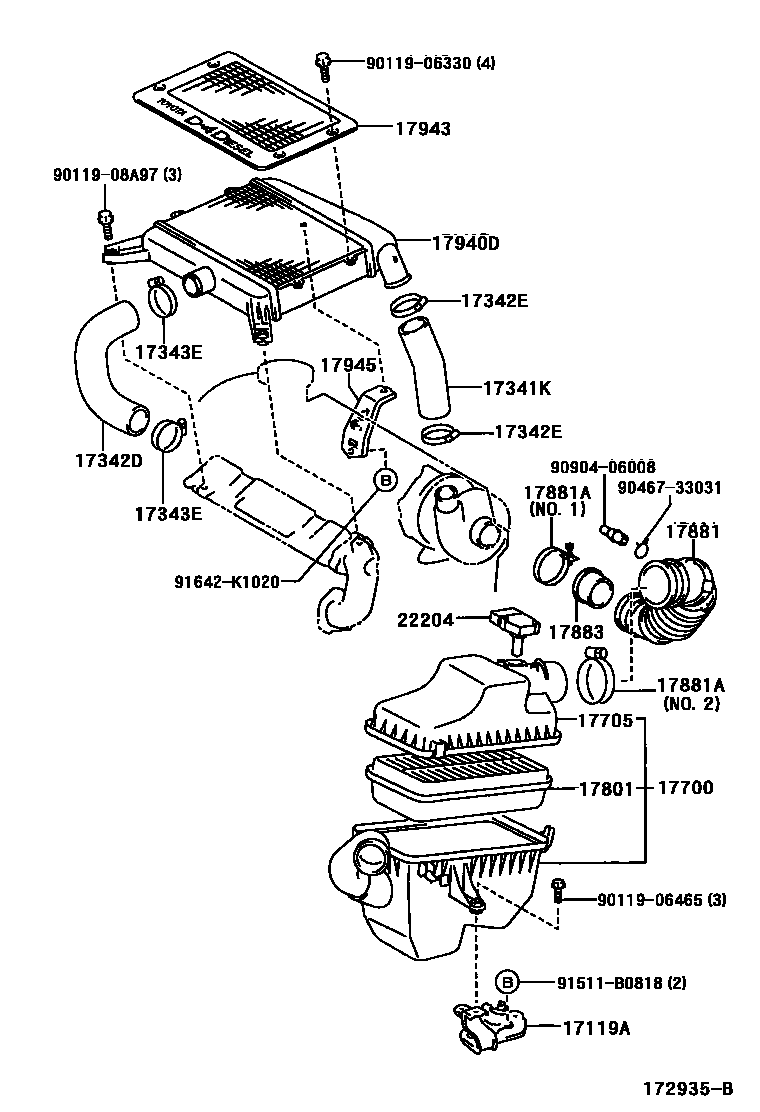

Toyota RAV4 Air Cleaner — Figure 1703
Toyota RAV4 EPC diagram 1703, Air Cleaner, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17119A | air filter bracket | 17119-22050 · 17119-27010 · 17119-28010 |
| 17341K | Air hose No. 1 (for intercooler) | 17341-27040 |
| 17342D | Air hose No. 2 | 17342-27060 |
| 17342E | Clip or clip (for No. 2 air hose) | 90460-60006 |
| 17343E | Hose clamp (for size 3 air hose) | 90460-70003 · 90460-70009 |
| 17700 | air filter assembly | 17700-22110 · 17700-27190 · 17700-27191 · 17700-27192 · 17700-28090 · 17700-28091 · 17700-28230 · 17700-28231 |
| 17705 | Air filter cover sub-assembly | 17705-22110 · 17705-27070 · 17705-28050 · 17705-28170 |
| 17750 | Air filter air inlet cover seal assembly | 17750-28010 |
| 17801 | Air filter element sub-assembly | 17801-27010 · 17801-27030 · 17801-28010 · 17801-70050 |
| 17881 | No. 1 air cleaner hose | 17881-22060 · 17881-27090 · 17881-28040 · 17881-28180 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-62003 · 90460-62007 · 90460-77002 · 90466-62001 · 90466-62002 · 90467-60001 · 96111-10830 |
| 17883 | No. 3 air cleaner hose | 17883-27010 |
| 17940D | Intercooler assembly | 17940-27040 |
| 17943 | Intercooler protection device | 17943-27010 |
| 17945 | intercooler bracket | 17945-27030 |
| 22204 | Intake air flow meter assembly | 22204-22010 · 22204-27010 |
| 22204A | O-ring (for intake air flow meter) | 90099-14141 |
