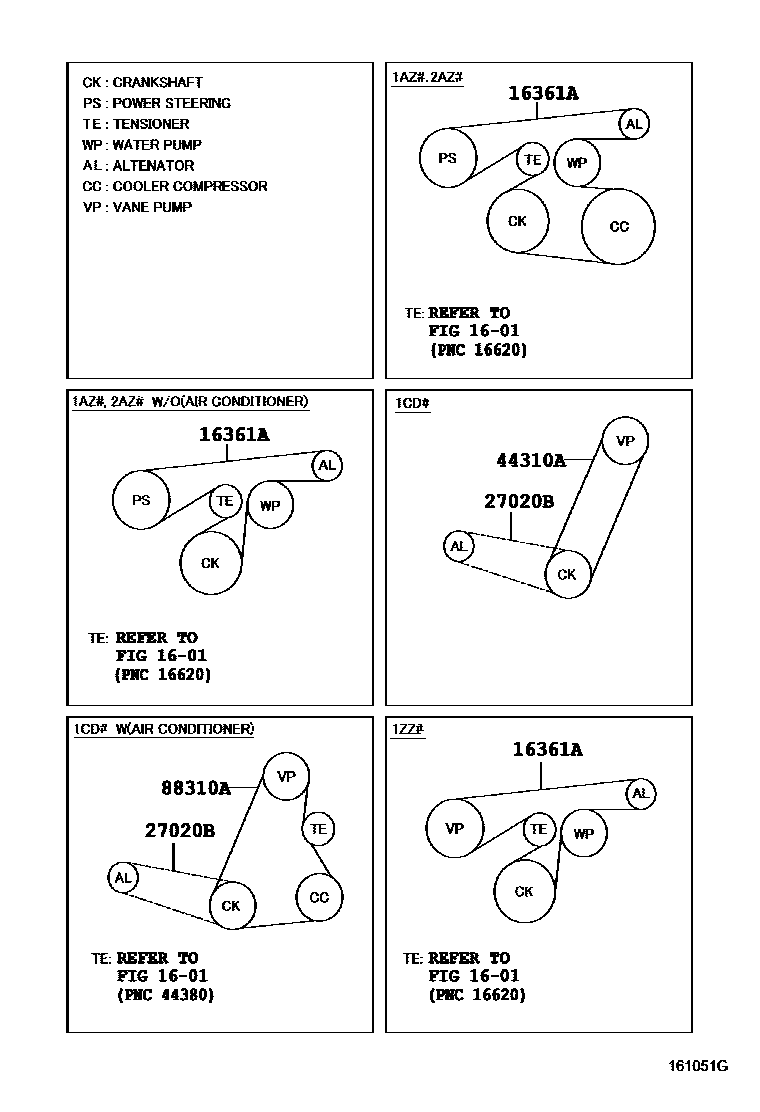

Toyota RAV4 V-Belt — Figure 1605
Toyota RAV4 EPC diagram 1605, V-Belt, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16361A | V-belts (for fans and generators) | 90080-91214 · 90916-02432 · 90916-02468 · 90916-02491 · 90916-02494 · 90916-02502 · 90916-02503 · 90916-02534 · 90916-02535 · 90916-02547 · 90916-02596 · 90916-02597 · 90916-02598 · 90916-02599 |
| 27020B | V-belt (for generator) | 90916-02517 |
| 44310A | V-belt (for vane pump) | 99365-31120 |
| 88310A | No. 1 V-belt (cooler compressor to crankshaft pulley) | 90916-02647 · 99365-21190 · 99365-D1190 |
