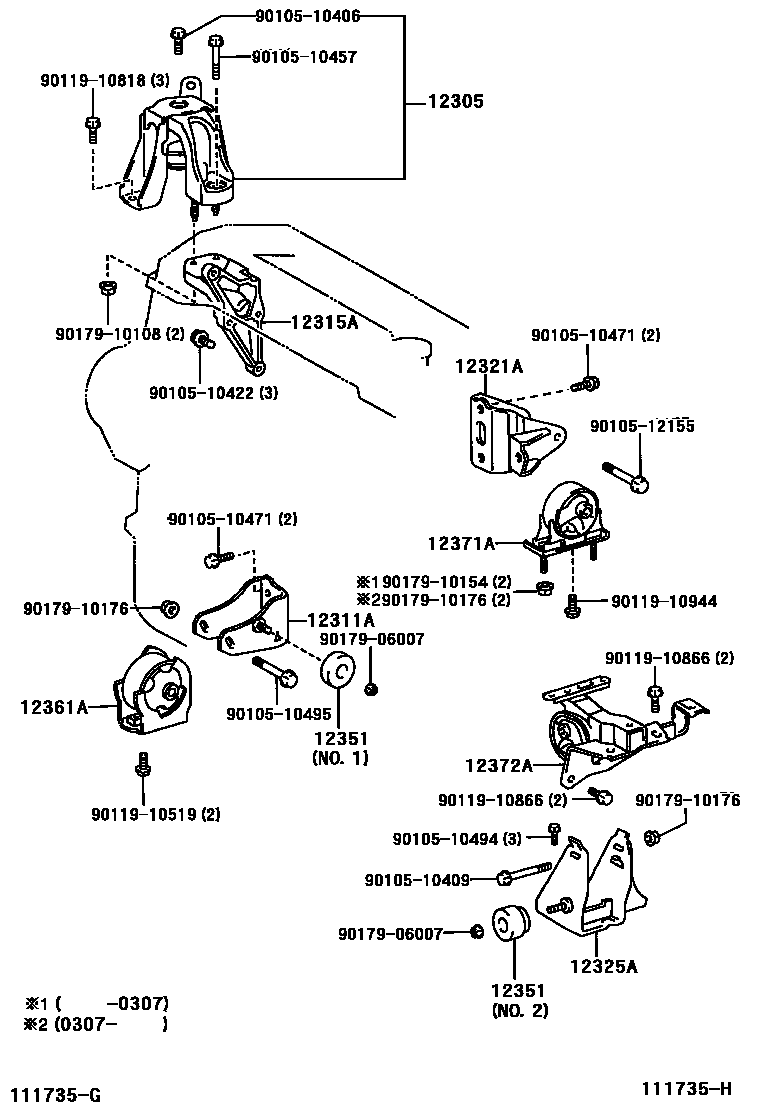

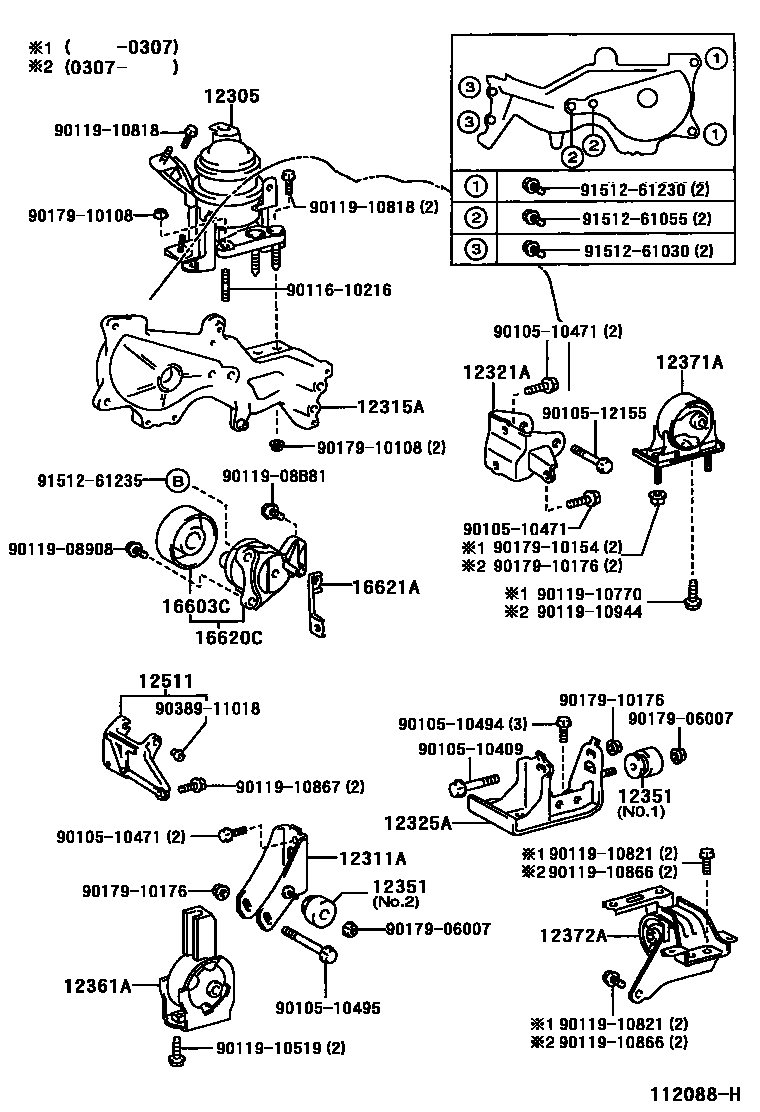

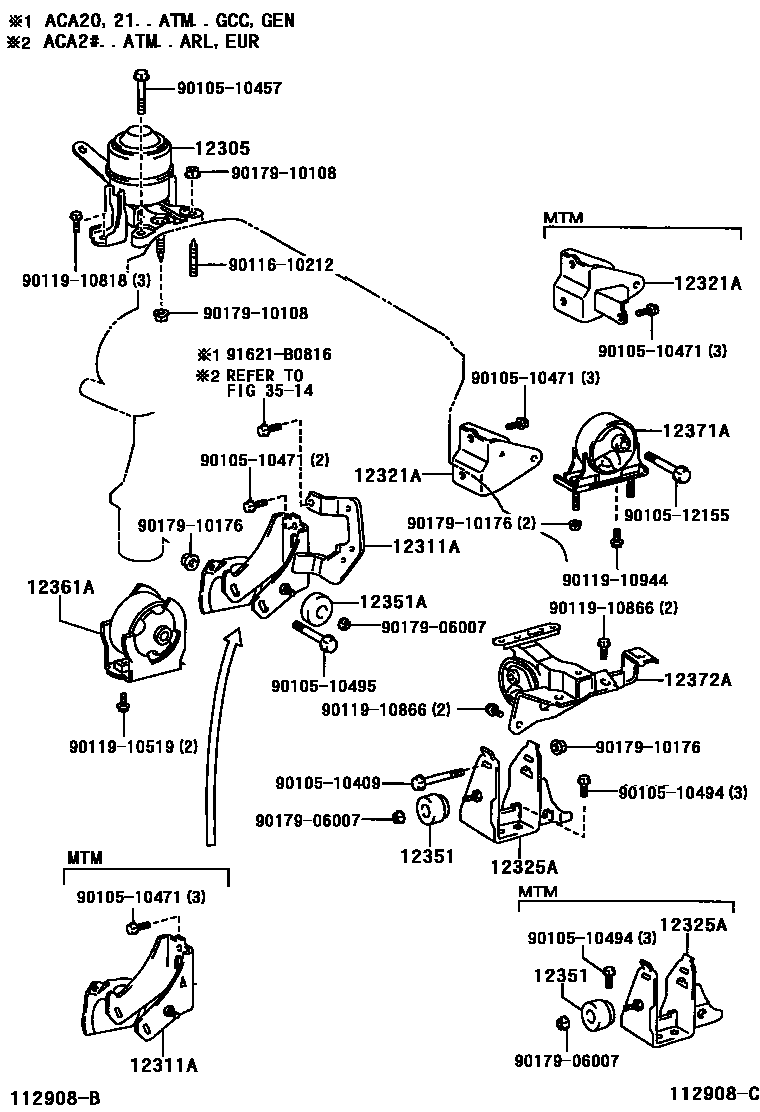

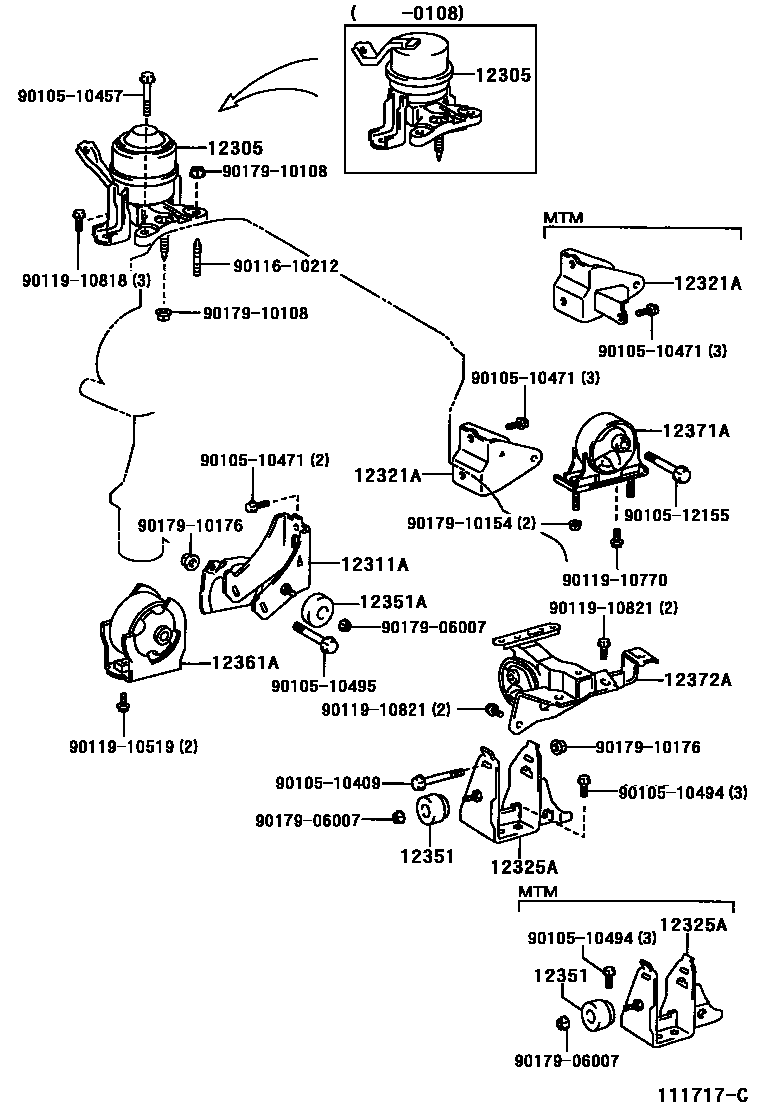

Toyota RAV4 Engine Mounting — Figure 1107
Toyota RAV4 EPC diagram 1107, Engine Mounting, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-22100 · 12305-27040 · 12305-28060 · 12305-28150 · 12305-28151 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-22060 · 12311-27050 · 12311-28040 · 12311-28190 · 12311-28200 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-22020 · 12315-27030 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-22080 · 12321-22081 · 12321-27050 · 12321-28050 · 12321-28060 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-22070 · 12325-27050 · 12325-28040 · 12325-28050 |
| 12351 | engine mount shock absorber | 12351-16070 · 12351-64060 · 12351-74010 · 12351-74140 |
| 12351A | Engine mount shock absorber (for vibration isolation pad) | 12351-22020 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-21010 · 12361-22080 |
| 12371A | Engine rear mount vibration isolation pad | 12371-22121 · 12371-22200 · 12371-22201 · 12371-28020 · 12371-28021 · 12371-28030 · 12371-28031 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-22050 · 12372-22051 · 12372-27050 · 12372-28030 · 12372-28031 · 12372-28040 · 12372-28041 |
| 12511 | No. 1 generator bracket | 12511-27010 |
| 16603C | Idler gear sub-assembly | 16603-27010 · 16603-27011 |
| 16620C | Poly V-belt tensioner assembly | 16620-27020 · 16620-27021 |
| 16621A | Poly V-belt tensioner bracket | 16621-27010 |
