Toyota RAV4 Engine Overhaul Gasket Kit — Figure 1103

Toyota RAV4 EPC diagram 1103, Engine Overhaul Gasket Kit, with 12 images and 2 PNC and OE references.

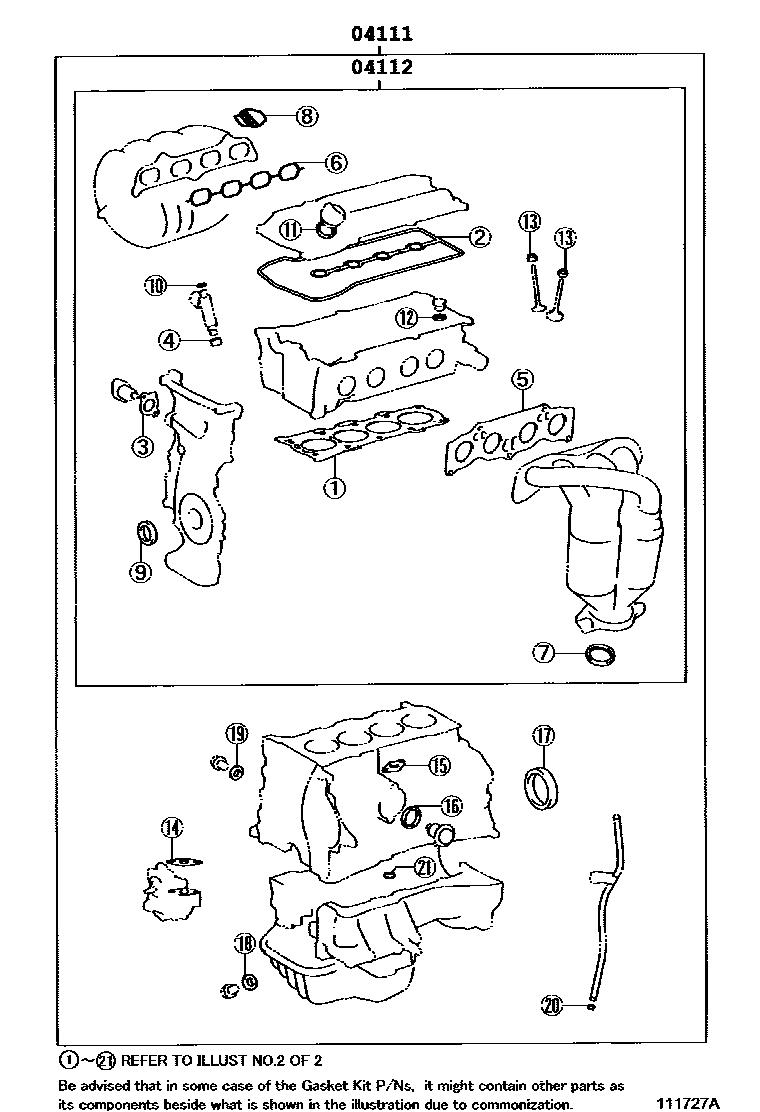

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 111727A
Engine Overhaul Gasket Kit — 111727A (200005 – 200404)

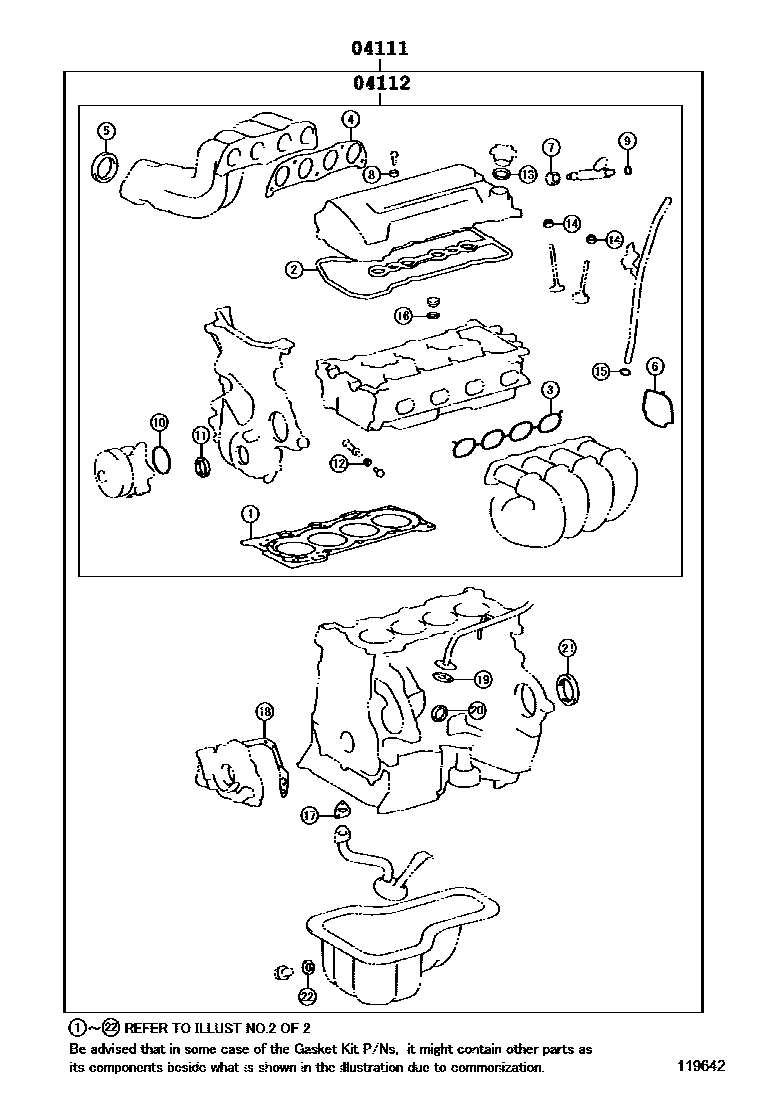

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 119642
Engine Overhaul Gasket Kit — 119642 (200005 – 999999)

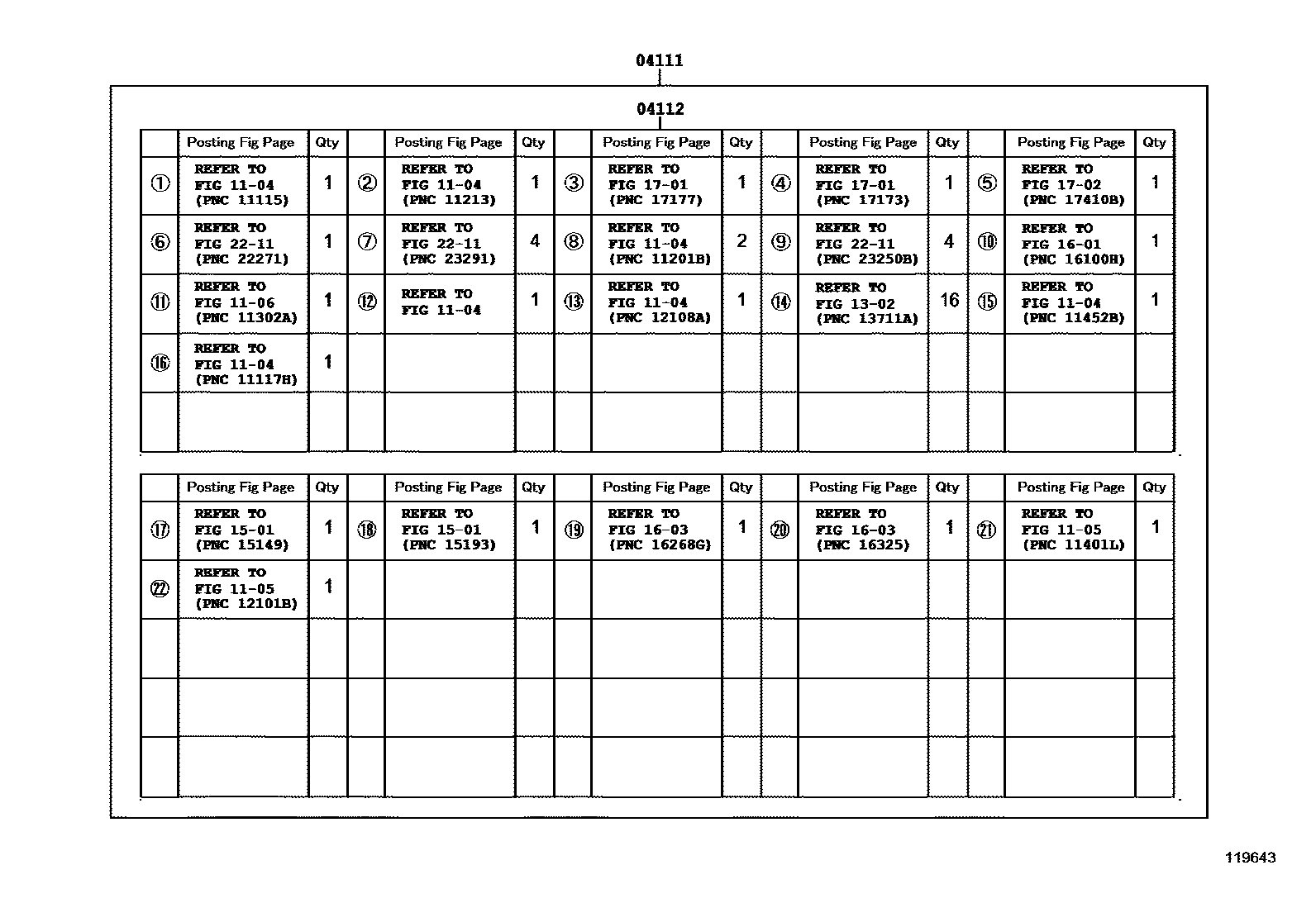

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 119643
Engine Overhaul Gasket Kit — 119643 (200005 – 999999)

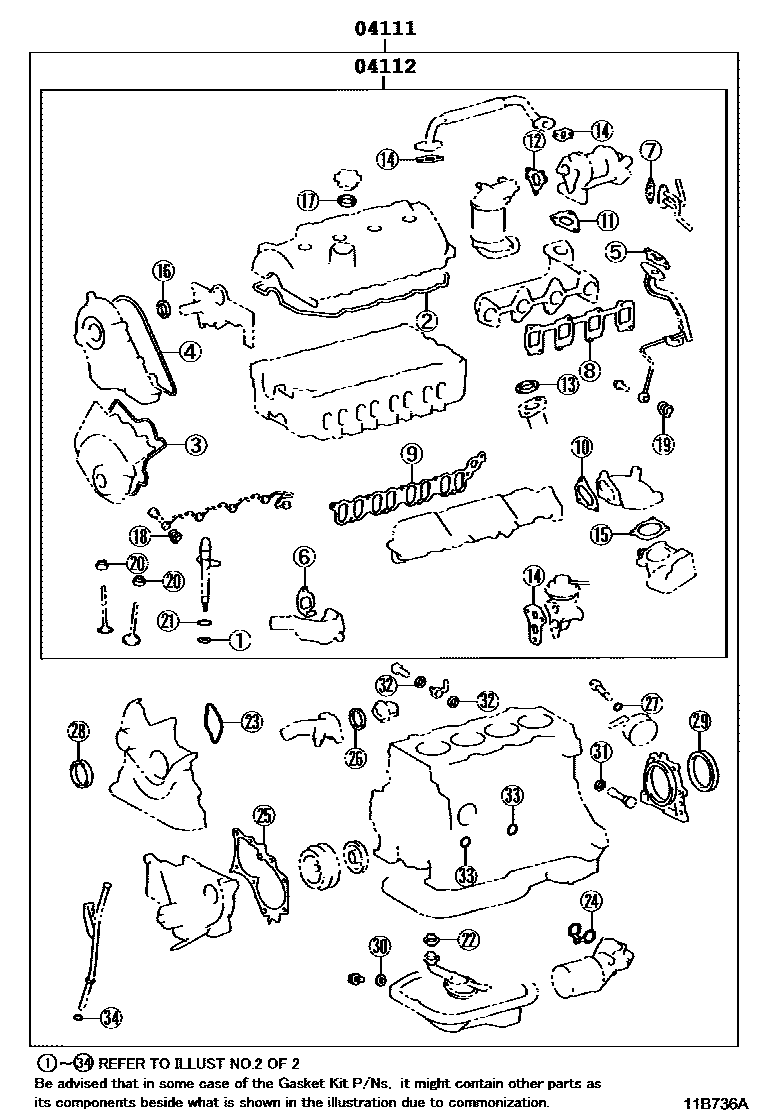

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 11B736A
Engine Overhaul Gasket Kit — 11B736A (200105 – 200404)

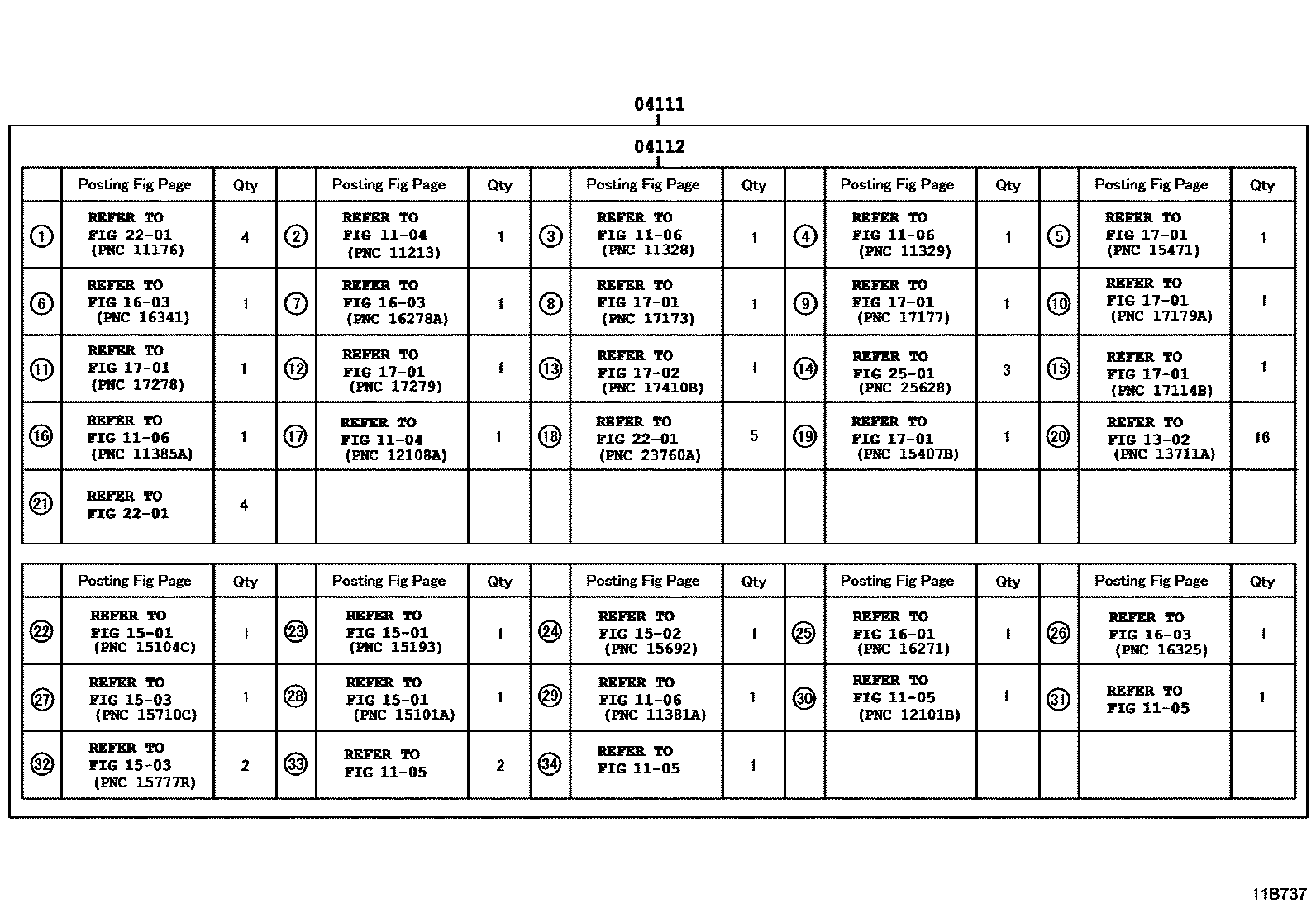

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 11B737
Engine Overhaul Gasket Kit — 11B737 (200105 – 200404)

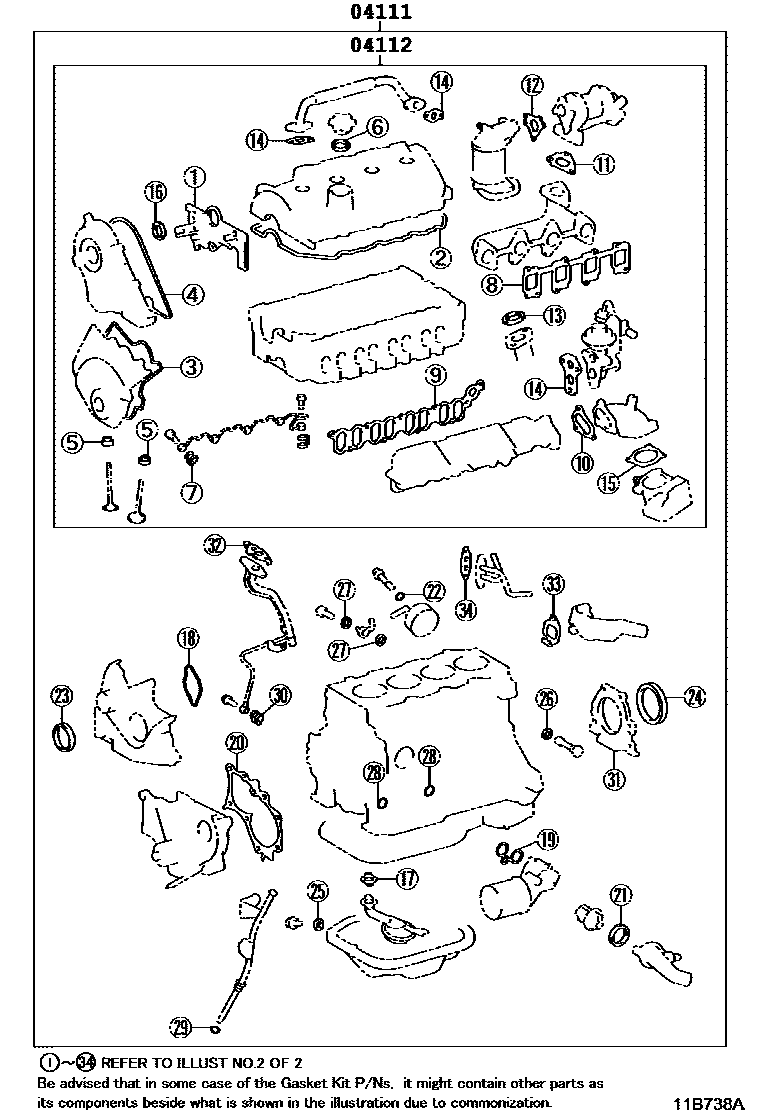

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 11B738A
Engine Overhaul Gasket Kit — 11B738A (200404 – 999999)

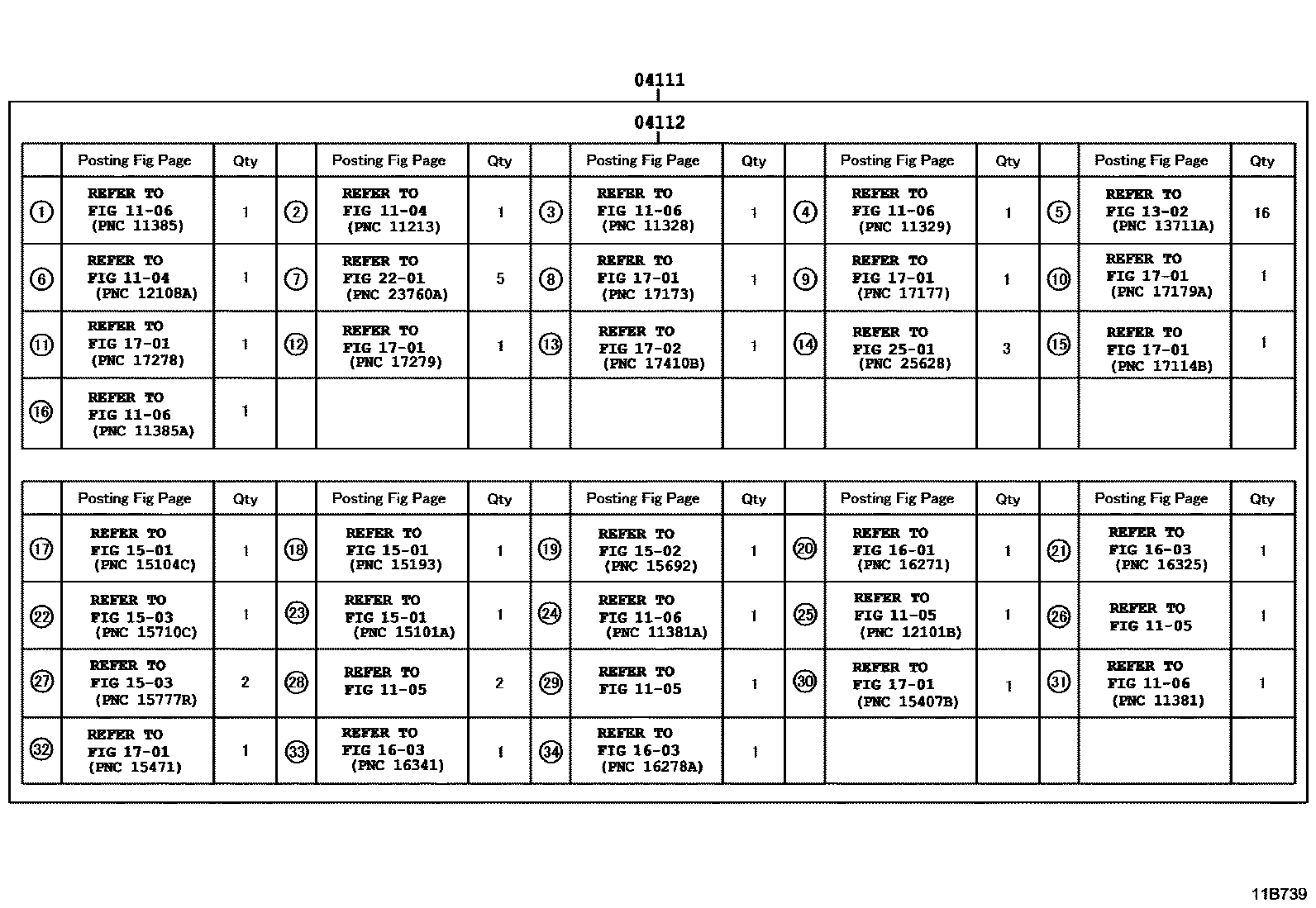

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 11B739
Engine Overhaul Gasket Kit — 11B739 (200404 – 999999)

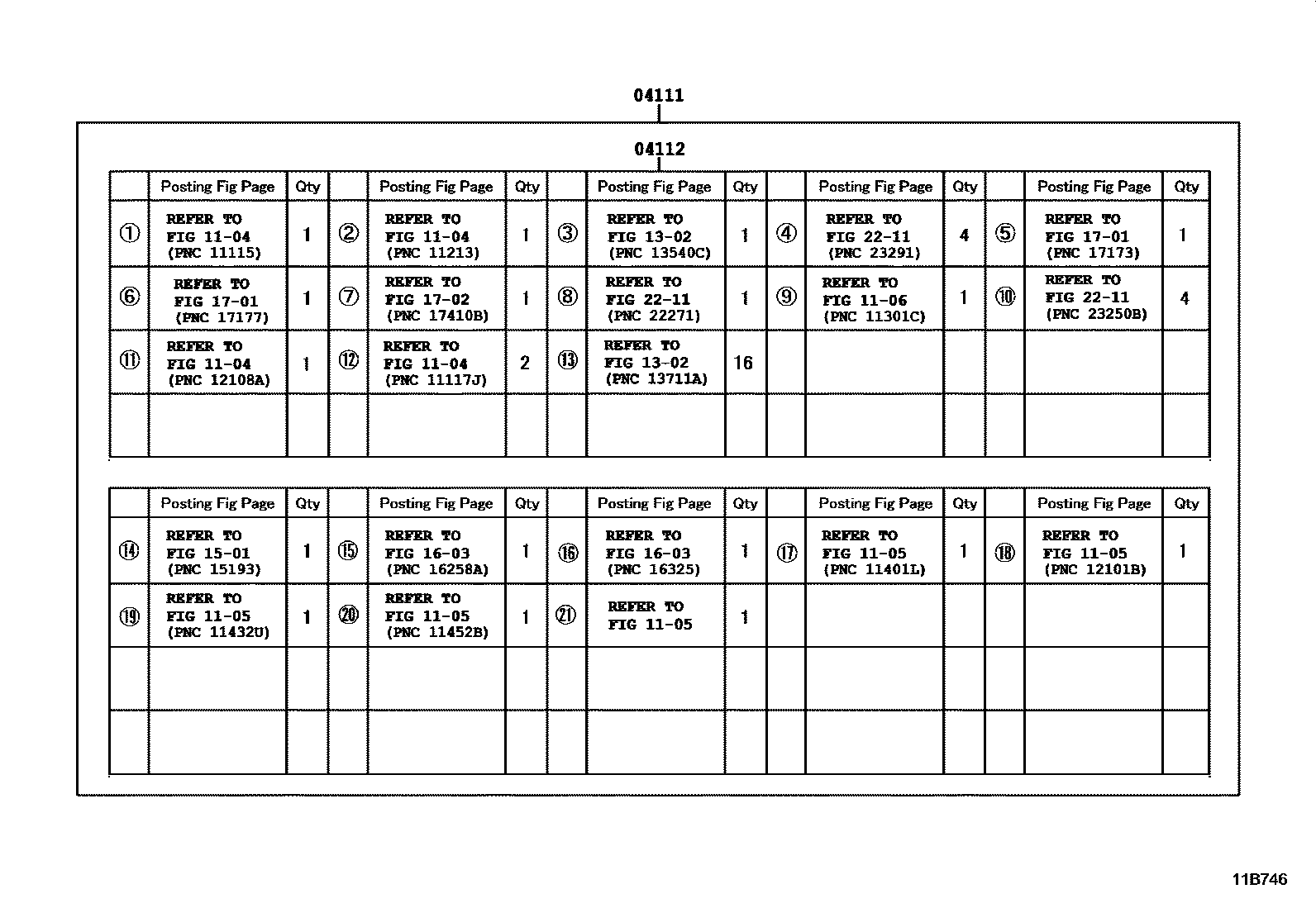

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 11B746
Engine Overhaul Gasket Kit — 11B746 (200005 – 200404)

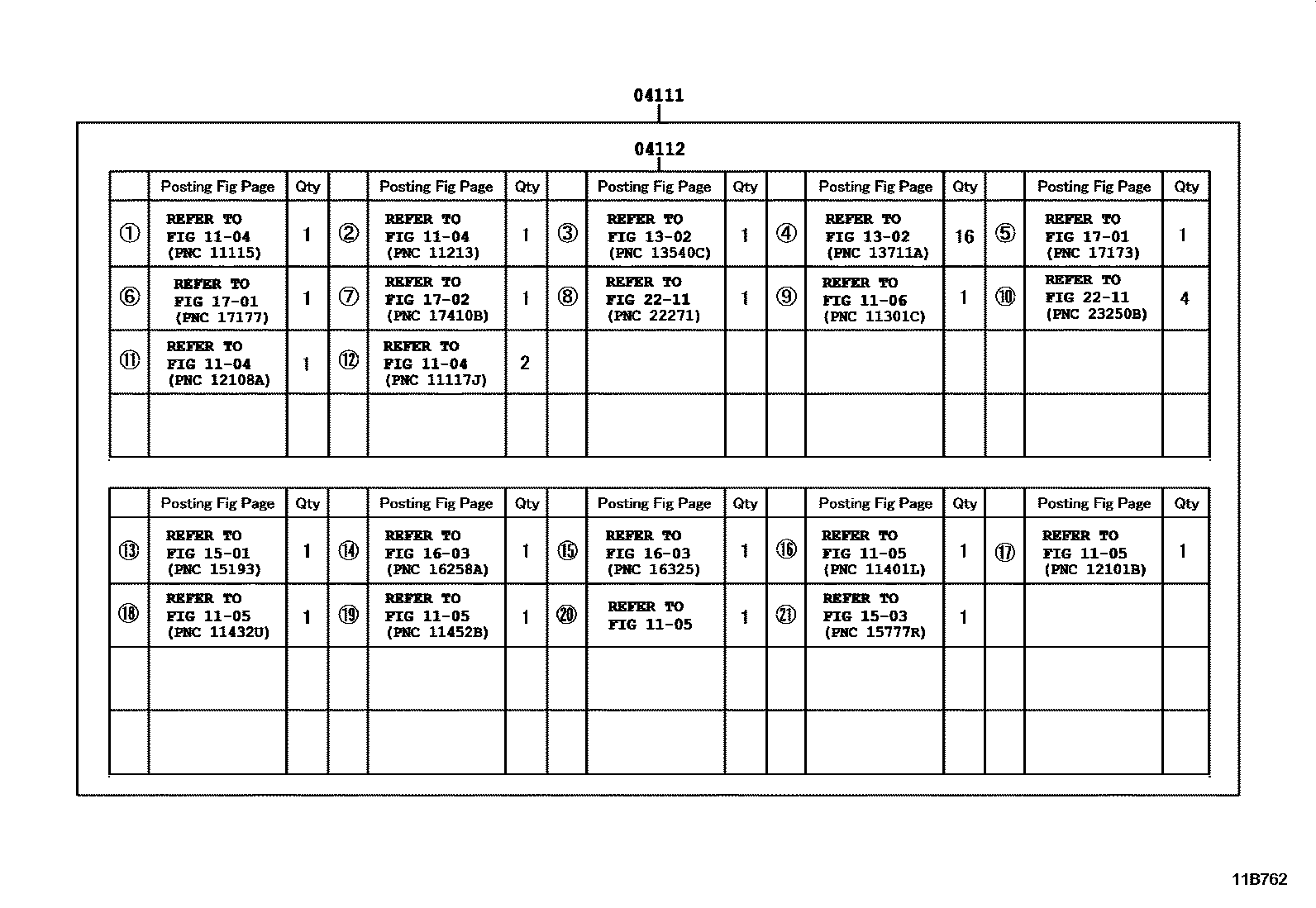

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 11B762
Engine Overhaul Gasket Kit — 11B762 (200404 – 200511)

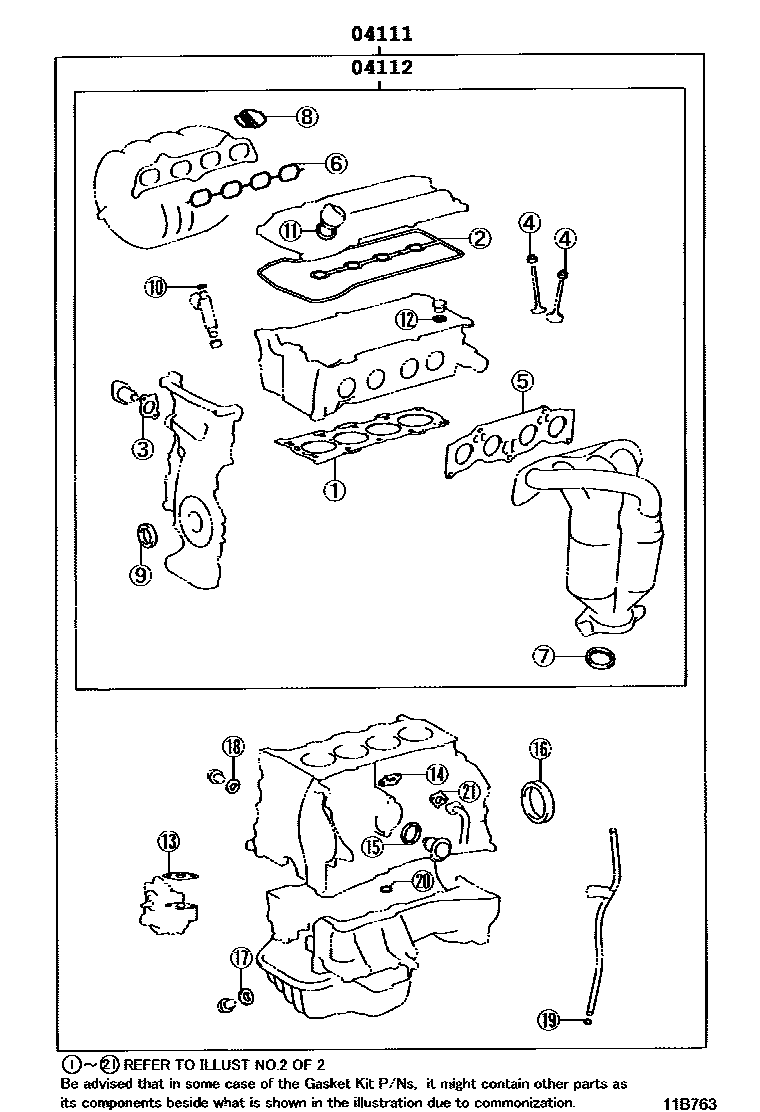

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 11B763
Engine Overhaul Gasket Kit — 11B763 (200404 – 200511)

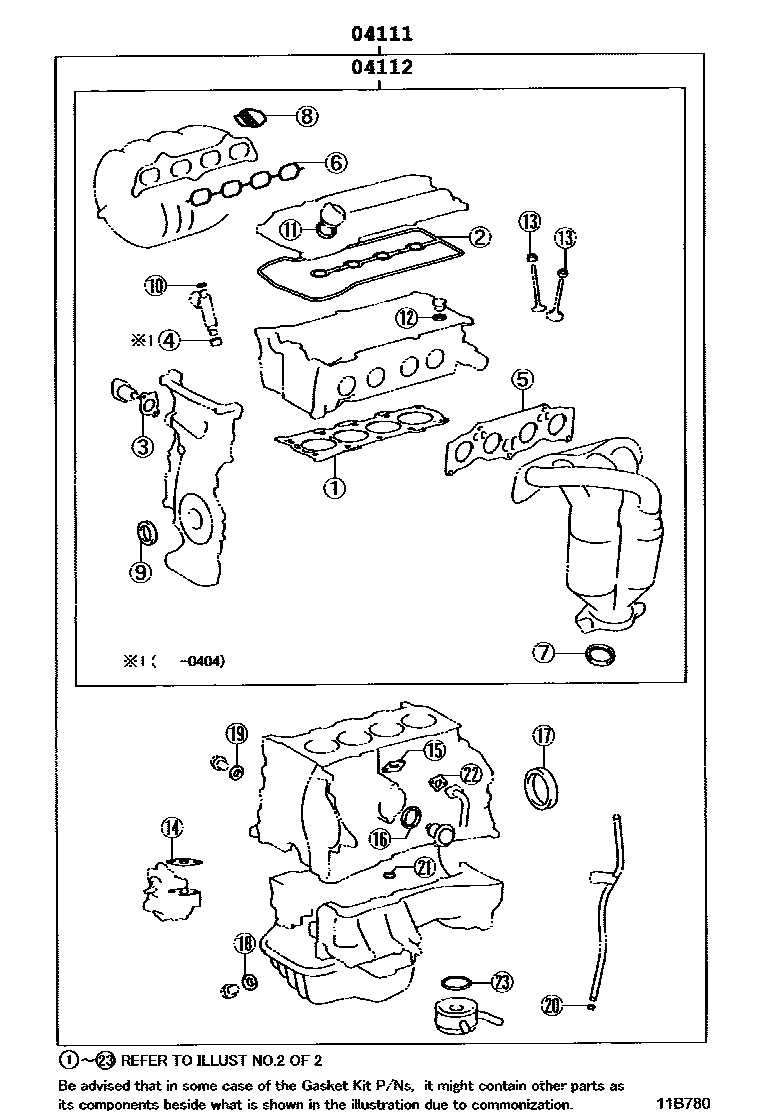

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 11B780
Engine Overhaul Gasket Kit — 11B780 (200307 – 200511)

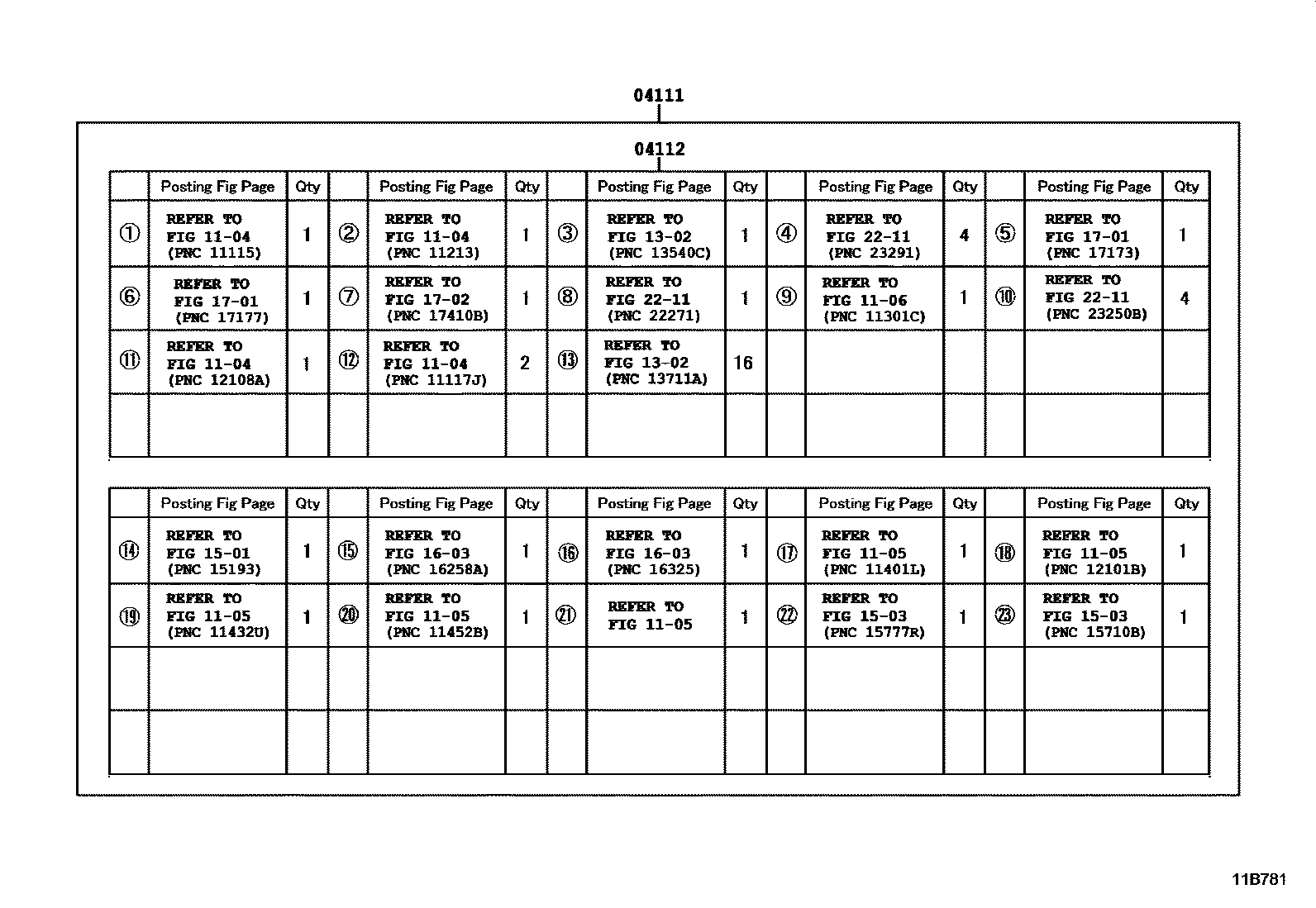

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 11B781
Engine Overhaul Gasket Kit — 11B781 (200307 – 200511)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-22110 · 04111-22111 · 04111-22112 · 04111-22650 · 04111-27080 · 04111-27081 · 04111-27160 · 04111-28070 · 04111-28071 · 04111-28072 · 04111-28073 · 04111-28074 · 04111-28180 · 04111-28590 · 04111-28591 · 04111-28600 · 04111-28601
04112Engine valve grinding pad assembly04112-22110 · 04112-22111 · 04112-22112 · 04112-22590 · 04112-27070 · 04112-27071 · 04112-27150 · 04112-28070 · 04112-28071 · 04112-28072 · 04112-28073 · 04112-28074 · 04112-28180 · 04112-28250 · 04112-28251 · 04112-28520 · 04112-28521
