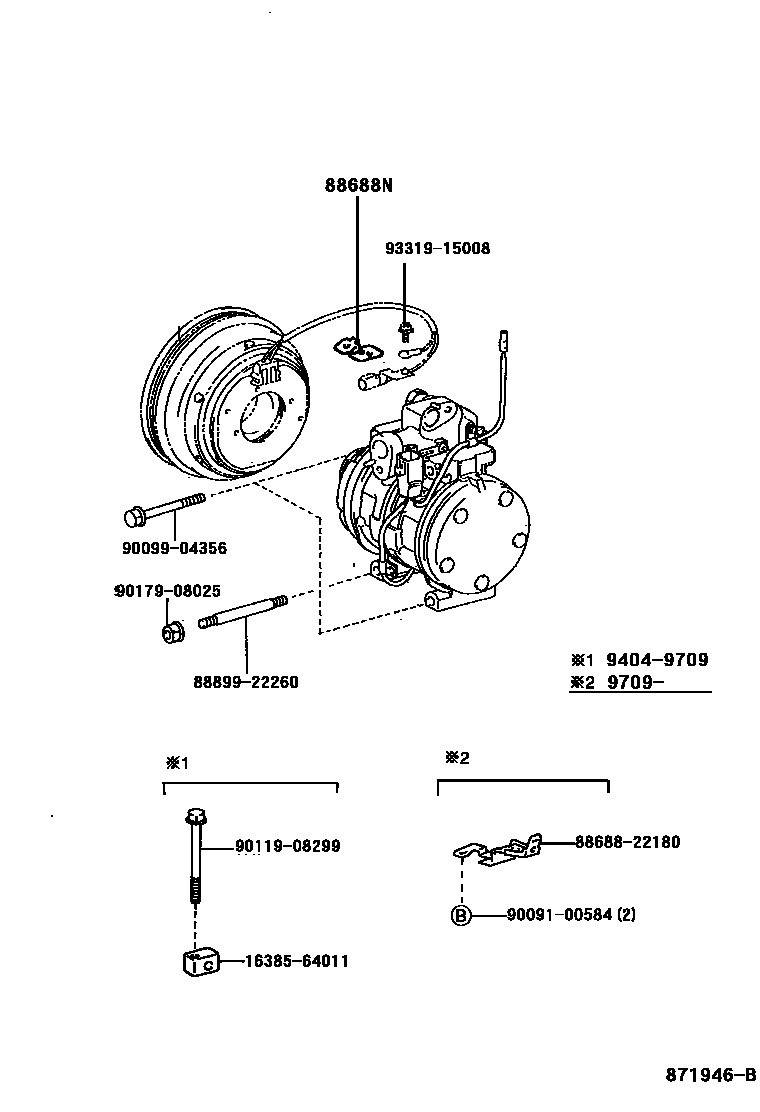

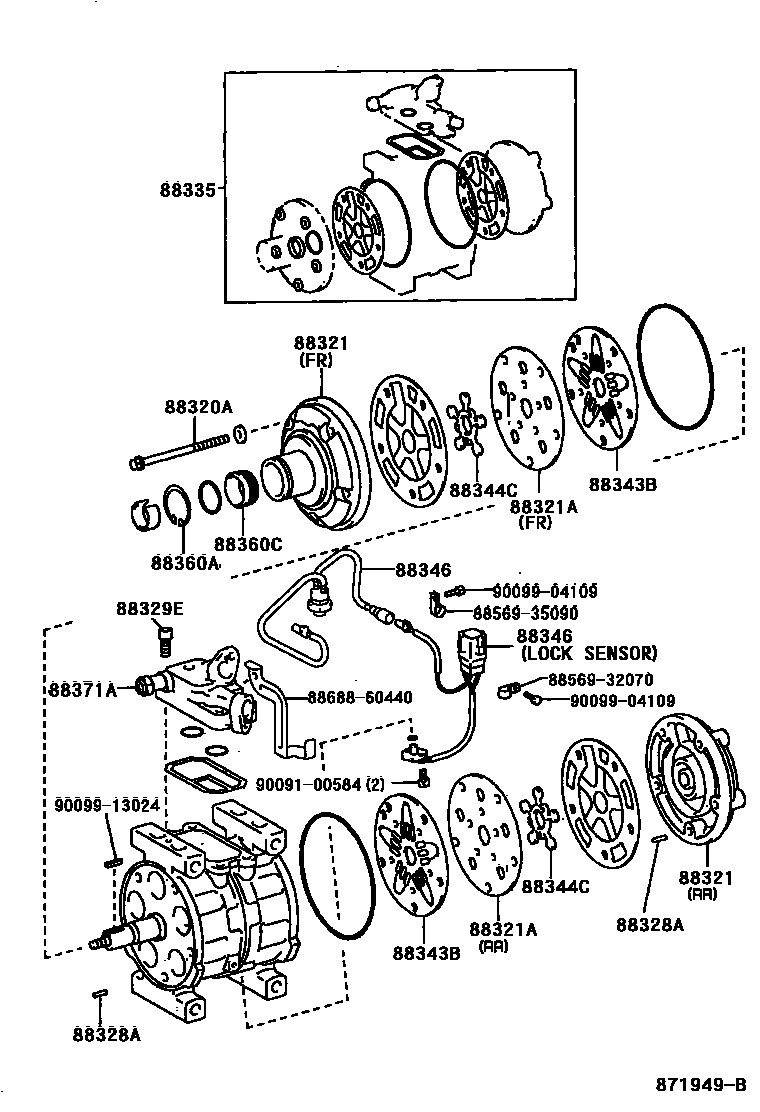

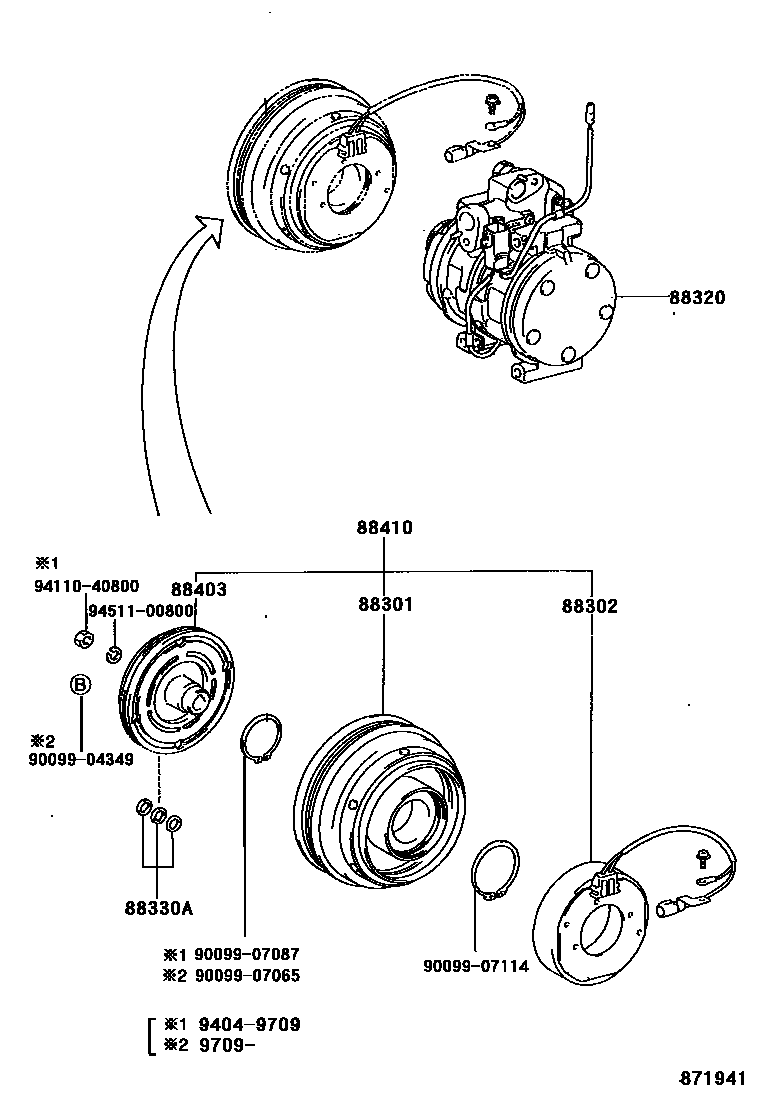

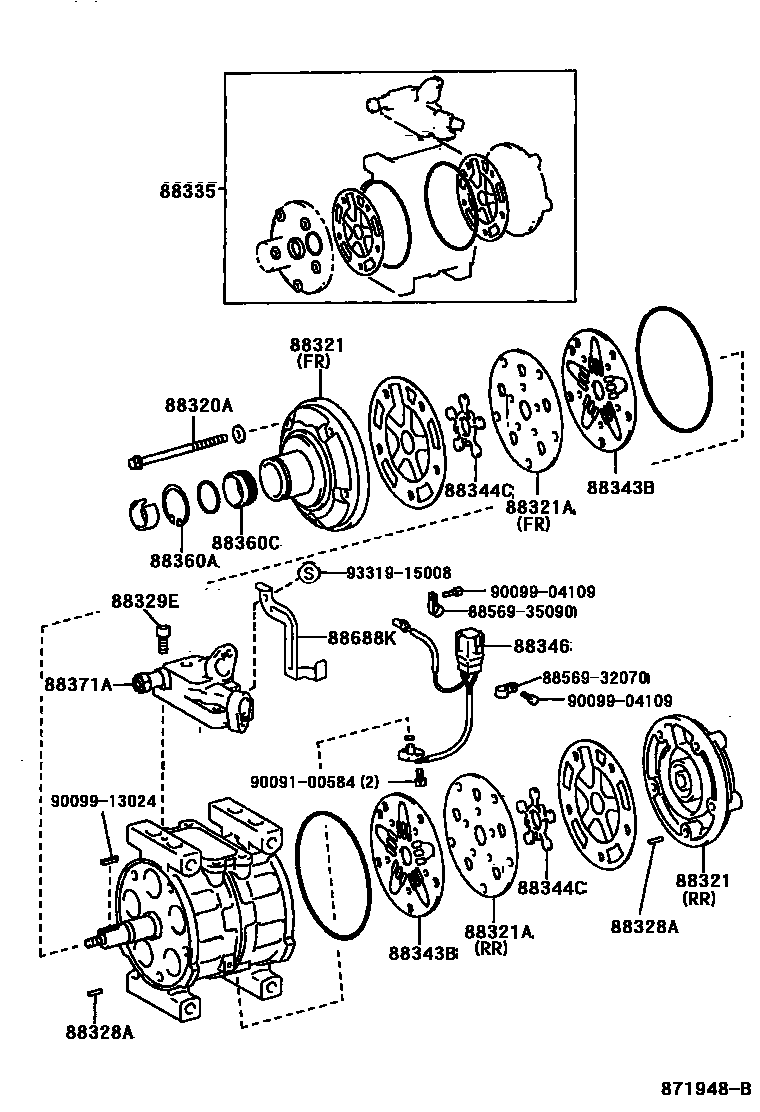

Toyota RAV4 Heating & Air Conditioning - Compressor — Figure 8719
Toyota RAV4 EPC diagram 8719, Heating & Air Conditioning - Compressor, with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-2A010 · 88412-44010 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-2A030 · 88411-42010 · 88411-43010 |
| 88320 | Cooler Compressor Assembly | 88320-42010 · 88320-42011 · 88320-42030 · 88320-42050 · 88320-42070 |
| 88320A | Through bolt | 90099-04370 · 90099-04968 |
| 88321 | Cooler compressor cylinder head | 88321-2B010 · 88321-30300 · 88322-14011 · 88322-32040 |
| 88321A | Valve sub-assembly | 88341-17050 · 88341-22010 · 88341-28260 · 88342-17040 · 88342-22010 · 88342-28260 |
| 88328A | compressor pin | 90099-08058 |
| 88329E | No. 1 compressor bolt | 90099-04255 · 90099-04924 |
| 88330A | Washer (for electromagnetic clutch) | 88335-12050 · 88335-14020 |
| 88335 | Overhaul gasket assembly | 88335-28020 · 88335-2B030 |
| 88343B | suction valve reed | 88343-14011 · 88343-14020 |
| 88344C | Discharge valve reed | 88344-14011 · 88344-22010 |
| 88346 | compressor sensor | 88336-30110 · 88336-42020 · 88336-42050 · 88336-42060 · 88336-42070 · 88336-42100 · 88336-42110 |
| 88360A | Compressor seal ring | 90096-90022 |
| 88360C | Shaft seal assembly | 88360-2B020 · 88360-30300 · 88360-30310 |
| 88371A | suction valve | 88371-42010 · 88371-42030 · 88371-42040 · 88371-42060 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-12030 · 88403-30290 |
| 88410 | Magnetic Clutch Assembly | 88410-42010 · 88410-42030 · 88410-44010 |
| 88688K | Cooler compressor bracket | 88688-42080 · 88688-42210 |
| 88688N | cooler bracket | 88688-21020 · 88688-33260 · 88688-42350 |
