Toyota RAV4 收音机、放大器和冷凝器 — Figure 8601
Toyota RAV4 EPC diagram 8601, 收音机、放大器和冷凝器, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04083 · 90980-04130 |

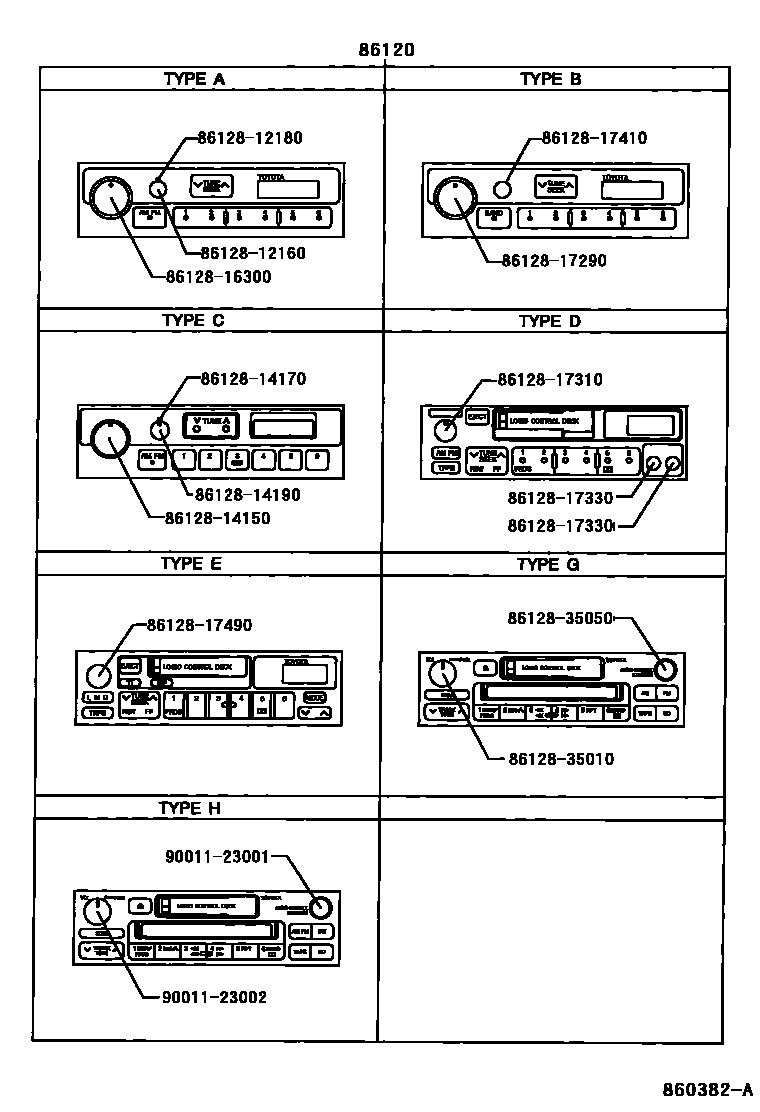

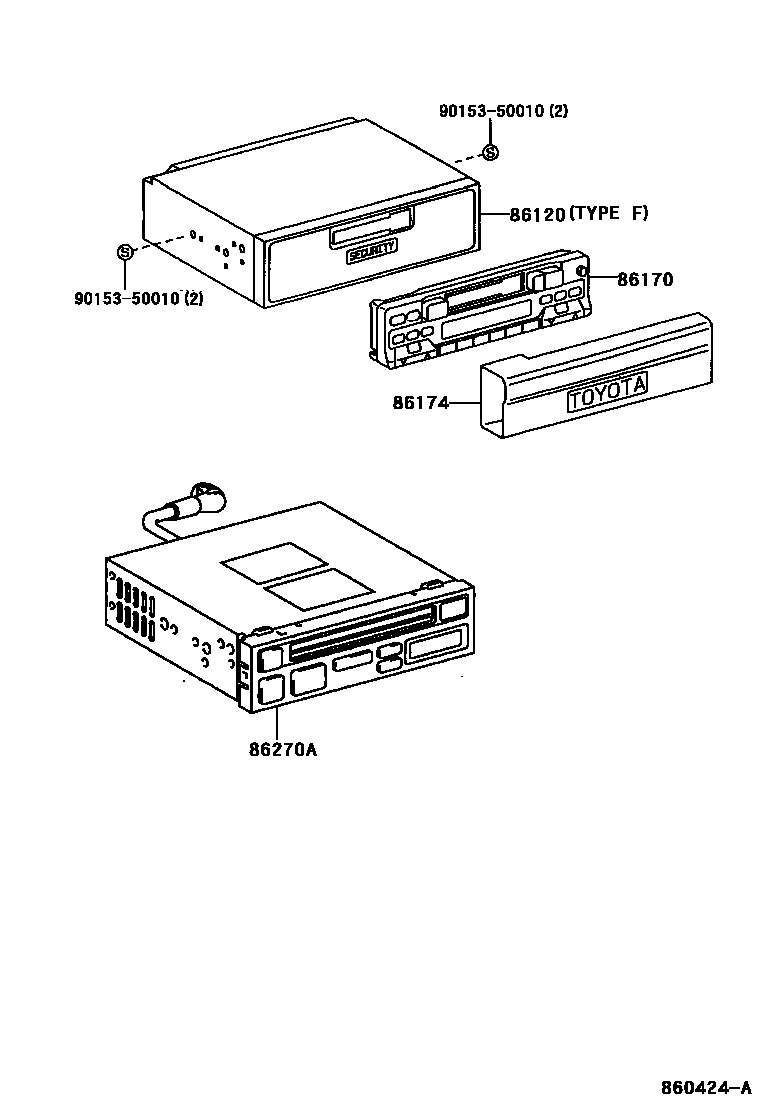

| 86120 | Radio assembly | 86120-17290 · 86120-1A010 · 86120-1A020 · 86120-2A070 · 86120-2A180 · 86120-2B360 · 86120-2B450 · 86120-2B610 · 86120-2B620 · 86120-60210 · 86120-60360 |
| 86170 | Radio switch and volume assembly | 86170-60010 |
| 86174 | Switch and volume box | 86174-60010 |

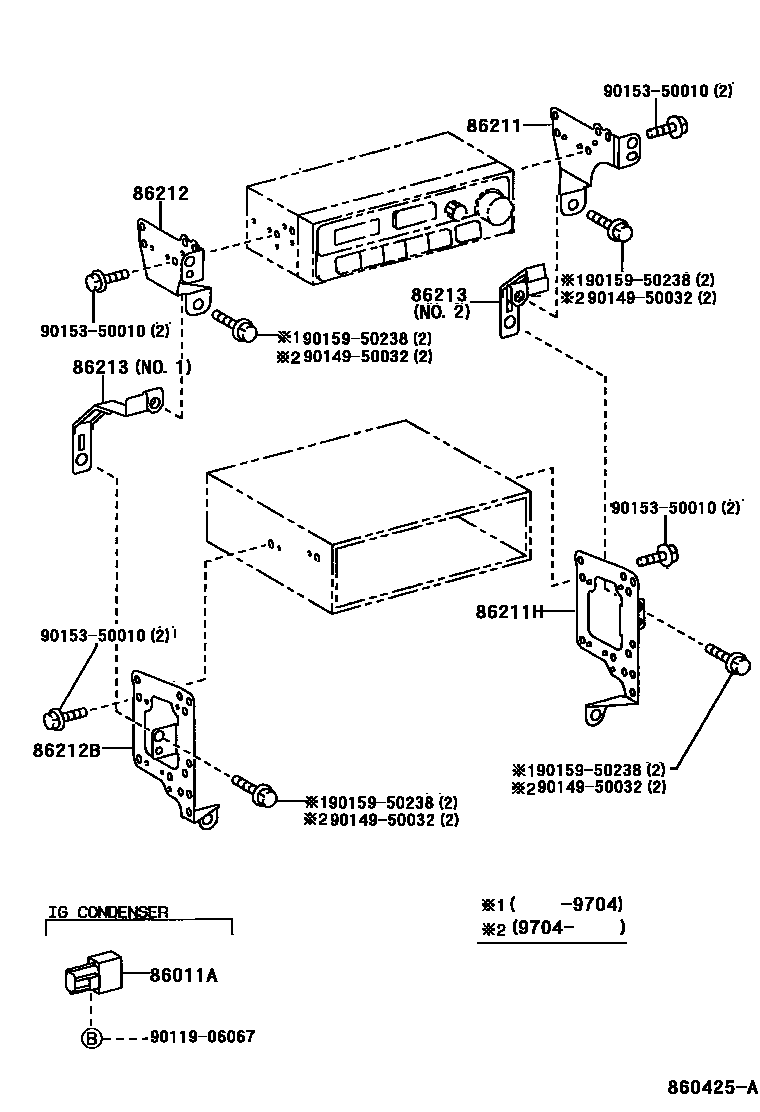

| 86211 | No. 1 radio bracket | 86211-42010 |
| 86211H | No. 2 radio bracket | 86211-42020 |
| 86212 | No. 2 radio bracket | 86212-42010 |
| 86212B | No. 1 radio bracket | 86212-42020 |
| 86213 | No. 3 radio bracket | 86213-42010 · 86213-42020 · 86213-42030 · 86213-42040 |
| 86270A | CD player assembly | 86270-60050 |
