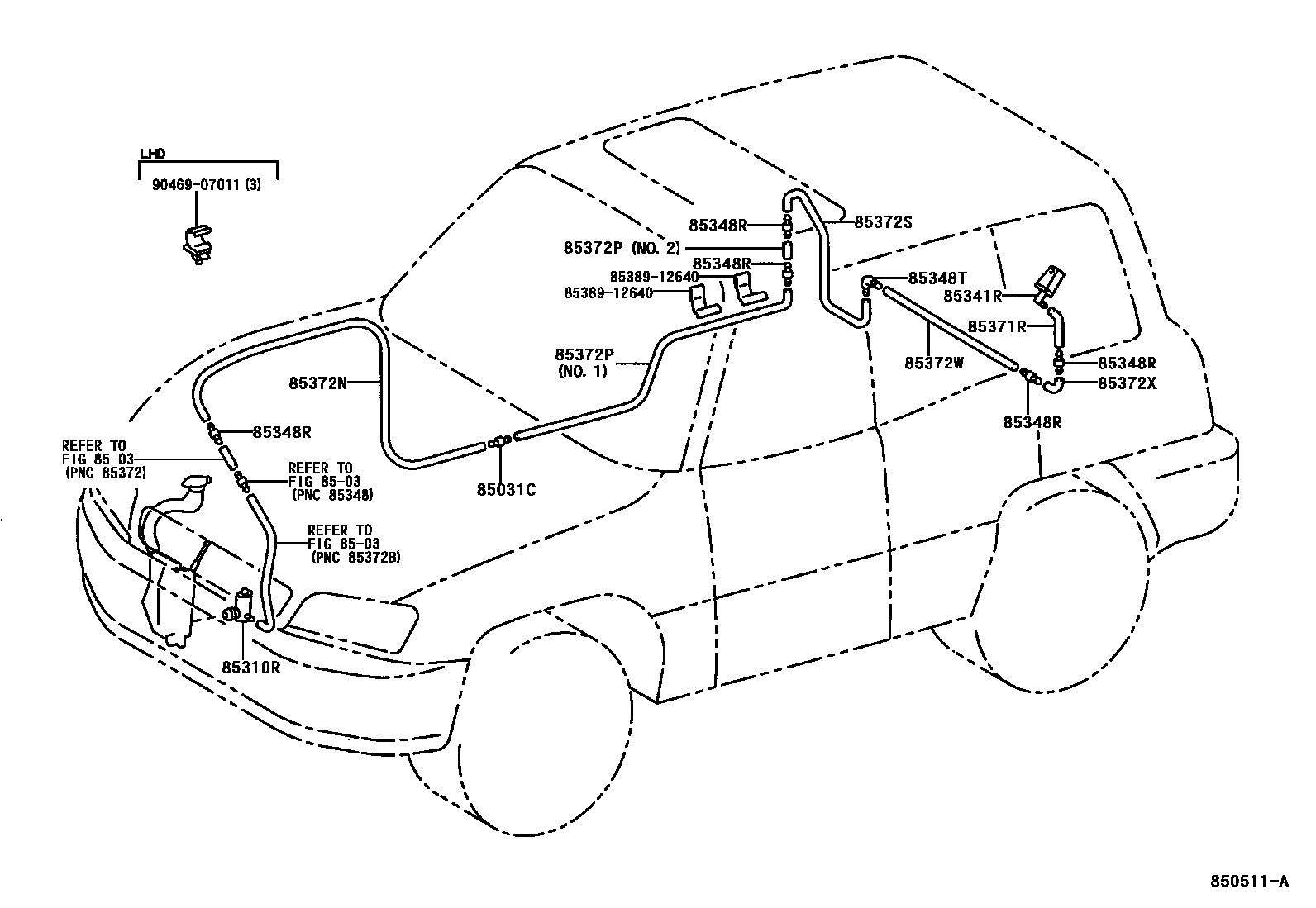

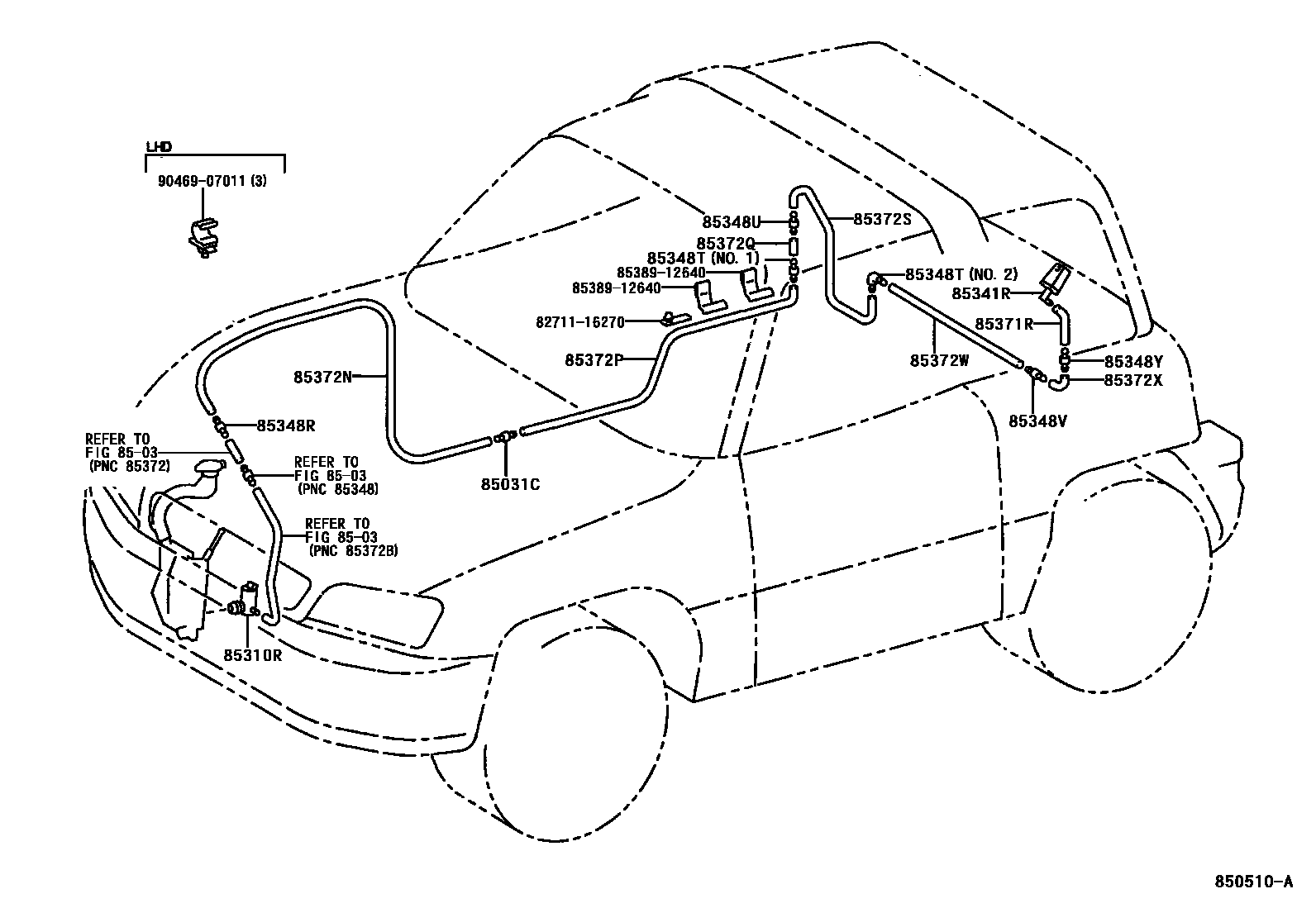

Toyota RAV4 后清洗器 — Figure 8504
Toyota RAV4 EPC diagram 8504, 后清洗器, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031C | Cleaner valve sub-assembly | 85031-90A00 |
| 85310R | Rear washer motor assembly | 85310-20190 · 85310-20210 · 85330-10280 · 85330-33020 |
| 85341R | Cleaner nozzle assembly | 85395-42010 |
| 85348R | No. 1 rear washer hose connector | 85349-89122 |
| 85348T | No. 2 rear washer hose connector | 85349-89122 · 85355-20200 |
| 85348U | No. 3 rear washer hose connector | 85349-89122 |
| 85348V | No. 4 rear washer hose connector | 85349-89122 |
| 85348Y | No. 5 rear washer hose connector | 85349-89122 |
| 85372X | No. 6 rear washer hose (from connector to connector) | 90099-33080 |
