Toyota RAV4 挡风玻璃清洗器 — Figure 8503

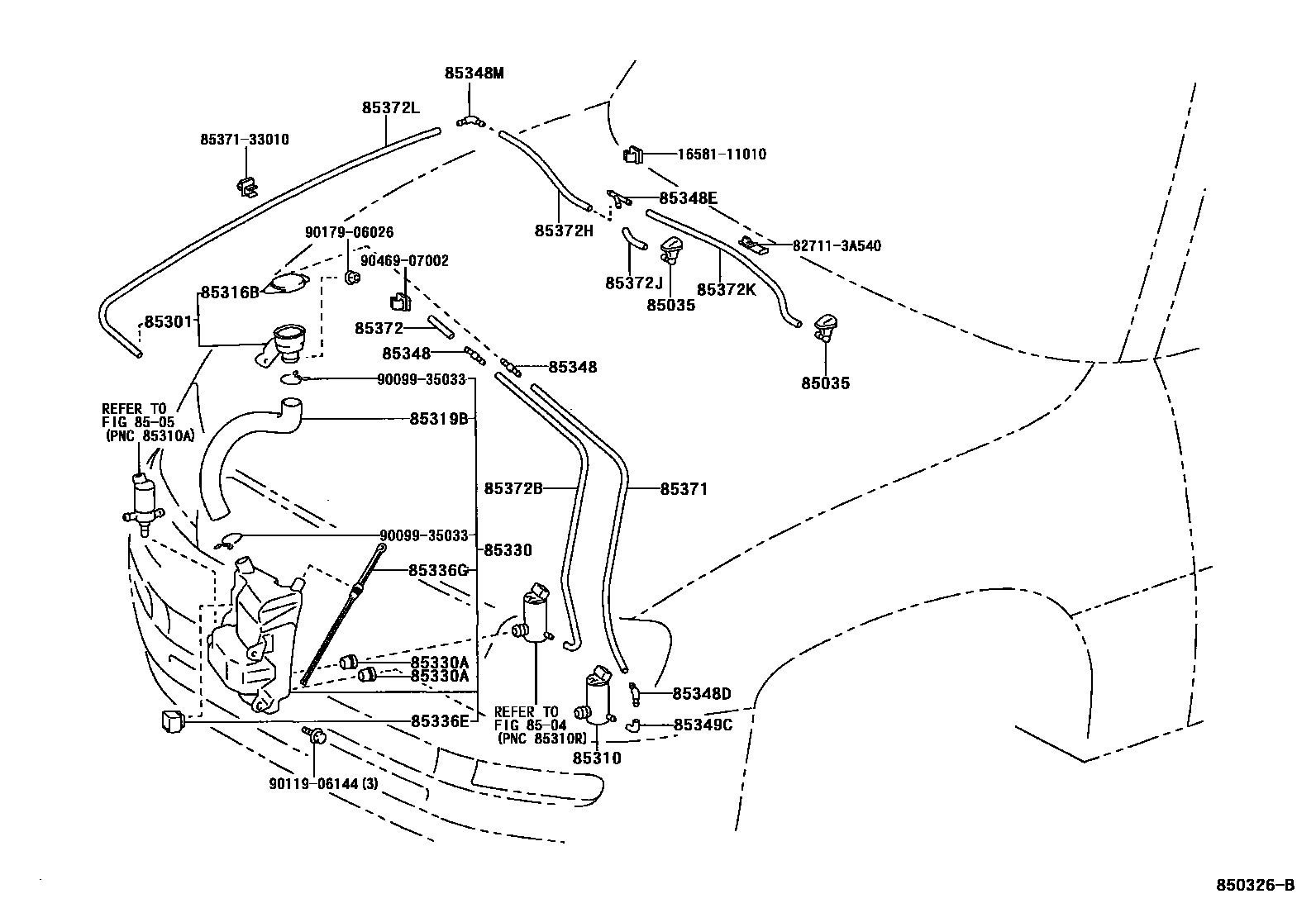

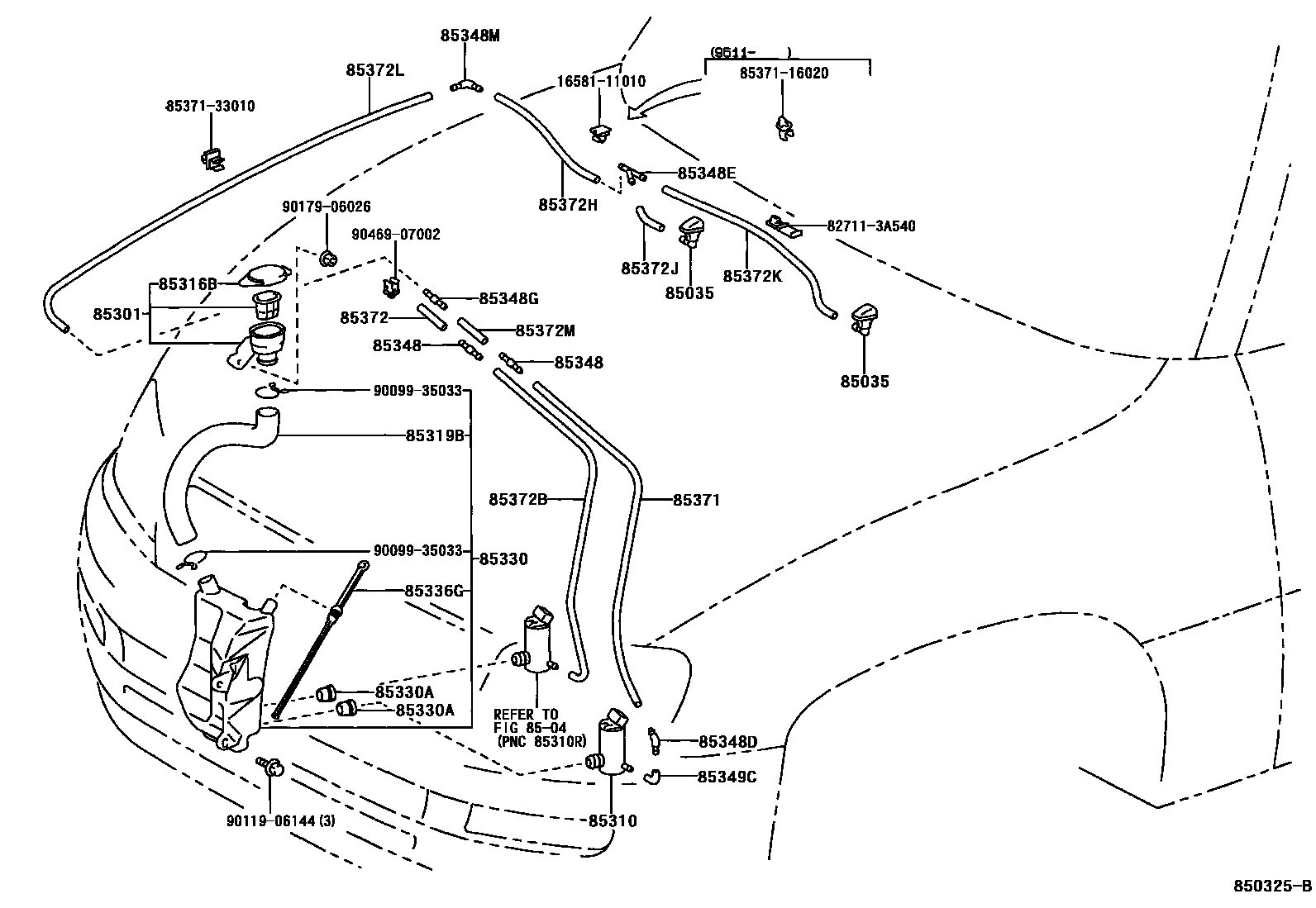

Toyota RAV4 EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-12050 |
| 85301 | Cleaner water inlet sub-assembly | 85301-42010 · 85301-42011 |
| 85310 | Windshield washer motor and pump assembly | 85310-20210 · 85330-10280 · 85330-33020 |
| 85316B | Cleaner water inlet cover | 85316-26030 · 85316-42011 |
| 85319B | Window washer hose | 85139-42010 · 85319-42010 |
| 85330 | Windshield washer fluid tank assembly | 85315-42010 · 85315-42011 · 85315-42020 · 85315-42021 · 85315-42070 · 85355-42010 · 85355-42011 · 85355-42012 · 85355-42013 · 85355-42020 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85336E | Windshield washer water inlet hose seal | 85336-42050 |
| 85336G | water level gauge | 85336-42010 |
| 85348 | Windshield washer hose connector No. 1 | 85349-89122 |
| 85348D | No. 1 windshield washer elbow joint | 85355-20200 |
| 85348E | No. 2 windshield washer elbow joint | 85348-14390 |
| 85348G | Windshield washer hose connector No. 2 | 85349-89122 |
| 85348M | No. 3 windshield washer hose connector | 85376-10250 |
| 85349C | No. 4 windshield washer elbow joint | 85355-14481 · 85355-16192 |
| 85372H | No. 3 windshield washer hose (from connector to connector) | 90099-59175 |
| 85372L | No. 6 windshield washer hose (from connector to connector) | 90099-33224 · 90099-33902 · 90446-07013 |
