Toyota RAV4 电子燃油喷射系统 — Figure 8404

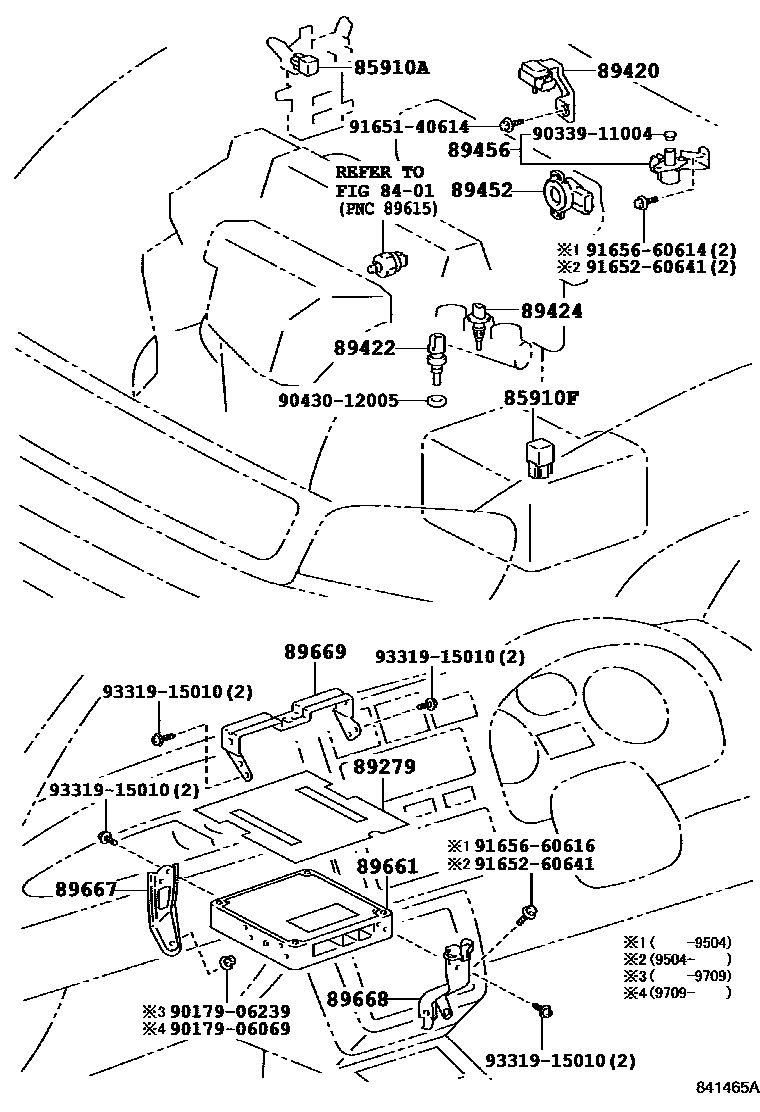

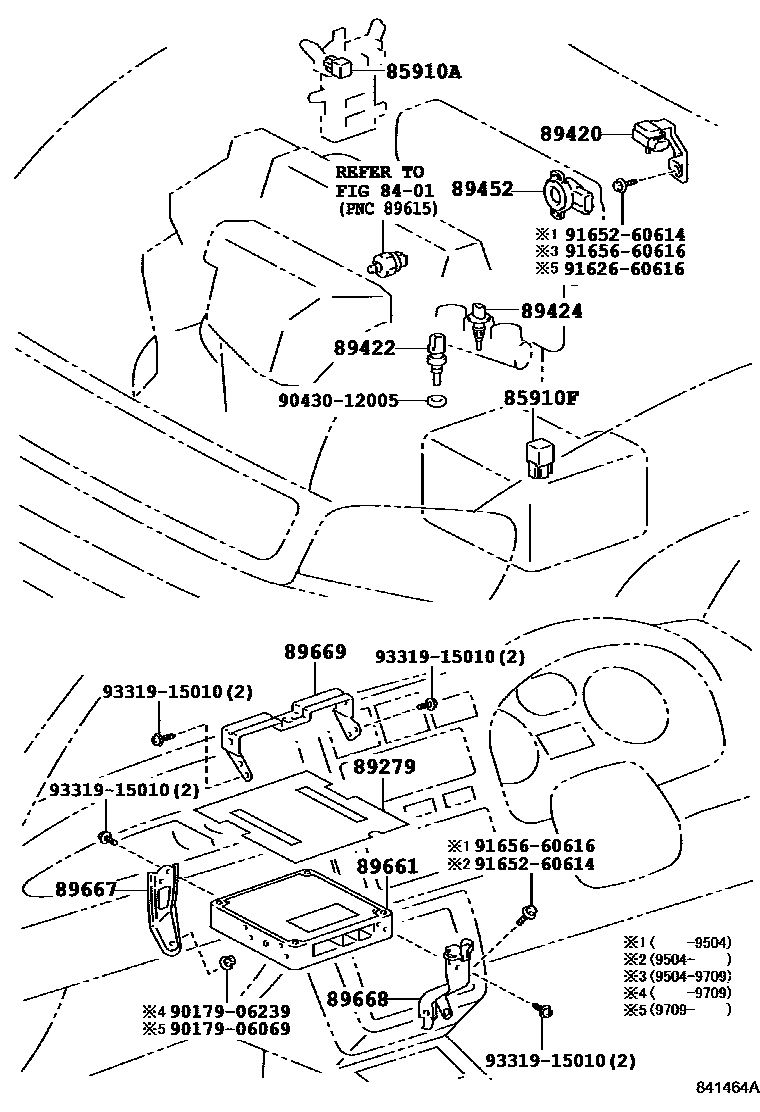

Toyota RAV4 EPC diagram 8404, 电子燃油喷射系统, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910A | Circuit breaking relay assembly (for EFI) | 90987-02009 · 90987-02012 |
| 85910F | ECU relay (for EFI) | 90987-02009 |
| 89279 | Engine control ECU cover | 89279-42010 |
| 89420 | Vacuum sensor assembly | 89420-0W030 · 89420-0W050 · 89420-42010 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-20010 · 89422-35010 |
| 89424 | Intake air temperature sensor (for E.F.I.) | 89424-12010 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-20130 · 89452-22090 |
| 89456 | variable resistor | 89450-42010 · 89450-42020 |
| 89661 | Engine control ECU | 89661-42030 · 89661-42040 · 89661-42050 · 89661-42051 · 89661-42060 · 89661-42061 · 89661-42070 · 89661-42080 · 89661-42090 · 89661-42100 · 89661-42150 · 89661-42170 · 89661-42180 · 89661-42190 · 89661-42200 · 89661-42210 · 89661-42220 · 89661-42270 · 89661-42340 · 89661-42350 · 89661-42560 · 89661-42570 · 89661-42580 · 89661-42590 |
| 89667 | Engine control ECU bracket | 89667-42010 |
| 89668 | No. 2 engine control ECU bracket | 89668-42010 |
| 89669 | No. 3 engine control ECU bracket | 89669-42010 · 89669-42020 |
