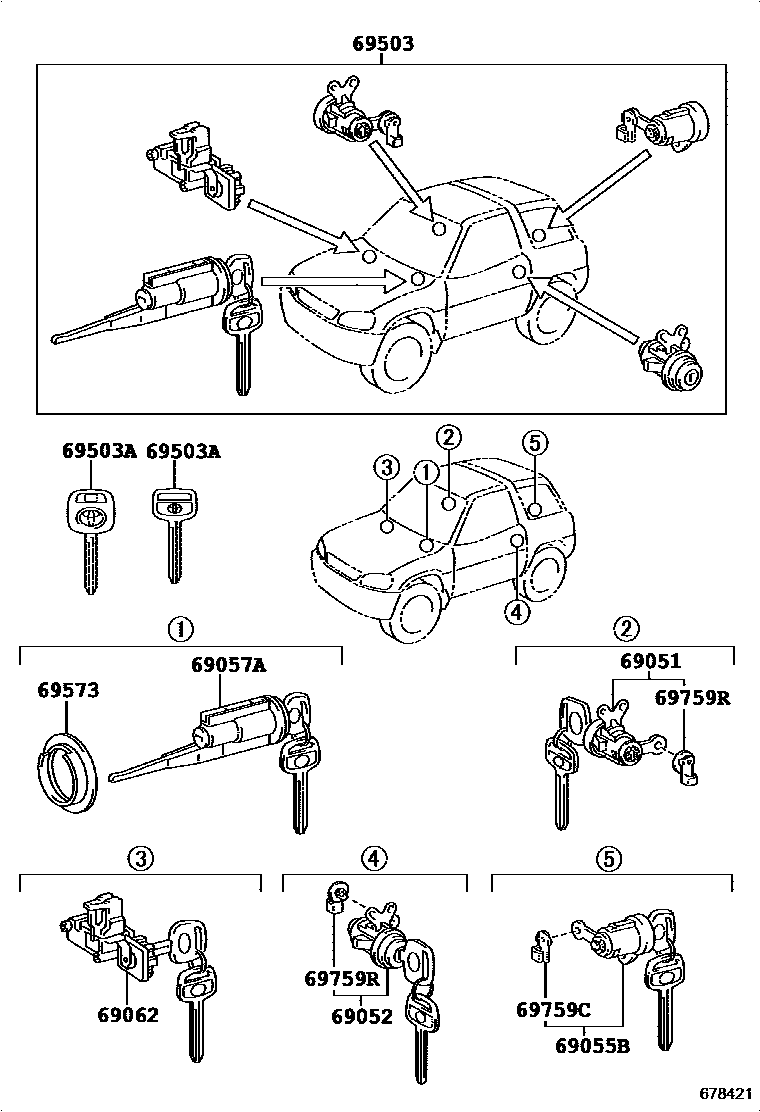

Toyota RAV4 锁芯组件 — Figure 6765
Toyota RAV4 EPC diagram 6765, 锁芯组件, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-42020 · 69051-42030 · 69051-42050 · 69051-42060 |
| 69052 | Left door lock cylinder and key assembly | 69052-42020 · 69052-42030 · 69052-42050 · 69052-42060 |
| 69055B | Rear door lock cylinder and key assembly | 69055-42020 · 69055-42030 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-42020 · 69057-42030 · 69057-42040 · 69057-42070 |
| 69062 | Glove box lock cylinder and key assembly | 69056-42020 · 69056-42030 |
| 69503 | Door lock cylinder components | 69005-42020 · 69005-42030 · 69005-42040 · 69005-42060 · 69005-42070 · 69005-42080 · 69005-42130 · 69005-42140 |
| 69503A | external tooth key | 90999-00185 · 90999-00187 · 90999-00199 · 90999-00200 |
| 69573 | Ignition switch lock cylinder gasket | 69573-12030 · 69573-42020 |
| 69759C | Back door lock cylinder buckle | 69759-24080 |
| 69759R | Front door lock cylinder buckle | 69759-22080 · 69759-22090 |
