Toyota RAV4 天窗板和背板 — Figure 6153

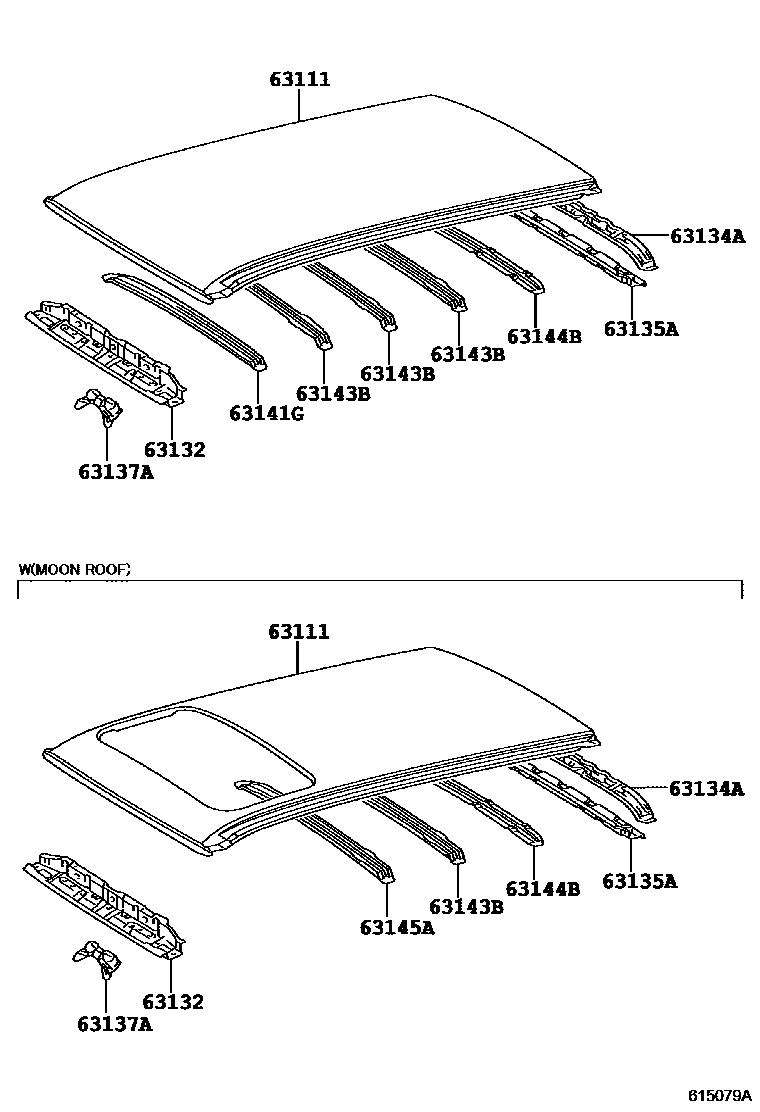

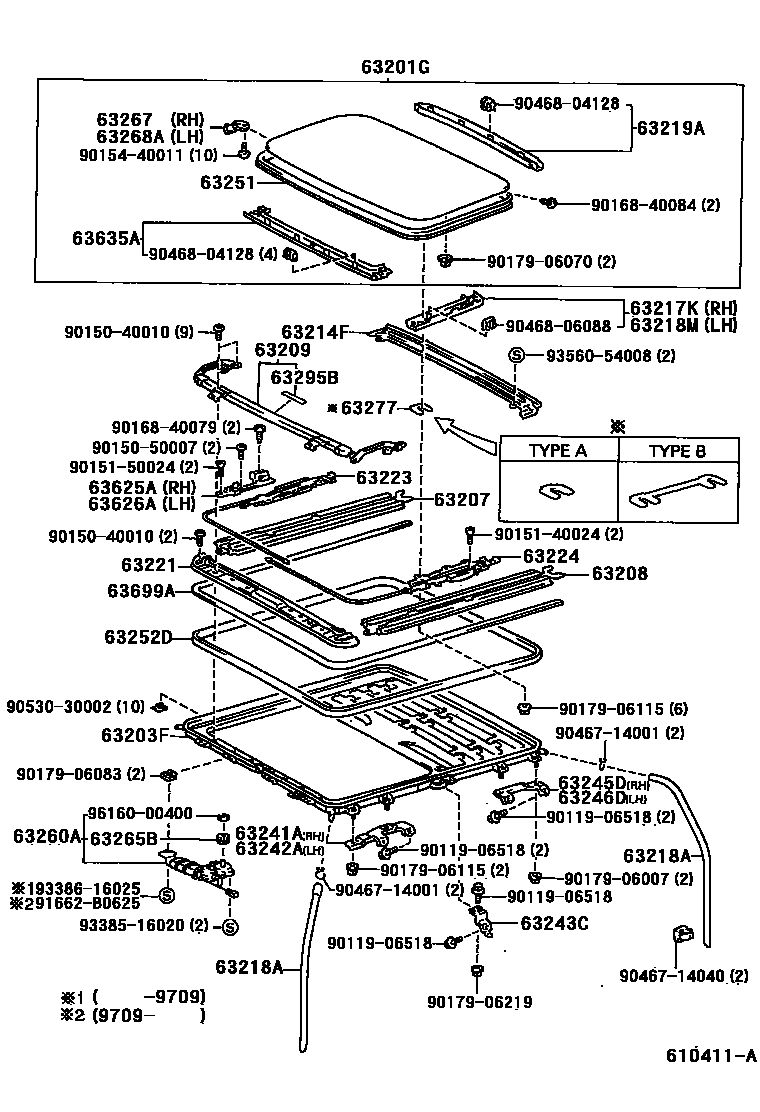

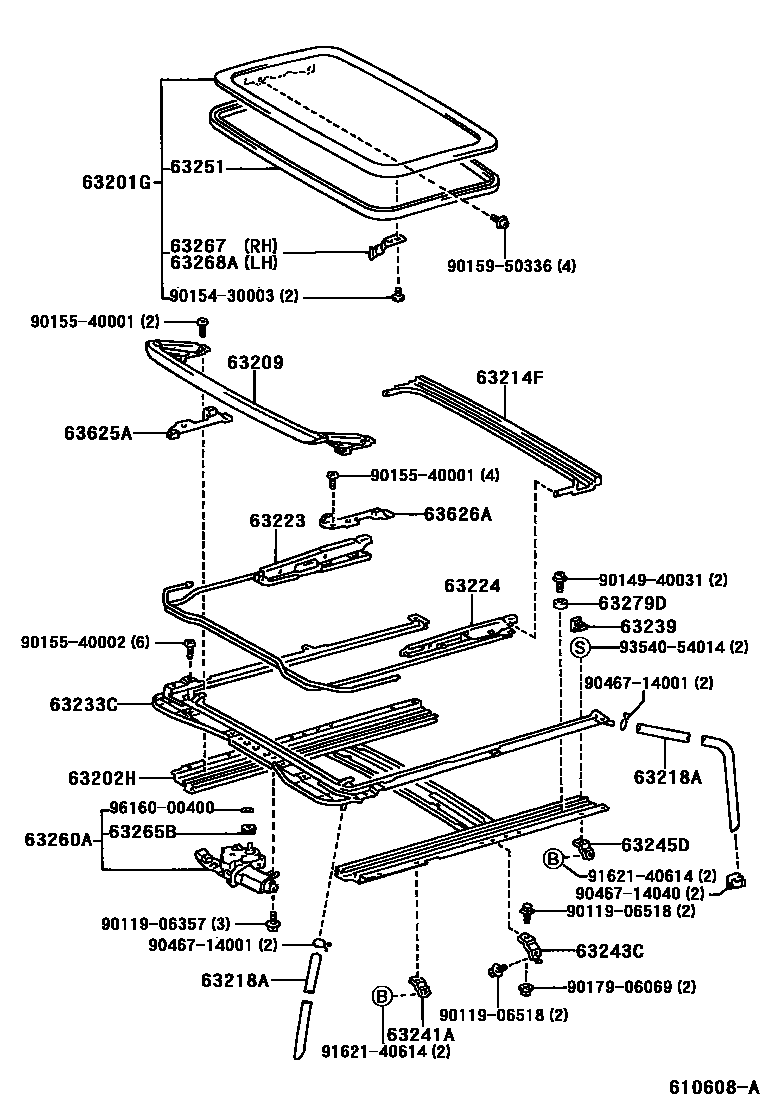

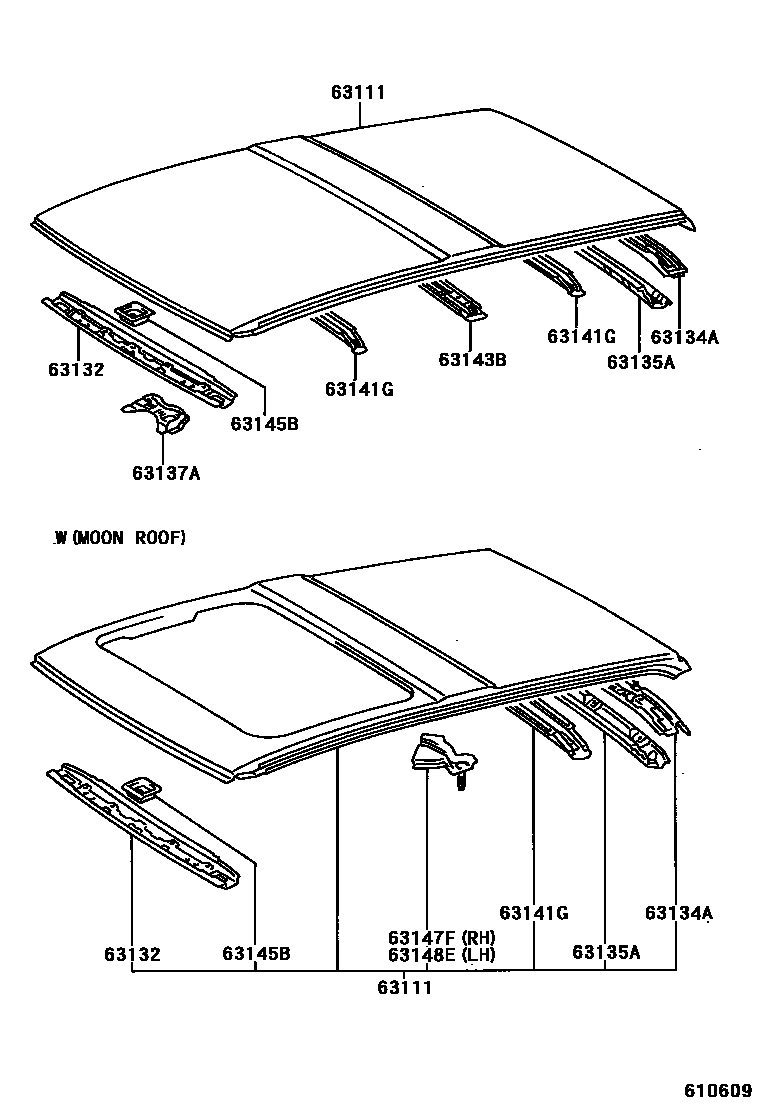

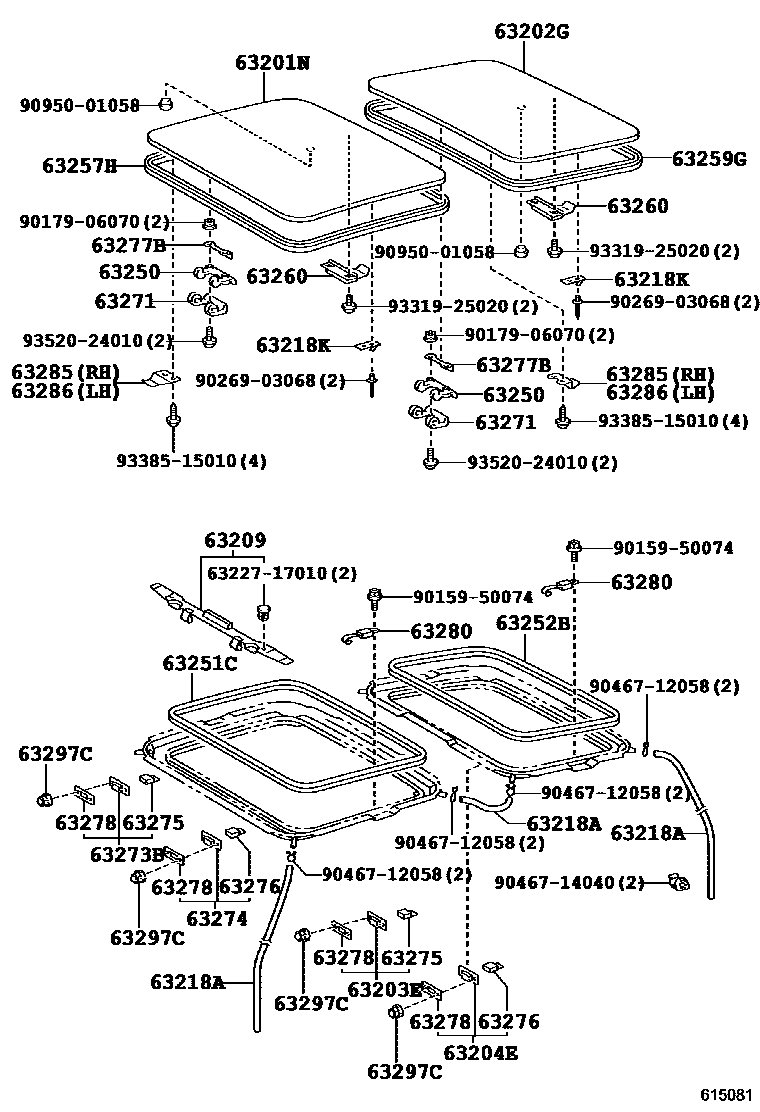

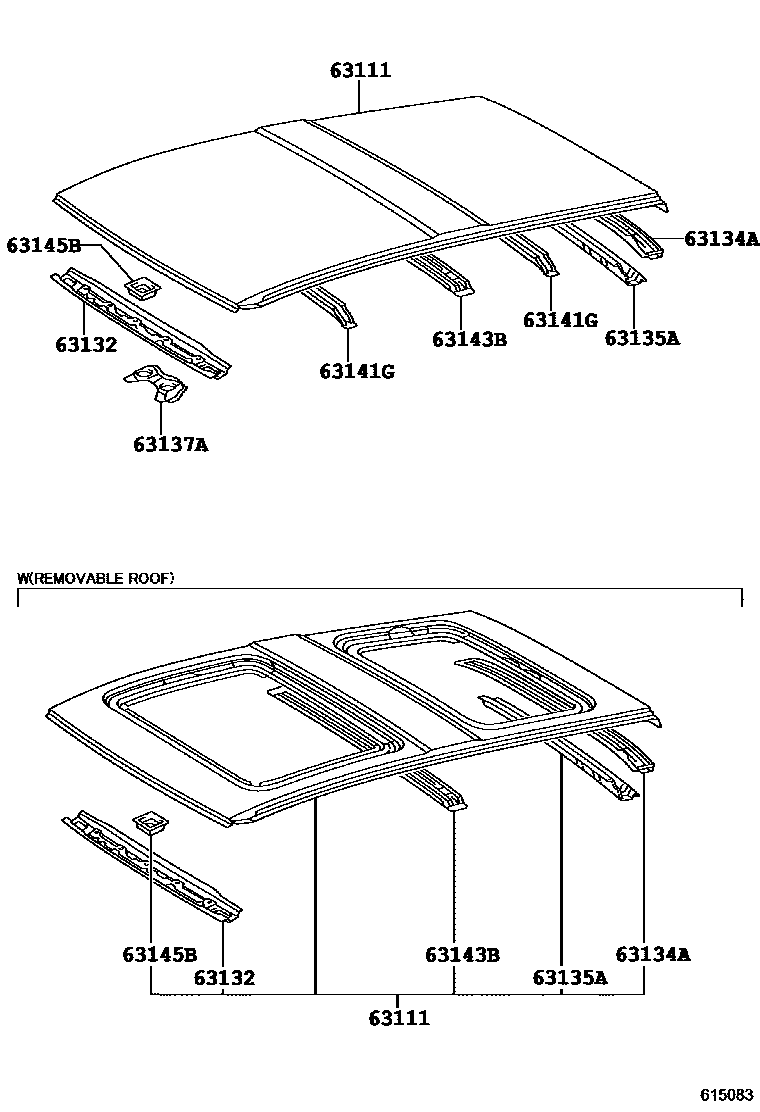

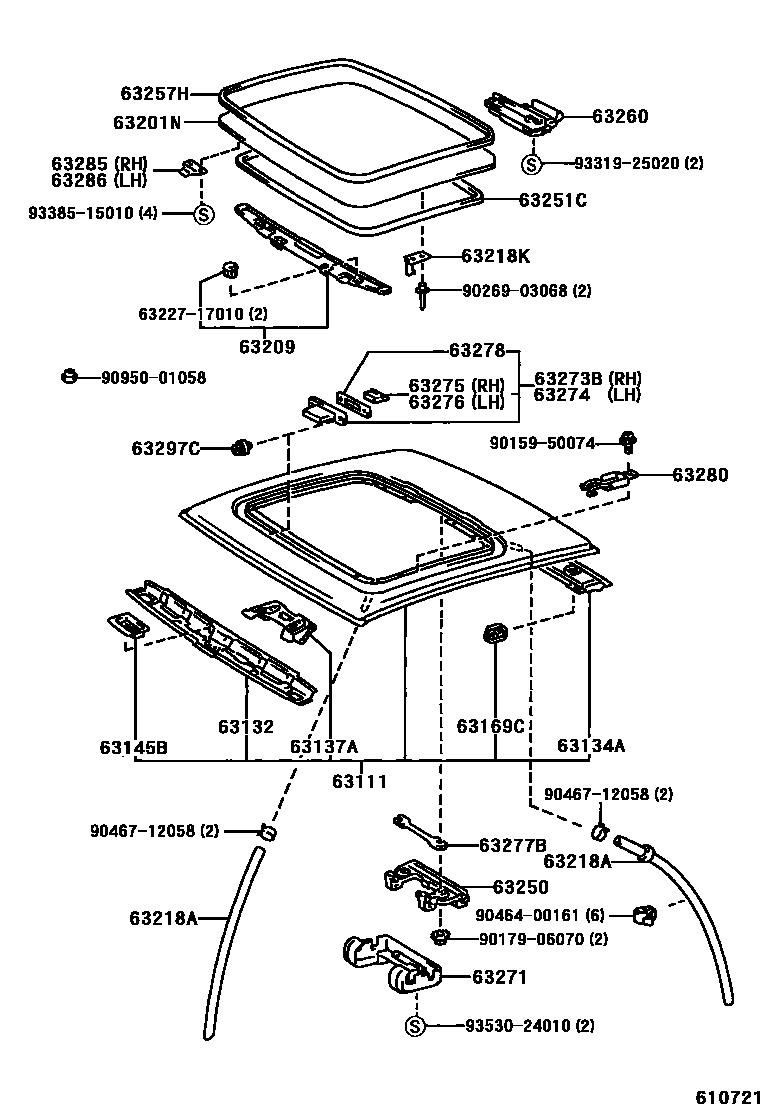

Toyota RAV4 EPC diagram 6153, 天窗板和背板, with 7 images and 63 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63111 | roof panel | 63101-42020 · 63101-42021 · 63101-42060 · 63101-42900 · 63103-42900 · 63111-42010 · 63111-42030 |
| 63132 | Windshield inner roof panel | 63132-42010 · 63132-42020 |
| 63134A | Opening frame on back door | 63134-42010 · 63134-42020 |
| 63135A | Opening frame under rear door | 63135-42010 · 63135-42011 |
| 63137A | No. 1 ceiling light bracket | 63137-42010 · 63137-42020 |
| 63141G | No. 1 roof panel reinforcement | 63141-42010 · 63141-42020 |
| 63143B | No. 3 roof panel reinforcement | 63143-42010 · 63143-42020 |
| 63144B | No. 4 roof panel reinforcement | 63144-42010 |
| 63145A | No. 5 roof panel reinforcement | 63143-42030 |
| 63145B | Windshield roof reinforcement | 63145-42010 |
| 63147F | Right roof panel reinforcement bracket | 63147-42010 |
| 63148E | Left roof panel reinforcement bracket | 63148-42010 |
| 63169C | No. 2 roof reinforcement fixings | 63169-42010 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-42040 |
| 63201N | Removable sunroof panel sub-assembly | 63201-42010 |
| 63202G | Rear sliding sunroof panel sub-assembly | 63202-42010 |
| 63202H | Sliding sunroof longitudinal beam sub-assembly | 63202-42020 |
| 63203E | Removable sunroof lock sub-assembly on the right side | 63203-42020 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-42030 |
| 63204E | Detachable sunroof lock sub-assembly on the left side | 63204-42020 |
| 63207 | Right sliding sunroof guide rail sub-assembly | 63207-22051 |
| 63208 | Left sliding sunroof guide rail sub-assembly | 63208-22051 |
| 63209 | Roof deflector sub-assembly | 63209-42010 · 63209-42020 · 63209-42030 |
| 63214F | Roof rear drain channel | 63214-32040 · 63214-42020 |
| 63218A | Hoses (for sliding or removable sunroof drainage) | 63249-42010 · 63249-42020 · 63249-42030 · 63249-42040 · 63249-42050 · 63249-42060 · 63249-42070 |
| 63218K | Removable sunroof auxiliary hook | 63218-42010 |
| 63221 | Sliding sunroof cable duct | 63221-42010 |
| 63223 | Right sliding sunroof transmission cable | 63223-22030 · 63223-42010 |
| 63224 | Left sliding sunroof transmission cable | 63224-22030 · 63224-42010 |
| 63233C | Sliding skylight shelf | 63233-42020 |
| 63239 | Sliding roof panel stop | 63239-12030 |
| 63241A | Sliding sunroof frame right front mounting bracket | 63241-42010 · 63241-42020 |
| 63242A | Sliding sunroof frame left front mounting bracket | 63242-42010 |
| 63243C | Sliding sunroof frame right center mounting bracket | 63243-42010 · 63243-42020 |
| 63245D | Sliding sunroof frame right rear mounting bracket | 63245-42010 · 63245-42020 |
| 63246D | Sliding sunroof frame left rear mounting bracket | 63246-42010 |
| 63250 | Detachable sunroof lock base assembly | 63250-16020 · 63250-42010 |
| 63251 | Sliding skylight panels or removable skylight seals | 63251-12140 · 63251-32030 |
| 63251C | Removable skylight seal | 63251-42010 |
| 63252B | Removable sunroof rear seal | 63252-42010 |
| 63252D | Sliding skylight frame sealing strip | 63252-33020 |
| 63257H | Removable skylight seal | 63257-42010 |
| 63259G | Removable sunroof seal No. 2 | 63259-42010 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-12090 · 63260-42030 |
| 63265B | Sliding sunroof driving gear | 63265-12040 · 63265-20010 |
| 63267 | Sliding sunroof sealing strip protection | 63267-12040 · 63267-32020 |
| 63268A | Left sliding sunroof sealing strip protector | 63268-12040 · 63268-32020 |
| 63273B | Skylight hinge fixings | 63273-17040 |
| 63274 | Removable sunroof left hinge shell | 63274-17040 |
| 63275 | Removable sunroof right hinge fixing bracket | 63275-17010 |
| 63276 | Removable sunroof left hinge fixing bracket | 63276-17010 |
| 63277 | Sliding skylight stringer gasket | 63277-20020 · 63277-20030 · 63277-20040 · 63277-20050 · 63277-32030 |
| 63277B | Removable sunroof lock base spacer | 63277-16030 |
| 63278 | Removable sunroof hinge housing seal | 63278-12010 |
| 63279D | Sliding sunroof guide rail stop | 63279-12030 |
| 63280 | Removable sunroof left auxiliary hook assembly | 63280-17010 |
| 63285 | Removable sunroof hinge, right | 63285-16020 · 63285-42010 · 63285-42011 · 63285-42020 |
| 63286 | Removable sunroof hinge, left | 63286-16020 · 63286-42010 · 63286-42011 · 63286-42020 |
| 63295B | roof deflector lining | 63295-42010 |
| 63297C | Removable sunroof hinge housing bolts | 63297-42010 |
| 63625A | Right sliding sunroof guide block | 63625-12050 · 63625-33011 |
| 63626A | Left sliding sunroof guide block | 63626-12050 · 63626-33011 |
| 63699A | Sliding sunroof guide seals | 63699-32030 |
