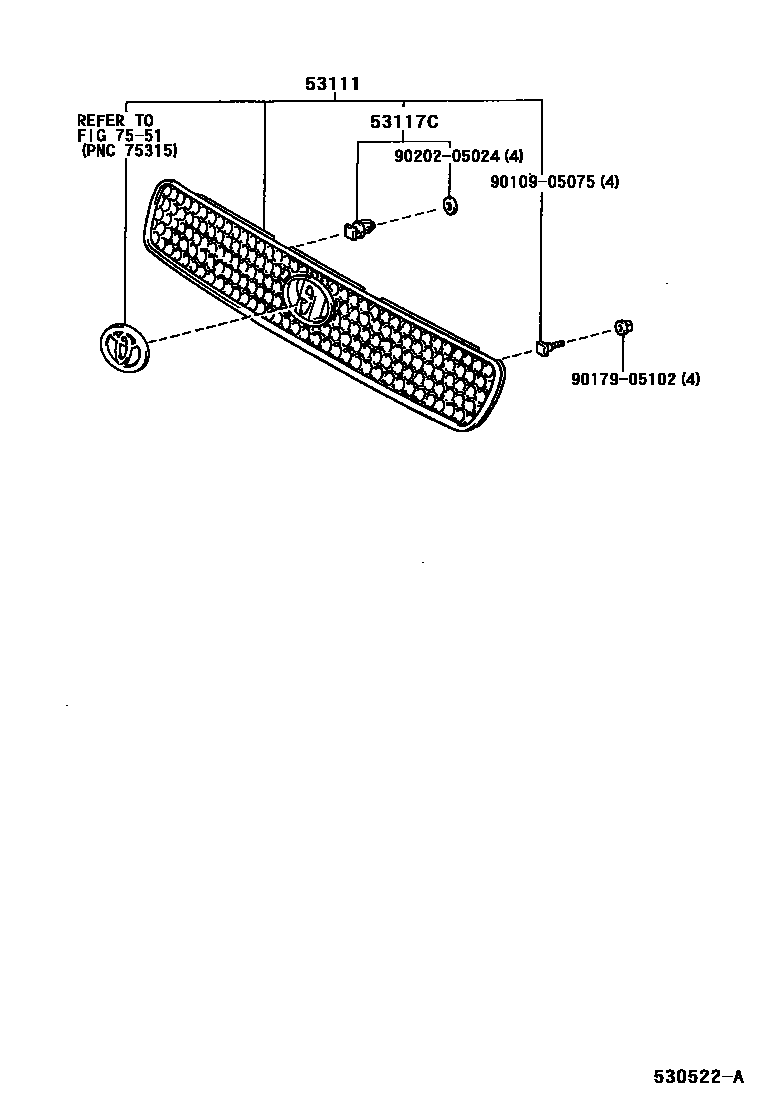

Toyota RAV4 radiator grille — Figure 5351
Toyota RAV4 EPC diagram 5351, radiator grille, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53111 | radiator grille | 53101-42010 · 53101-42040 · 53101-42050 |
| 53117C | Radiator grille fixing No. 1 | 53117-42010 |
