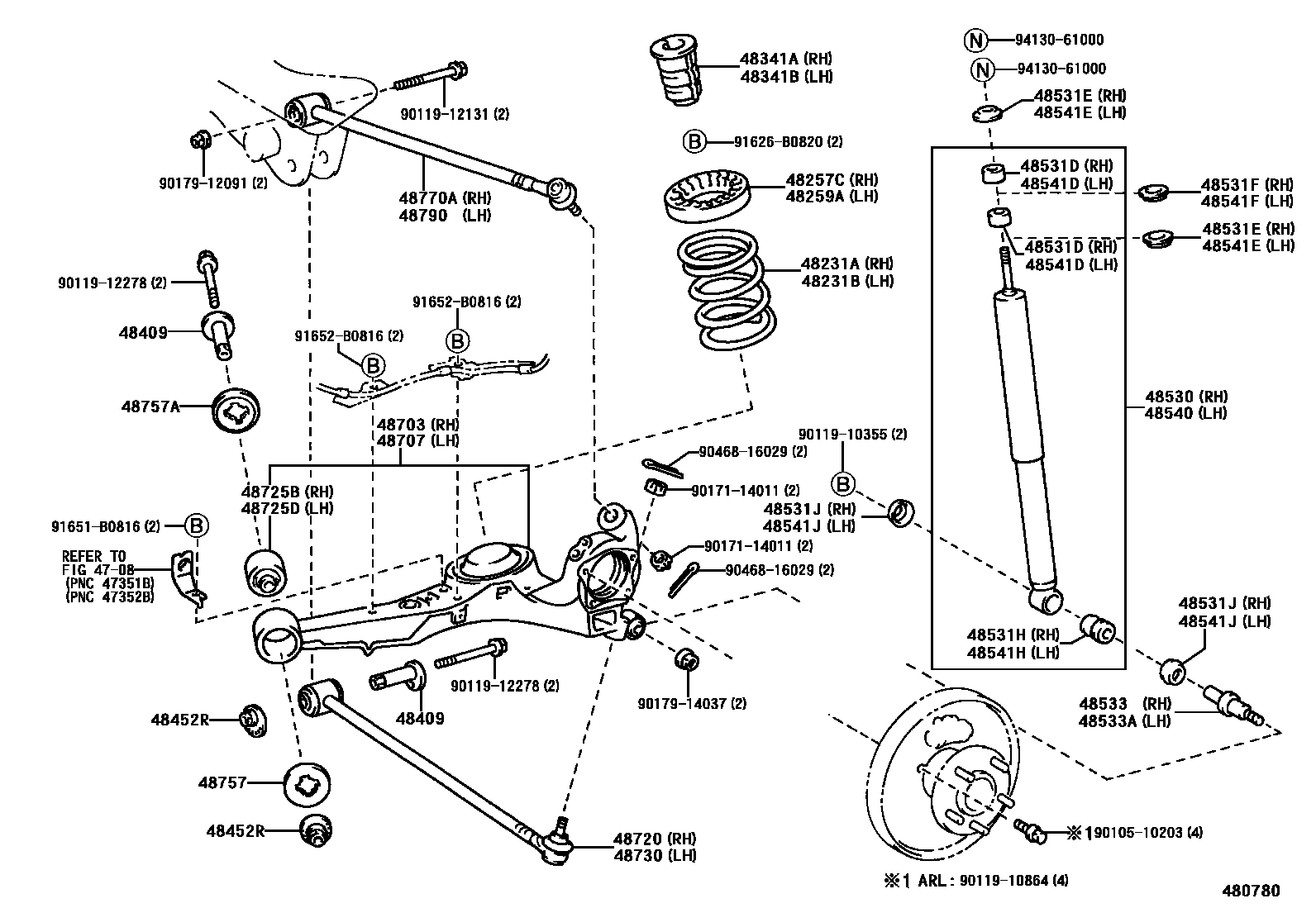

Toyota RAV4 Rear Spring & Shock Absorber — Figure 4804
Toyota RAV4 EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48231A | Right rear coil spring | 48231-42020 · 48231-42021 · 48231-42030 · 48231-42031 · 48231-42032 · 48231-42050 · 48231-42051 · 48231-42060 · 48231-42061 |
| 48231B | Left rear coil spring | 48231-42020 · 48231-42021 · 48231-42030 · 48231-42031 · 48231-42032 · 48231-42050 · 48231-42051 · 48231-42060 · 48231-42061 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-42010 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-42010 |
| 48341A | No. 1 right rear spring buffer block | 48306-42010 · 48306-42020 · 48306-42040 |
| 48341B | No. 1 left rear spring buffer block | 48306-42010 · 48306-42020 · 48306-42040 |
| 48409 | Rear suspension toe adjustment cam sub-assembly | 48409-42010 · 48409-42011 |
| 48452R | No. 2 rear suspension toe adjustment piece | 48452-42010 · 48452-42011 |
| 48530 | Right rear shock absorber assembly | 48531-49075 · 48531-49076 · 48531-49077 · 48531-49085 · 48531-49086 · 48531-49087 · 48531-49088 · 48531-49125 · 48531-49126 · 48531-49127 · 48531-49128 · 48531-49135 · 48531-49136 · 48531-49137 |
| 48531D | No. 2 right rear shock absorber cushion | 90948-01018 · 90948-01031 |
| 48531E | No. 1 buffer pad block (for right rear shock absorber) | 90948-02002 |
| 48531F | No. 2 buffer pad block (for right rear shock absorber) | 90948-02007 |
| 48531H | Bushing (for right rear shock absorber) | 90385-16001 · 90385-16004 |
| 48531J | Right rear shock absorber No. 1 cushion washer | 90948-03004 · 90948-03012 |
| 48533 | Right rear shock absorber lower pivot pin | 48533-42010 |
| 48533A | Left rear shock absorber lower pivot pin | 48533-42010 |
| 48540 | Left rear shock absorber assembly | 48531-49075 · 48531-49076 · 48531-49077 · 48531-49085 · 48531-49086 · 48531-49087 · 48531-49088 · 48531-49125 · 48531-49126 · 48531-49127 · 48531-49128 · 48531-49135 · 48531-49136 · 48531-49137 |
| 48541D | Left rear shock absorber No. 2 cushion pad | 90948-01018 · 90948-01031 |
| 48541E | No. 1 cushion block (for left rear shock absorber) | 90948-02002 |
| 48541F | Crash pad block No. 2 (for left rear shock absorber) | 90948-02007 |
| 48541H | Bushing (for left rear shock absorber) | 90385-16001 · 90385-16004 |
| 48541J | Left rear shock absorber No. 1 cushion washer | 90948-03004 · 90948-03012 |
| 48703 | Right rear suspension arm sub-assembly | 48703-42010 · 48703-42020 · 48711-42900 · 48711-42901 · 48711-42904 · 48711-42905 |
| 48707 | Left rear suspension arm sub-assembly | 48707-42010 · 48707-42020 · 48712-42900 · 48712-42901 · 48712-42904 · 48712-42905 |
| 48720 | Right lower control arm assembly | 48720-42010 |
| 48725B | Rear suspension No. 1 arm bushing | 48725-42010 · 48725-42011 |
| 48725D | Rear suspension No. 3 arm bushing | 48725-42010 · 48725-42011 |
| 48730 | Left lower control arm assembly | 48730-42010 |
| 48757 | Rear suspension arm connector | 48757-42010 · 48757-42011 |
| 48757A | Rear suspension No. 2 arm connector | 48757-42020 · 48757-42021 |
| 48770A | Right rear upper control arm assembly | 48770-42010 |
| 48790 | Left rear upper control arm assembly | 48790-42010 |
