Toyota RAV4 后桥半轴和后桥轮毂 — Figure 4102

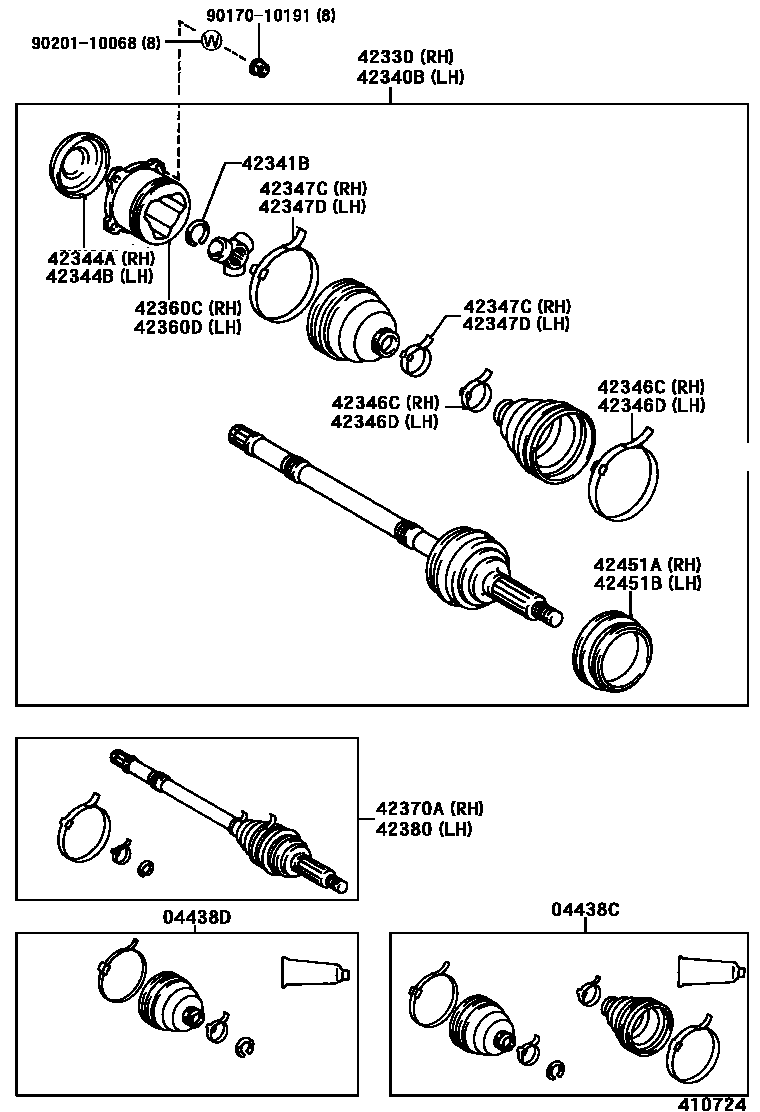

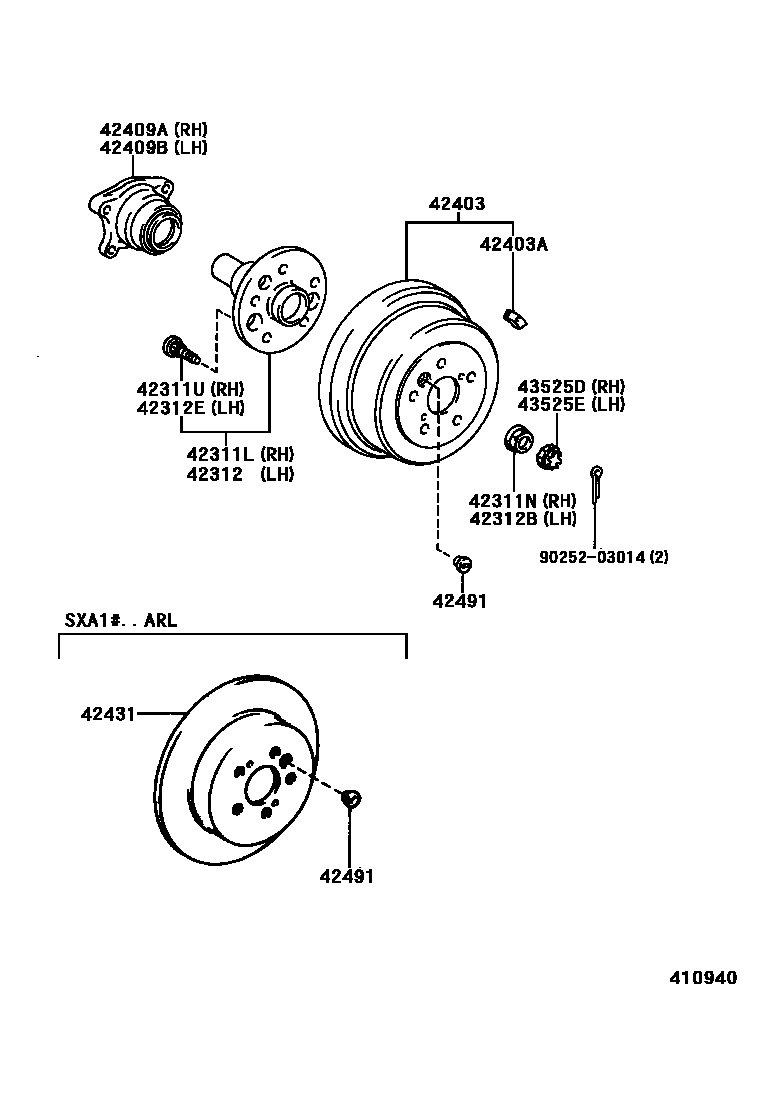

Toyota RAV4 EPC diagram 4102, 后桥半轴和后桥轮毂, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438C | Rear drive shaft dust boot assembly | 04438-42020 |
| 04438D | Rear drive shaft inner universal joint dust boot assembly | 04438-42010 |
| 42311L | Rear axle right half shaft | 42301-42010 |
| 42311N | Nut (for rear axle right half shaft) | 90178-22001 · 90179-22020 |
| 42311U | Hub bolt (for rear axle right) | 90942-02047 · 90942-02076 |
| 42312 | Rear axle left half shaft | 42301-42010 |
| 42312B | Nut (for rear axle left half shaft) | 90178-22001 · 90179-22020 |
| 42312E | Hub bolt (for left rear axle) | 90942-02047 · 90942-02076 |
| 42330 | Rear axle right drive shaft assembly | 42330-42010 · 42330-42011 · 42330-42020 · 42330-42021 |
| 42340B | Rear axle left drive shaft assembly | 42340-42010 · 42340-42011 · 42340-42020 · 42340-42021 |
| 42341B | Snap ring (for rear axle right drive shaft) | 90520-22005 |
| 42344A | Rear axle inner universal joint right end cover | 42343-14010 |
| 42344B | Rear axle inner universal joint left end cover | 42343-14010 |
| 42346C | Clamp (for the universal joint dust cover on the outside of the right drive shaft of the rear axle) | 90949-01078 · 90949-01080 |
| 42346D | Clamp (for universal joint dust cover outside left drive shaft of rear axle) | 90949-01078 · 90949-01080 |
| 42347C | Clamp (for the universal joint dust cover inside the right drive shaft of the rear axle) | 42345-14020 |
| 42347D | Clamp (for the universal joint dust cover inside the left drive shaft of the rear axle) | 42345-14020 |
| 42360C | Rear axle right drive shaft inner universal joint assembly | 42350-42010 |
| 42360D | Rear axle left drive shaft inner universal joint assembly | 42350-42010 |
| 42370A | Rear axle right drive shaft outer universal joint assembly | 42370-49015 · 42370-49016 · 42370-49025 · 42370-49026 |
| 42380 | Rear axle left drive shaft outer universal joint assembly | 42380-49015 · 42380-49016 · 42380-49025 · 42380-49026 |
| 42403 | Rear brake drum sub-assembly | 42431-42010 · 42431-42011 |
| 42403A | Balance weight (for rear brake drum) | 90937-01287 · 90937-01288 · 90937-01289 |
| 42409A | Rear axle right bearing sub-assembly | 42409-42010 |
| 42409B | Rear axle left bearing sub-assembly | 42409-42010 |
| 42431 | rear brake disc | 42431-42030 |
| 42451A | No. 1 right rear wheel bearing dust cover | 42451-32010 · 43247-12010 |
| 42451B | No. 1 left rear wheel bearing dust cover | 42451-32010 · 43247-12010 |
| 42491 | Brake shoe adjustment hole plug (for parking brake) | 47491-14010 |
| 43525D | Right rear wheel adjustment lock cover | 42428-42010 · 43525-20040 |
| 43525E | Left rear wheel adjustment lock cover | 42428-42010 · 43525-20040 |
