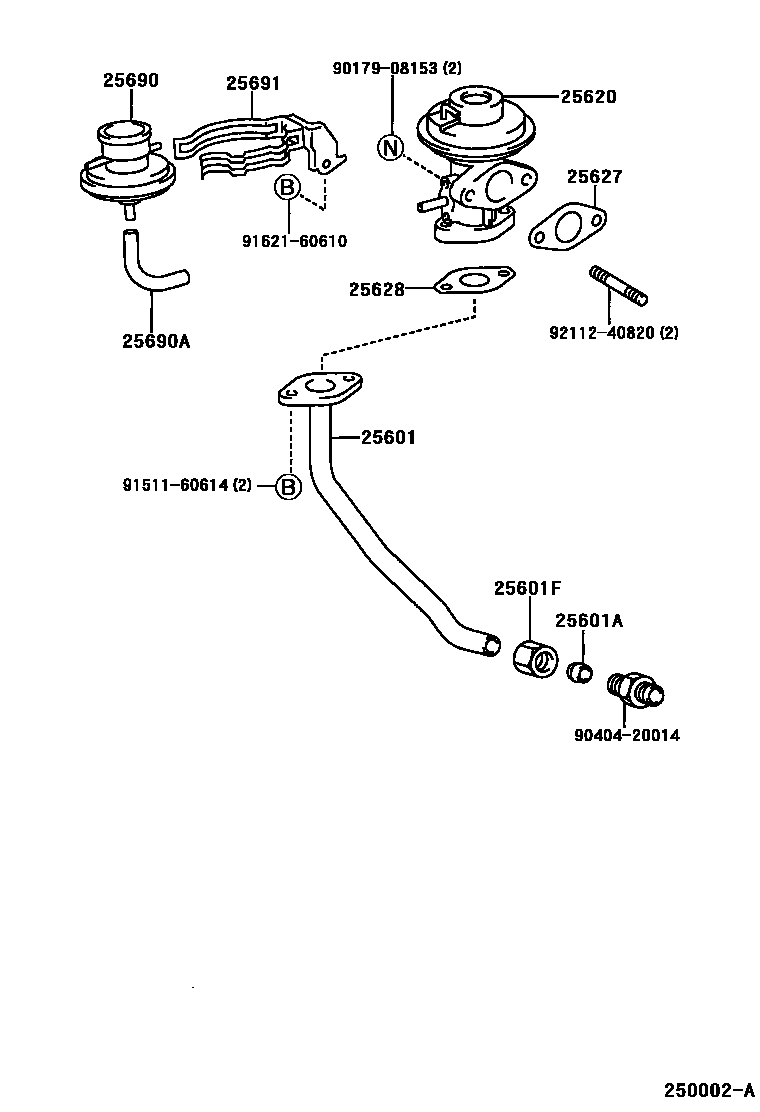

Toyota RAV4 废气再循环系统 — Figure 2501

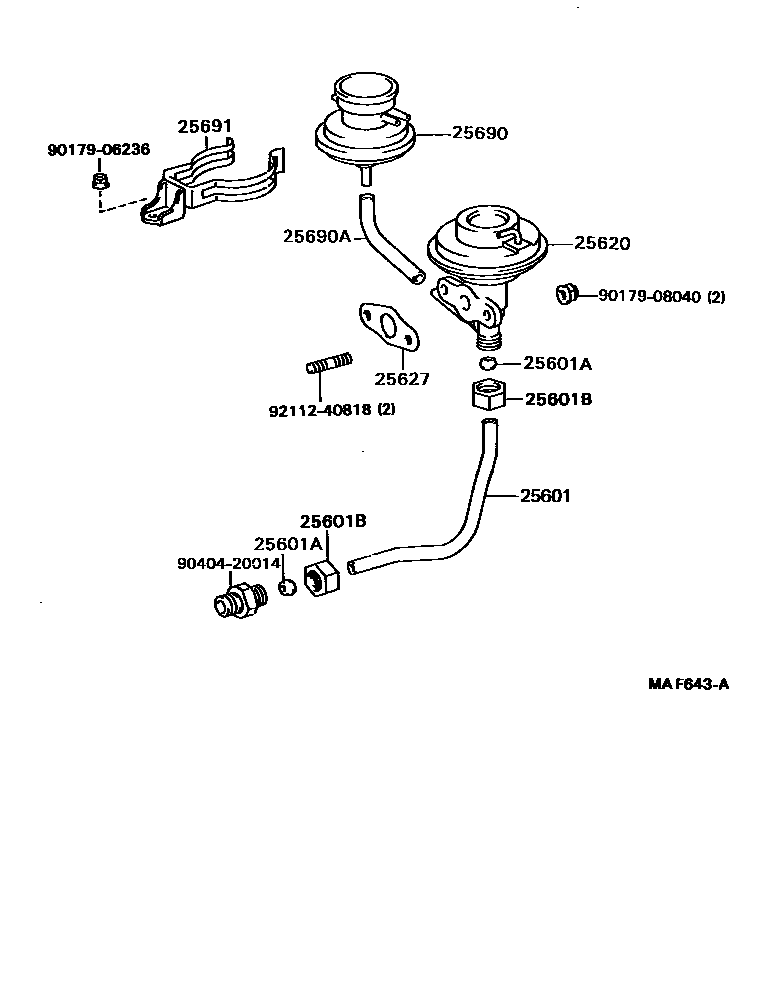

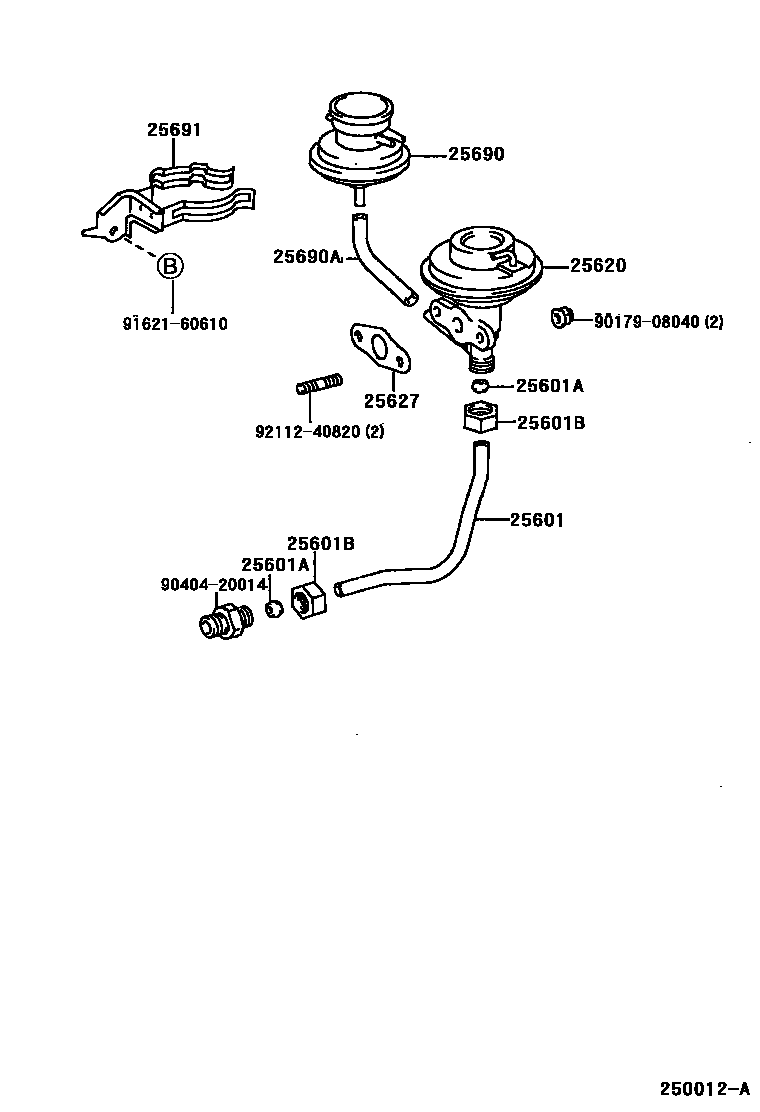

Toyota RAV4 EPC diagram 2501, 废气再循环系统, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25611-74050 · 25611-74060 |
| 25601A | No. 1 EGR tube ball sleeve | 90410-12042 |
| 25601B | No. 1 EGR pipe connecting nut | 90402-20073 |
| 25601F | Connector (for No. 1 EGR tube) | 90402-20073 |
| 25620 | EGR valve assembly | 25620-74250 · 25620-74260 · 25620-74300 · 25620-74310 · 25620-74320 · 25620-74330 |
| 25627 | EGR valve gasket | 25627-74011 |
| 25628 | EGR air intake gasket | 25628-74010 |
| 25690 | EGR vacuum regulator assembly | 25870-74090 · 25870-74110 |
| 25690A | Hoses (for EGR vacuum regulator) | 25695-74040 |
| 25691 | EGR vacuum regulator bracket | 25691-74070 · 25691-74090 |
