Toyota RAV4 vacuum tube — Figure 1708

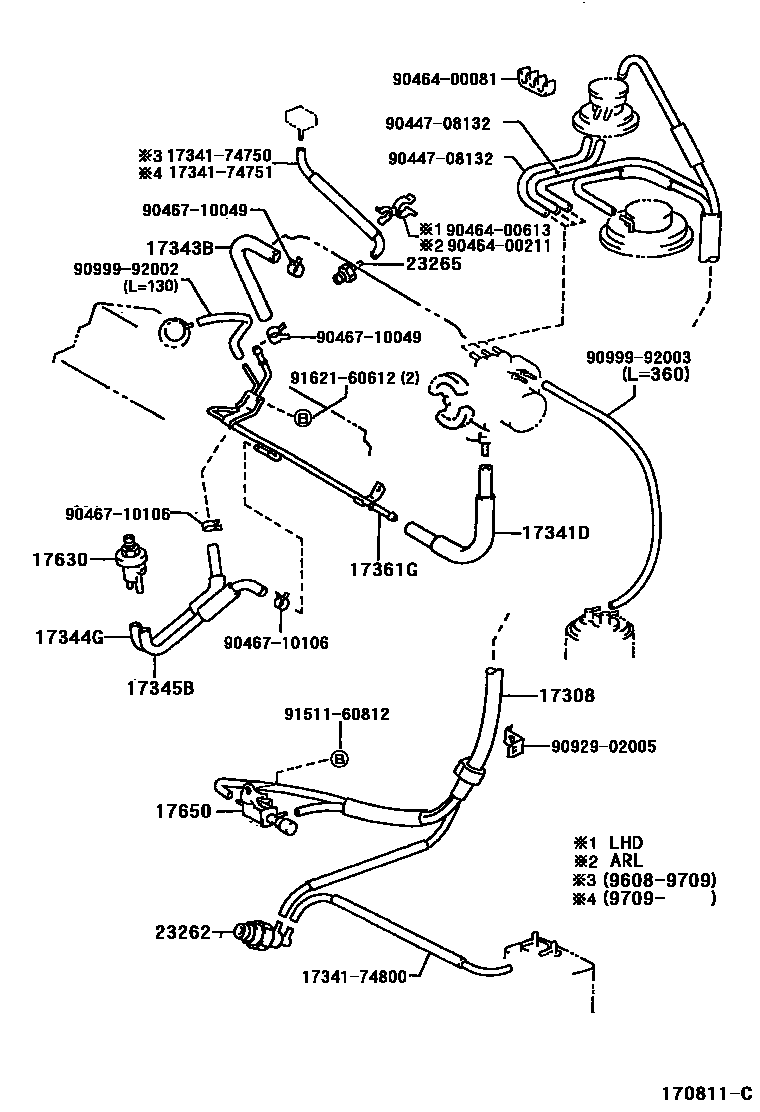

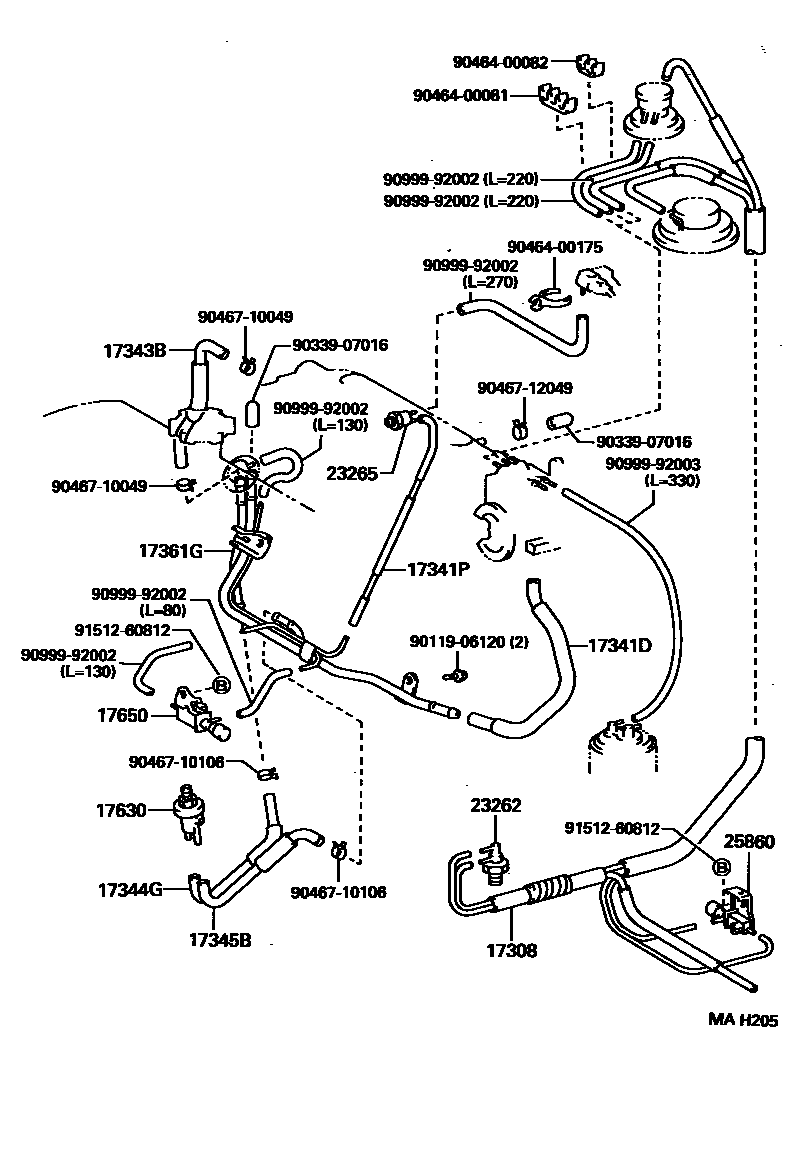

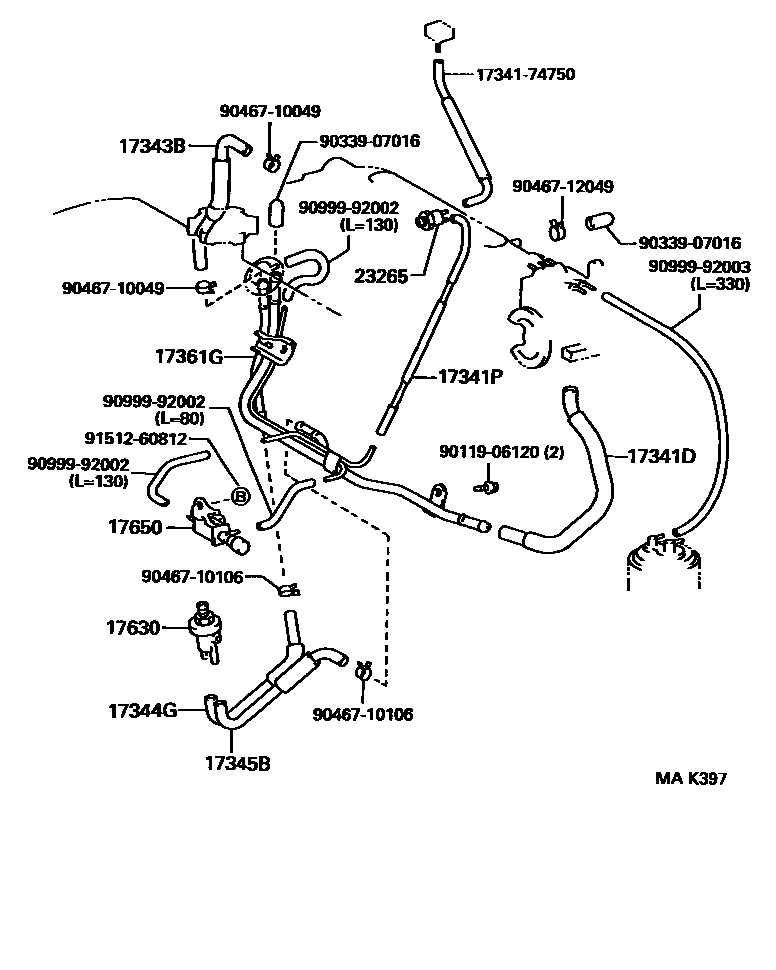

Toyota RAV4 EPC diagram 1708, vacuum tube, with 4 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17308 | Vacuum hose sub-assembly (for idle boost) | 17308-74420 · 17308-74560 · 17308-74610 · 17308-74640 |
| 17341D | No. 1 hose (for idle boost) | 17341-74340 |
| 17341P | air hose | 17341-74430 |
| 17343B | No. 3 hose (for idle speed boost) | 17343-74141 · 17343-74160 |
| 17344G | No. 4 air hose | 17344-74080 |
| 17345B | No. 5 hose (for idle speed boost) | 17345-74080 |
| 17361G | Air pipe (for idle boost) | 17361-74160 · 17361-74210 |
| 17630 | Air control valve assembly | 17630-70020 |
| 17650 | Vacuum switch valve assembly | 90910-12100 |
| 23262 | No. 1 bimetallic vacuum switch valve | 90925-05068 |
| 23265 | No. 1 gas filter | 90917-11022 · 90917-11023 · 90917-11027 · 90917-11037 · 90917-11039 · 90917-11041 · 90917-11042 · 90917-11043 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-74200 |
