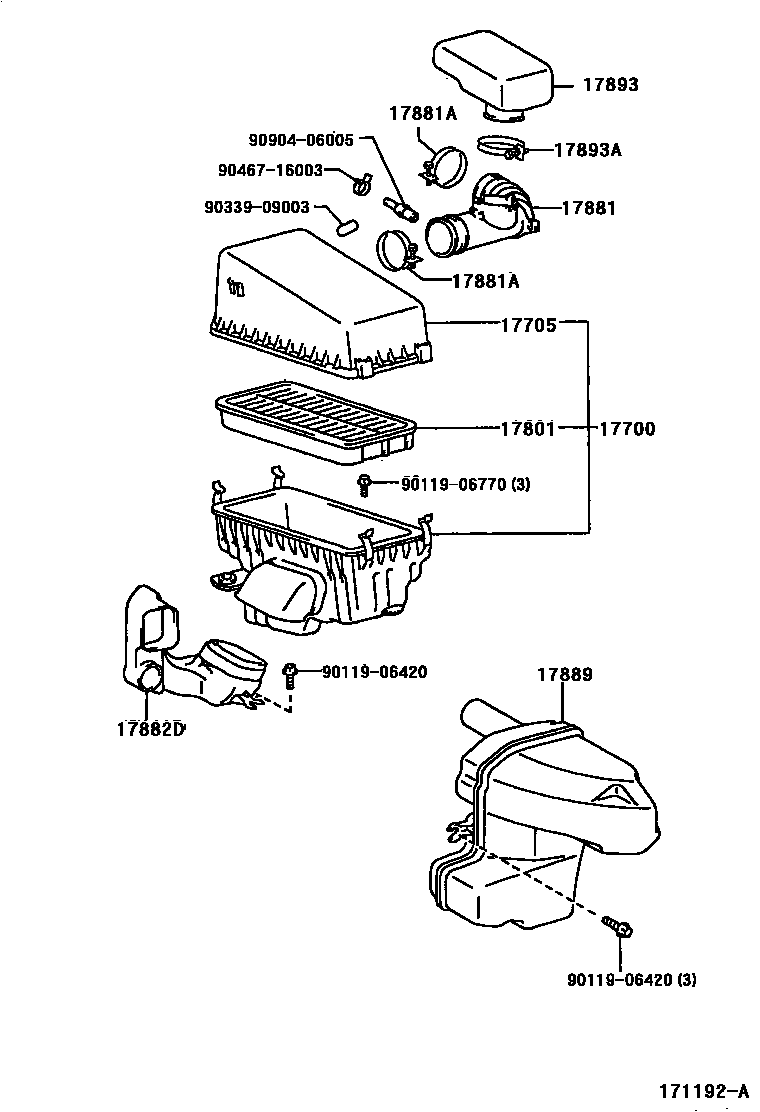

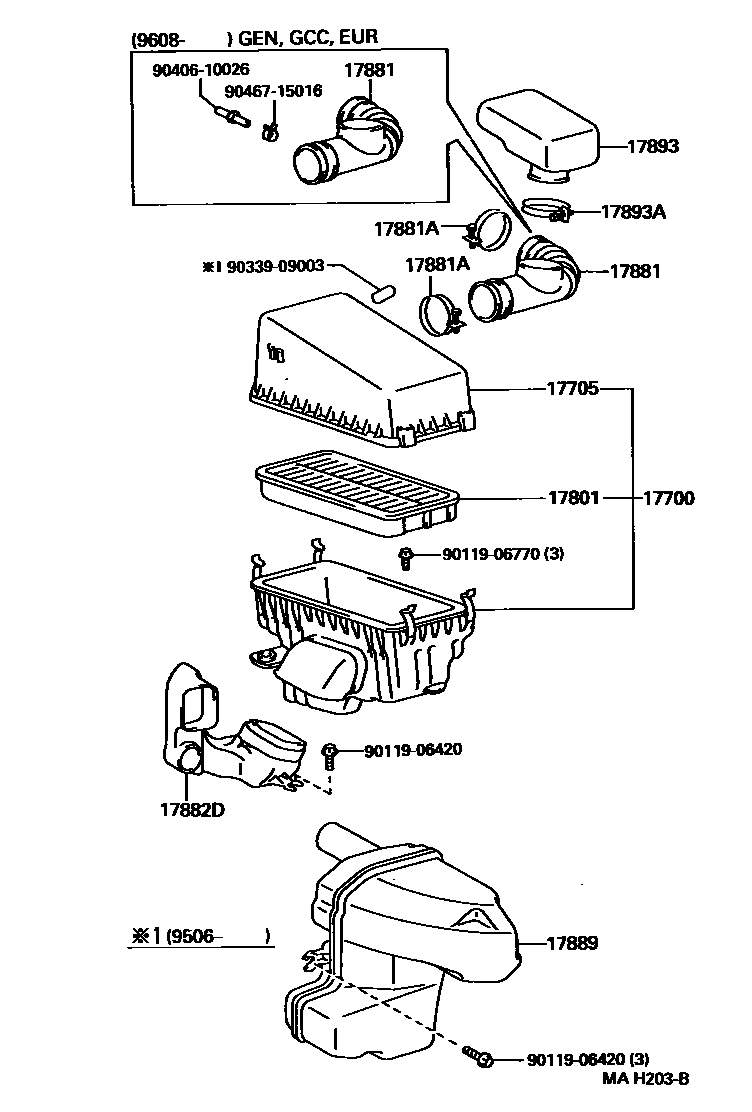

Toyota RAV4 Air Cleaner — Figure 1703
Toyota RAV4 EPC diagram 1703, Air Cleaner, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17700 | air filter assembly | 17700-74540 · 17700-74541 · 17700-74542 · 17700-74543 |
| 17705 | Air filter cover sub-assembly | 17705-74380 · 17705-74381 · 17705-74382 |
| 17801 | Air filter element sub-assembly | 17801-74020 |
| 17881 | No. 1 air cleaner hose | 17881-74600 · 17881-74800 · 17881-74801 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10710 |
| 17882D | Cold air intake hose | 17882-74290 · 17882-74300 |
| 17889 | No. 2 air cleaner hose housing | 17889-74050 |
| 17893 | Intake resonator | 17893-74330 |
| 17893A | hose clamp | 96111-10670 |
