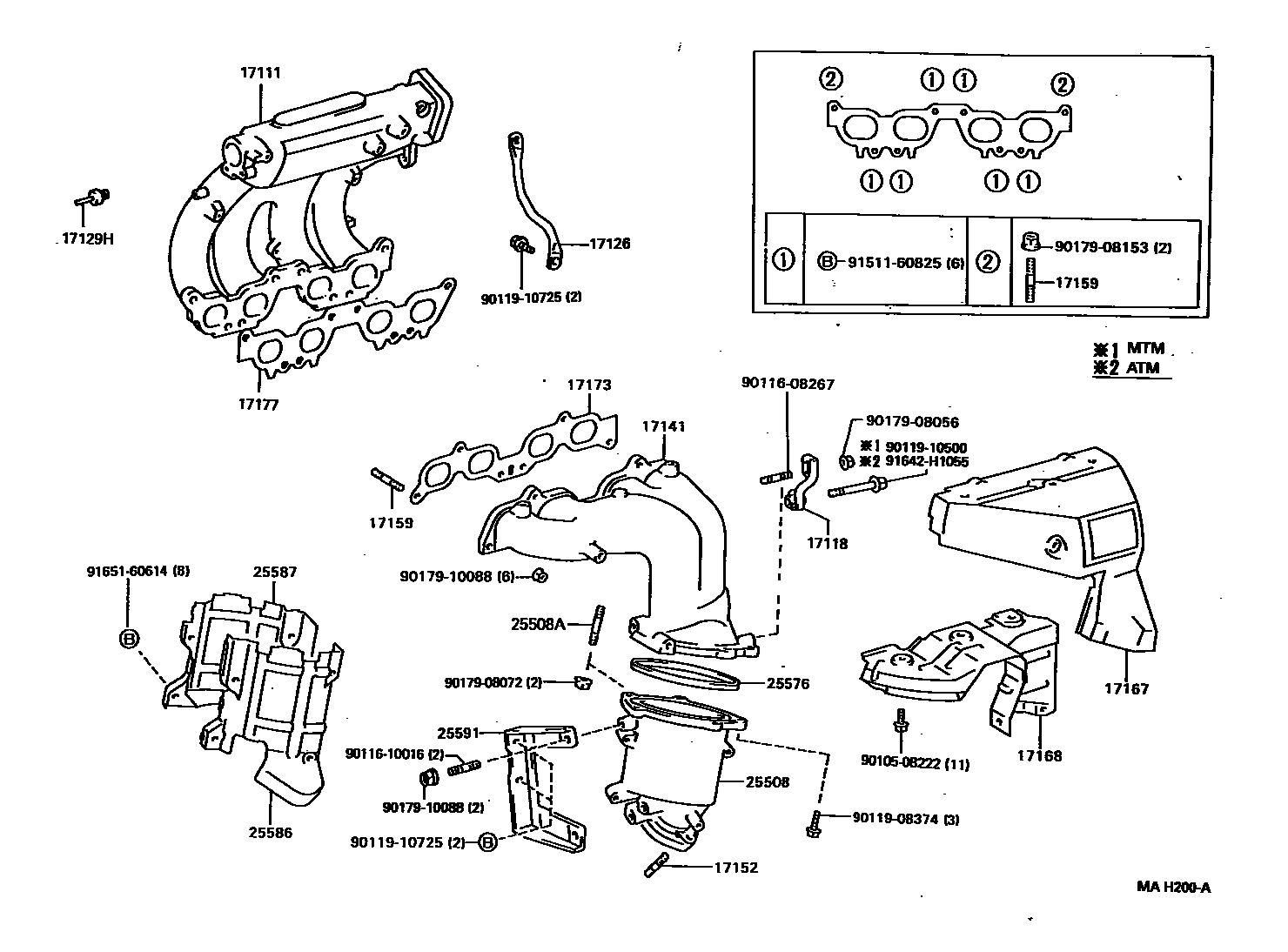

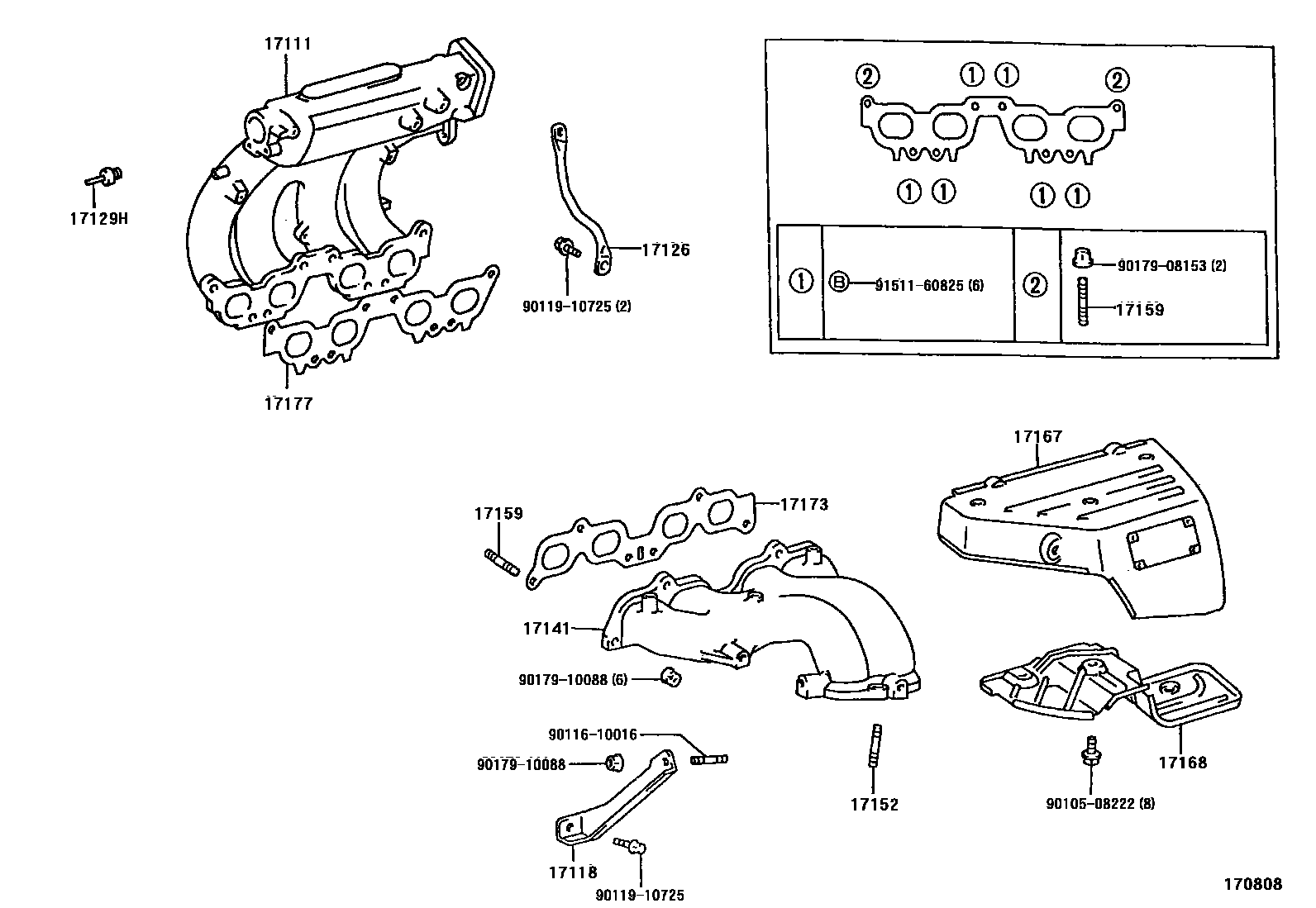

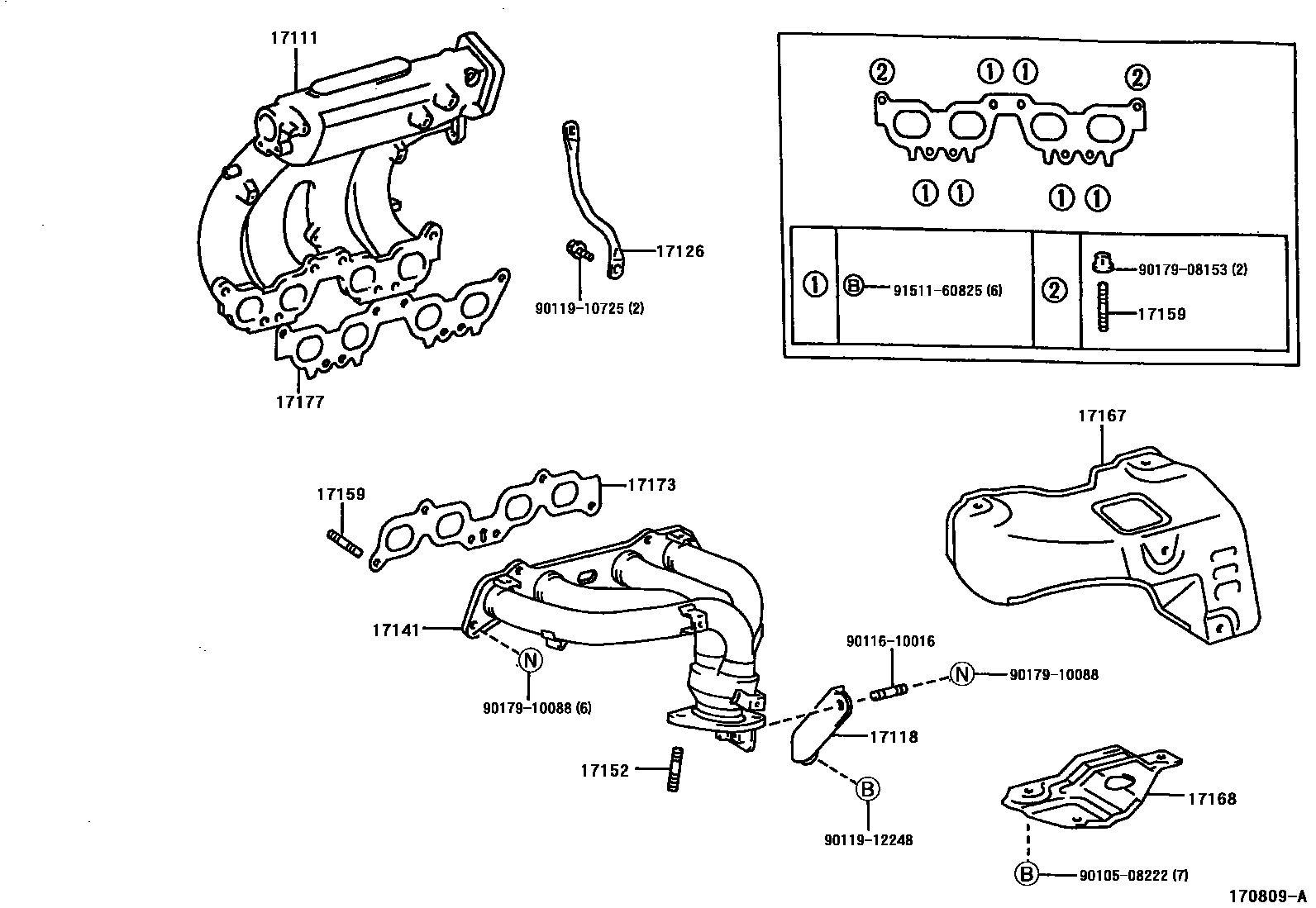

Toyota RAV4 Manifold — Figure 1701
Toyota RAV4 EPC diagram 1701, Manifold, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17111 | Intake Manifold | 17101-74220 · 17101-74230 · 17101-74320 · 17101-74330 |
| 17118 | Manifold stays | 17118-74040 · 17118-74300 · 17118-74380 |
| 17126 | No. 2 pressure tank stay | 17126-74060 · 17126-74070 |
| 17129H | Connector No. 4 | 90404-51026 |
| 17141 | exhaust manifold | 17141-74031 · 17141-74170 · 17141-74210 · 17141-74280 |
| 17152 | Studs (for manifold to exhaust) | 90116-10058 |
| 17159 | Studs (for manifold to cylinder head) | 90116-10063 · 92122-60822 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-74141 · 17167-74211 · 17167-74250 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-74020 · 17168-74110 · 17168-74150 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-74040 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-74070 |
| 25508 | Manifold three-way catalytic converter sub-assembly | 25508-74210 · 25508-74250 |
| 25508A | Stud bolts (for manifold three-way catalytic converter) | 90116-08171 |
| 25576 | Manifold three-way catalytic converter gasket | 25576-74030 |
| 25586 | No. 1 manifold three-way catalytic converter vibration isolation pad | 25586-74011 · 25586-74060 |
| 25587 | No. 2 manifold three-way catalytic converter vibration isolation pad | 25587-74011 · 25587-74060 |
| 25591 | Manifold bracket | 25591-74011 |
