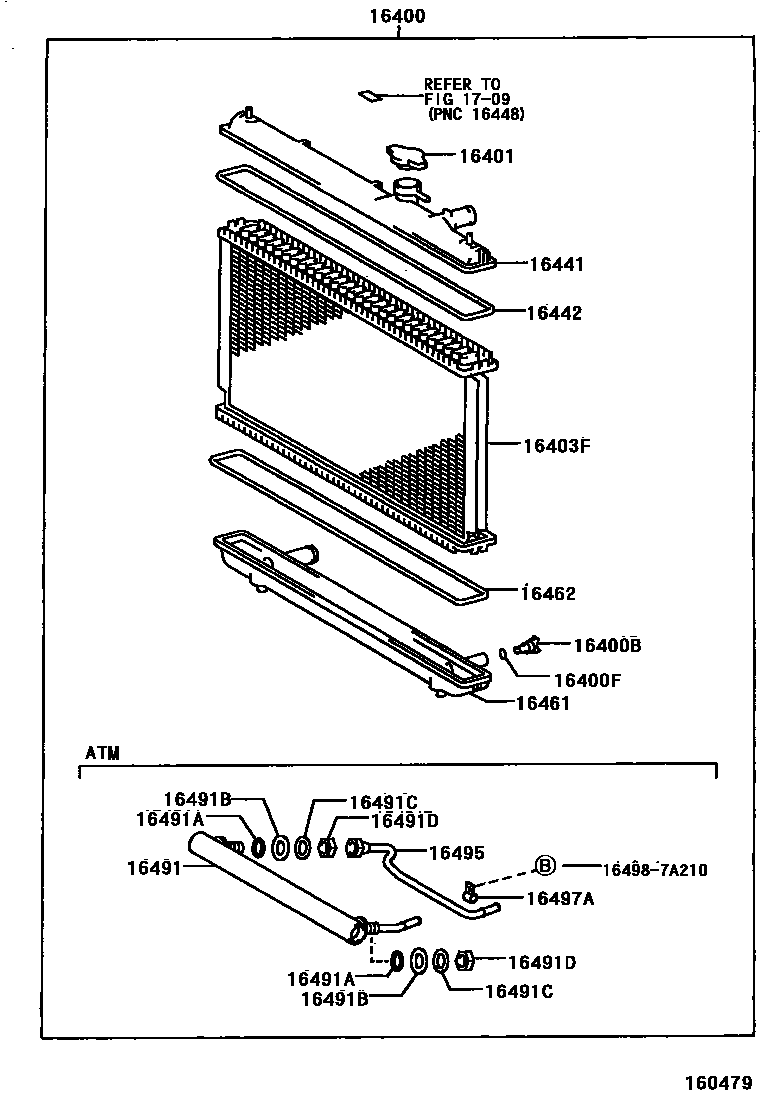

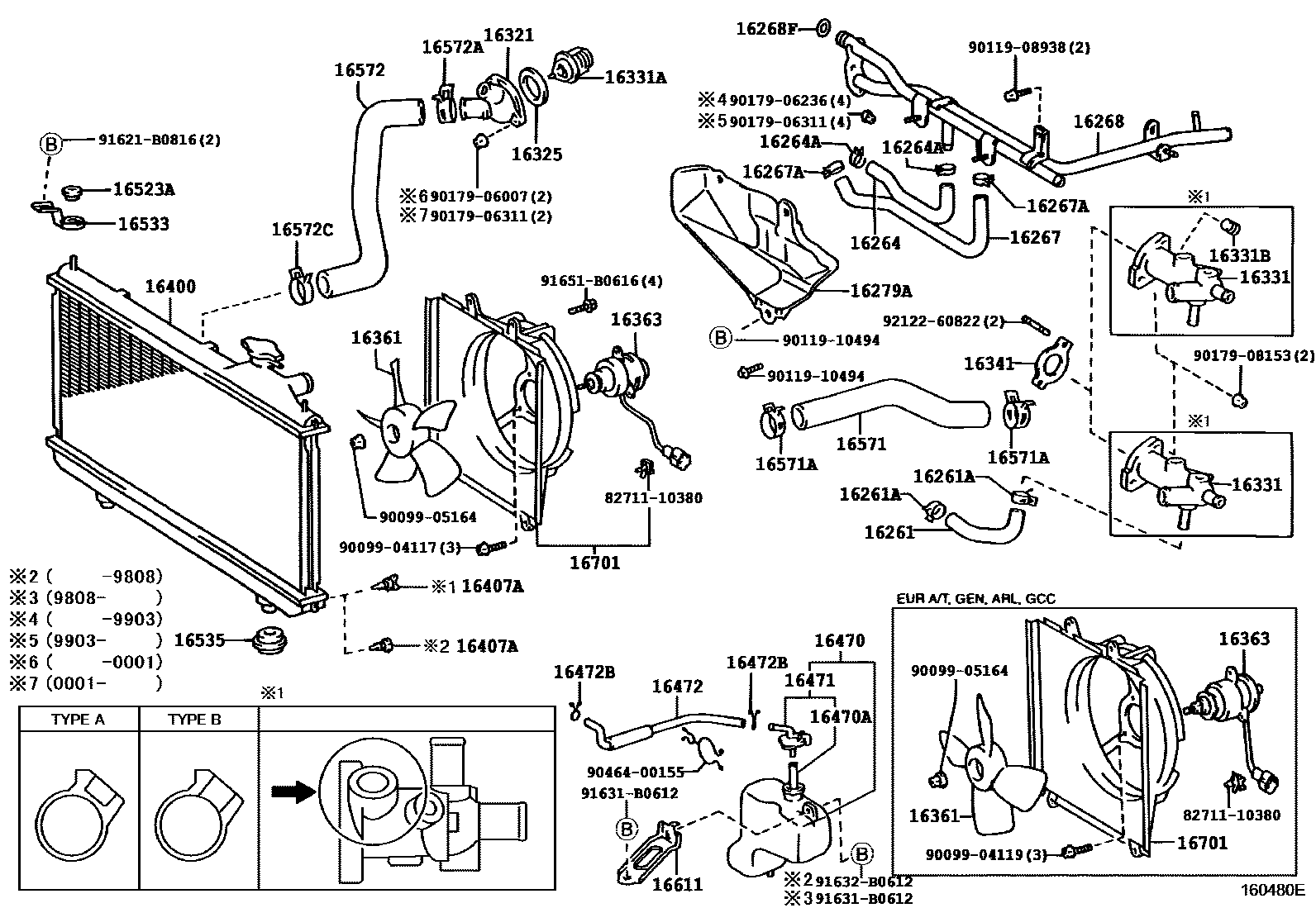

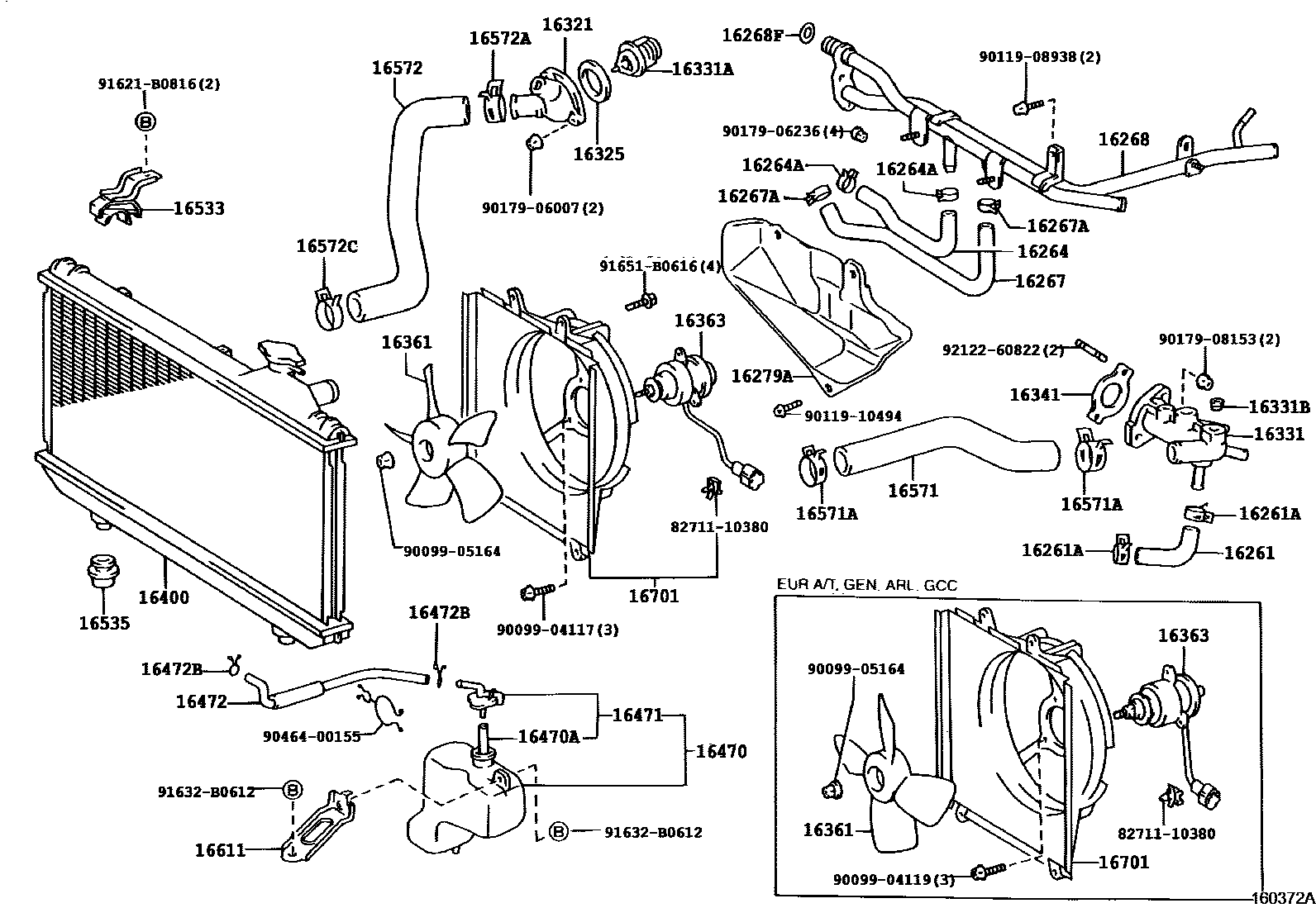

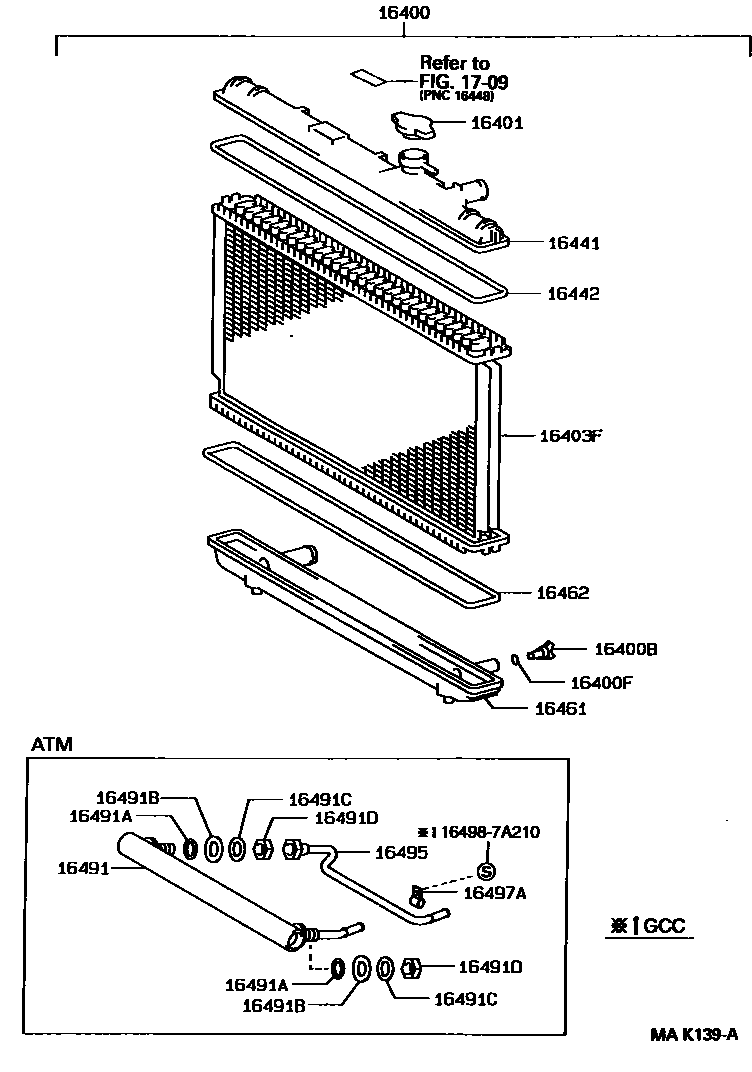

Toyota RAV4 RADIATOR & WATER OUTLET — Figure 1603
Toyota RAV4 EPC diagram 1603, RADIATOR & WATER OUTLET, with 4 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16261 | HOSE, WATER BY-PASS | 16261-74010 · 16261-74100 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-22003 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-74030 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-20005 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-74030 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90467-20005 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-74180 · 16268-74230 |
| 16268F | O-ring (for water bypass pipe) | 96761-24017 |
| 16279A | hose insulation | 16279-74050 |
| 16321 | water inlet | 16321-74030 · 16321-74050 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-63011 |
| 16331 | Water outlet | 16331-74170 · 16331-74210 · 16331-74220 · 16331-74260 |
| 16331A | thermostat | 90916-03046 · 90916-03090 |
| 16331B | Screw plug (for water outlet) | 90345-53007 · 90345-53009 |
| 16341 | GASKET, WATER OUTLET | 16341-74020 |
| 16361 | Fan | 16361-64030 · 16361-74110 |
| 16363 | cooling fan motor | 16363-74160 · 16363-74170 |
| 16400 | Radiator assembly | 16400-7A110 · 16400-7A111 · 16400-7A120 · 16400-7A121 · 16400-7A122 · 16400-7A241 · 16400-7A251 · 16400-7A490 · 16400-7A500 · 16400-7A530 · 16400-7A540 |
| 16400B | Radiator drain switch screw plug | 16417-15210 |
| 16400F | Seal (for radiator drain switch) | 16418-15520 |
| 16401 | Radiator cover sub-assembly | 16401-15520 · 16401-7A470 · 16401-7A530 |
| 16403F | Radiator core sub-assembly | 16403-7A110 · 16403-7A250 |
| 16407A | Radiator drain switch sub-assembly | 16407-7A130 · 90341-16016 |
| 16441 | Radiator water tank | 16441-7A110 · 16441-7A111 · 16441-7A251 · 16441-7A470 |
| 16442 | O-ring (for radiator tank) | 16442-64780 · 16442-7A210 |
| 16461 | Radiator lower tank | 16461-7A110 · 16461-7A111 · 16461-7A120 · 16461-7A121 · 16461-7A241 · 16461-7A251 · 16461-7A470 · 16461-7A480 |
| 16462 | O-ring (for radiator lower tank) | 16442-7A110 · 16462-7A250 |
| 16470 | Radiator reservoir assembly | 16470-74281 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-74271 |
| 16472 | Breather hose | 16472-74280 |
| 16472B | Clip (for breather hose) | 90467-11085 |
| 16491 | Oil cooler (for ATM) | 16491-7A120 |
| 16491A | O-ring (for automatic transmission oil cooler) | 16492-64690 · 16492-64691 |
| 16491B | Flat Washer (for automatic transmission oil cooler) | 16493-61170 |
| 16491C | Spring washer (for automatic transmission oil cooler) | 16494-61170 |
| 16491D | Nut (for automatic transmission oil cooler) | 16496-15580 |
| 16495 | Oil line nut (for automatic transmission oil cooler) | 16495-7A120 · 16495-7A121 |
| 16497A | Bracket (for automatic transmission oil cooler) | 16497-7A120 · 16497-7A121 · 16499-7A120 |
| 16523A | Radiator bracket cushion | 16523-74010 |
| 16533 | Radiator upper bracket | 16533-74270 · 16533-74300 |
| 16535 | Radiator lower support | 16535-74170 · 16535-74210 |
| 16571 | Radiator water inlet hose | 16571-74310 · 16571-74400 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-34003 |
| 16572 | Radiator outlet hose | 16572-74250 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-34003 |
| 16572C | Hose clamp or clip (for radiator outlet No. 2) | 90467-34006 |
| 16611 | Radiator reservoir bracket | 16611-74160 |
| 16701 | Fan cover sub-assembly | 16711-74540 |
