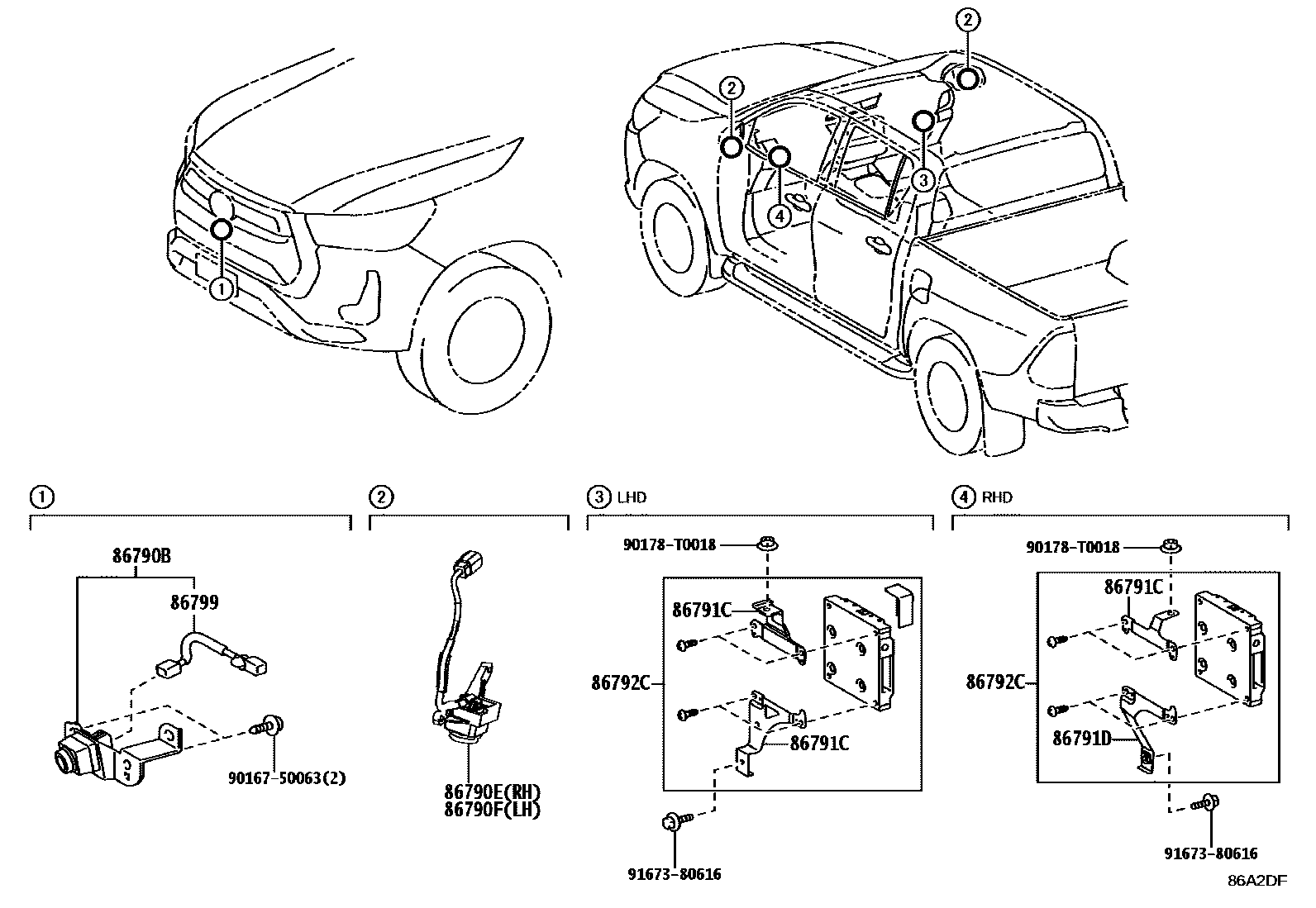

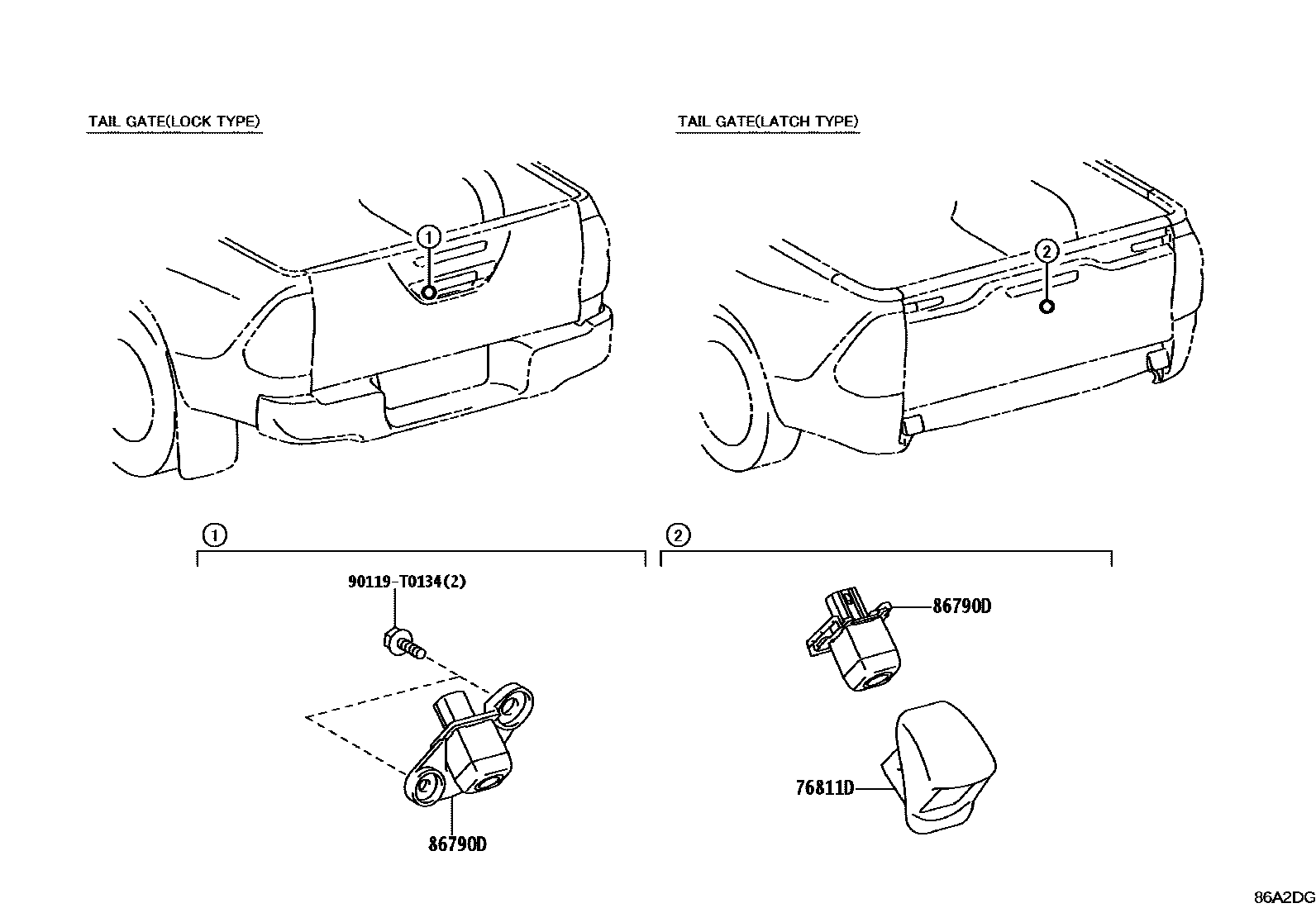

Toyota HILUX 倒车影像和摄像头 — Figure 8606
Toyota HILUX EPC diagram 8606, 倒车影像和摄像头, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76811D | Rear body door trim | 76811-0K520 |
| 86790B | Front image camera assembly | 86790-0K141 · 86790-0K171 · 86790-0K230 |
| 86790D | Rear reversing image camera assembly | 86790-0K051 · 86790-0K080 · 86790-0K120 |
| 86790E | ENS. CAMERA, TELEVISION, LATERALE MD | 86790-0K160 |
| 86790F | ENS. CAMERA, TELEVISION, LATERALE MG | 86790-0K150 |
| 86791C | SUPPORT, ORDINATEUR ASSISTANCE STATIONNEMENT, NO.1 | 86791-71010 · 86791-71030 |
| 86791D | SUPPORT, ORDINATEUR ASSISTANCE STATIONNEMENT, NO.2 | 86791-71020 · 86791-71040 |
| 86792C | Parking assist ECU | 86792-71070 · 86792-71090 · 86792-71130 · 86792-71140 · 86792-71160 · 86792-71170 · 86792-71180 · 86792-71190 · 86792-71210 |
| 86799 | Reversing image camera wiring harness | 86799-0K040 · 86799-0K060 |
