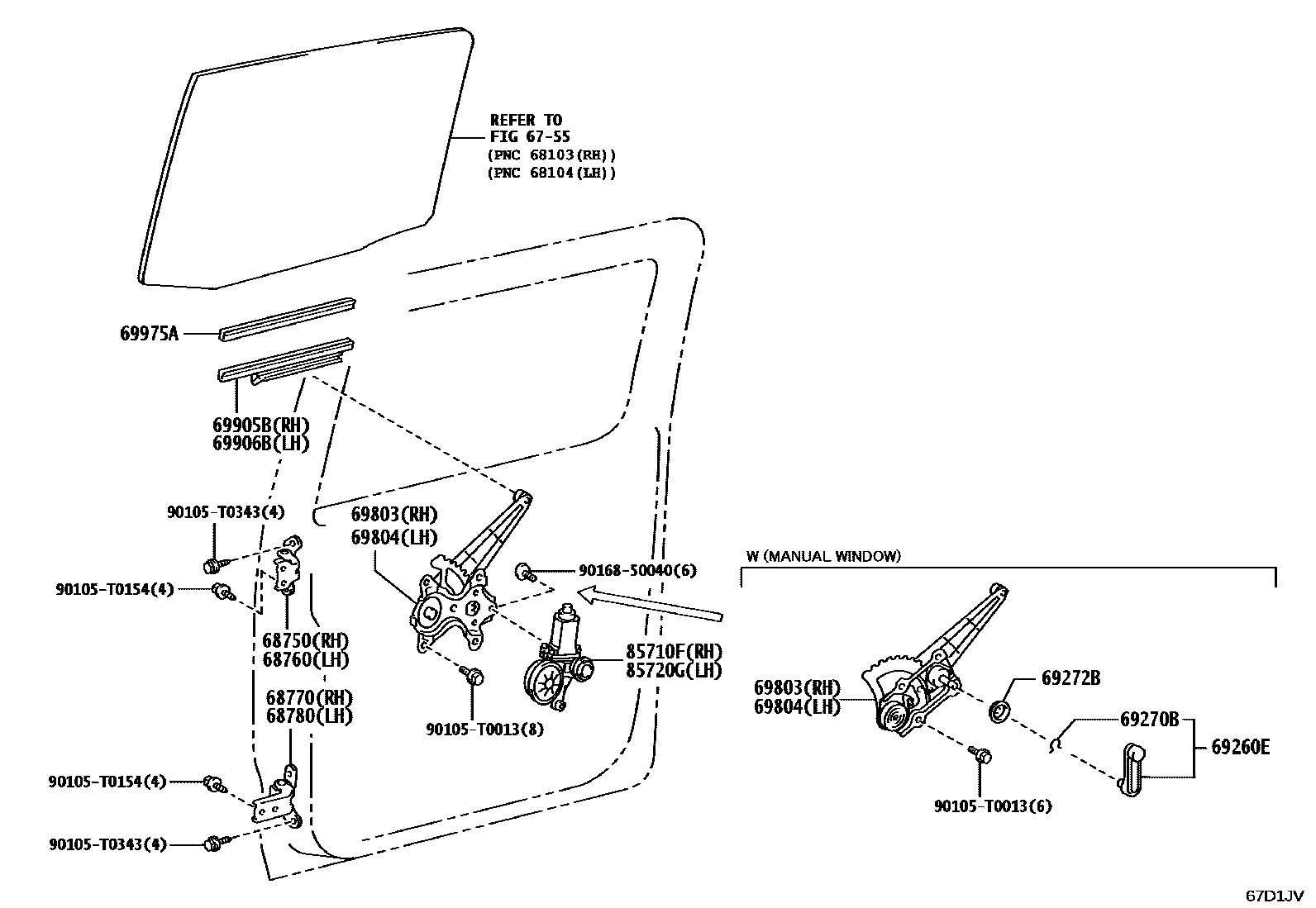

Toyota HILUX 后门车窗升降器和合页 — Figure 6757
Toyota HILUX EPC diagram 6757, 后门车窗升降器和合页, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-02020 · 68750-0D030 · 68750-0K100 |
| 68760 | Left rear door upper hinge assembly | 68760-02020 · 68760-0D030 · 68760-0K100 |
| 68770 | Right rear door lower hinge assembly | 68770-02020 · 68770-0D030 · 68770-0K020 |
| 68780 | Left rear door lower hinge assembly | 68780-02020 · 68780-0D030 · 68780-0K020 |
| 69270B | Shaft snap ring (for rear door window regulator handle) | 90080-52152 · 90520-01274 |
| 69272B | Rear door window regulator inner handle plate | 69268-02022 · 69268-04020 |
| 69803 | Right rear door window lifter sub-assembly | 69803-0K110 · 69803-0K120 · 69803-0K130 · 69803-0K150 · 69803-0K160 · 69830-0K180 · 69830-0K210 · 69830-0K240 |
| 69804 | Left rear door window lifter sub-assembly | 69804-0K110 · 69804-0K120 · 69804-0K130 · 69804-0K150 · 69804-0K160 · 69840-0K180 · 69840-0K210 · 69840-0K240 |
| 69905B | Right rear door glass groove sub-assembly | 69905-0K071 · 69905-0K080 · 69905-0K090 · 69905-0K110 |
| 69906B | Left rear door glass groove sub-assembly | 69906-0K071 · 69906-0K080 · 69906-0K090 · 69906-0K110 |
| 69975A | Rear door glass channel filler | 69975-0D040 · 69975-0D130 · 69975-0K050 · 69975-0K060 |
| 85710F | Right power window lift motor assembly | 85720-0D580 · 85720-0K180 · 85720-0K200 · 85720-0K270 · 85720-0K290 · 85720-0K300 · 85720-0K320 |
| 85720G | Left electric window lift motor assembly | 85710-0D580 · 85710-0K180 · 85710-0K220 · 85710-0K270 · 85710-0K290 · 85710-0K300 · 85710-0K320 |
