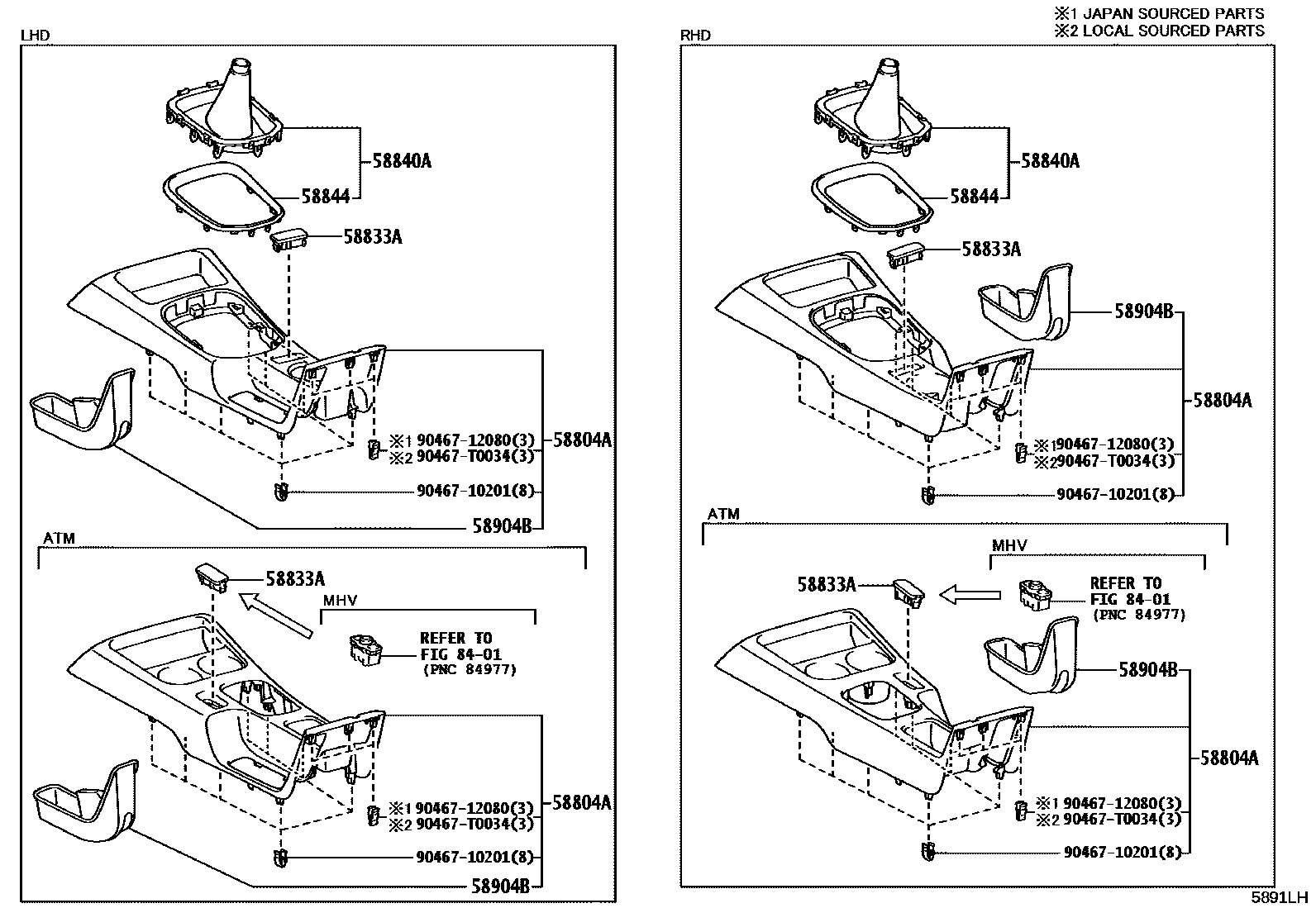

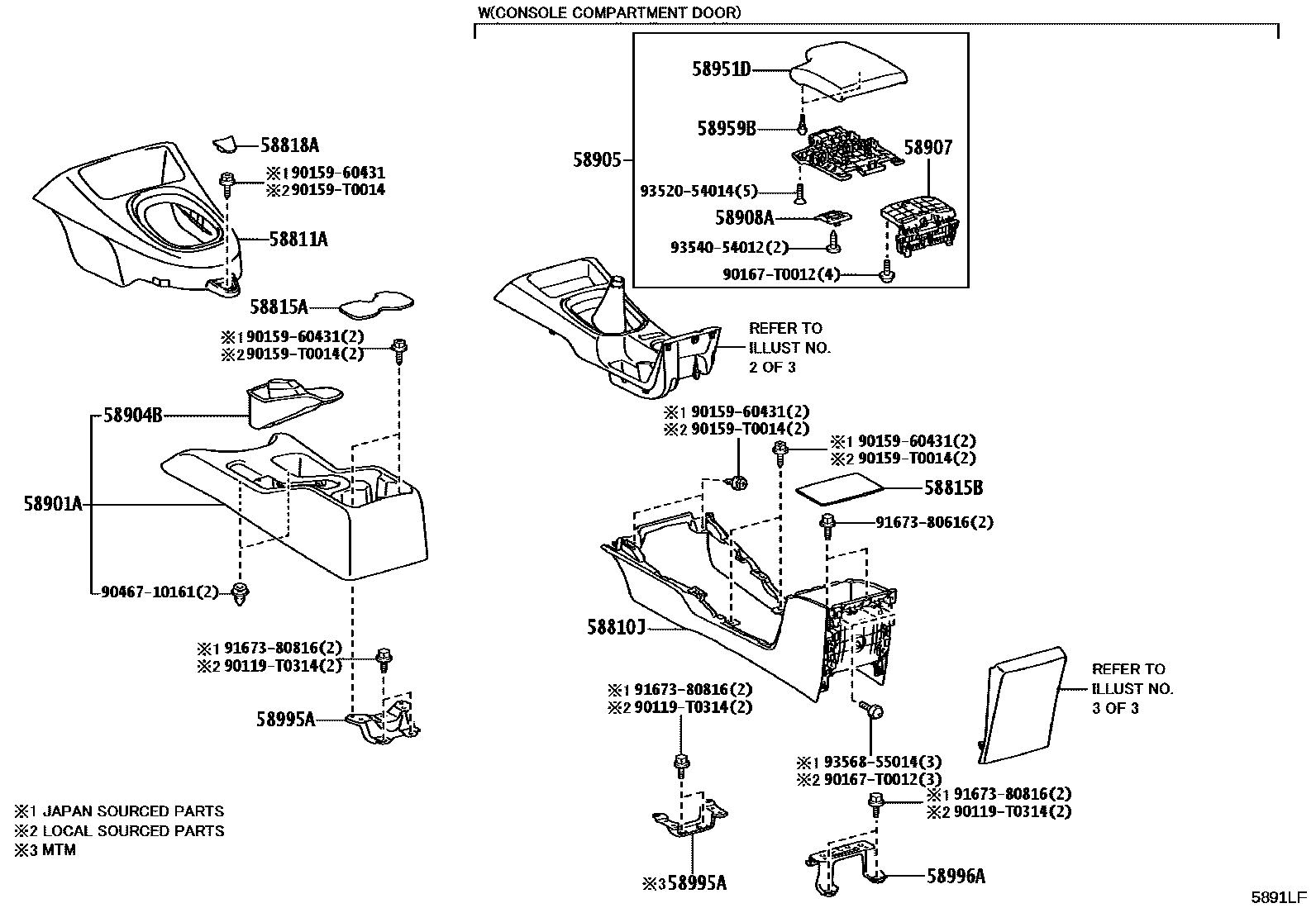

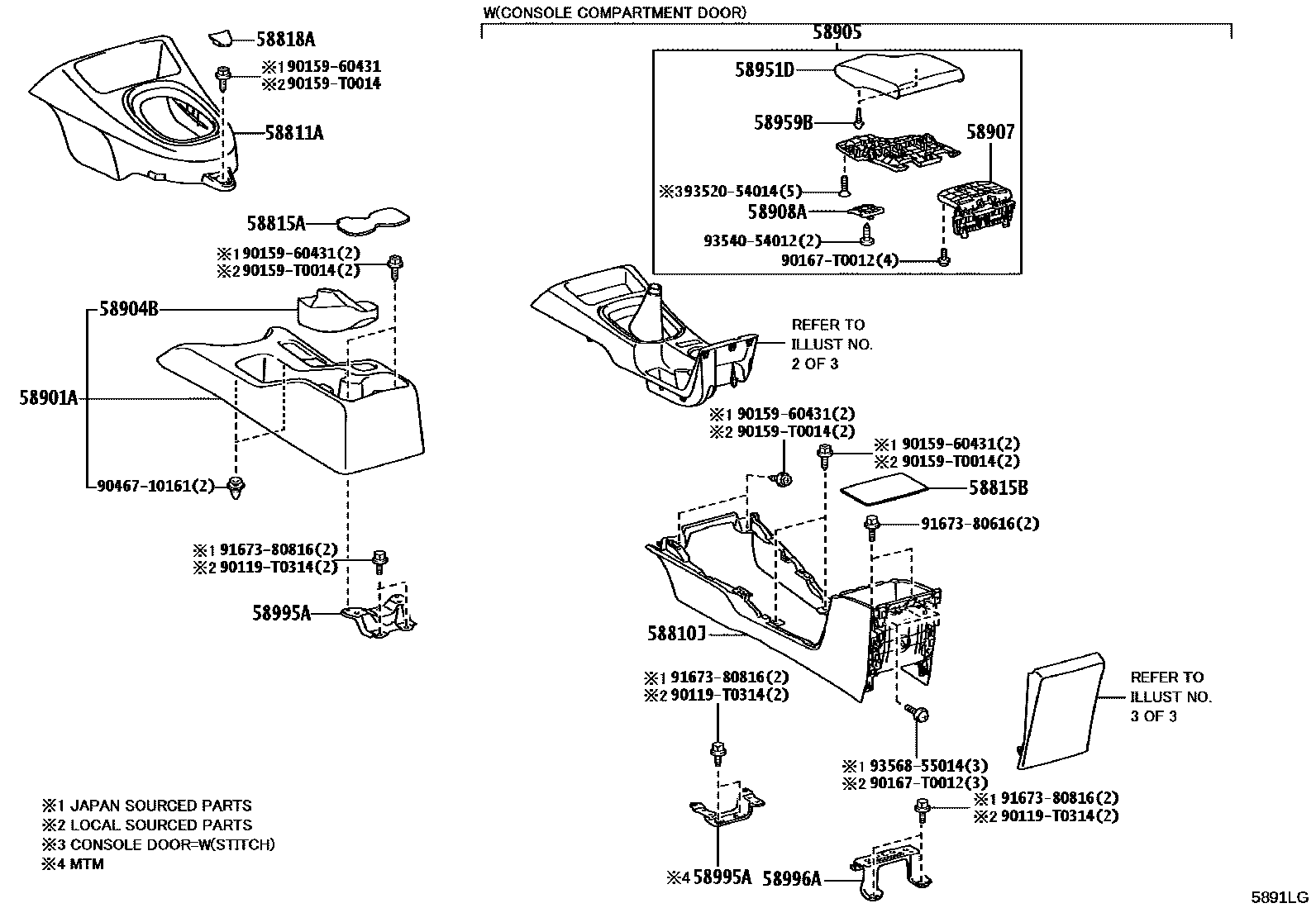

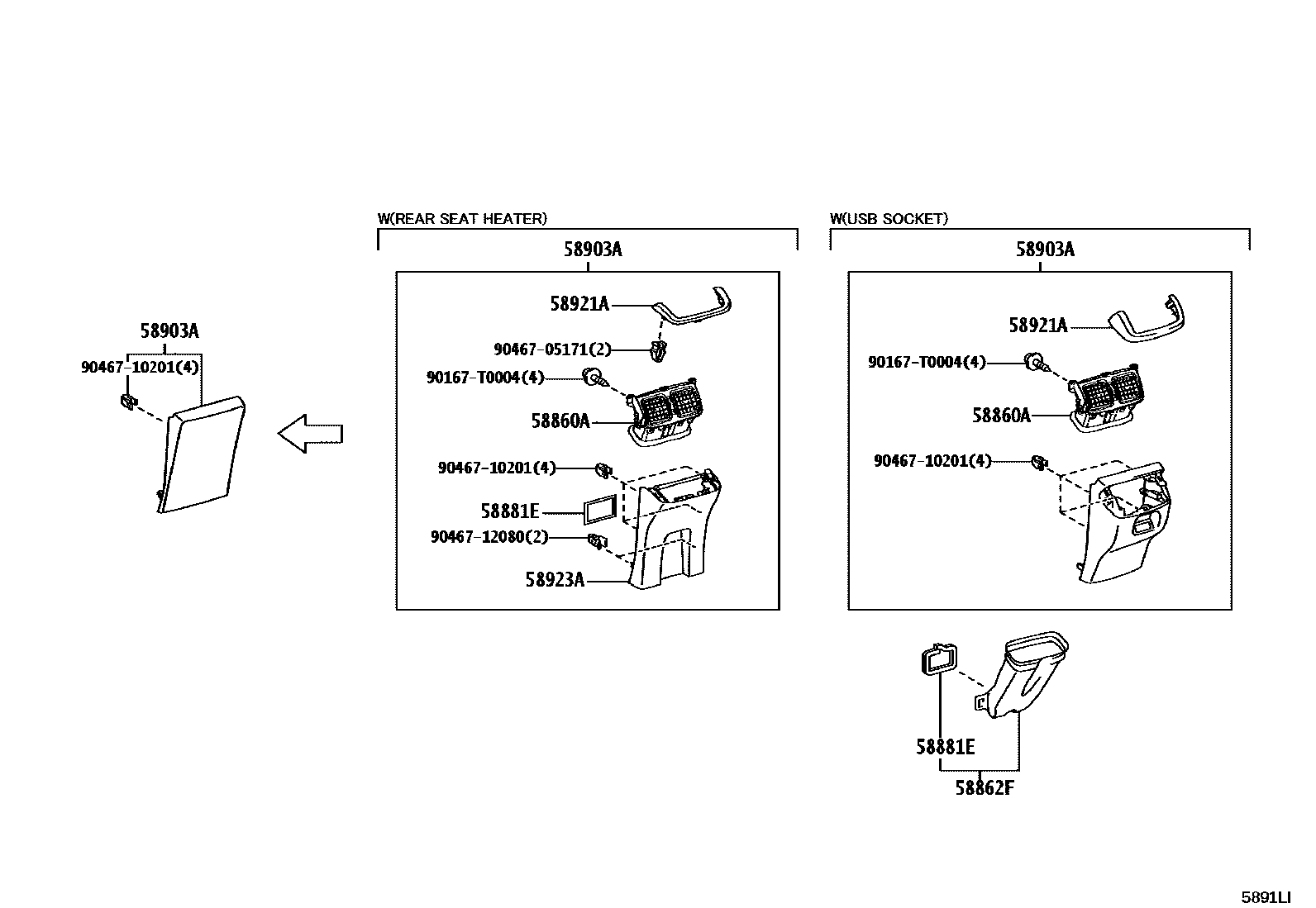

Toyota HILUX 中央扶手箱和支架 — Figure 5855
Toyota HILUX EPC diagram 5855, 中央扶手箱和支架, with 4 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58815A | Armrest box felt pad | 58815-KK020 |
| 58815B | Armrest box felt pad | 58815-KK010 |
| 58840A | Shift hole cover assembly | 58840-YP010 |
| 58844 | armrest box frame | 58844-KK030 · 58844-YP010 |
| 58860A | Armrest box air regulator assembly | 58860-KK010 |
| 58862F | Air duct No. 2 for armrest box | 58862-YP010 |
| 58881E | JOINT D'ETANCHEITE, VOLET AERATION BOITIER CONSOLE, NO.1 | 58881-KK010 |
| 58908A | Armrest box lid lock assembly | 58908-KK010 |
| 58921A | Rear armrest box upper panel | 58921-KK010 · 58921-YP010 |
| 58959B | Armrest box cover cushion | 90541-T0008 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-KK020 · 58995-KK030 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-KK020 |
