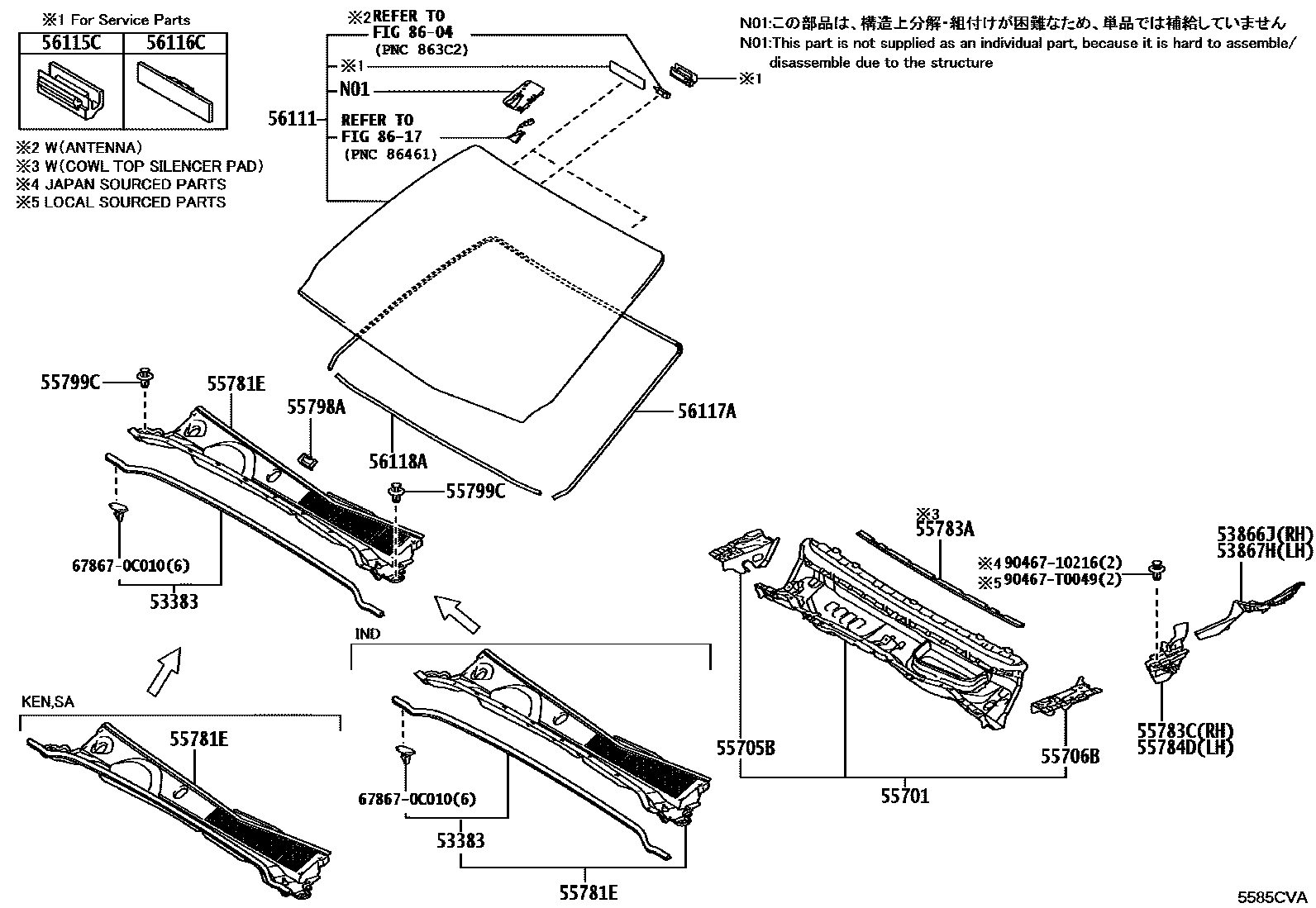

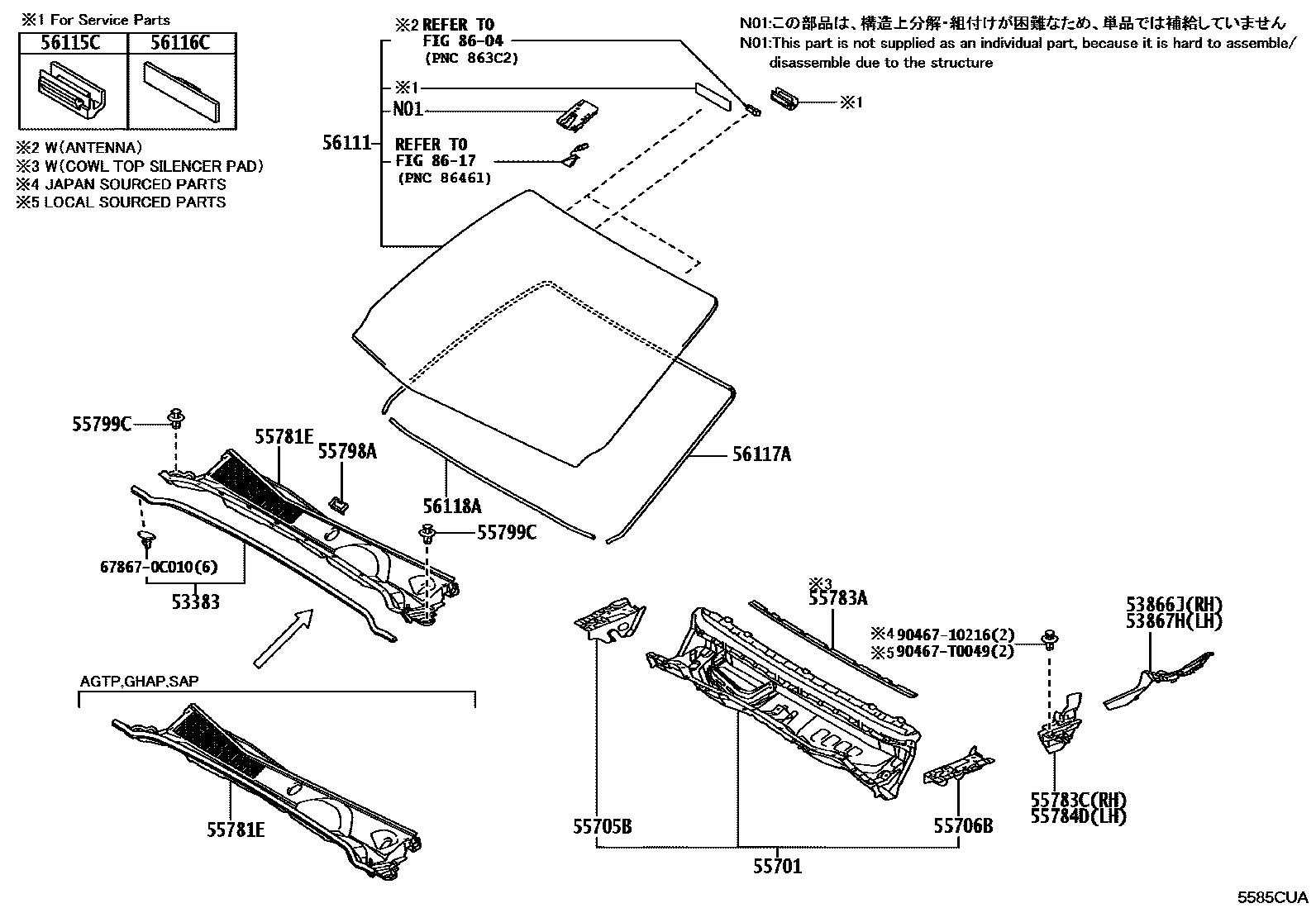

Toyota HILUX 前围板和挡风玻璃 — Figure 5553
Toyota HILUX EPC diagram 5553, 前围板和挡风玻璃, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383 | Engine cover to cowl upper cover seal | 53383-0K080 · 53383-0K110 · 53383-0K120 |
| 53866J | Right front fender to cowl side seal | 53866-0K050 · 53866-0K060 · 53866-0K090 · 53866-0K110 |
| 53867H | Left front fender to cowl side seal | 53867-0K050 · 53867-0K060 · 53867-0K090 · 53867-0K110 |
| 55701 | Front apron sub-assembly | 55700-KK010 · 55700-KK020 · 55700-KK030 · 55700-KK060 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-KK010 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-KK010 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-0K181 · 55708-0K190 · 55708-0K200 · 55708-0K220 · 55708-0K240 · 55708-0K250 · 55708-0K280 · 55708-0K351 |
| 55783A | Front cowl upper cover silencer pad | 55785-0K040 · 55785-0K120 · 55785-0K160 |
| 55783C | Ventilation grille bracket on right front apron | 55783-0K100 · 55783-0K110 · 55783-0K120 · 55783-0K140 |
| 55784D | Ventilation grille bracket on left front apron | 55784-0K030 · 55784-0K040 · 55784-0K050 · 55784-0K070 |
| 55798A | SUPPORT, JOINT EXTRACTION EAU AUVENT | 55798-0K010 |
| 55799C | Ventilation grille clips on front apron | 90467-07215 · 90467-T0050 |
| 56111 | windshield | 56101-0K301 · 56101-0K311 · 56101-0K331 · 56101-0K342 · 56101-0K361 · 56101-0K410 · 56101-0K632 · 56101-0K680 · 56101-0K730 · 56101-0K741 · 56101-0K750 · 56101-0K830 · 56101-0KA10 · 56101-0KB70 · 56101-0KB80 · 56101-0KC10 · 56101-0KD30 · 56101-0KD50 · 56101-0KD60 · 56101-0KF90 · 56101-0KG10 · 56101-0KG20 · 56101-0KG30 · 56101-0KG40 · 56101-0KJ80 · 56101-0KJ90 · 56101-0KK00 · 56101-0KL40 · 56101-0KL60 · 56101-0KM00 · 56101-0KM10 · 56101-0KM20 · 56101-0KN60 · 56101-0KP40 · 56101-0KP50 · 56101-0KP60 · 56101-0KQ30 · 56101-0KQ50 · 56101-0KQ80 |
| 56115C | windshield block | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-KK060 |
| 56118A | Window Glass No. 2 Adhesive Sealing Strip | 56117-KK030 |
