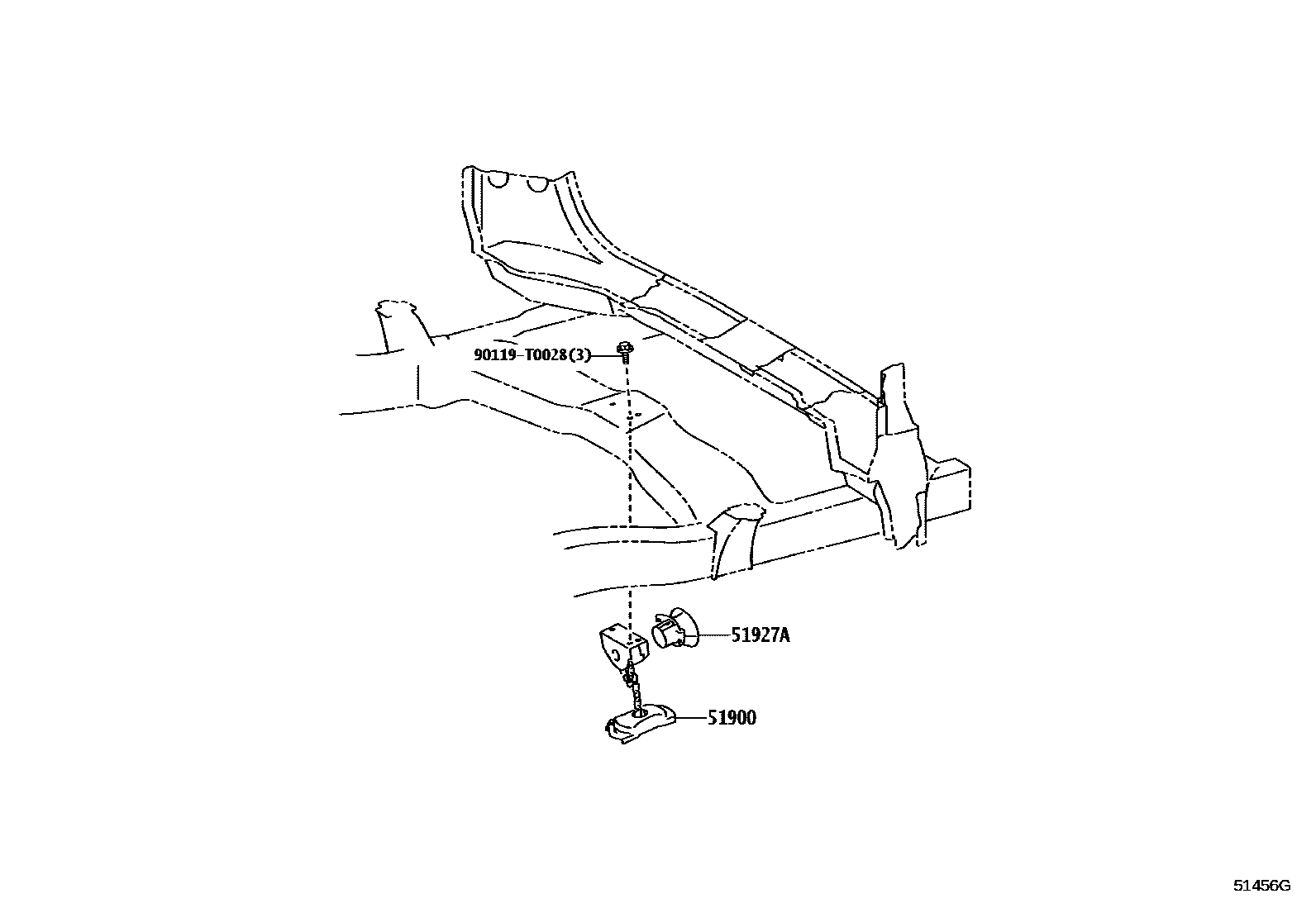

Toyota HILUX Spare tire rack — Figure 5153
Toyota HILUX EPC diagram 5153, Spare tire rack, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51900 | Spare tire rack assembly | 51900-0K120 · 51900-0K130 · 51900-0K140 · 51900-0K161 · 51900-0K180 |
| 51927A | Spare tire guide | 51927-0K030 · 51927-0K040 |
