Toyota HILUX Rear Spring & Shock Absorber — Figure 4804

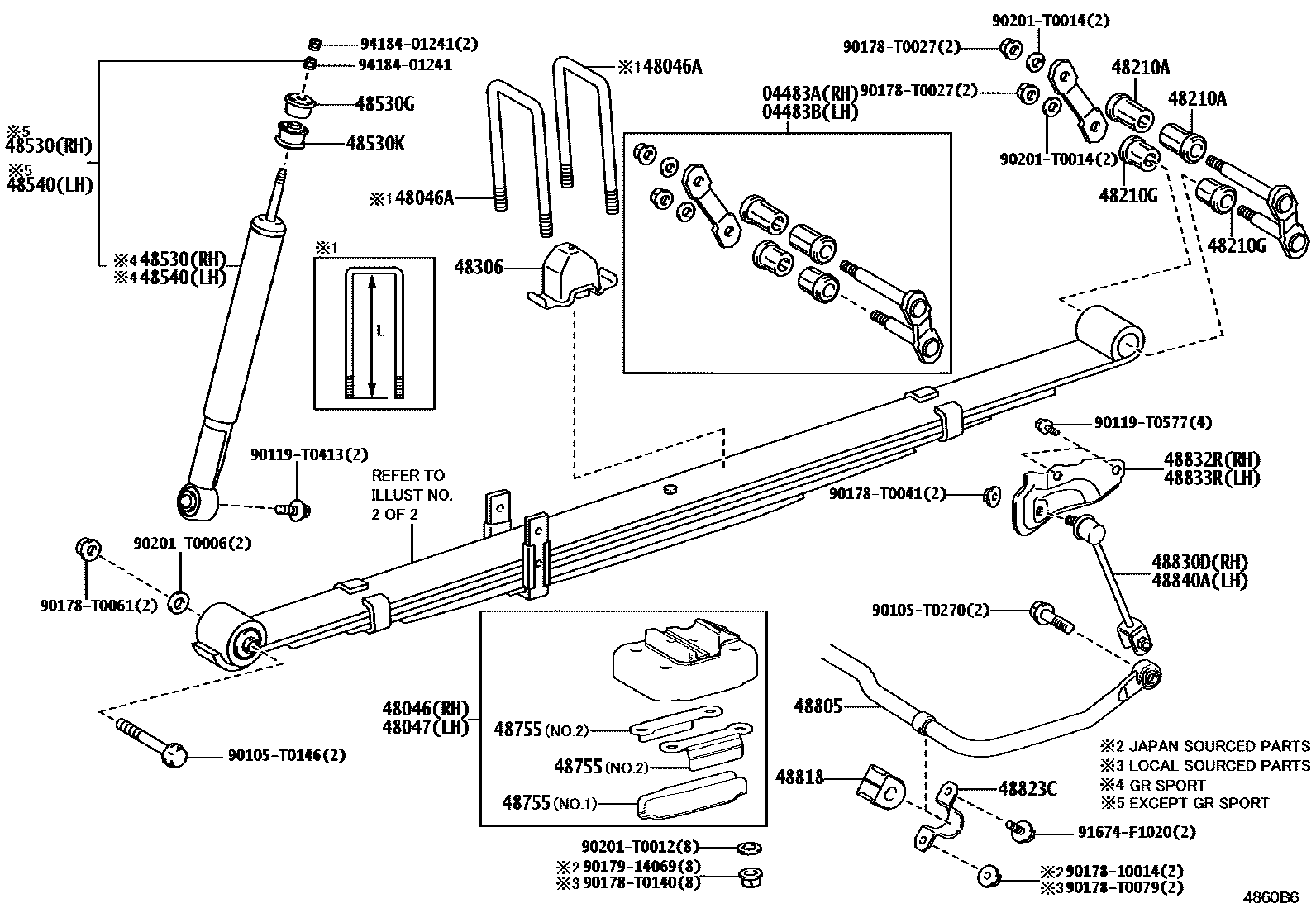

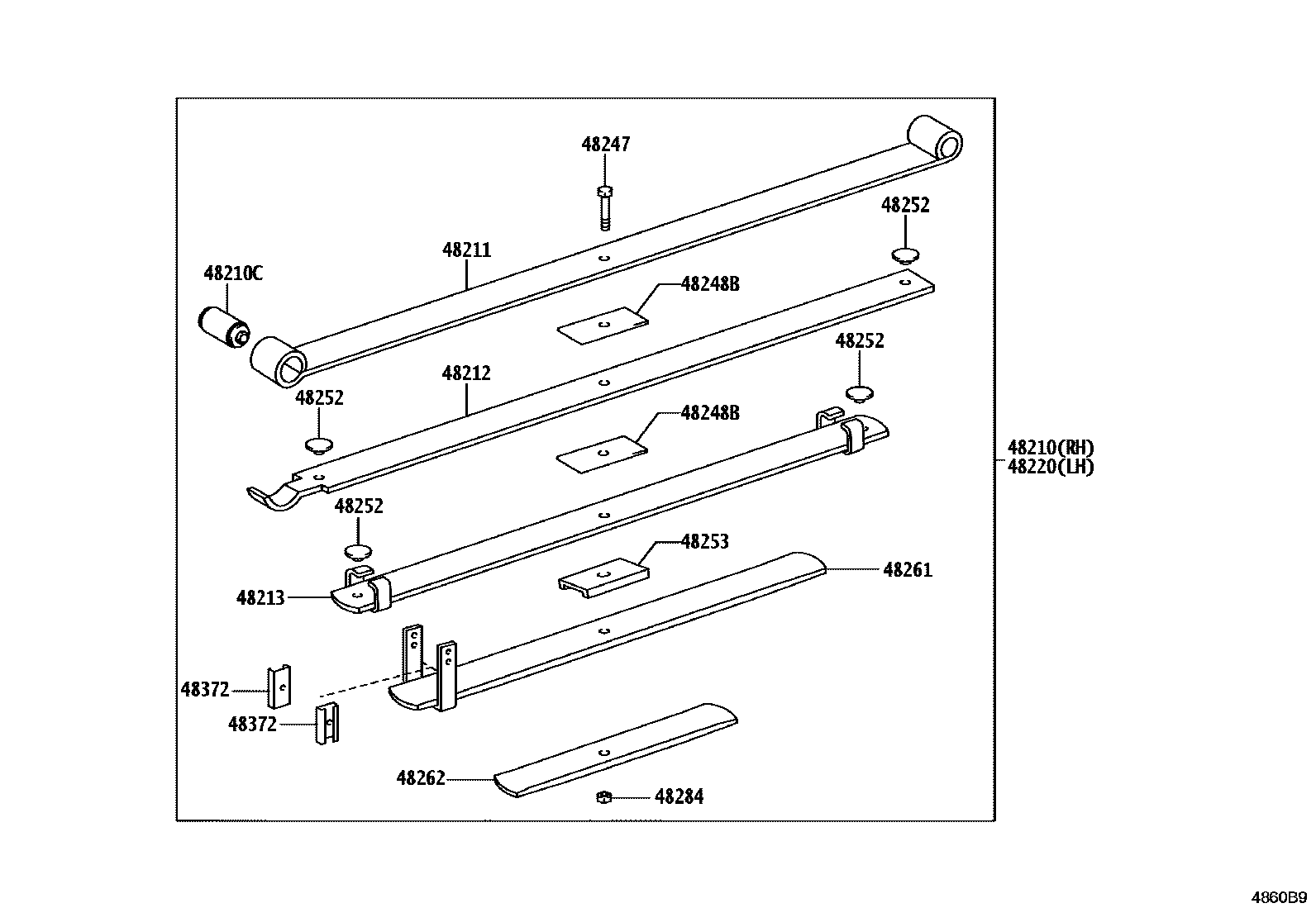

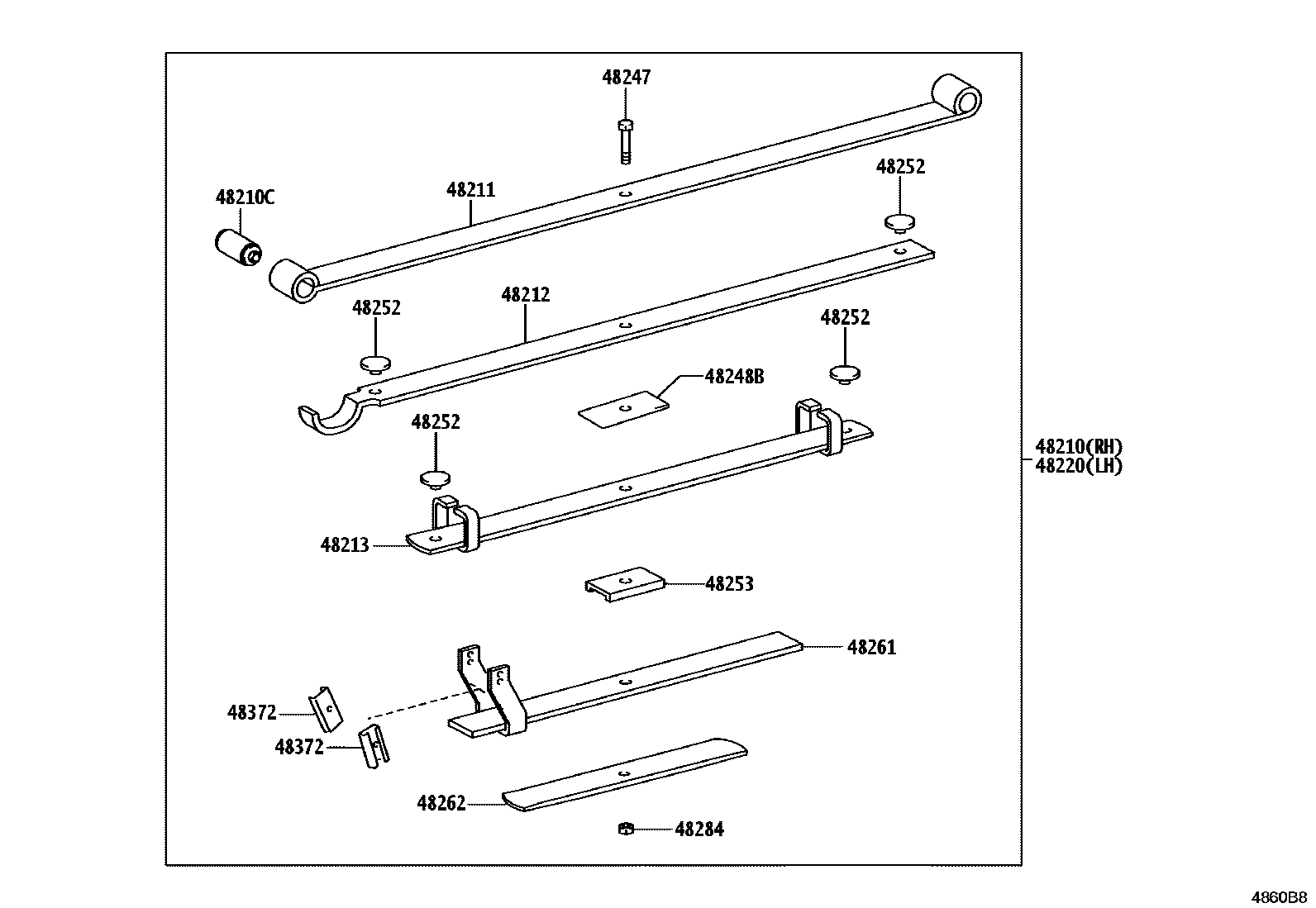

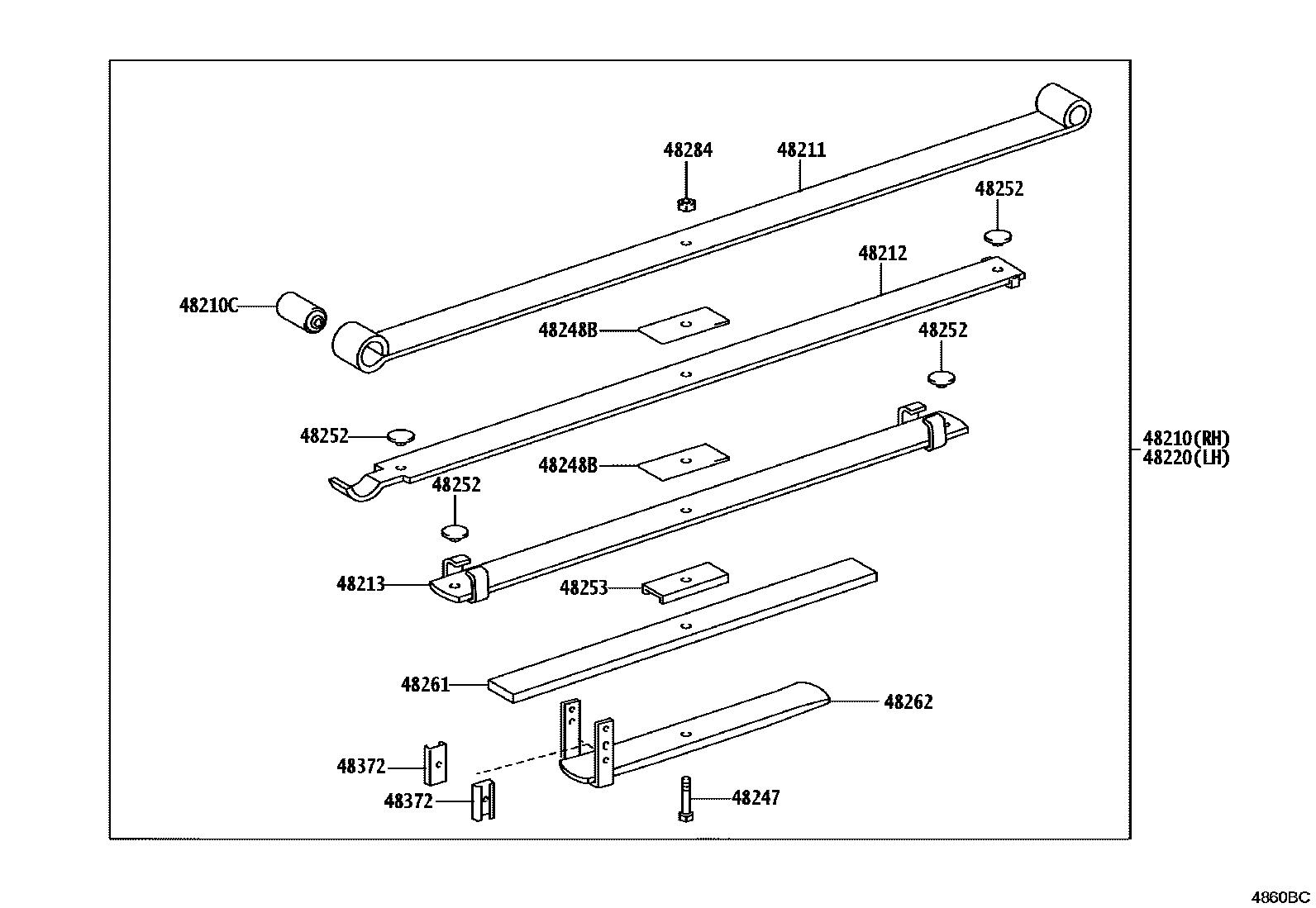

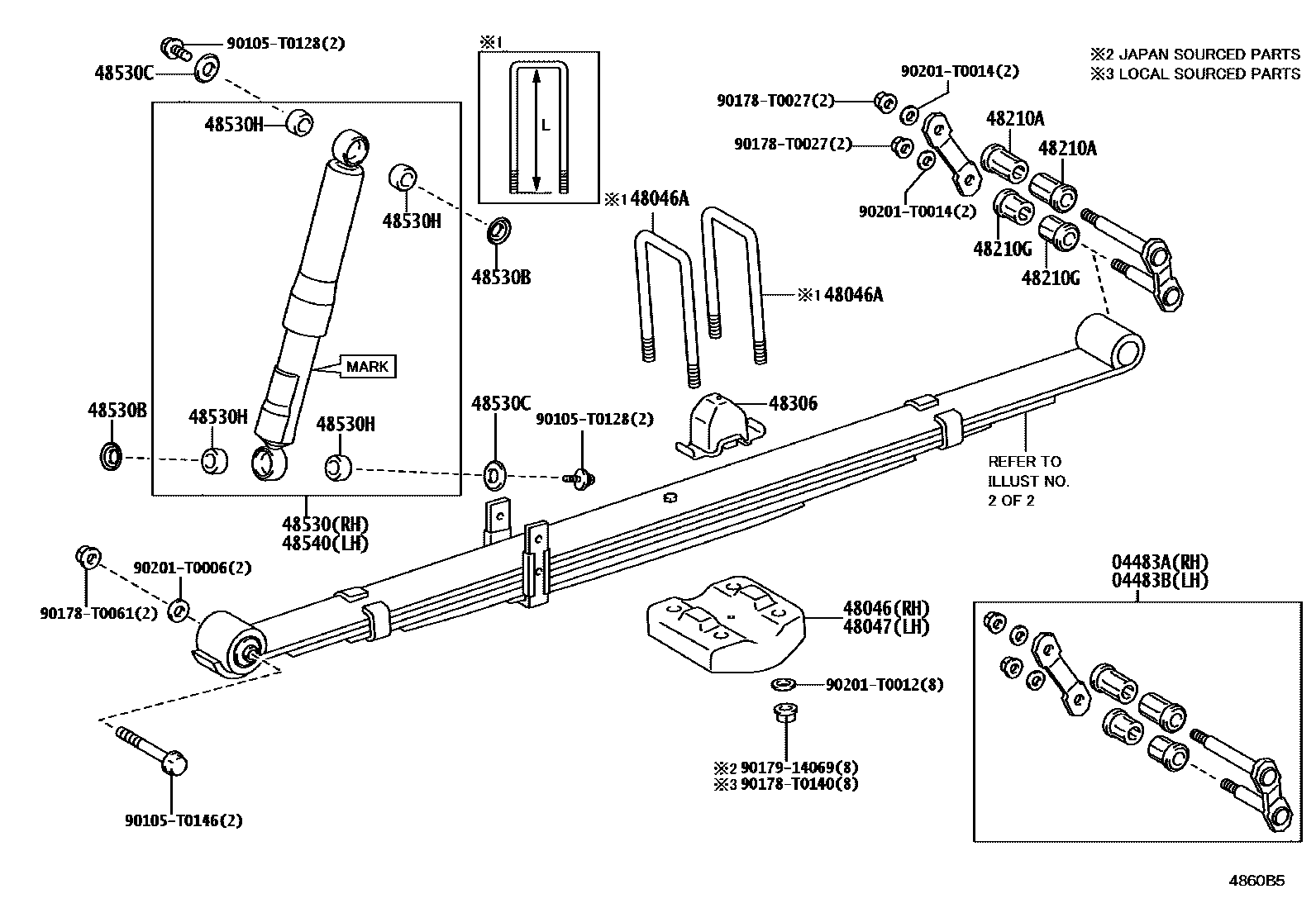

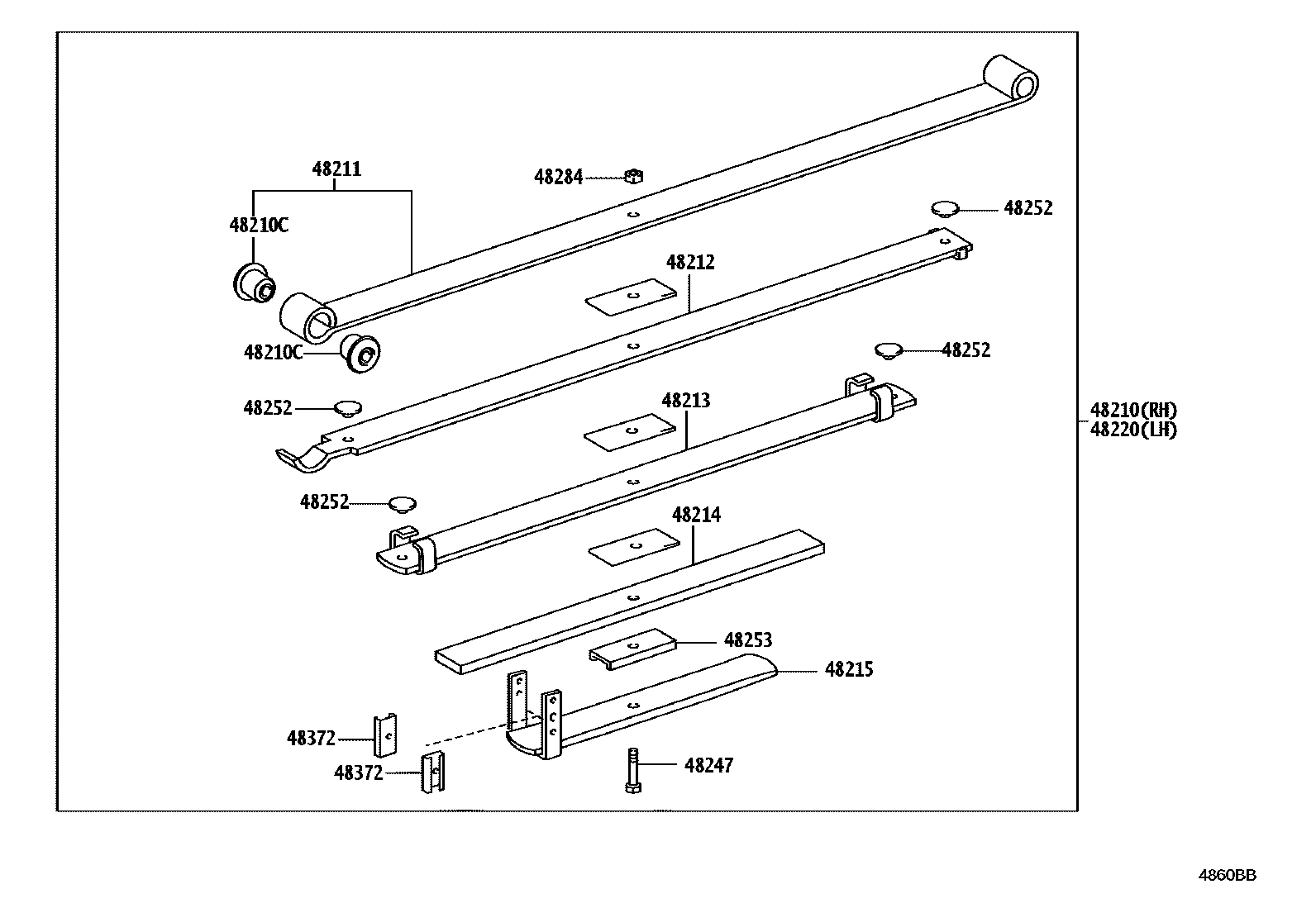

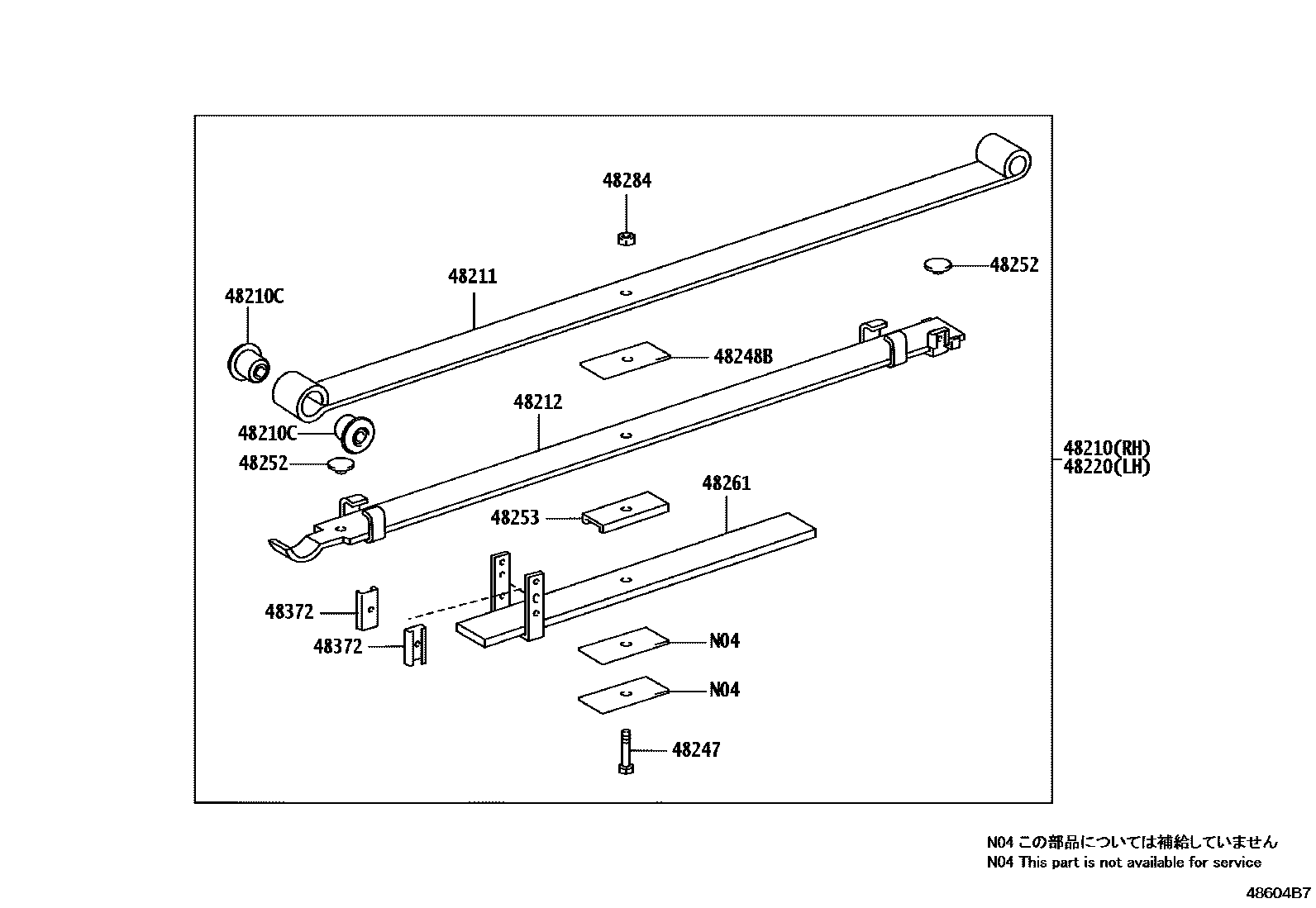

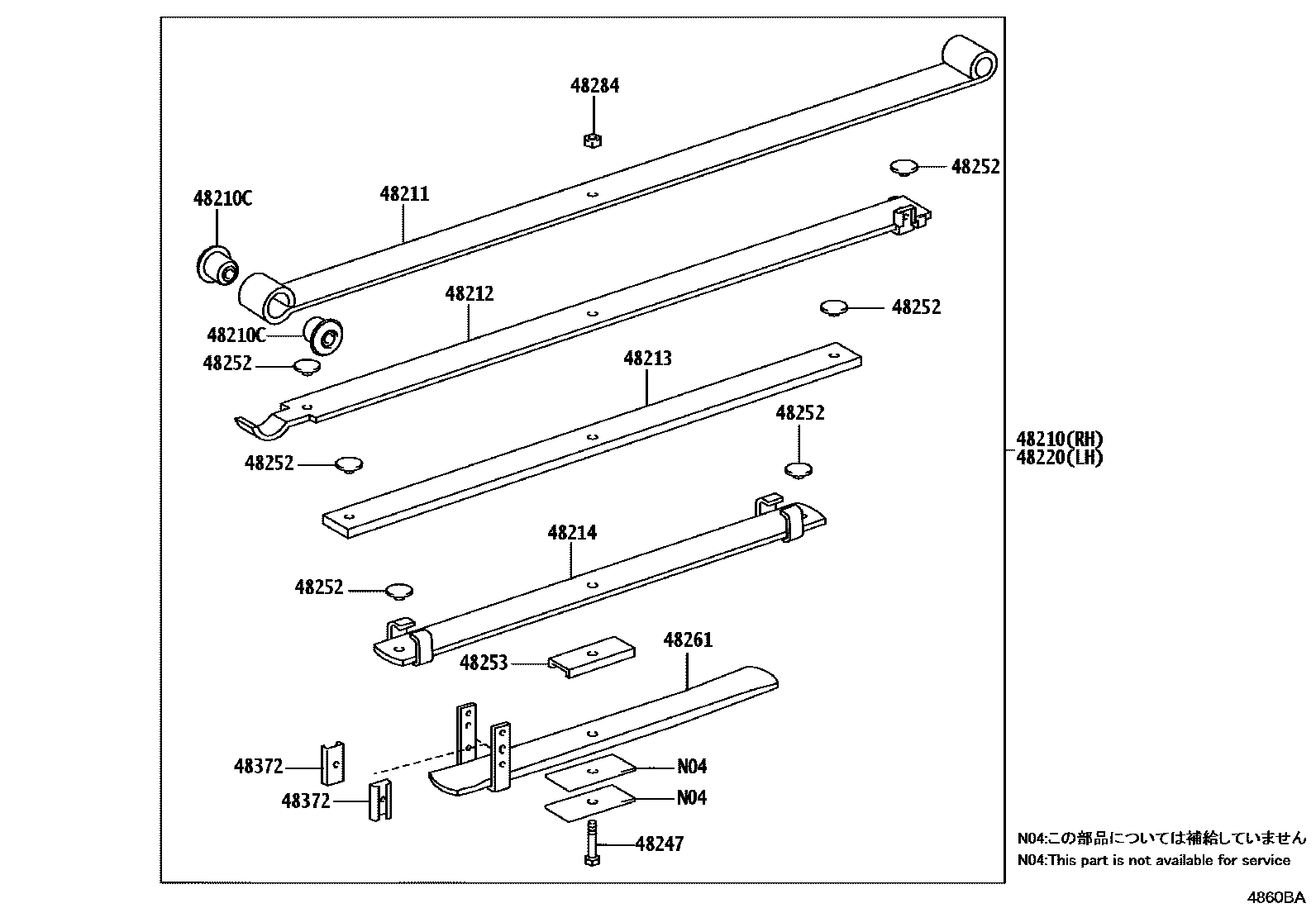

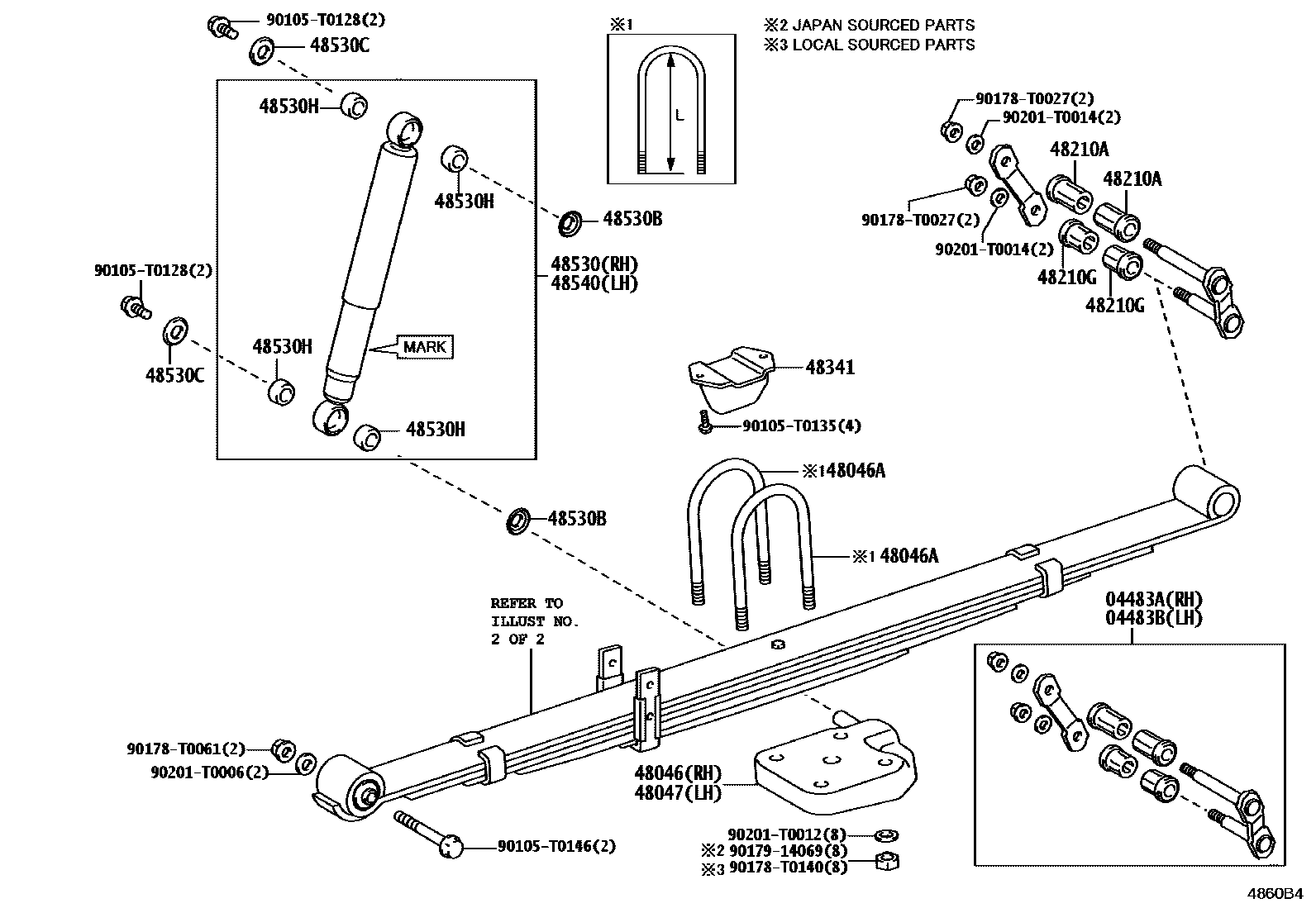

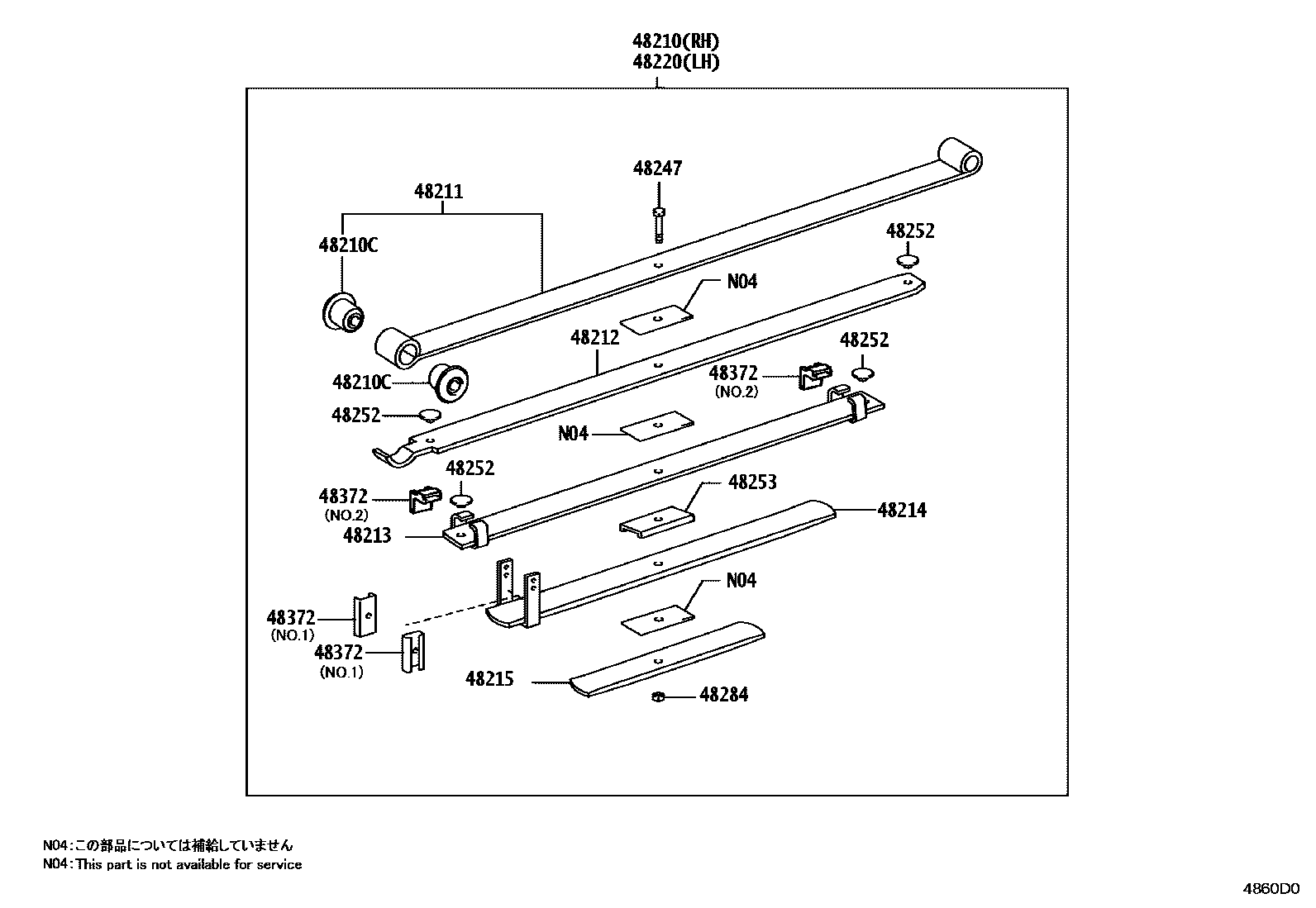

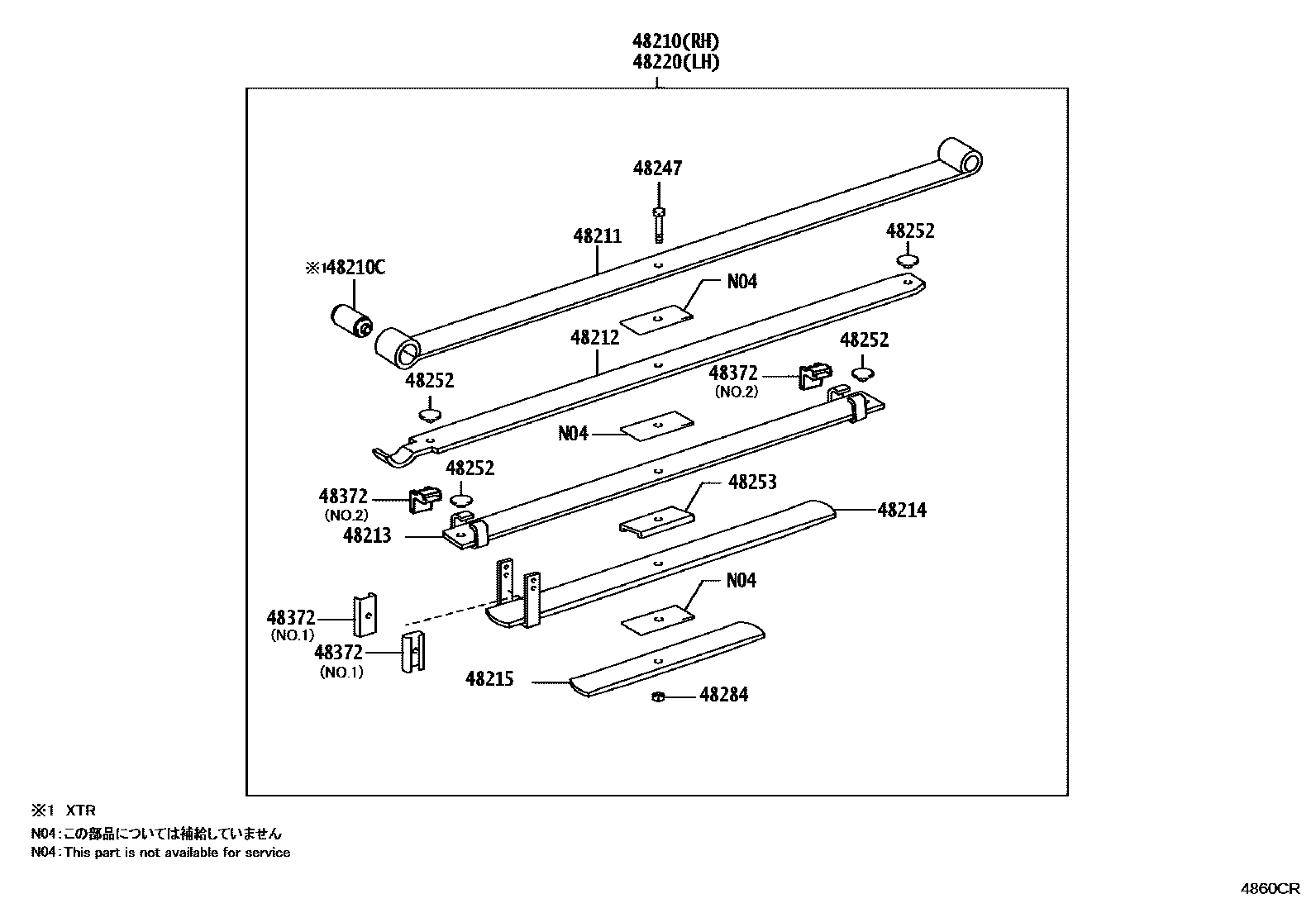

Toyota HILUX EPC diagram 4804, Rear Spring & Shock Absorber, with 11 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04483A | Right rear spring lifting lug assembly | 04483-KK030 · 04483-KK040 · 04483-KK050 · 04483-KK060 · 04483-KK080 · 04483-KK090 |
| 04483B | Left rear spring lifting lug assembly | 04483-KK030 · 04483-KK040 · 04483-KK050 · 04483-KK070 · 04483-KK080 · 04483-KK090 |
| 48046 | Right spring U-bolt base sub-assembly | 48046-0K011 · 48046-KK010 · 48046-KK020 |
| 48046A | U-bolt (for rear spring) | 90117-F0001 · 90117-S0001 · 90117-T0003 · 90117-T0006 · 90117-T0009 |
| 48047 | Left spring U-bolt base sub-assembly | 48046-0K011 · 48046-KK010 · 48046-KK020 |
| 48210 | Right rear spring assembly | 48210-0K430 · 48210-0K450 · 48210-0K470 · 48210-0K880 · 48210-0KA30 · 48210-0KA60 · 48210-0KB50 · 48210-0KC20 · 48210-0KC30 · 48210-0KC40 · 48210-0KC50 · 48210-0KC60 · 48210-0KC80 · 48210-0KC90 · 48210-0KD00 · 48210-0KD10 · 48210-0KD20 · 48210-0KD60 · 48210-0KD80 · 48210-0KD90 · 48210-YY010 |
| 48210A | Upper bushing (for rear spring lug) | 90385-T0014 · 90385-T0020 |
| 48210C | Bushing (for rear leaf spring) | 90389-T0005 · 90389-T0031 |
| 48210G | Lower bushing (for rear spring lug) | 90385-T0017 |
| 48211 | No. 1 rear leaf spring | 48201-0K430 · 48201-0K450 · 48201-0K880 · 48201-0KB50 · 48201-0KC20 · 48201-0KC50 · 48201-0KC60 · 48201-0KC80 · 48201-0KD10 · 48201-0KD20 · 48201-0KD60 · 48211-0K470 · 48211-0KC30 · 48211-0KC40 · 48211-0KC90 · 48211-0KD00 |
| 48212 | No. 2 rear leaf spring | 48203-0K880 · 48203-0KC20 · 48203-0KC50 · 48203-0KC60 · 48203-0KD60 · 48212-0K430 · 48212-0K450 · 48212-0K470 · 48212-0KB50 · 48212-0KC30 · 48212-0KC40 · 48212-0KC80 · 48212-0KC90 · 48212-0KD00 · 48212-0KD10 · 48212-0KD20 |
| 48213 | No. 3 rear leaf spring | 48204-0K430 · 48204-0K450 · 48204-0KB50 · 48213-0K470 · 48213-0K880 · 48213-0KC20 · 48213-0KC30 · 48213-0KC40 · 48213-0KC50 · 48213-0KC60 · 48213-0KC80 · 48213-0KC90 · 48213-0KD00 · 48213-0KD10 · 48213-0KD20 |
| 48214 | No. 4 rear leaf spring | 48205-0K880 · 48205-0KC20 · 48205-0KC50 · 48205-0KC60 · 48205-0KC80 · 48205-0KD10 · 48205-0KD20 · 48214-0K470 · 48214-0KC30 · 48214-0KC40 · 48214-0KC90 · 48214-0KD00 |
| 48215 | No. 5 rear leaf spring | 48215-0K470 · 48215-0KC30 · 48215-0KC40 · 48215-0KC90 · 48215-0KD00 |
| 48220 | Left rear spring assembly | 48210-0K430 · 48210-0K450 · 48210-0K470 · 48210-0K880 · 48210-0KA30 · 48210-0KA60 · 48210-0KB50 · 48210-0KC20 · 48210-0KC30 · 48210-0KC40 · 48210-0KC50 · 48210-0KC60 · 48210-0KC80 · 48210-0KC90 · 48210-0KD00 · 48210-0KD10 · 48210-0KD20 · 48210-0KD60 · 48210-0KD80 · 48210-0KD90 · 48210-YY010 |
| 48247 | rear spring center bolt | 48247-0K040 · 48247-0K350 · 48247-0K540 · 48247-0K610 · 48247-0K720 · 48247-0K810 |
| 48248B | No. 3 rear spring spacer | 48248-0K020 |
| 48252 | rear spring muffler | 48252-0K010 · 48252-0K040 · 48252-0K810 · 48252-0KC40 · 48252-0KC60 · 48252-0KD60 |
| 48253 | No. 1 rear spring spacer | 48253-0K010 · 48253-0K040 · 48253-0K110 · 48253-0K160 · 48253-0K880 |
| 48261 | Rear auxiliary mechanism No. 1 leaf spring | 48207-0K880 · 48207-0KC20 · 48207-0KC50 · 48207-0KC60 · 48207-0KC80 · 48207-0KD10 · 48207-0KD20 · 48207-0KD60 · 48261-0K430 · 48261-0K450 · 48261-0KB50 |
| 48262 | Rear auxiliary mechanism No. 2 leaf spring | 48026-0K430 · 48026-0K450 · 48026-0KB50 |
| 48284 | Rear spring center bolt nut | 48284-0K040 · 48284-0K120 · 48284-0K160 · 48284-0K310 |
| 48306 | Rear spring buffer block sub-assembly | 48306-0K040 · 48306-0K050 · 48306-0K100 |
| 48341 | Rear spring buffer block | 48341-0K090 |
| 48372 | Rear spring pad | 48372-0K010 · 48372-0K020 · 48372-0K030 |
| 48530 | Right rear shock absorber assembly | 48530-8Z207 · 48530-8Z276 · 48530-YY150 · 48530-YY160 · 48531-09B20 · 48531-09B30 · 48531-8Z003 · 48531-8Z006 · 48531-8Z023 · 48531-8Z024 · 48531-8Z025 · 48531-8Z026 · 48531-8Z027 · 48531-8Z028 · 48531-8Z029 · 48531-8Z031 · 48531-8Z032 · 48531-8Z033 · 48531-YY050 · 48531-YY081 |
| 48530B | Rear shock absorber No. 1 cushion washer | 90948-F3001 · 90948-T3001 |
| 48530C | Rear shock absorber No. 2 cushion washer | 90948-F3002 · 90948-T3002 |
| 48530G | Rear shock absorber No. 1 cushion | 48505-0K020 |
| 48530H | Rear shock absorber bushing | 90385-T0019 |
| 48530K | Rear shock absorber No.2 cushion | 48505-0K030 · 48505-60100 |
| 48540 | Left rear shock absorber assembly | 48531-09B20 · 48531-09B30 · 48531-8Z003 · 48531-YY050 · 48531-YY081 · 48540-09895 · 48540-09F00 · 48540-YY030 · 48540-YY040 · 48541-09290 · 48541-09420 · 48541-09430 · 48541-09440 · 48541-09450 · 48541-09460 · 48541-09470 · 48541-09480 · 48541-09500 · 48541-09510 · 48541-09520 |
| 48755 | rear suspension mount | 48477-KK030 · 48477-KK040 |
| 48805 | Rear stabilizer bar sub-assembly | 48805-0K010 · 48805-0K030 |
| 48818 | Rear stabilizer bar bushing | 48818-0K050 |
| 48823C | Rear stabilizer bar bracket cover | 48823-KK010 |
| 48830D | Right rear stabilizer bar link assembly | 48830-0K050 |
| 48832R | Right rear stabilizer bar bracket No. 1 | 48832-KK050 |
| 48833R | Left rear stabilizer bar bracket No. 1 | 48833-KK030 |
| 48840A | Left rear stabilizer bar link assembly | 48840-0K010 |
