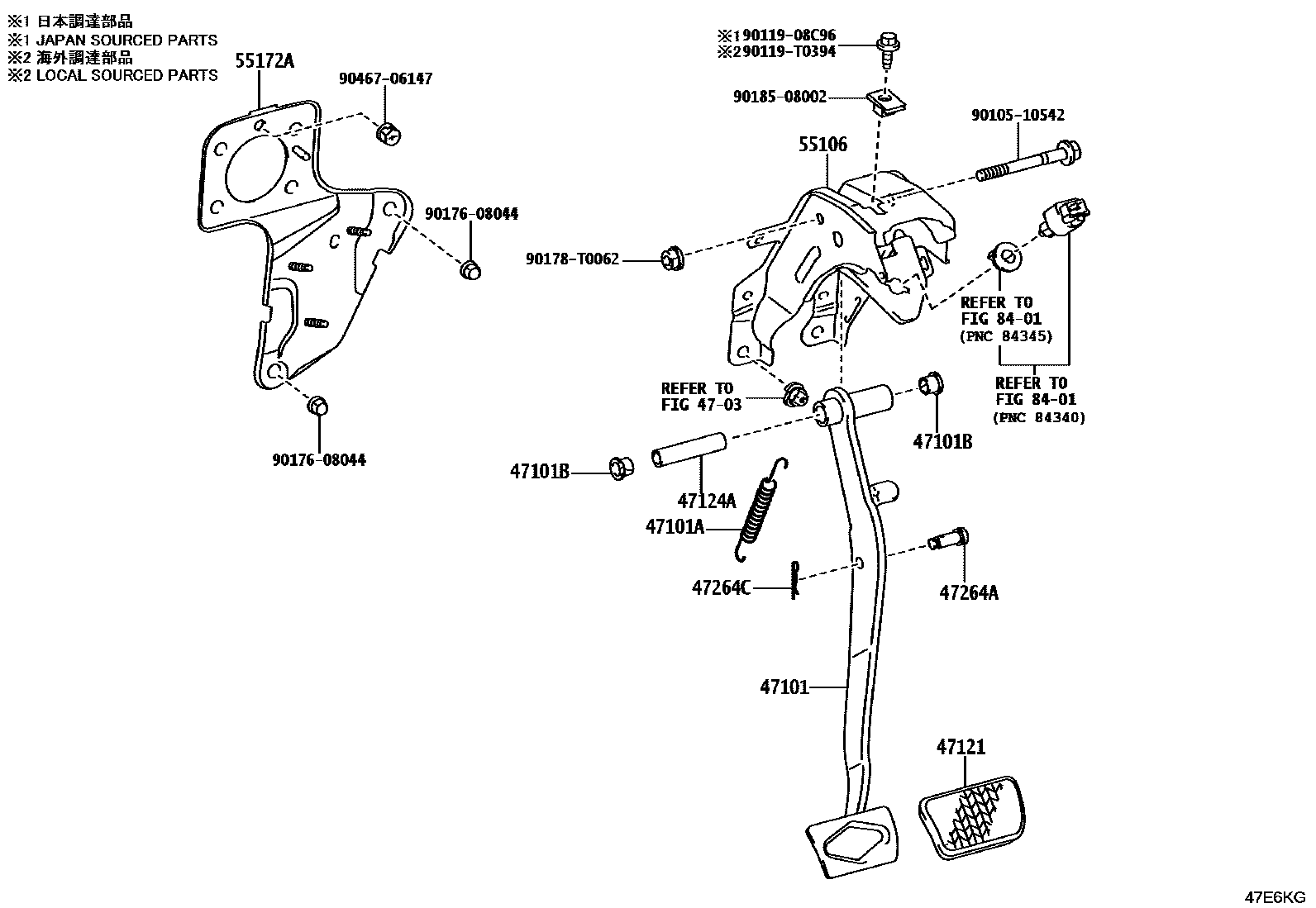

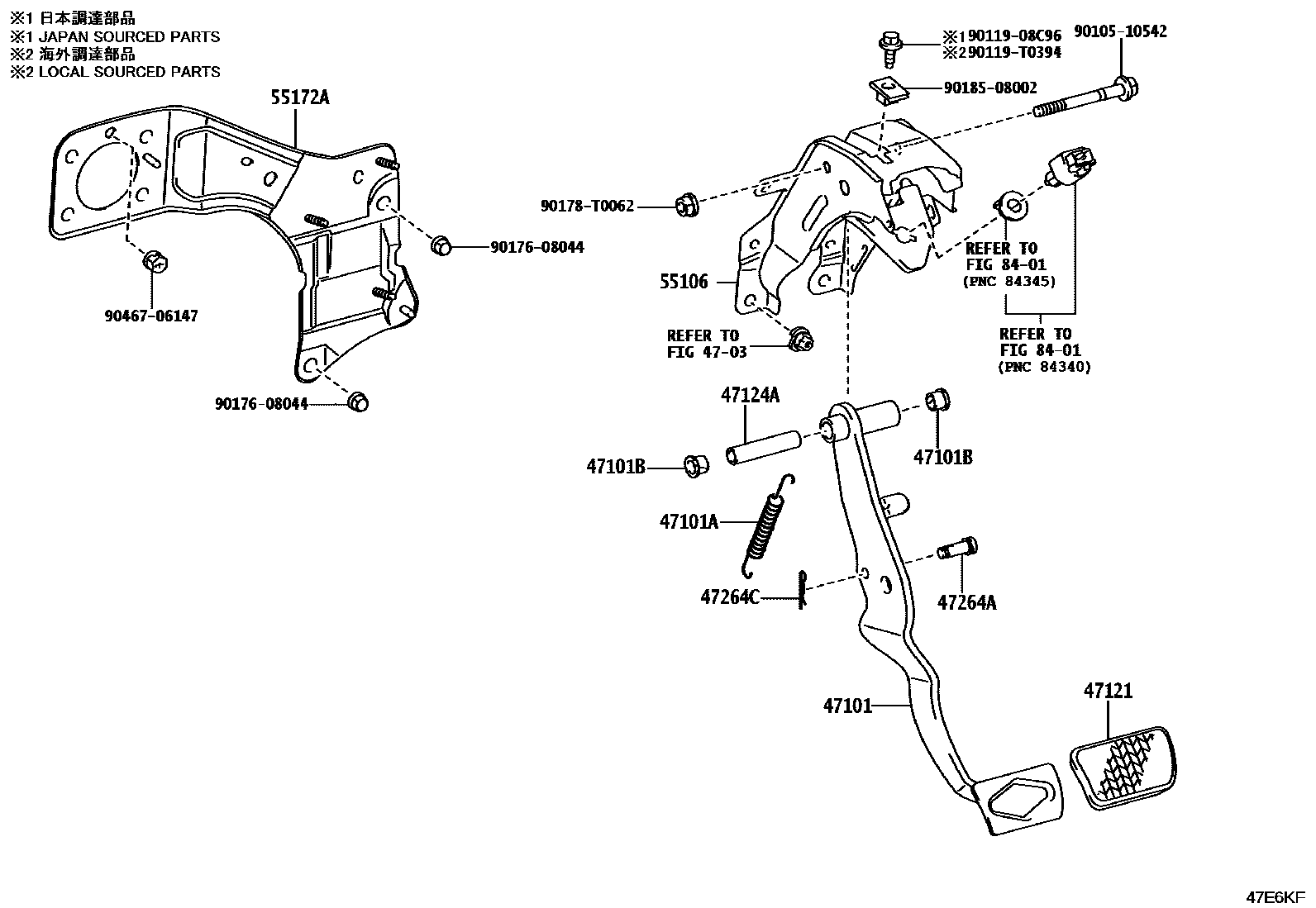

Toyota HILUX Brake Pedal & Bracket — Figure 4701
Toyota HILUX EPC diagram 4701, Brake Pedal & Bracket, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101 | Brake pedal sub-assembly | 47101-KK010 · 47101-KK020 · 47101-KK030 · 47101-KK040 |
| 47101A | Spring (for brake pedal return) | 90507-T0002 · 90507-T0003 |
| 47101B | Bushing (for brake pedal) | 90386-13015 |
| 47121 | brake pedal pad | 31321-02020 · 47121-02030 · 47121-78010 |
| 47124A | Collar (for brake pedal shaft) | 90387-10121 · 90387-F0002 |
| 47264A | Pin (for push rod) | 47148-35010 |
| 47264C | Clip (for push rod clevis pin) | 90468-16012 |
| 55106 | Brake pedal bracket sub-assembly | 55106-KK010 · 55106-KK030 |
| 55172A | BASE, SUPPORT PEDALE FREIN | 55172-KK040 · 55172-KK050 |
