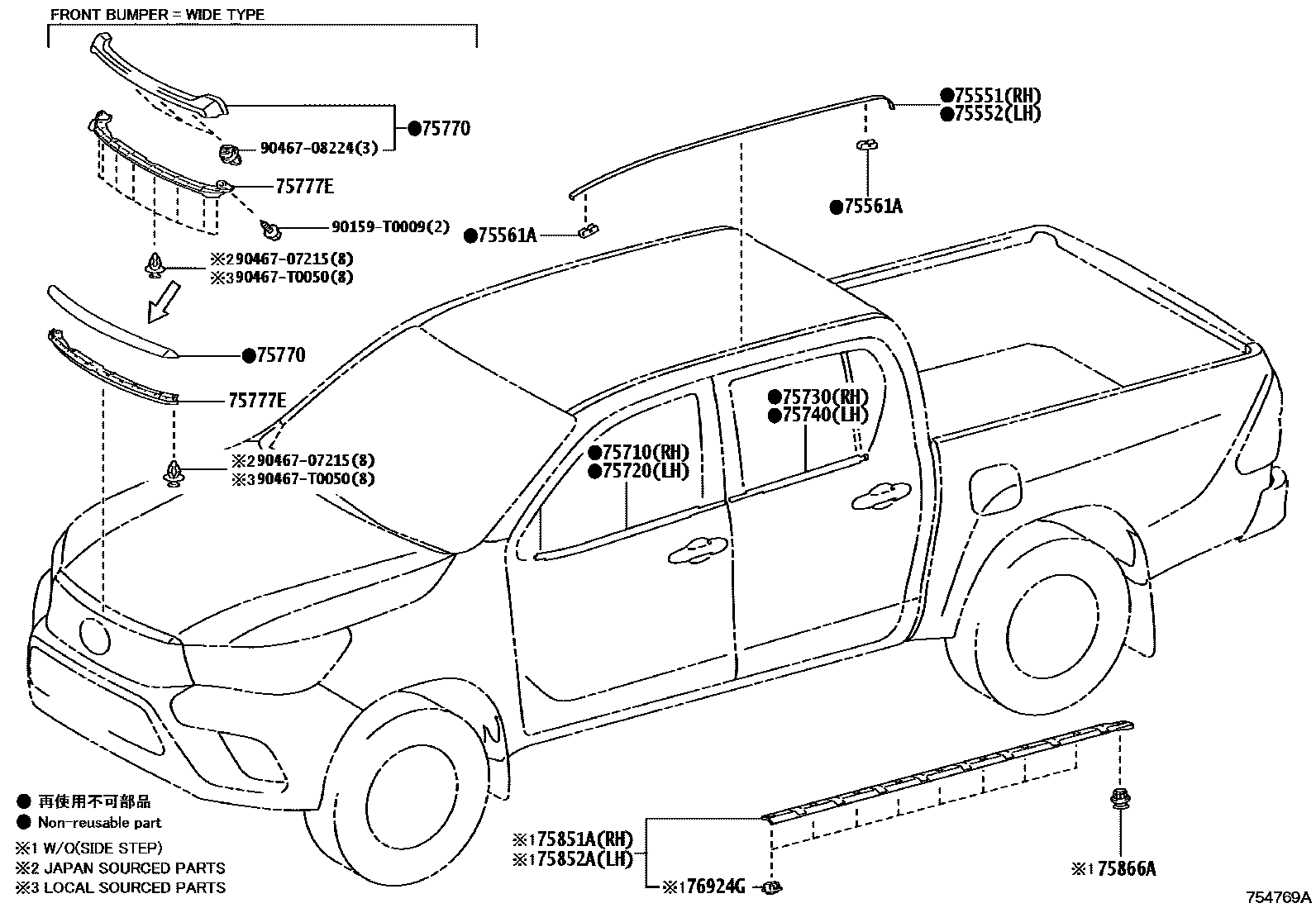

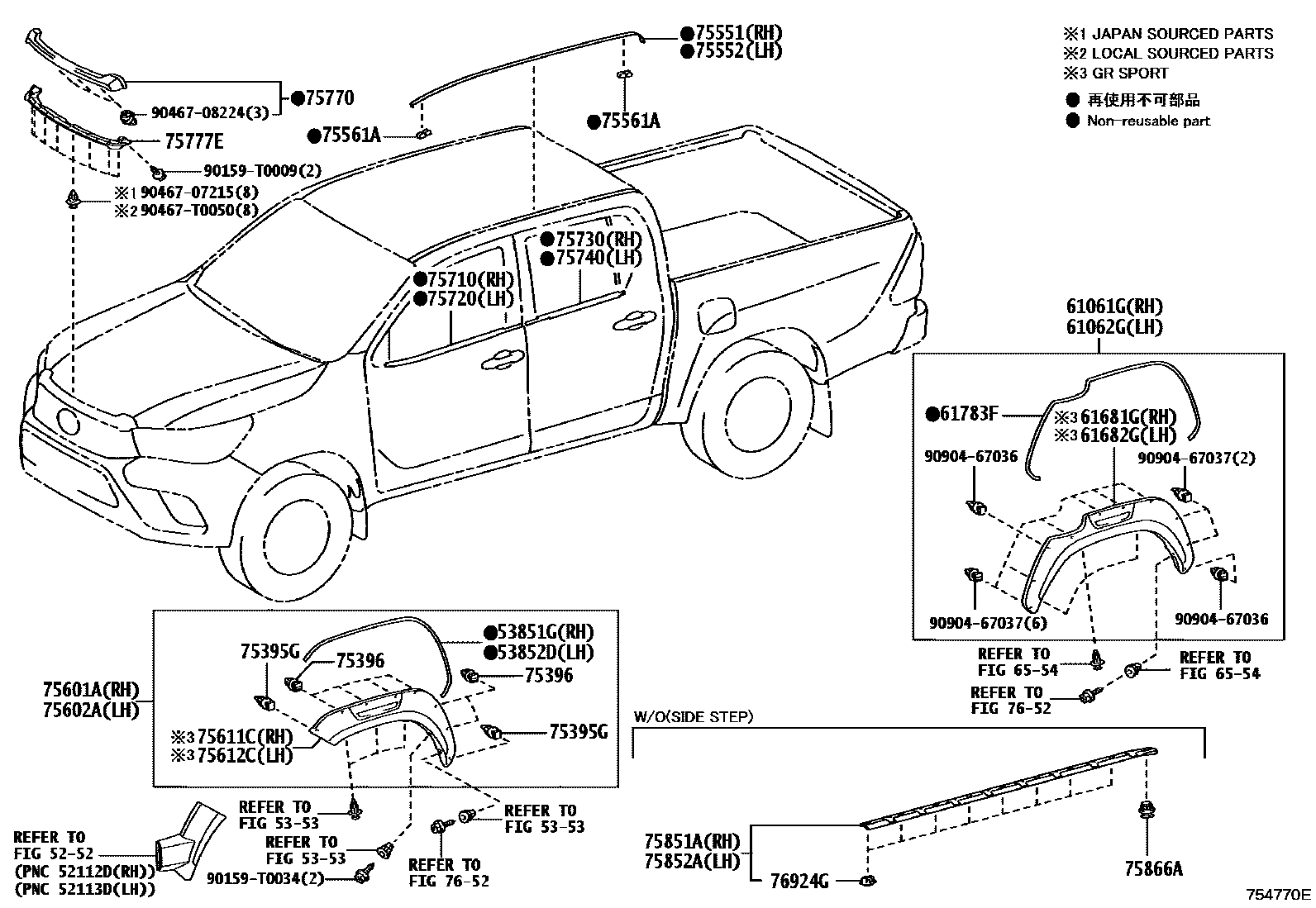

Toyota HILUX 防护条 — Figure 7552
Toyota HILUX EPC diagram 7552, 防护条, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53851G | Right front fender outer panel pad | 53851-YP010 · 53851-YP020 · 53851-YP060 · 53851-YP120 · 53851-YY020 · 53851-YY030 |
| 53852D | Left front fender exterior panel pad | 53852-YP010 · 53852-YP020 · 53852-YP060 · 53852-YP120 · 53852-YY020 · 53852-YY030 |
| 61061G | Right rear No. 1 fender external panel sub-assembly | 61061-YP010 · 61061-YP020 · 61061-YP070 · 61061-YP090 · 61061-YY010 |
| 61062G | Left rear No. 1 fender external panel sub-assembly | 61062-YP010 · 61062-YP020 · 61062-YP070 · 61062-YP090 · 61062-YY010 |
| 61681G | EXTENSION, PASSAGE ROUE ARR, MD | 61681-YP901 |
| 61682G | EXTENSION, PASSAGE ROUE ARR, MG | 61682-YP901 |
| 61783F | No. 1 rear fender outer panel pad | 61783-YP010 · 61783-YP020 · 61783-YP080 · 61783-YP120 · 61783-YY020 · 61783-YY030 · 61784-YP010 · 61784-YP020 · 61784-YP080 · 61784-YP120 · 61784-YY020 · 61784-YY030 |
| 75395G | No. 1 outer protective strip clip | 75395-0K010 |
| 75396 | No. 2 outer protective strip clip | 75396-35020 |
| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-0K160 · 75551-0K280 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-0K160 · 75552-0K280 |
| 75561A | Roof drain channel side decorative strip clip | 75561-33030 |
| 75601A | Right front fender protection strip sub-assembly | 53087-YP010 · 53087-YP020 · 53087-YP050 · 53087-YP070 · 53087-YY010 |
| 75602A | Left front fender protection strip sub-assembly | 53088-YP010 · 53088-YP020 · 53088-YP050 · 53088-YP070 · 53088-YY010 |
| 75611C | Right front fender outer protective strip | 53847-YP901 |
| 75612C | Left front fender outer protective strip | 53848-YP901 |
| 75710 | Right front door waistline protection strip assembly | 68160-0K010 · 68160-0K070 · 68160-0K110 |
| 75720 | Left front door waistline protection strip assembly | 68210-0K010 · 68210-0K070 · 68210-0K110 |
| 75730 | Right rear door waistline protection strip assembly | 68180-0K010 · 68180-0K120 |
| 75740 | Left rear door waistline protection strip assembly | 68230-0K010 · 68230-0K120 |
| 75770 | Engine cover front protective strip assembly | 75770-0K311 · 75770-0K341 · 75770-0K351 · 75770-0K371 · 75770-0K380 · 75770-0K390 · 75770-0K401 · 75770-0K430 · 75770-0K450 · 75770-0K460 · 75770-0K470 · 75770-0K490 · 75770-0K500 · 75770-0K510 · 75770-YP030 · 75770-YP040 · 75770-YP070 · 75770-YP080 · 75770-YP090 · 75770-YP900 |
| 75777E | Engine cover front protective strip liner | 53393-0K010 · 53393-0K020 · 53393-0K041 · 53393-0K051 |
| 75851A | Right front door sill panel protective strip | 75851-0K010 · 75851-0K060 · 75851-0K070 |
| 75852A | Left front door sill panel protective strip | 75852-0K010 · 75852-0K060 · 75852-0K070 |
| 75866A | Door sill panel protective strip fixings | 76923-52021 |
| 76924G | Door sill panel protective strip fixings | 76924-0K010 · 76924-0K020 |
