Toyota HILUX 车架 — Figure 5151

Toyota HILUX EPC diagram 5151, 车架, with 4 images and 49 PNC and OE references.

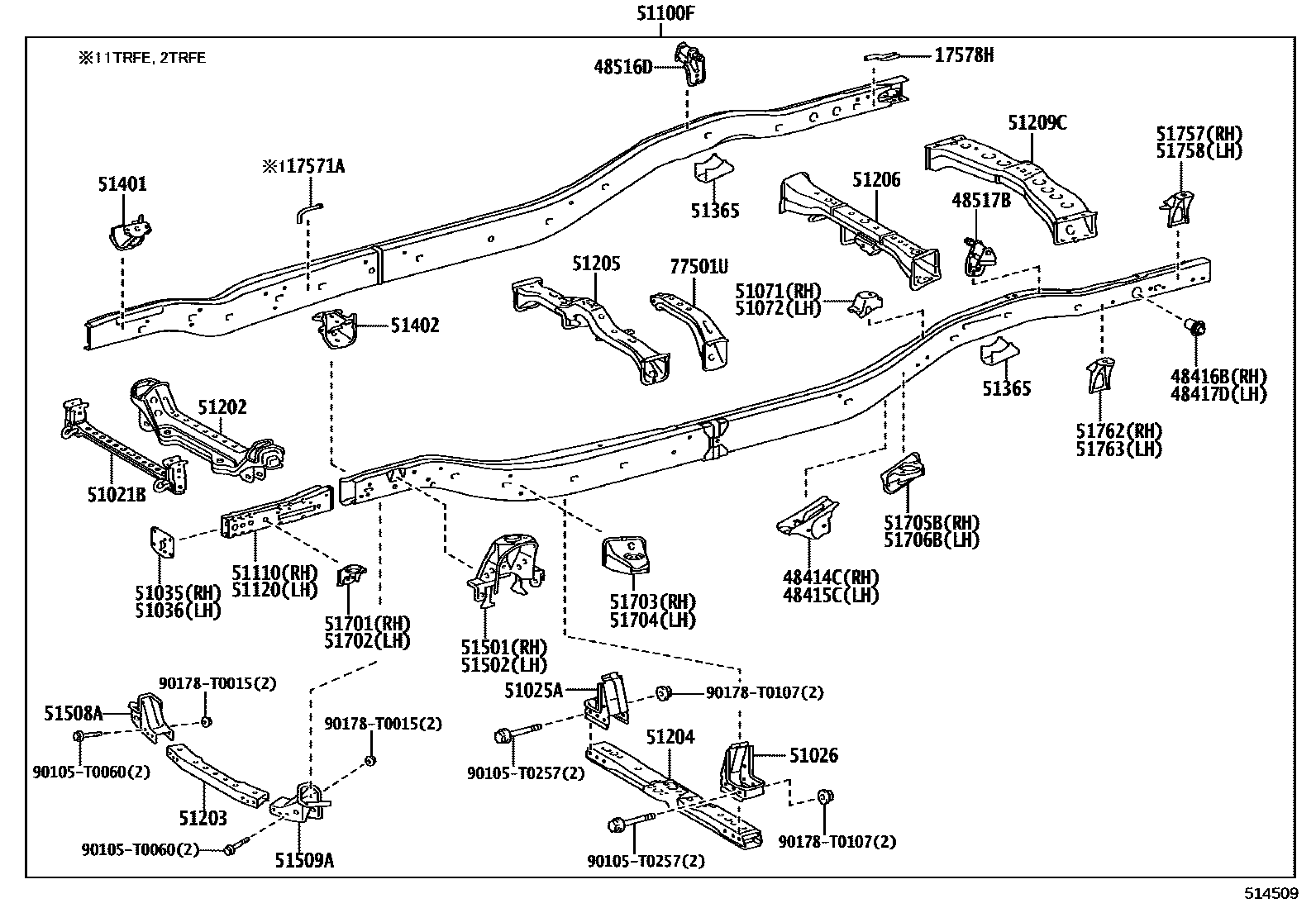

Toyota HILUX 车架 EPC diagram — 514509
车架 — 514509 (202308 – 999999)

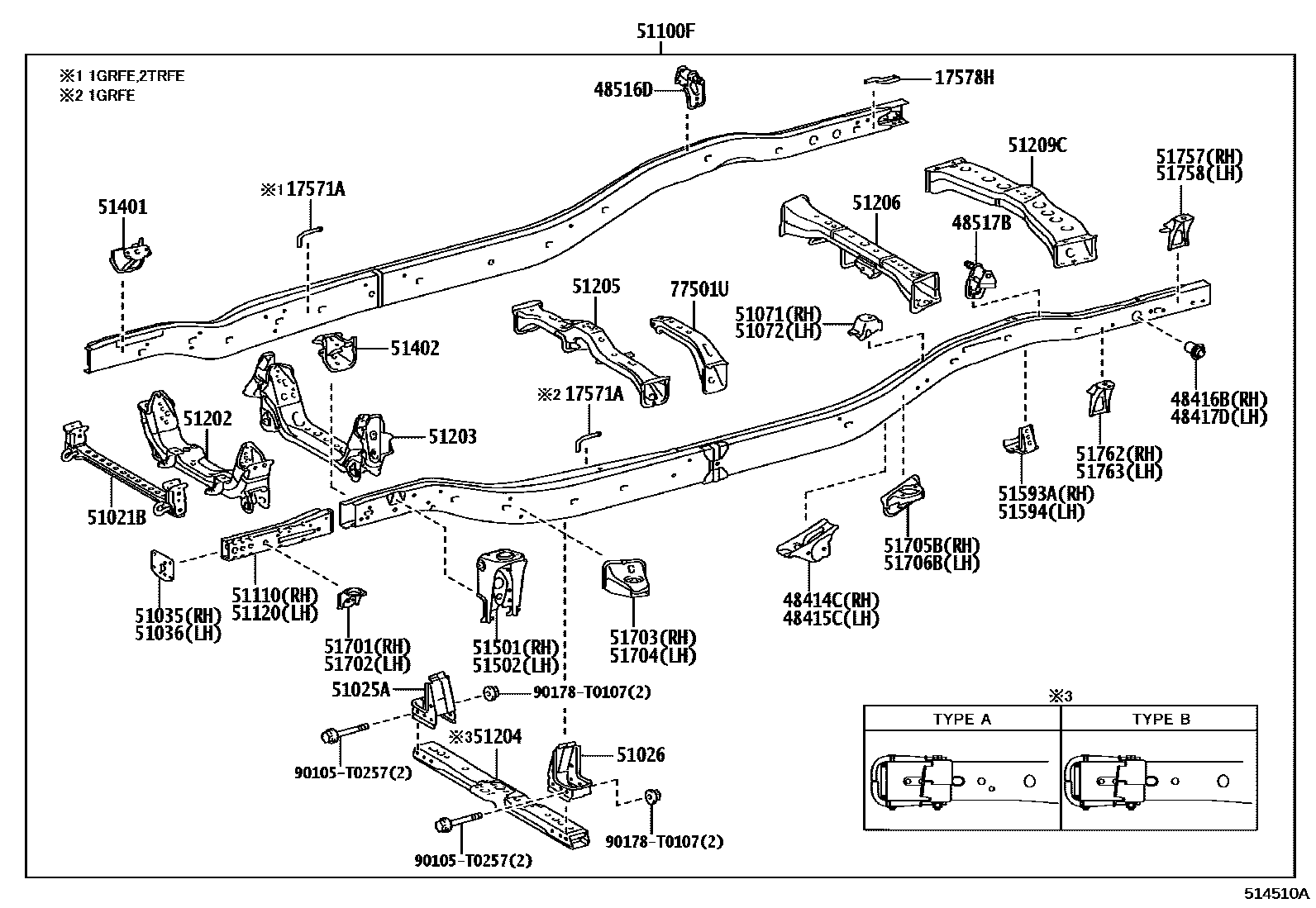

Toyota HILUX 车架 EPC diagram — 514510A
车架 — 514510A (202308 – 999999)

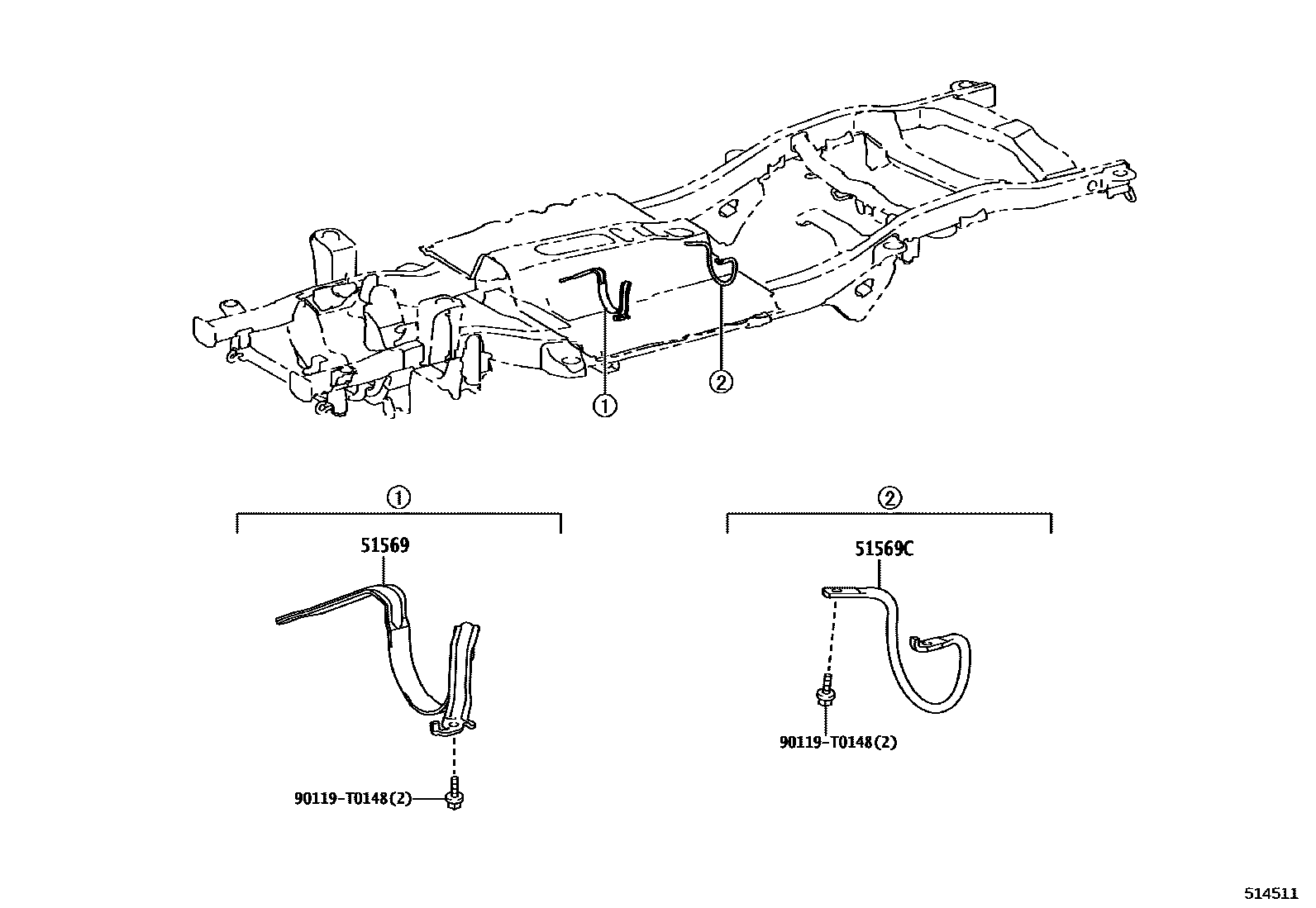

Toyota HILUX 车架 EPC diagram — 514511
车架 — 514511 (202308 – 999999)

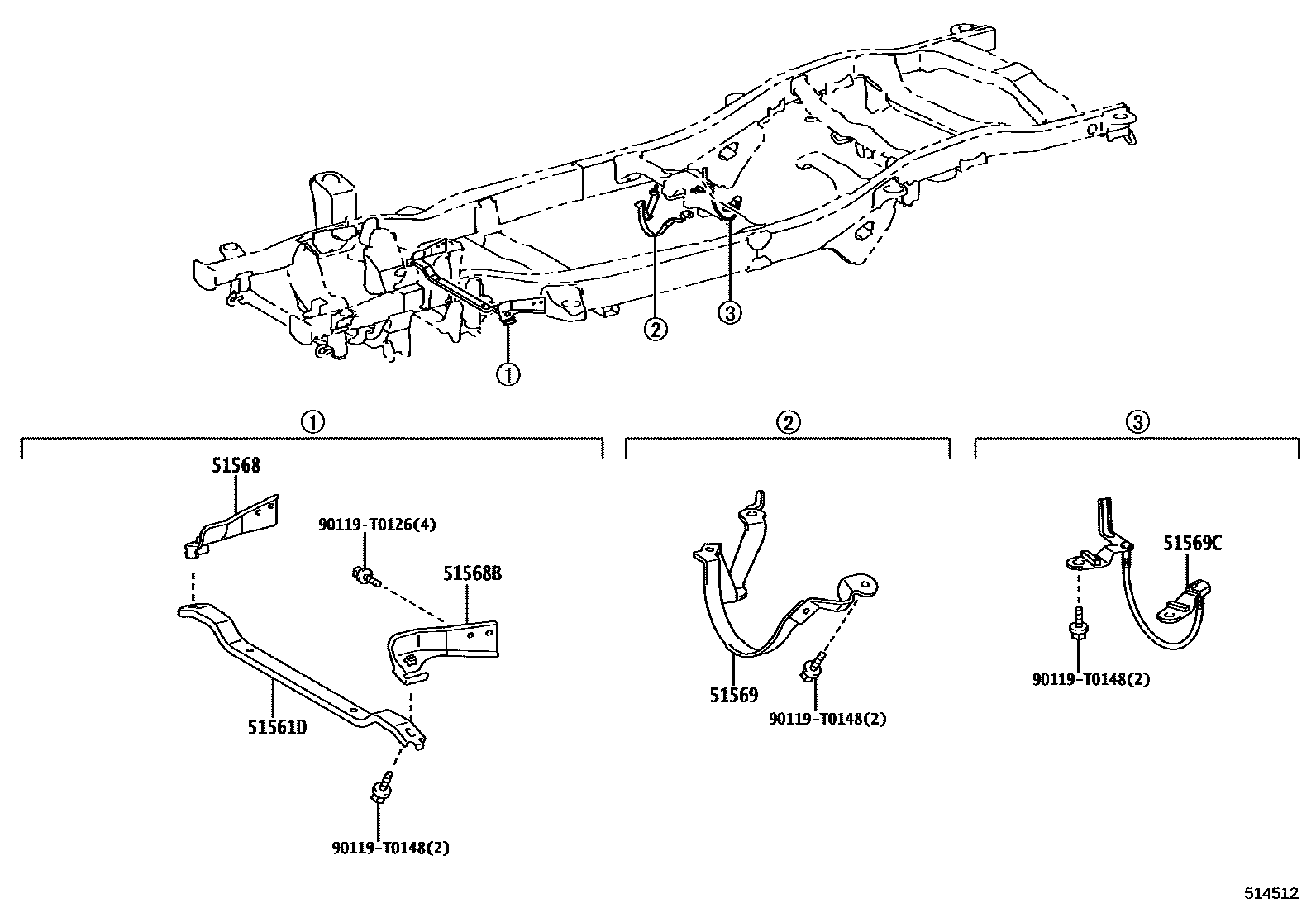

Toyota HILUX 车架 EPC diagram — 514512
车架 — 514512 (202308 – 999999)

PNC and OE references

PNCPart nameOE numbers
17571ANo. 9 exhaust pipe bracket17571-0L010
17578HNo. 10 exhaust pipe bracket17505-0L020
48414CRight No. 3 spring bracket48404-KK030 · 48404-KK040
48415CNo. 3 spring bracket on the left48407-KK030 · 48407-KK040
48416BRight No. 4 spring bracket48405-KK010
48417DNo. 4 spring bracket on the left48405-KK010
48516DRight rear shock absorber upper bracket sub-assembly48505-KK010 · 48505-KK020
48517BLeft rear shock absorber upper bracket sub-assembly48506-KK010 · 48506-KK020
51021BFrame auxiliary cross member sub-assembly51021-KK010 · 51021-KK020 · 51021-KK030
51025AFrame No. 3 beam right side bracket sub-assembly51025-KK010
51026Frame No. 3 crossbeam left side bracket sub-assembly51026-KK010
51035Frame right longitudinal beam plate sub-assembly51035-KK010
51036Frame left longitudinal beam plate sub-assembly51036-KK010
51071Right rear body No. 1 mounting bracket sub-assembly51071-KK010
51072Left rear body No. 1 mounting bracket sub-assembly51072-KK010
51100FFrame sub-assembly51001-KK244 · 51001-KK254 · 51001-KK284 · 51001-KK355 · 51001-KK365 · 51001-KK372 · 51001-KK382 · 51001-KK455 · 51001-KK472 · 51001-KK486 · 51001-KK682 · 51001-KK692 · 51001-KK732 · 51001-KK744 · 51001-KK752 · 51001-KK781 · 51001-KK791 · 51001-KKA34 · 51001-KKA44 · 51001-KKA84 · 51001-KKA94 · 51001-KKB04 · 51001-KKC04 · 51001-KKC33 · 51001-KKF70 · 51001-KKF83 · 51001-KKF91 · 51001-KKG73 · 51001-KKJ01 · 51001-KKJ11 · 51001-KKJ61 · 51001-KKJ71 · 51001-KKJ82 · 51001-KKJ92 · 51001-KKL00
51110Right longitudinal beam extension section assembly5103A-KK010 · 5103A-KK020
51120Left longitudinal beam extension section assembly5103B-KK010 · 5103B-KK020
51202Frame No. 1 cross member sub-assembly51201-KK010 · 51201-KK020 · 51201-KK050
51203Frame No. 2 cross member sub-assembly51202-0K010 · 51202-KK010
51204Frame No. 3 beam sub-assembly51203-KK010 · 51203-KK020 · 51203-KK030 · 51203-KK040 · 51203-KK050 · 51203-KK130 · 51203-KK140 · 51203-KK150 · 51203-KK190 · 51203-KK200 · 51203-KK210 · 51203-KK230 · 51203-KK250 · 51203-KK260
51205Frame No. 4 beam sub-assembly51204-KK030 · 51204-KK040 · 51204-KK050
51206Frame No. 5 beam sub-assembly51205-KK040
51209CFrame rear cross member sub-assembly51209-KK010
51365rear bumper stop57081-KK010
51401Engine right front mounting bracket sub-assembly51401-KK010 · 51401-KK020 · 51401-KK030 · 51401-KK040
51402Engine left front mounting bracket sub-assembly51402-KK010 · 51402-KK020 · 51402-KK030 · 51402-KK040
51501Right suspension arm bracket sub-assembly51501-KK010 · 51501-KK020
51502Left suspension arm bracket sub-assembly51502-KK010 · 51502-KK020
51508ARight lower arm bracket sub-assembly51508-KK020
51509ALeft lower arm bracket sub-assembly51509-KK020
51561DDrive shaft anti-collision block51569-KK010 · 51569-KK070 · 51569-KK080 · 51569-KK090
51568Drive shaft anti-collision block bracket51568-KK020 · 51568-KK060
51568BDrive shaft anti-collision block bracket51568-KK030 · 51568-KK040 · 51568-KK070
51569Drive shaft anti-collision block51569-KK020 · 51569-KK060
51569CDrive shaft anti-collision block51569-0K020 · 51569-KK050
51593ARight rear spring buffer block bracket57081-KK020
51594Left rear spring buffer block bracket57082-KK010
51701Cab suspension No. 1 right side bracket sub-assembly51701-KK010
51702Cab suspension No. 1 left side bracket sub-assembly51701-KK010
51703Cab suspension No. 2 right side bracket sub-assembly51703-KK010
51704Cab suspension No. 2 left side bracket sub-assembly51704-KK010
51705BCab suspension No. 3 right side bracket sub-assembly51705-KK020
51706BCab suspension No. 3 left bracket sub-assembly51706-KK020
51757Right body No. 4 bracket51077-KK010
51758Left body No. 4 bracket51078-KK010
51762Right body No. 5 bracket51075-KK010
51763Left body No. 5 bracket51076-KK010
77501UFuel tank bracket sub-assembly77501-0K020
