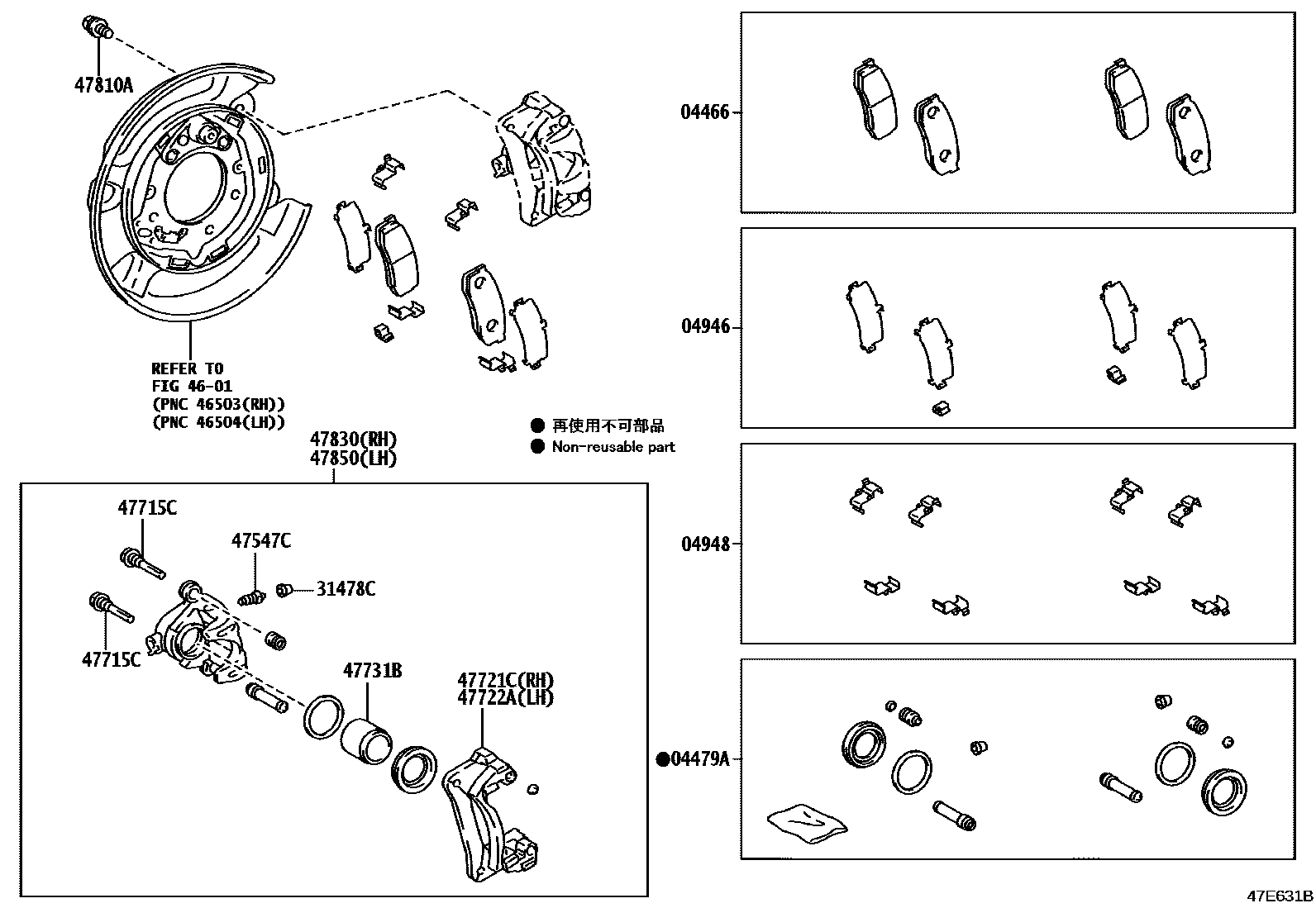

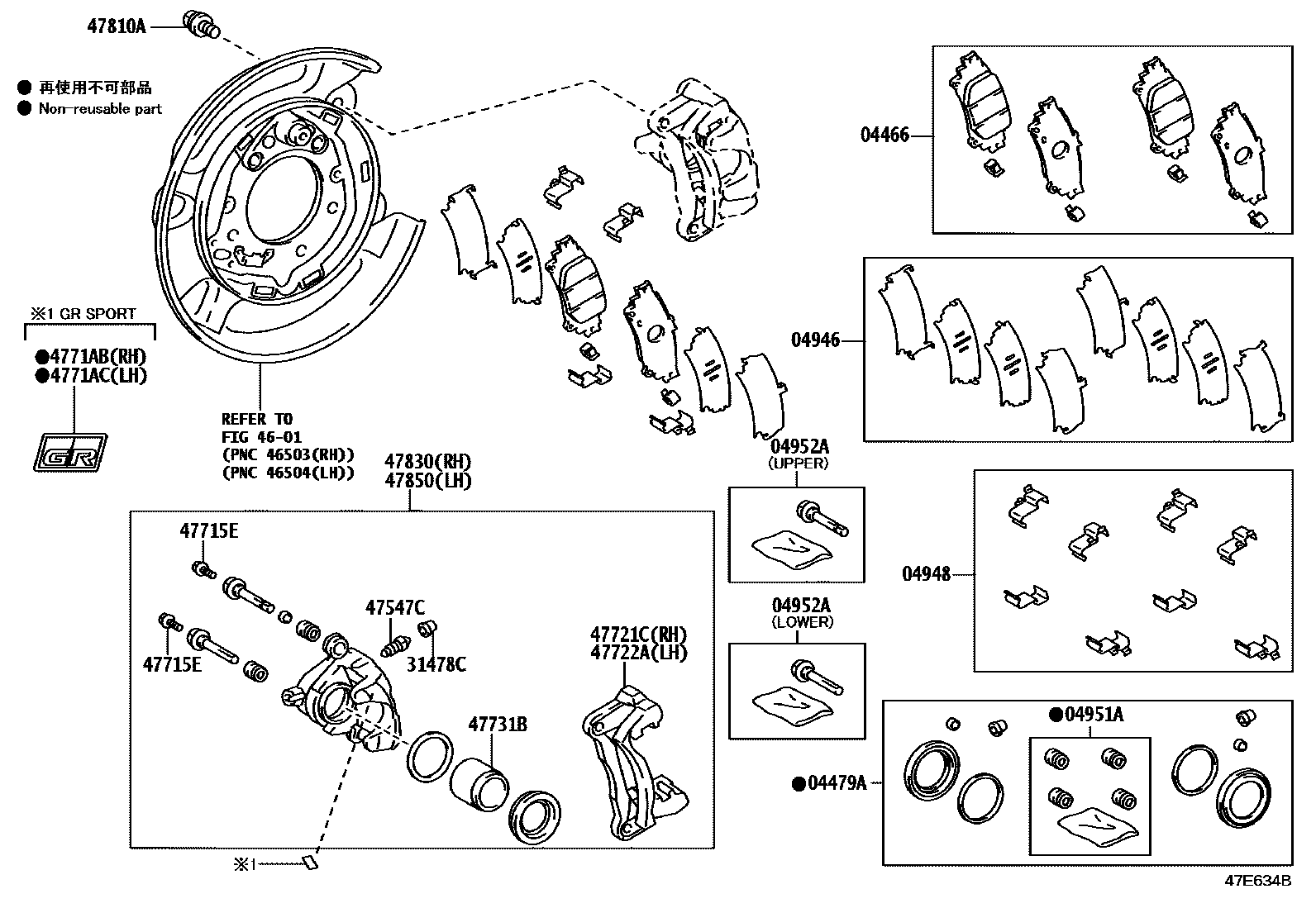

Toyota HILUX 后盘式制动器卡钳和防尘罩 — Figure 4707
Toyota HILUX EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-0K010 · 04466-60140 |
| 04479A | Rear disc brake cylinder assembly | 04479-0K020 · 04479-60030 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-0K010 · 04946-60141 |
| 04948 | Rear disc brake mounting assembly | 04947-22050 · 04948-0D010 |
| 04951A | KIT DOUILLE, FREIN A DISQUE, ARR | 04951-0K040 |
| 04952A | Rear disc brake cylinder sliding pin assembly | 04952-0K080 · 04952-0K090 |
| 31478C | Bleed plug cap (for rear disc brake) | 31478-0D040 · 31478-30010 |
| 47547C | Bleed plug (for rear disc brake) | 47547-12010 · 47547-27030 |
| 47715C | Brake cylinder slide pin (for rear disc brake) | 47715-43010 |
| 47715E | Slide bolt (for rear disc brake cylinder) | 90016-AA603 |
| 4771AB | GARNITURE, MARQUE ETRIER FREIN, MD | 4771A-0K070 |
| 4771AC | GARNITURE, MARQUE ETRIER FREIN, MG | 4771A-0K080 |
| 47721C | Right rear disc brake cylinder retainer | 47721-60020 · 47821-0K010 · 47821-0K040 |
| 47722A | Left rear disc brake cylinder retainer | 47722-60020 · 47822-0K010 · 47822-0K040 |
| 47731B | rear disc brake piston | 47731-60020 · 47831-0K010 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90119-T0495 |
| 47830 | Right rear disc brake cylinder assembly | 47730-34030 · 47830-0K040 · 47830-0K050 |
| 47850 | Left rear disc brake cylinder assembly | 47750-34030 · 47850-0K040 · 47850-0K050 |
