Toyota HILUX Front Drive Shaft — Figure 4302

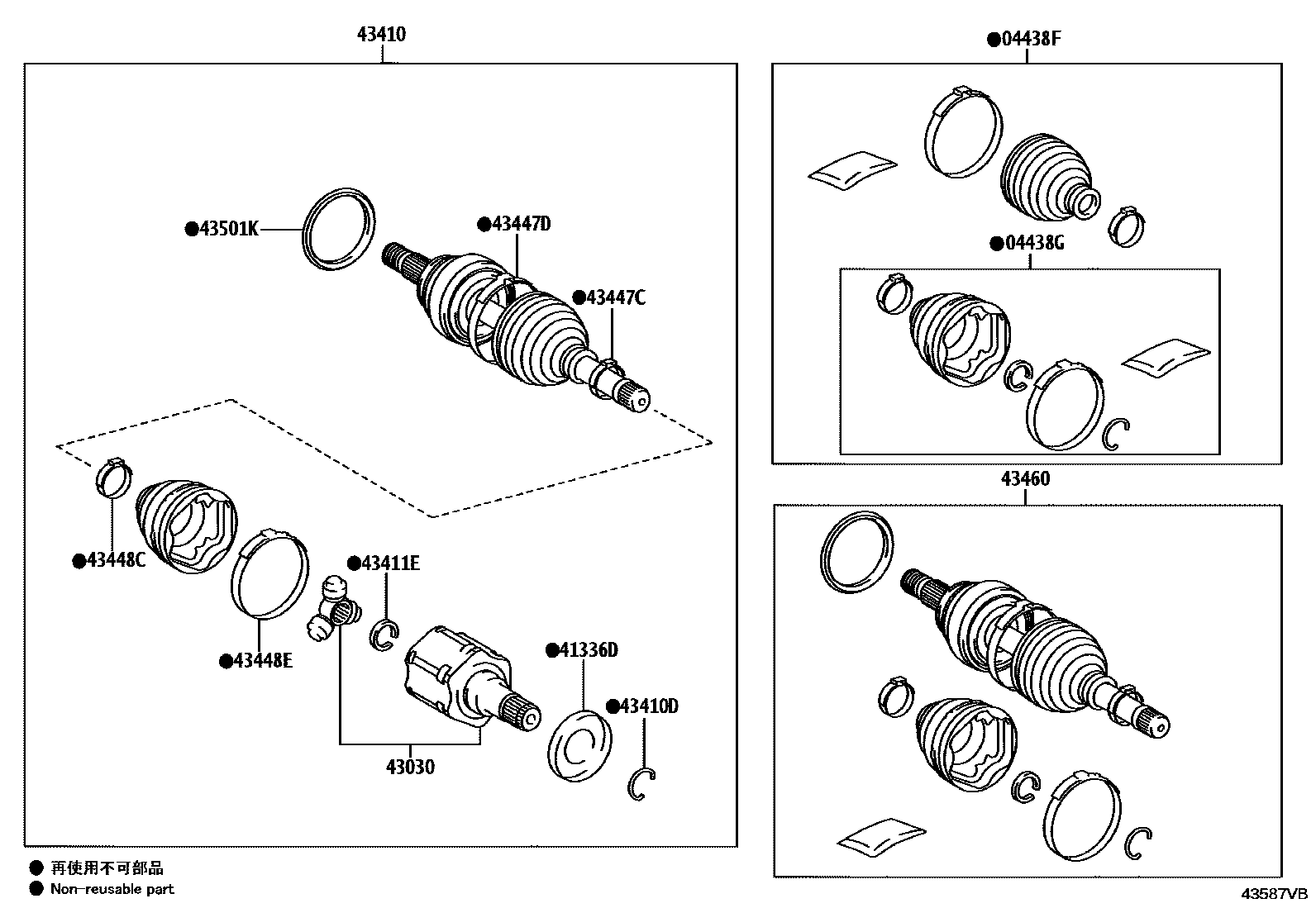

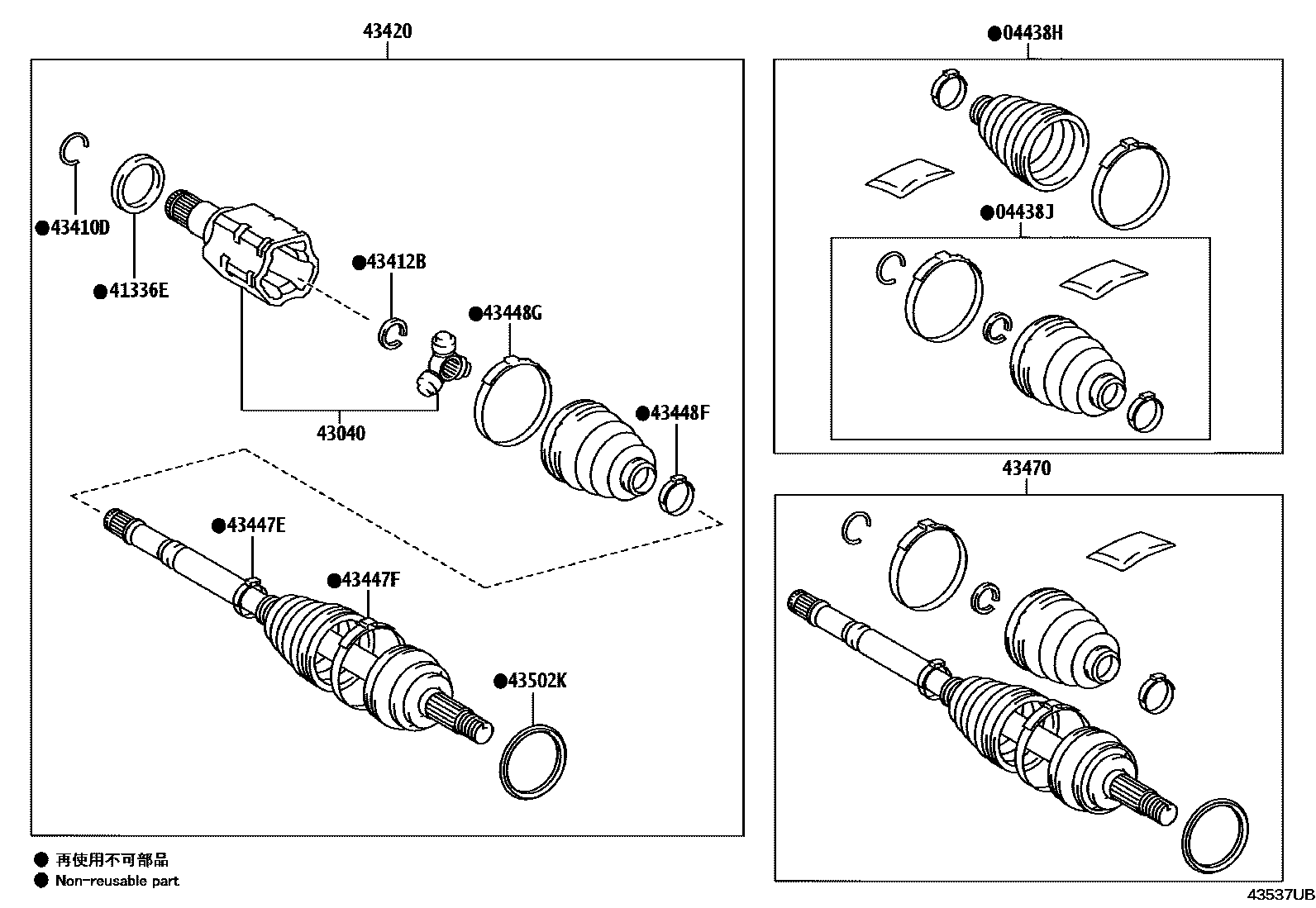

Toyota HILUX EPC diagram 4302, Front Drive Shaft, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-0D581 · 04427-0K050 · 04427-0K063 · 04427-0K072 · 04427-0K090 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-0D420 · 04437-0K050 · 04437-0K061 · 04437-0K071 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-0D581 · 04427-0K050 · 04427-0K063 · 04427-0K072 · 04427-0K090 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-0D420 · 04437-0K050 · 04437-0K061 · 04437-0K071 |
| 41336D | Right front driveshaft dust cover | 41336-0K051 · 41336-0K071 · 41336-0K080 |
| 41336E | Left front driveshaft dust cover | 41336-0K051 · 41336-0K071 · 41336-0K080 |
| 43030 | Right front drive shaft inner universal joint assembly | 43040-0K050 · 43040-0K060 · 43040-0K070 · 43040-0K080 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-0K050 · 43040-0K060 · 43040-0K070 · 43040-0K080 |
| 43410 | Right front driveshaft assembly | 43430-0K060 · 43430-0K070 · 43430-0K080 · 43430-0K120 · 43430-0K130 · 43430-0K160 · 43430-0K170 |
| 43410D | Shaft snap ring (for front drive shaft) | 43425-0K040 · 43425-0K080 · 43425-0K110 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-0K130 · 43425-0K140 · 43425-0K150 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-0K130 · 43425-0K140 · 43425-0K150 |
| 43420 | Left front drive shaft assembly | 43430-0K060 · 43430-0K070 · 43430-0K080 · 43430-0K120 · 43430-0K130 · 43430-0K160 · 43430-0K170 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-0K070 · 42345-0K090 · 42345-0K150 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-0K100 · 42345-0K120 · 42345-0K160 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-0K070 · 42345-0K090 · 42345-0K150 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-0K100 · 42345-0K120 · 42345-0K160 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-0K040 · 42345-0K060 · 42345-0K140 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-0K010 · 42345-0K030 · 42345-0K130 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-0K040 · 42345-0K060 · 42345-0K140 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-0K010 · 42345-0K030 · 42345-0K130 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09Y50 · 43460-09Y63 · 43460-09Y70 · 43460-8Z019 · 43460-8Z020 |
| 43470 | Left front outer drive universal joint shaft assembly | 43460-09Y50 · 43460-09Y63 · 43460-09Y70 · 43460-8Z019 · 43460-8Z020 |
| 43501K | Dust seal (for right front axle hub) | 90304-T0001 |
| 43502K | Dust seal (for left front axle hub) | 90304-T0001 |
