Toyota HILUX 车轮和车轮盖 — Figure 4103
Toyota HILUX EPC diagram 4103, 车轮和车轮盖, with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

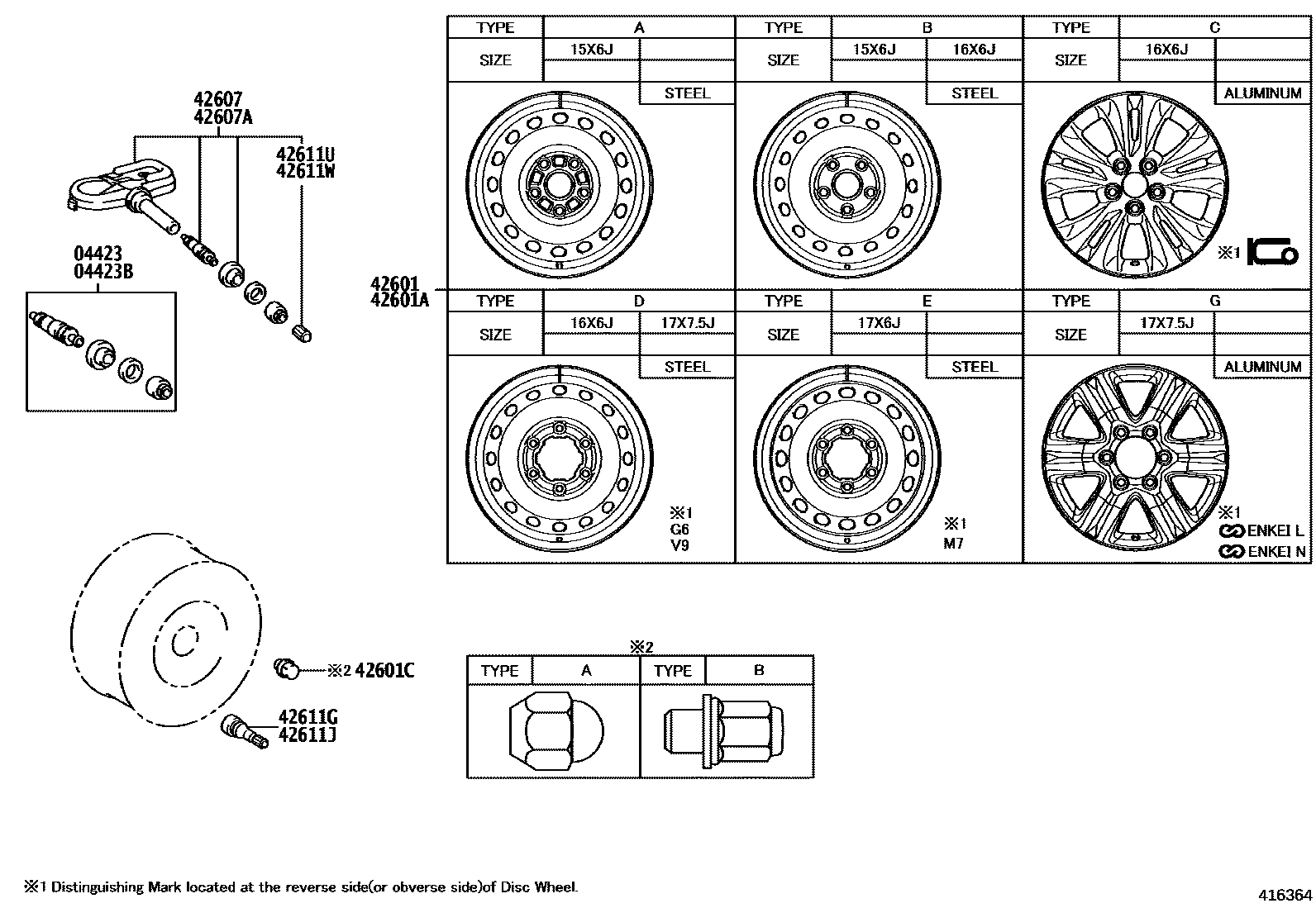

| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-33060 |
| 04423B | Tire pressure monitoring valve or balancer valve mounting assembly (spare) | 04423-33060 |

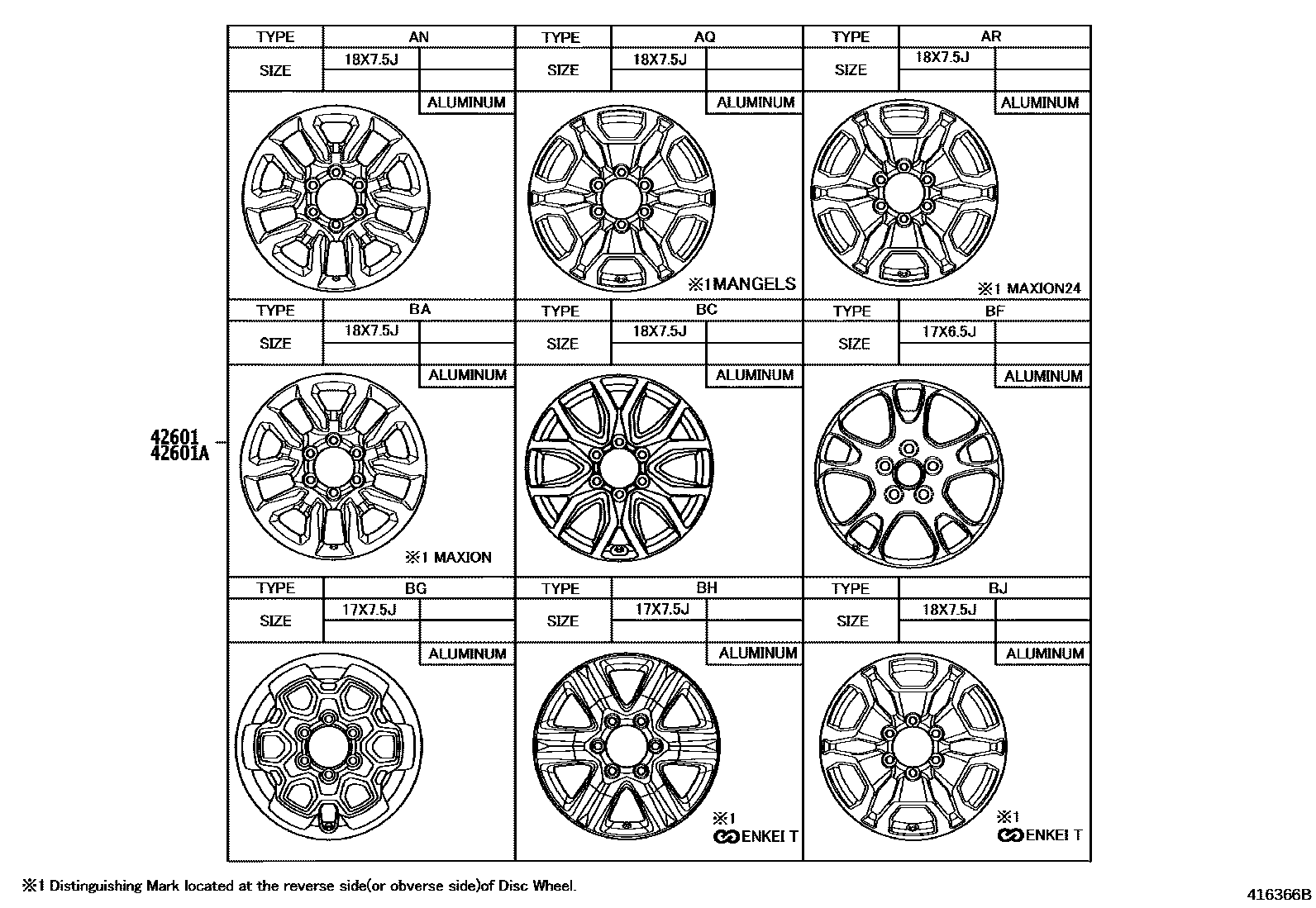

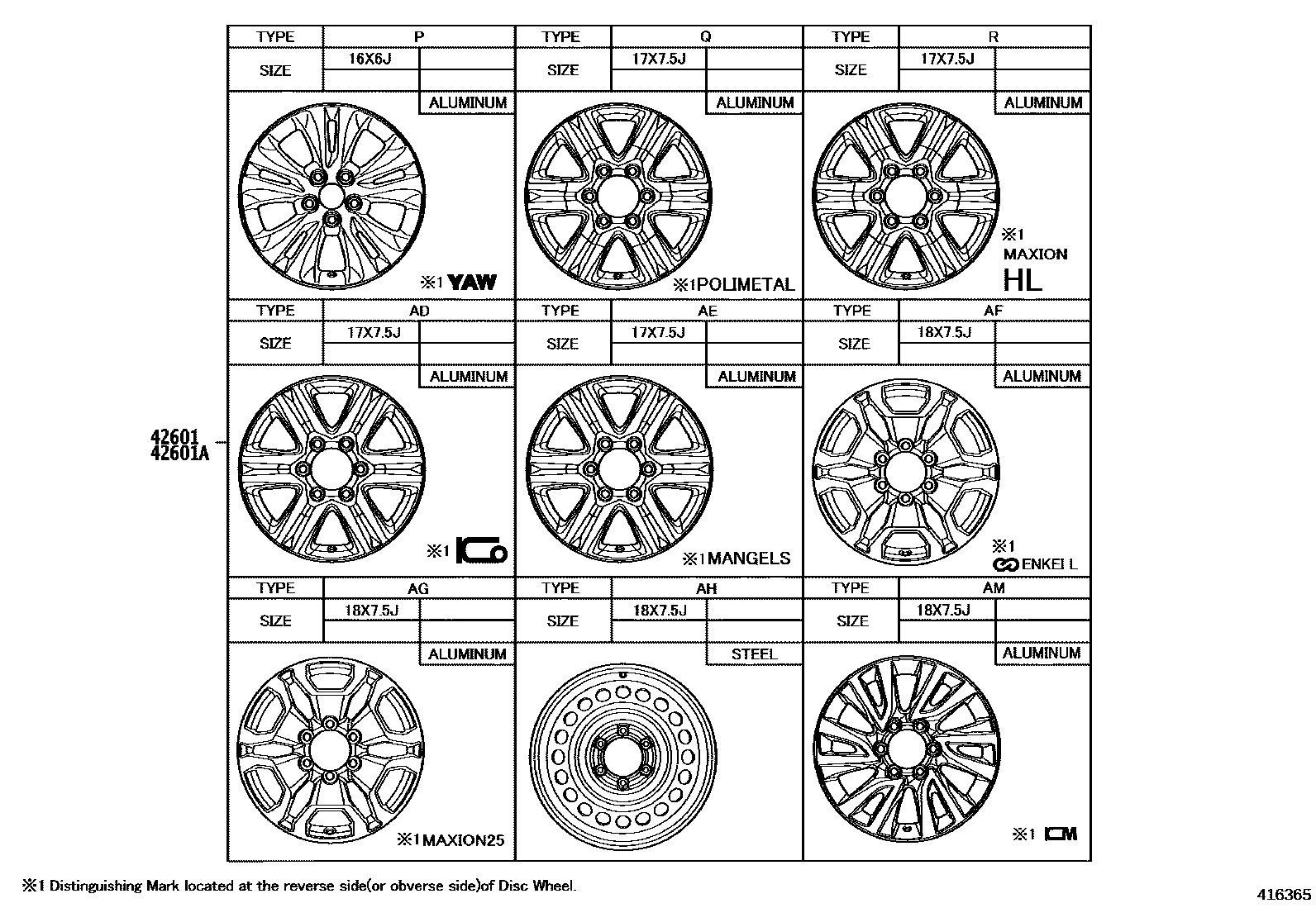

| 42601 | spoke wheel | 42611-0KG10 · 42611-0KG40 · 42611-0KG51 · 42611-0KG52 · 42611-0KG60 · 42611-0KG70 · 42611-0KG81 · 42611-0KG90 · 42611-0KJ01 · 42611-0KJ10 · 42611-0KK31 · 42611-0KL41 · 42611-0KM41 · 42611-0KP90 · 42611-0KQ00 · 42611-0KQ20 · 42611-0KR30 · 42611-0KT10 · 42611-0KT40 · 42611-0KT80 · 42611-0KU31 · 42611-0KU40 · 42611-0KU50 · 42611-0KU80 · 42611-0KU81 · 42611-0KU90 · 42611-0KU91 · 42611-0KV20 · 42611-0KV40 · 42611-0KV60 · 42611-0KV80 · 42611-0KX80 · 42611-YP070 · 42611-YP080 · 42611-YP100 · 42611-YP110 · 42611-YP120 · 42611-YP370 · 42611-YP380 · 42611-YP390 · 42611-YP520 · 42611-YP530 · 42611-YP540 · 4261A-0K041 |
| 42601A | Spoke wheel (for spare tire) | 42611-0KG10 · 42611-0KG40 · 42611-0KG51 · 42611-0KG52 · 42611-0KG60 · 42611-0KG70 · 42611-0KG81 · 42611-0KG90 · 42611-0KJ01 · 42611-0KJ10 · 42611-0KJ70 · 42611-0KK31 · 42611-0KL41 · 42611-0KM41 · 42611-0KP90 · 42611-0KQ00 · 42611-0KQ20 · 42611-0KQ61 · 42611-0KQ81 · 42611-0KR30 · 42611-0KT10 · 42611-0KT40 · 42611-0KT80 · 42611-0KU31 · 42611-0KU40 · 42611-0KU50 · 42611-0KU80 · 42611-0KU81 · 42611-0KU90 · 42611-0KU91 · 42611-0KV40 · 42611-0KV60 · 42611-0KV80 · 42611-0KX80 · 42611-YP070 · 42611-YP080 · 42611-YP100 · 42611-YP110 · 42611-YP120 · 42611-YP370 · 42611-YP380 · 42611-YP390 · 42611-YP520 · 42611-YP530 · 42611-YP540 · 4261A-0K041 |
| 42601C | Hub nut (for axle) | 90942-01082 · 90942-01109 · 90942-T1005 |

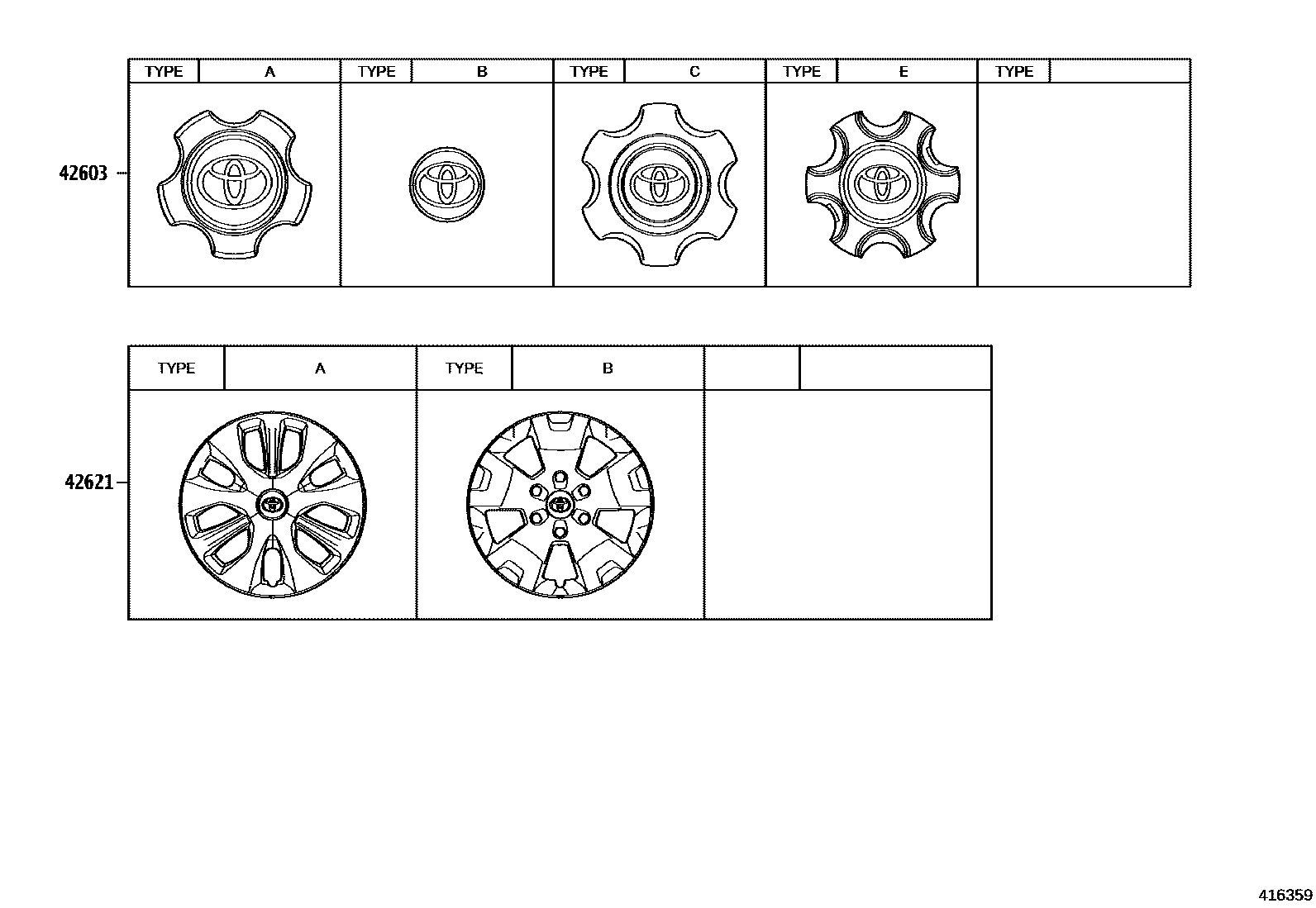

| 42603 | Wheel hub decorative parts sub-assembly | 42603-0K290 · 4260B-0K100 · 4260B-0K110 · 4260B-0K130 · 4260B-0K220 · 4260B-0K350 · 4260B-0K360 · 4260B-0K370 · 4260B-0K390 · 4260B-0K400 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-52040 · 42607-52050 |
| 42607A | Tire pressure monitoring valve sub-assembly (for spare tire) | 42607-52040 · 42607-52050 |
| 42611G | Valve (for tubeless tires) | 90080-94031 · 90080-94180 · 90942-05009 · 90942-T5001 |
| 42611J | Valve (for tubeless spare tire) | 90080-94031 · 90080-94180 · 90942-05009 · 90942-T5001 |
| 42611U | tire valve cover | 90942-05039 |
| 42611W | Tire valve cap (for spare tire) | 90942-05039 |
| 42621 | wheel cover | 42602-0K070 · 42602-0K090 |
