Toyota HILUX Transfer Case & Extension Housing — Figure 3609

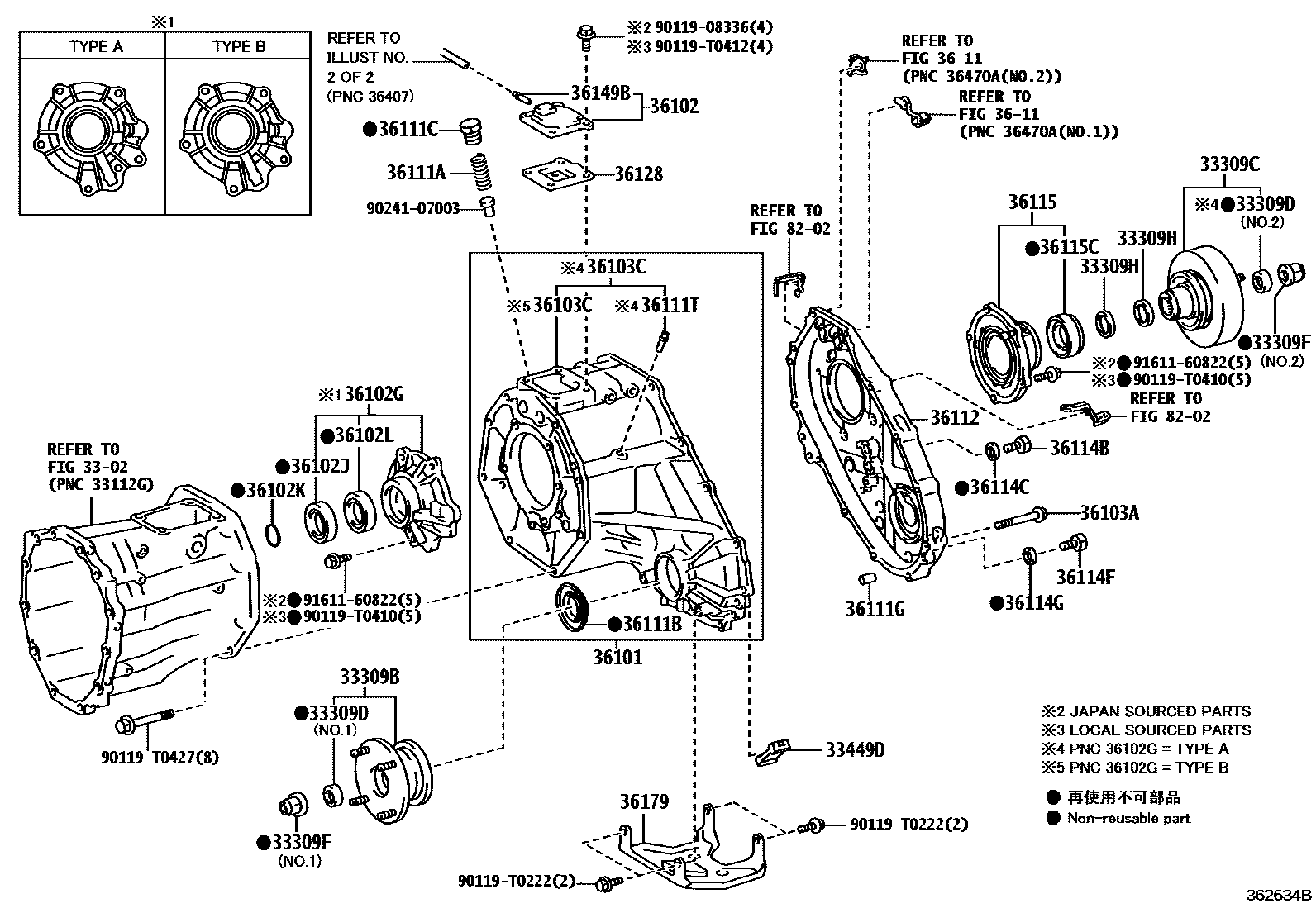

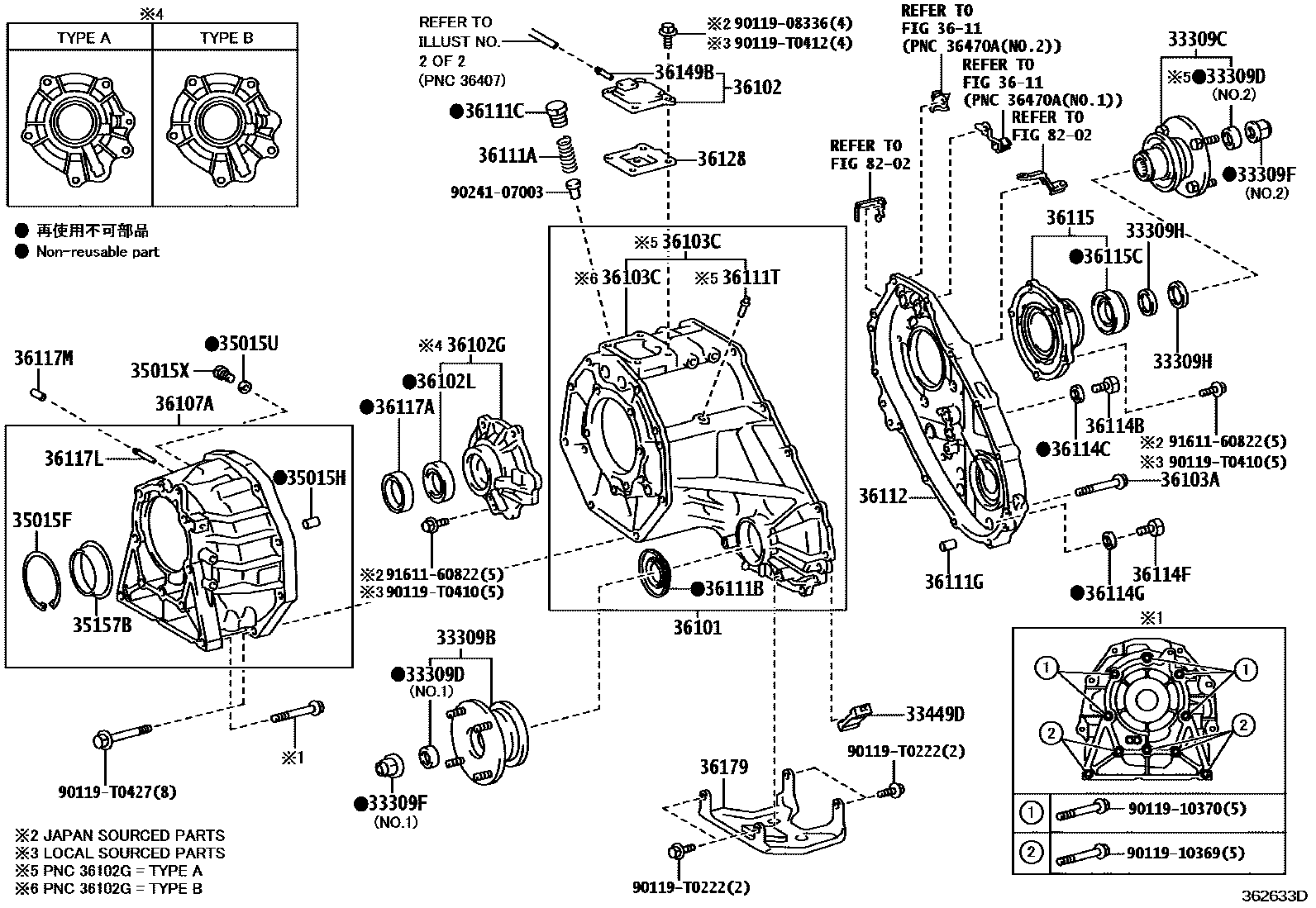

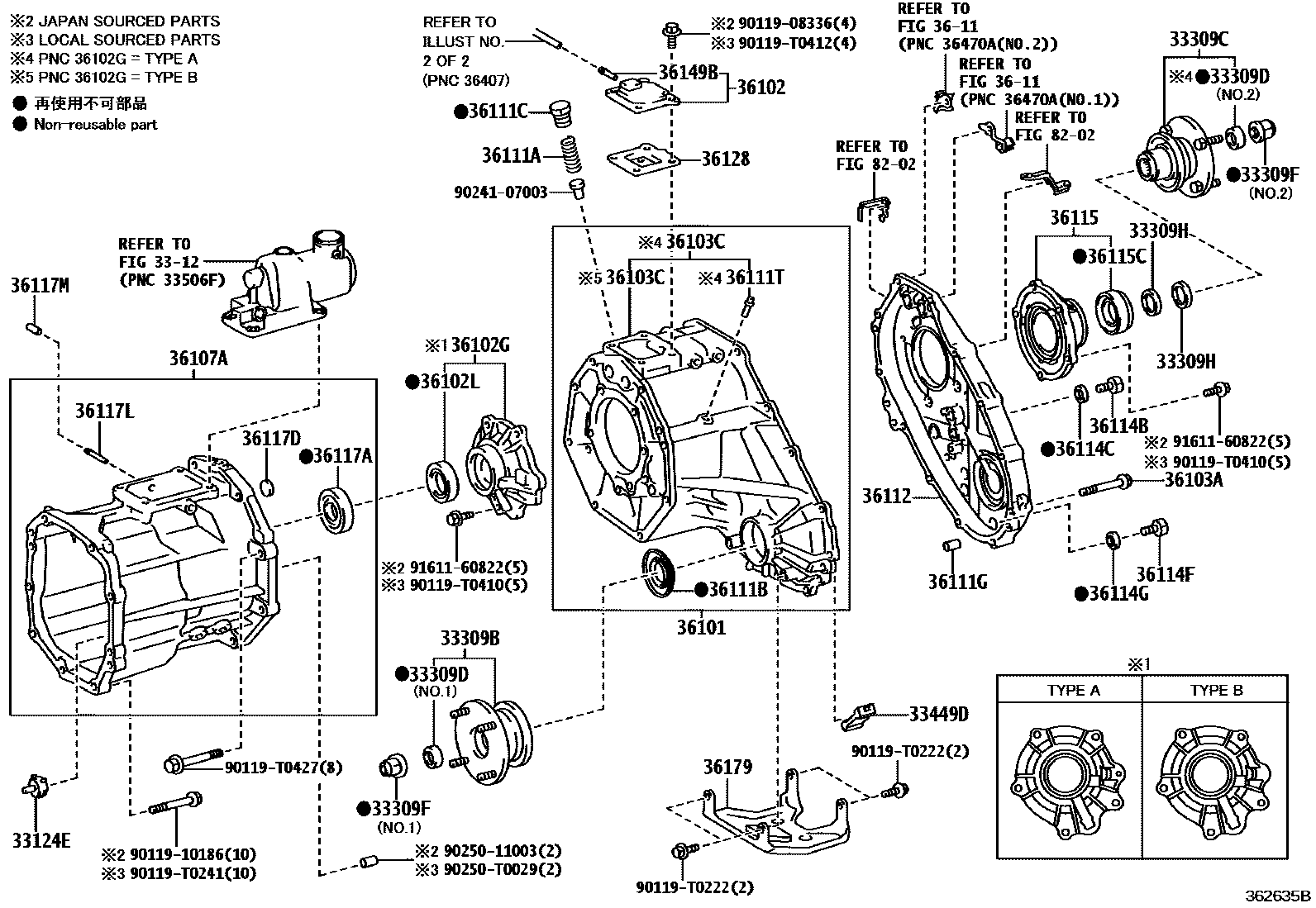

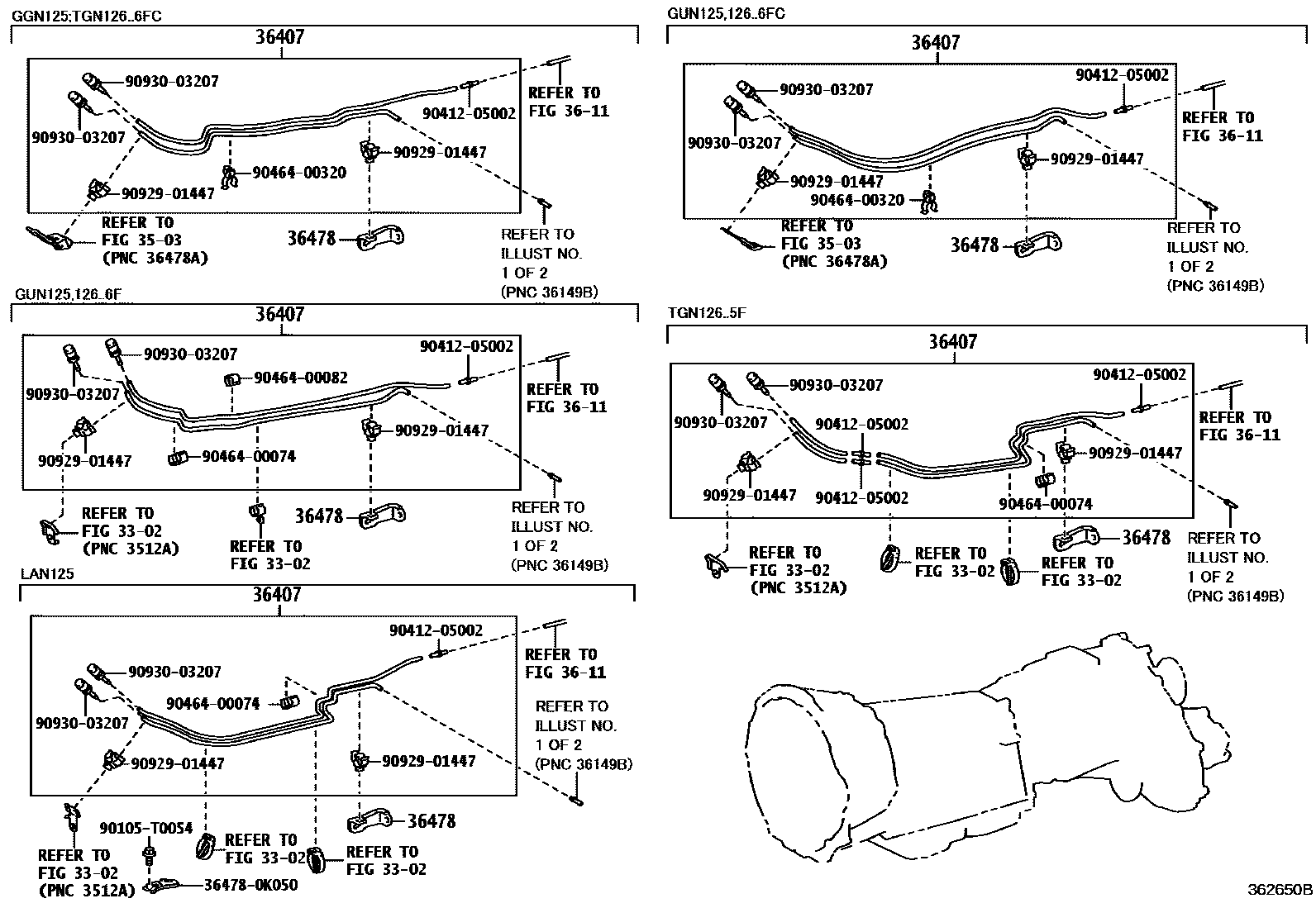

Toyota HILUX EPC diagram 3609, Transfer Case & Extension Housing, with 4 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33124E | Oil collector pipe (for transfer case) | 33124-0K010 |
| 33309B | Output shaft combined with flange sub-assembly | 33309-0K012 · 33309-35113 |
| 33309C | Output shaft combined with flange sub-assembly | 33309-0K030 · 33309-71030 · 36204-0K010 · 36204-71020 |
| 33309D | Oil seal (for transfer case output shaft coupling flange) | 90312-23001 · 90312-32006 · 90312-T0004 |
| 33309F | Nut (for transfer case output shaft coupling flange) | 90179-22016 · 90179-24011 |
| 33309H | Transfer case output shaft washer | 36275-71010 |
| 33449D | Magnet (for transfer case) | 33449-32020 |
| 35015F | Hole snap ring (for transfer case adapter) | 90521-72001 |
| 35015H | Ring pin (for transfer case) | 90250-11003 |
| 35015U | O-ring (for transmission clutch) | 90301-15004 · 90301-T0068 |
| 35015X | BOUCHON, REMPLISSAGE(POUR ADAPTATEUR CARTER TRANSMISSION) | 90341-18059 |
| 35157B | Rear transfer case adapter oil collection tank | 35157-0K010 · 35157-60010 |
| 36101 | Transfer case sub-assembly | 36101-71020 |
| 36102 | Transfer Case Cover Sub-Assembly | 36102-0K020 · 36102-35040 |
| 36102G | SOUS-ENS. ARRETOIR, ROULEMENT AVANT TRANSFERT | 36102-0K010 · 36102-0K030 · 36102-35060 · 36102-35080 |
| 36102J | T-type oil seal (for transfer case cover) | 90311-T0028 |
| 36102K | O-ring | 90301-T0052 |
| 36102L | JOINT ETANCHEITE, HUILE TYPE T(POUR ROULEMENT AVANT TRANSF) | 90311-43008 · 90311-T0071 |
| 36103A | Bolt (for transfer case) | 90119-08A28 · 90119-T0411 |
| 36103C | front transfer case | 36101-71020 · 36111-0K031 |
| 36107A | Transfer case clutch sub-assembly | 35015-0K020 · 35015-71030 · 36107-0K020 |
| 36111A | Compression spring (for transfer case) | 90501-20091 · 90501-T0034 |
| 36111B | Oil seal (for transfer case) | 90311-41017 · 90311-T0082 |
| 36111C | Screw plug (for transfer case) | 90341-14012 · 90341-T0013 |
| 36111G | Direct sales (for transfer case) | 90250-10214 · 90250-T0026 |
| 36111T | Tube (for transfer case) | 90441-05001 |
| 36112 | Rear transfer case | 36112-0K030 · 36112-71010 |
| 36114B | No. 1 screw plug (for transfer case) | 90341-18006 |
| 36114C | No. 1 gasket (for transfer case) | 90430-18008 · 90430-T0021 |
| 36114F | Screw plug (for transfer case oil drain) | 90341-18006 |
| 36114G | Gasket (for transfer case drain plug) | 90430-18008 · 90430-T0021 |
| 36115 | Transfer case extension housing | 36105-0K020 · 36105-71010 |
| 36115C | T-type oil seal (for transfer case extension case) | 90311-45034 · 90311-T0072 |
| 36117A | Oil seal (for transfer case clutch) | 90311-43013 · 90311-T0080 |
| 36117D | Thread plug (for transfer case adapter) | 90331-21003 |
| 36117L | Tube (for transfer case adapter) | 90441-05001 |
| 36117M | Cover (for transfer case clutch) | 90339-04024 |
| 36128 | Air vent oil baffle | 36128-0K020 · 36128-35060 |
| 36149B | Transfer case breather pipe | 90406-T0007 · 90441-05001 |
| 36179 | Protective cover under transfer case | 36179-0K011 |
| 36407 | Transfer case breather hose sub-assembly | 36407-0K010 · 36407-0K020 · 36407-0K030 · 36407-0K050 · 36407-0K060 · 36407-0K070 |
| 36478 | Transfer case breather bracket | 36478-0K020 |
