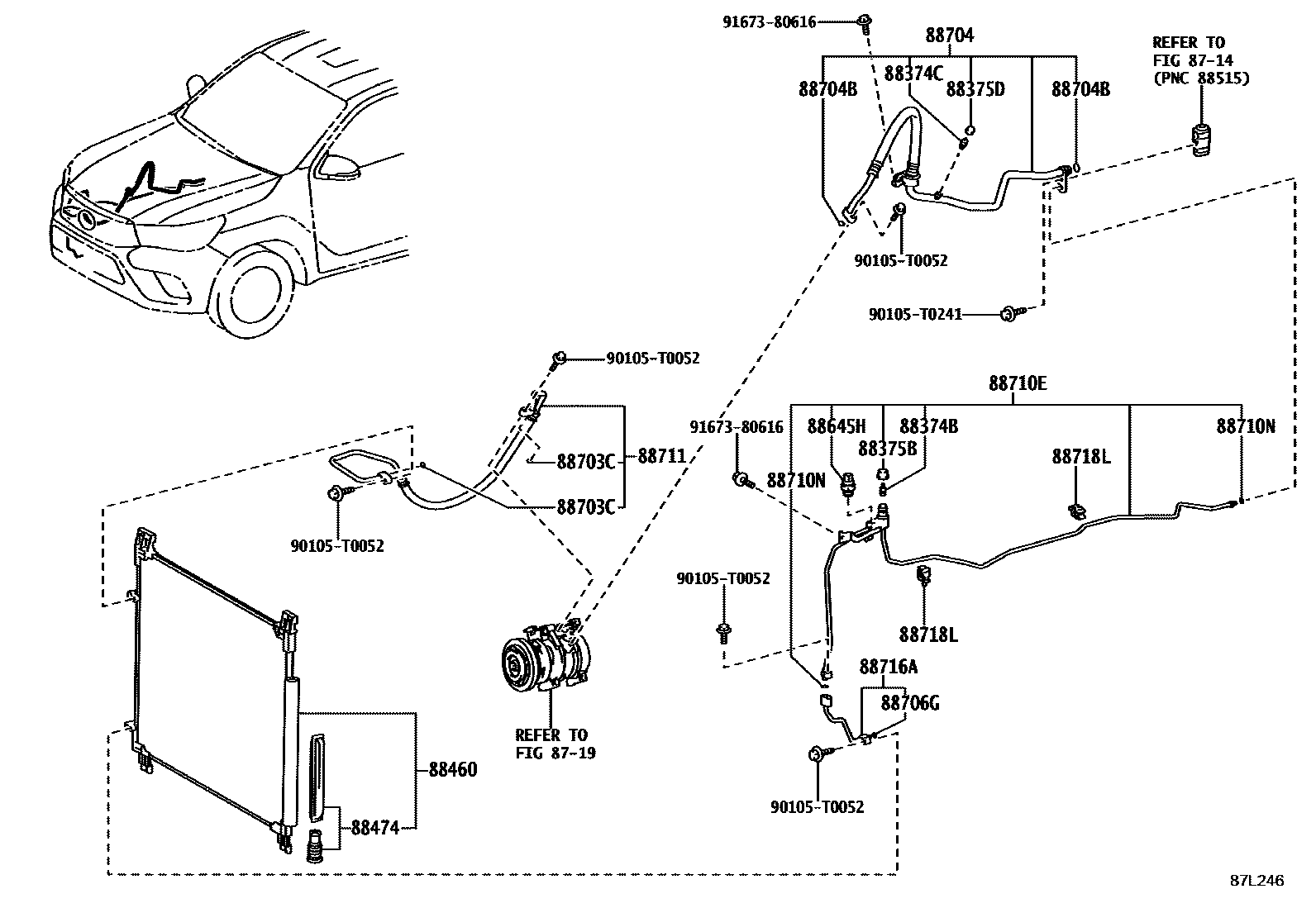

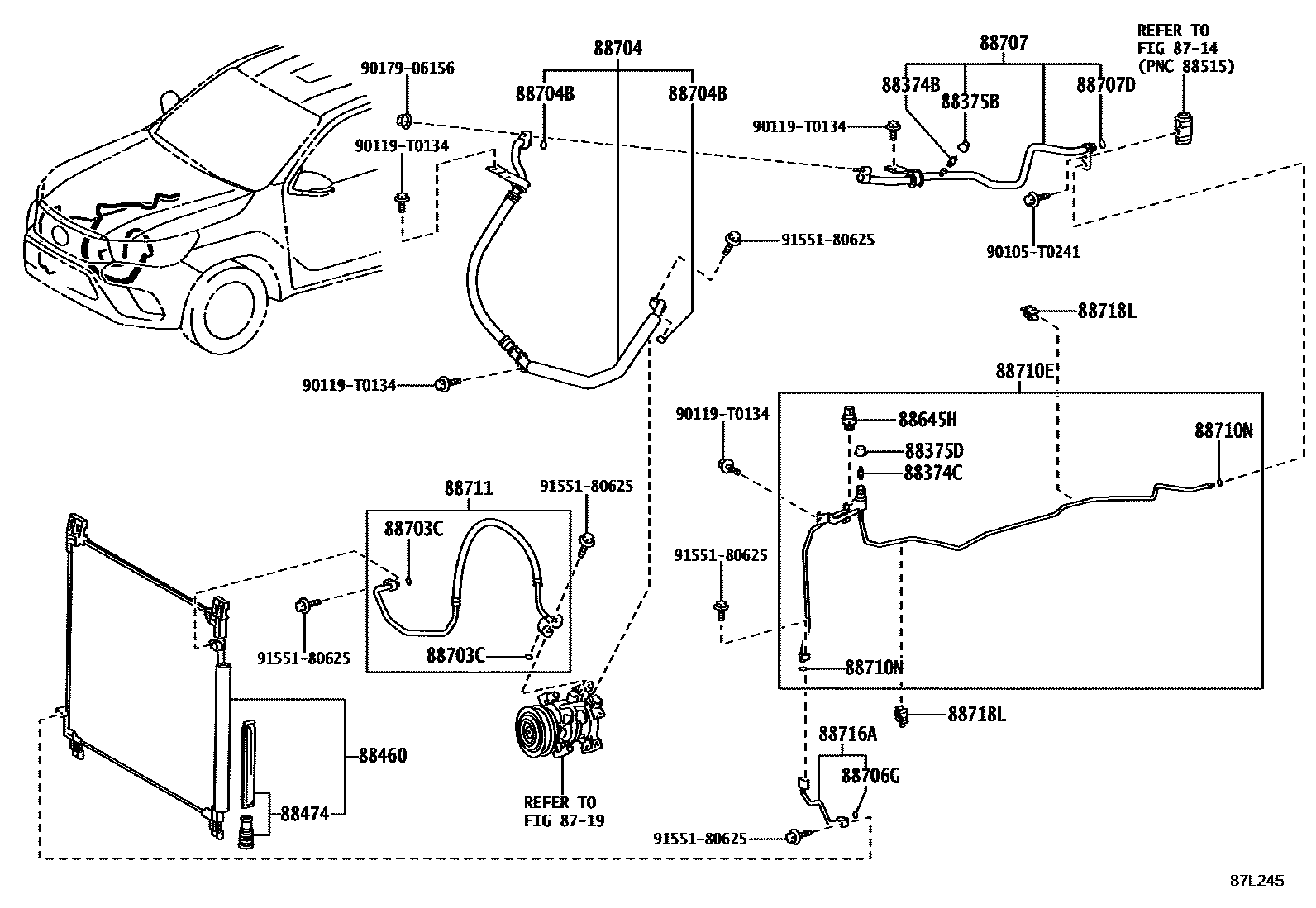

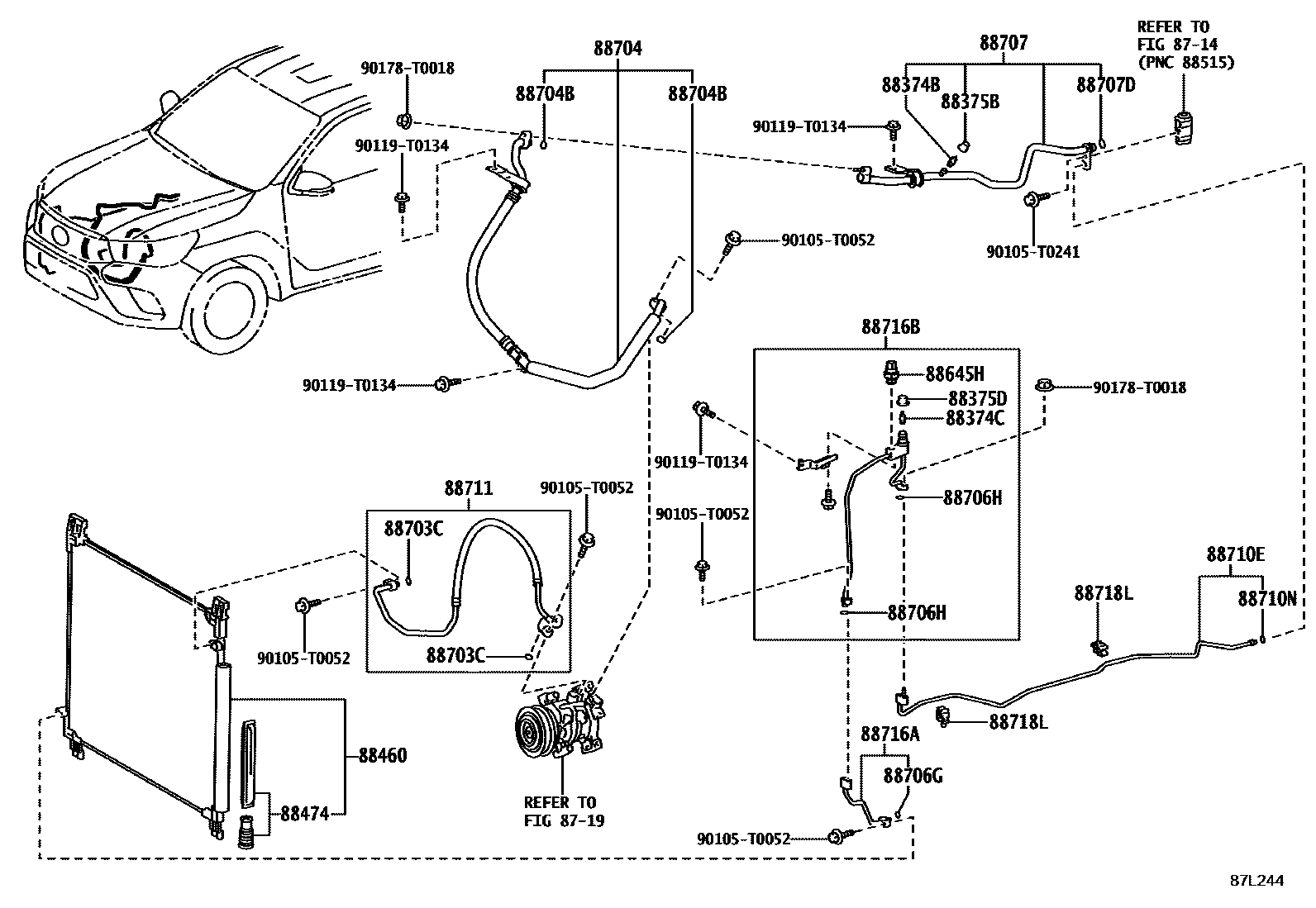

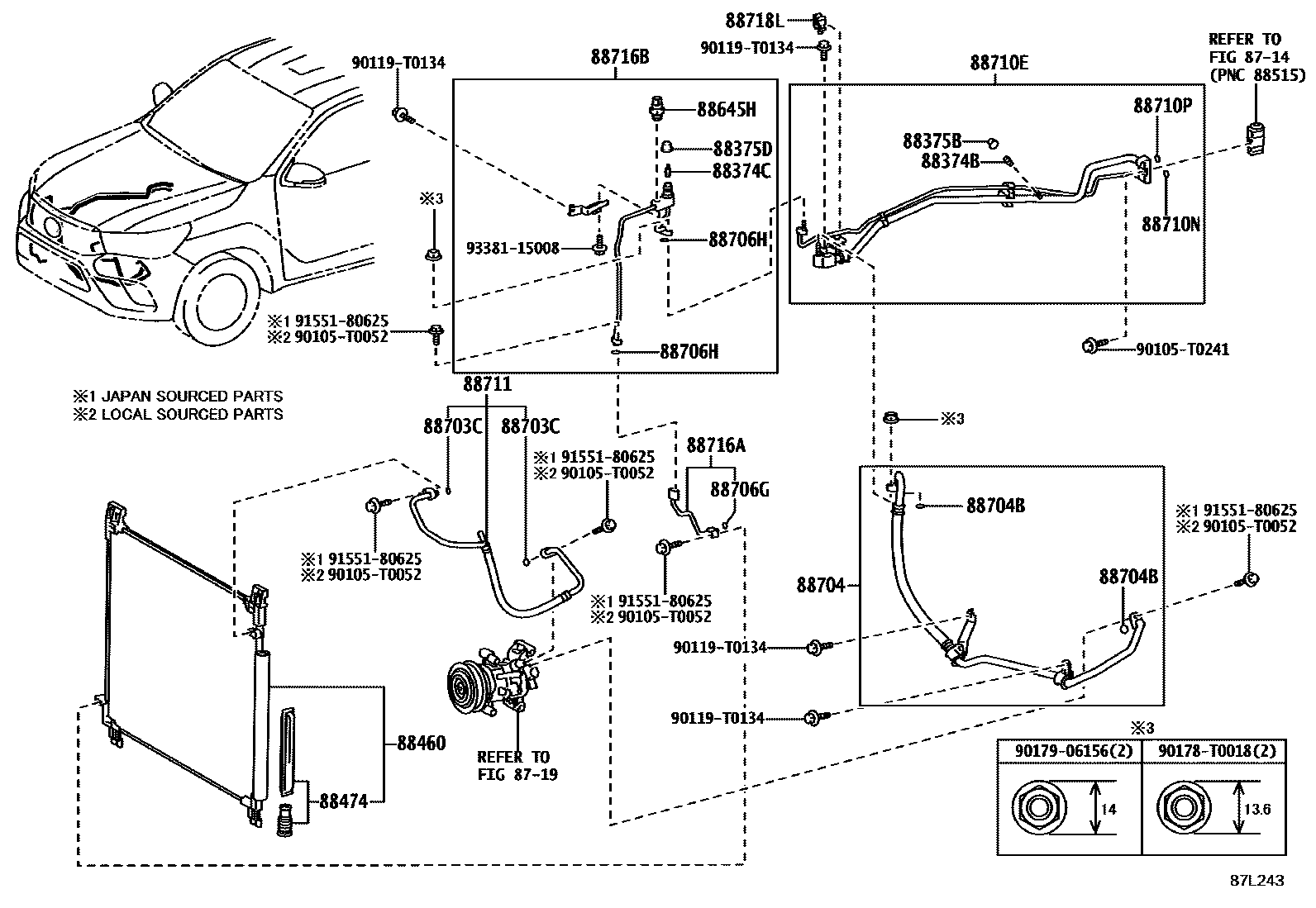

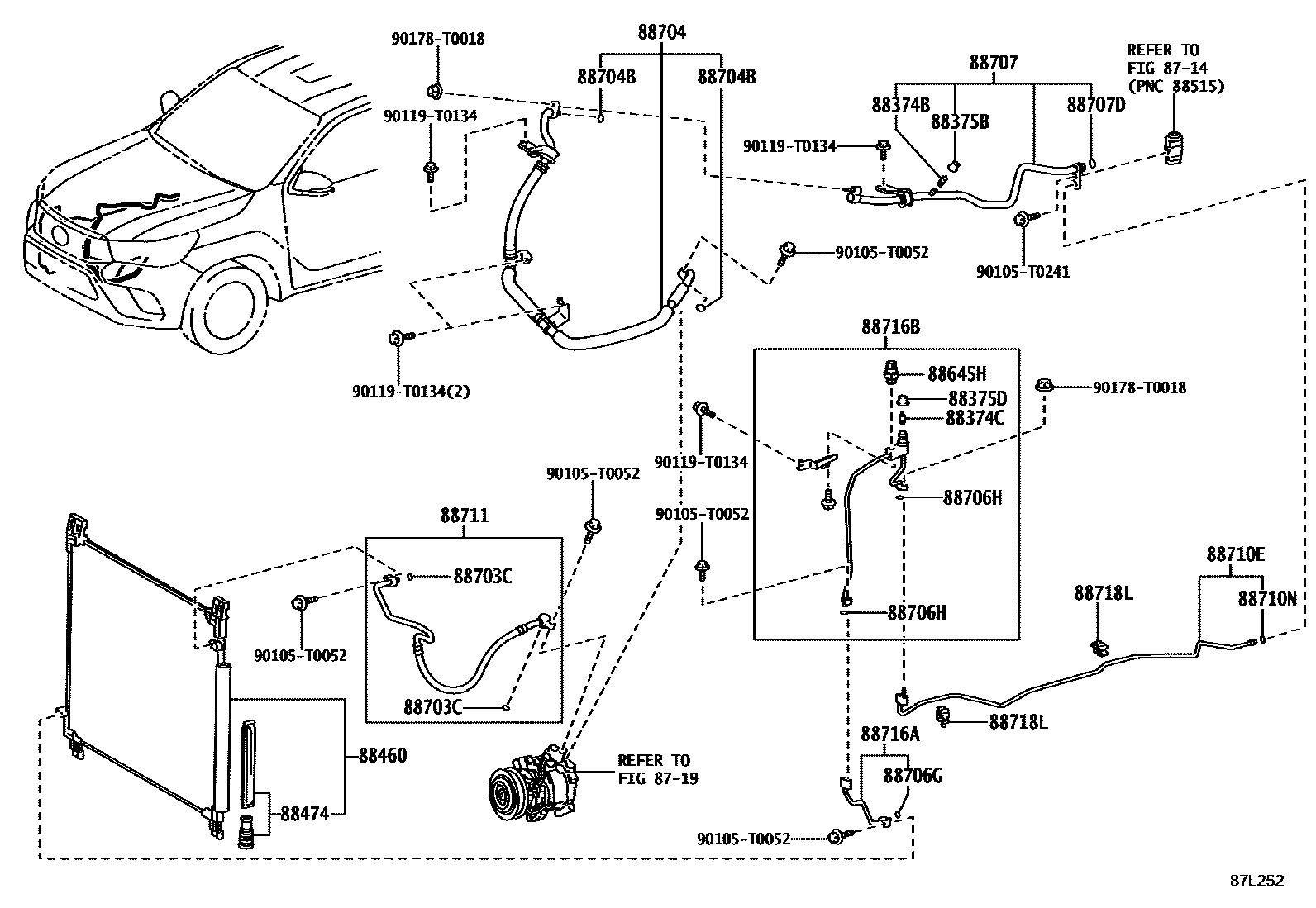

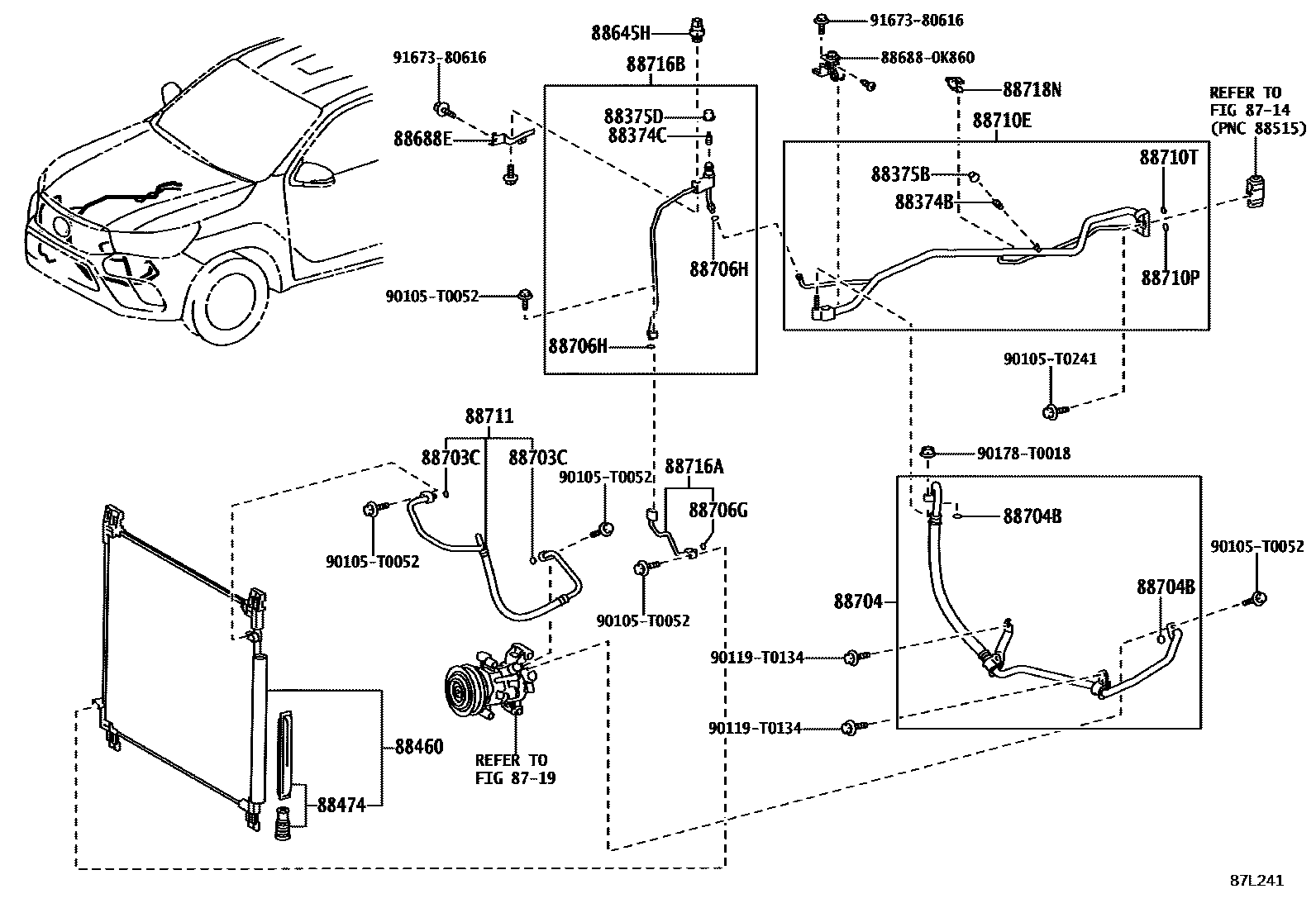

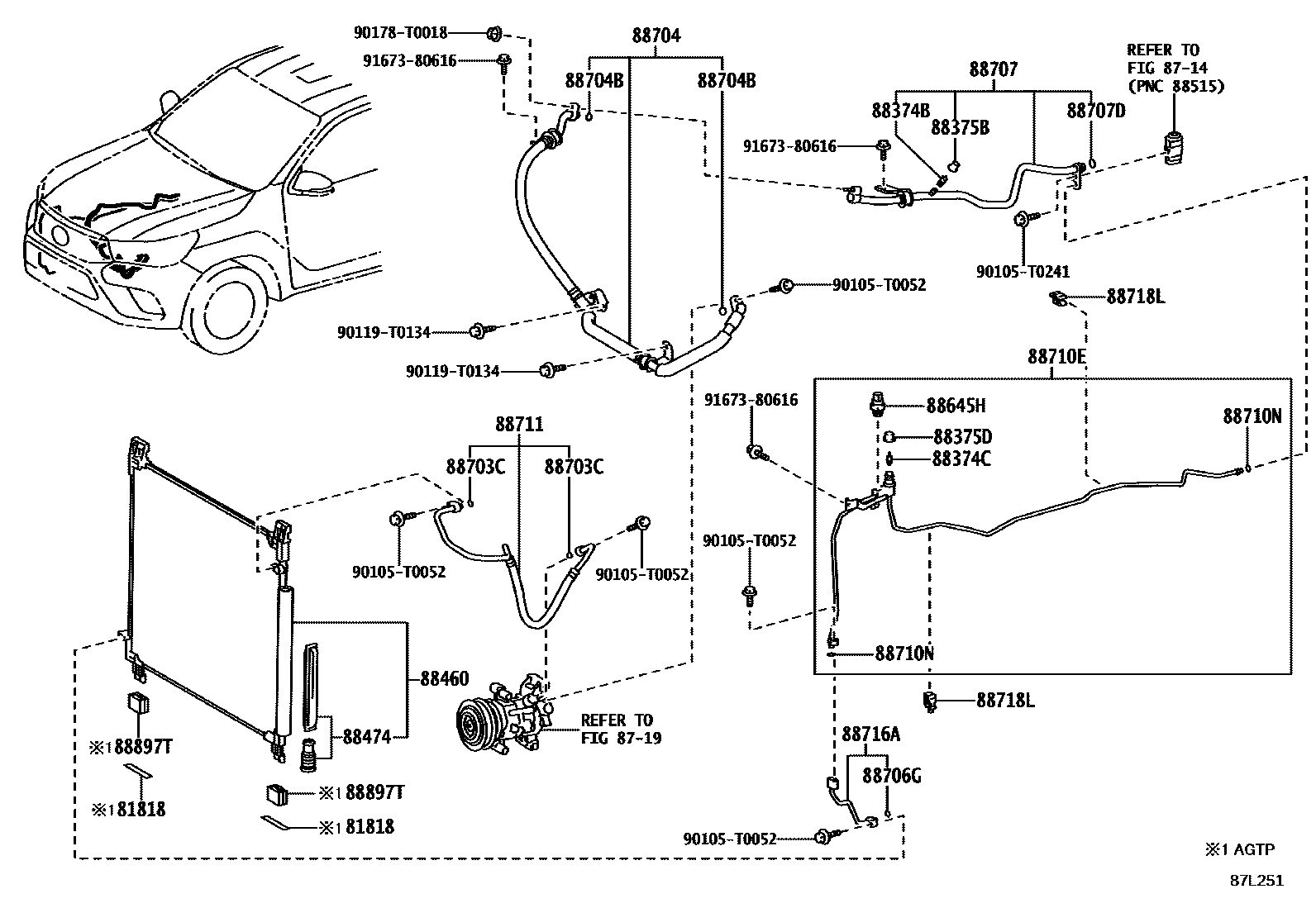

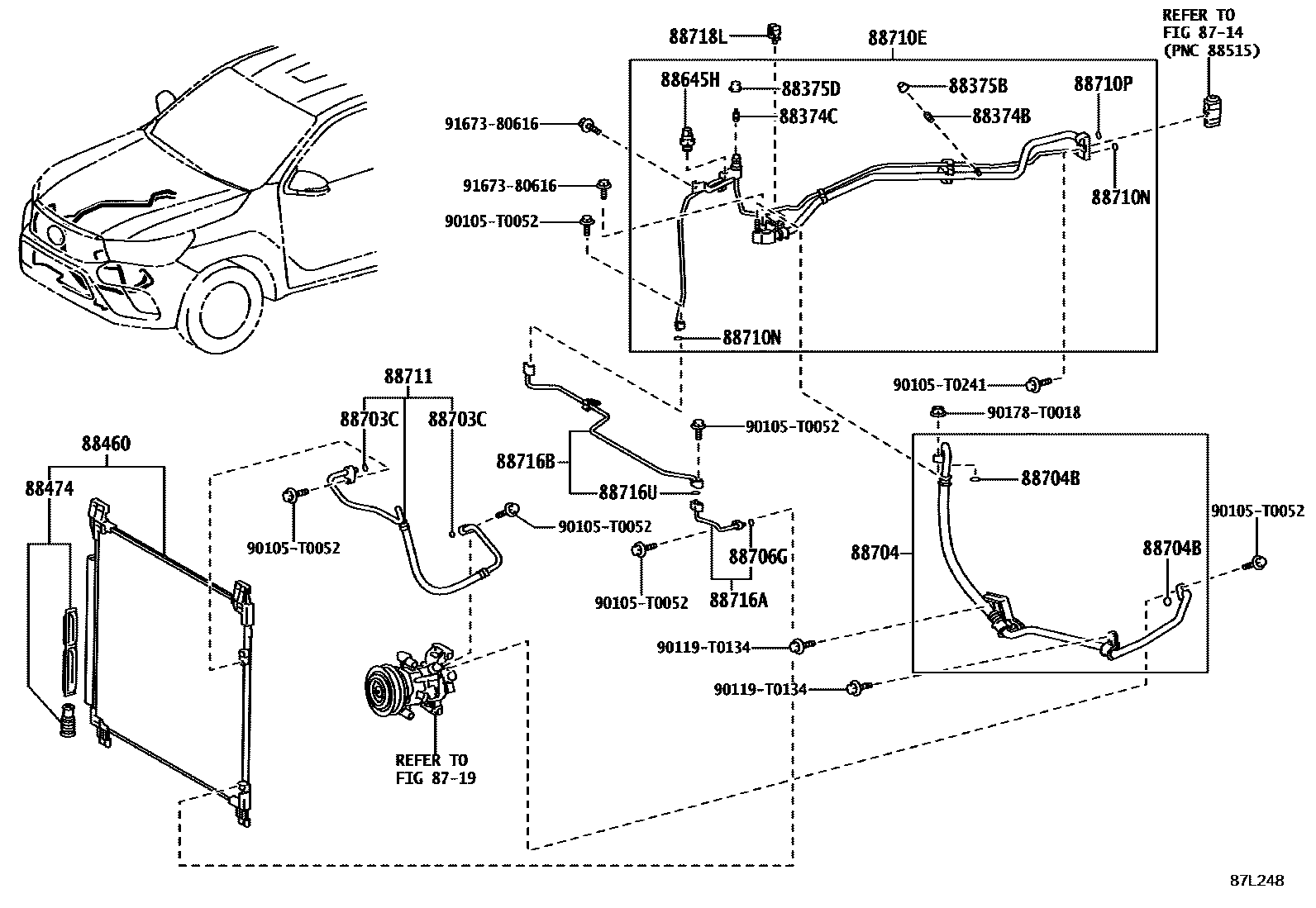

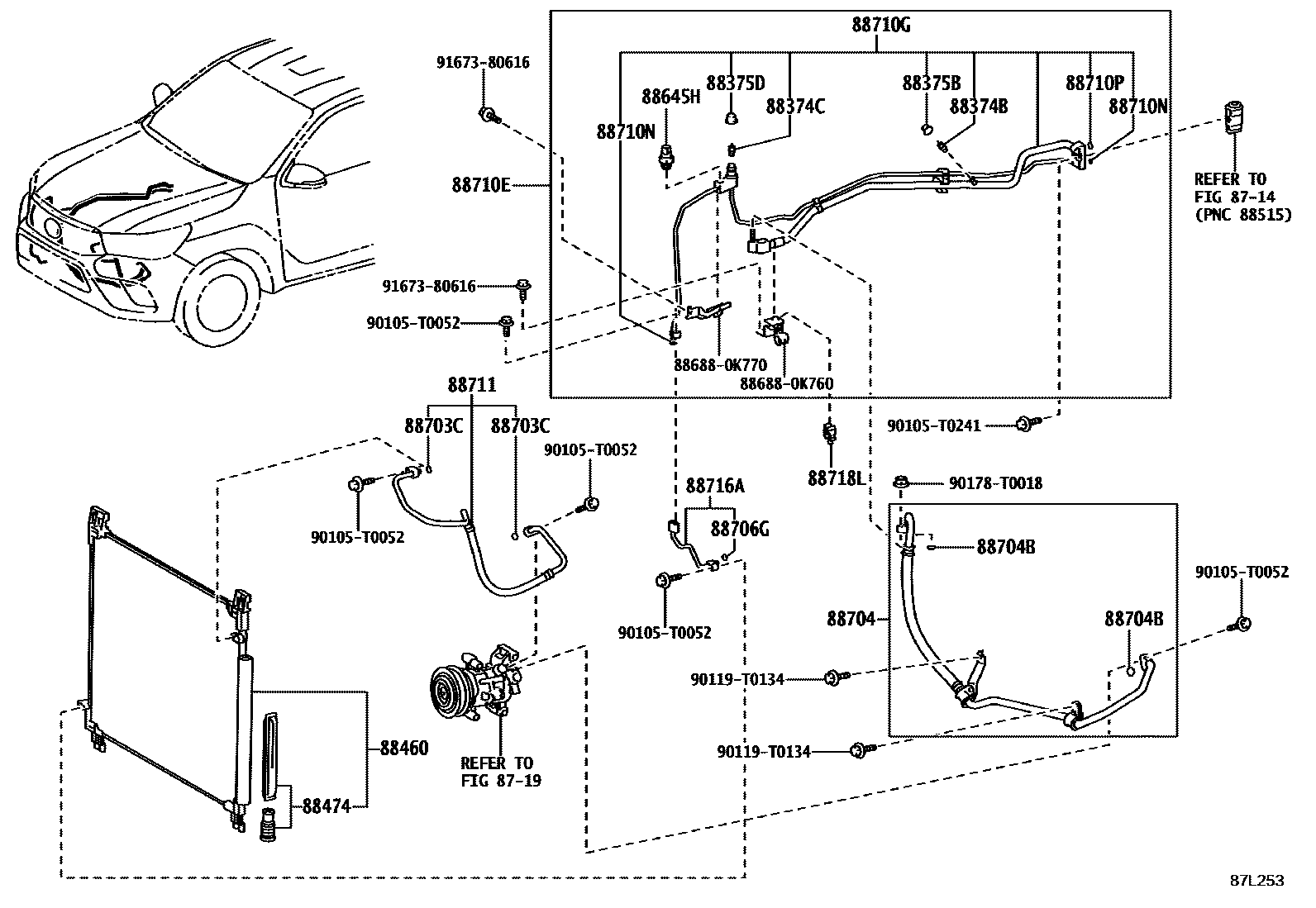

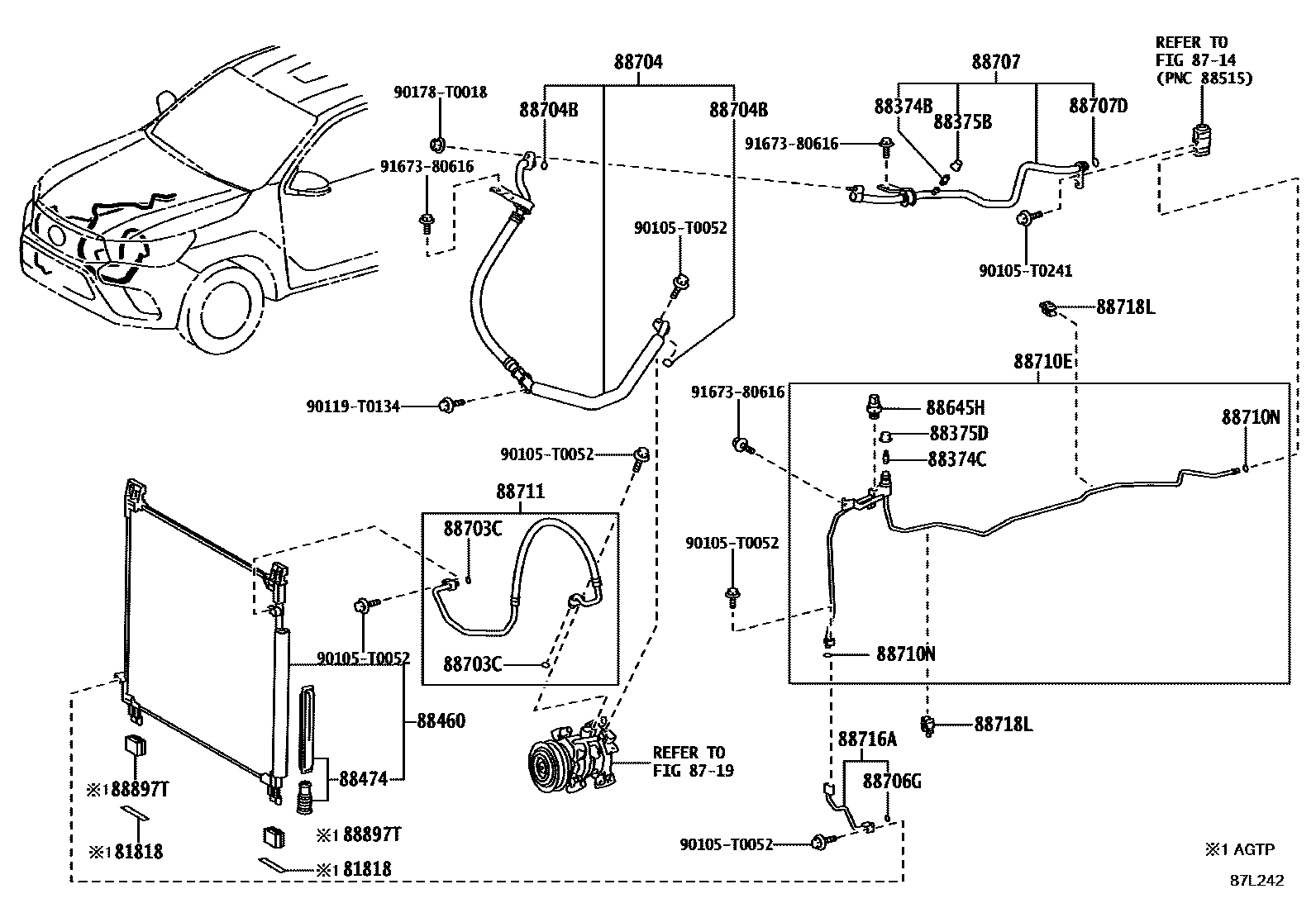

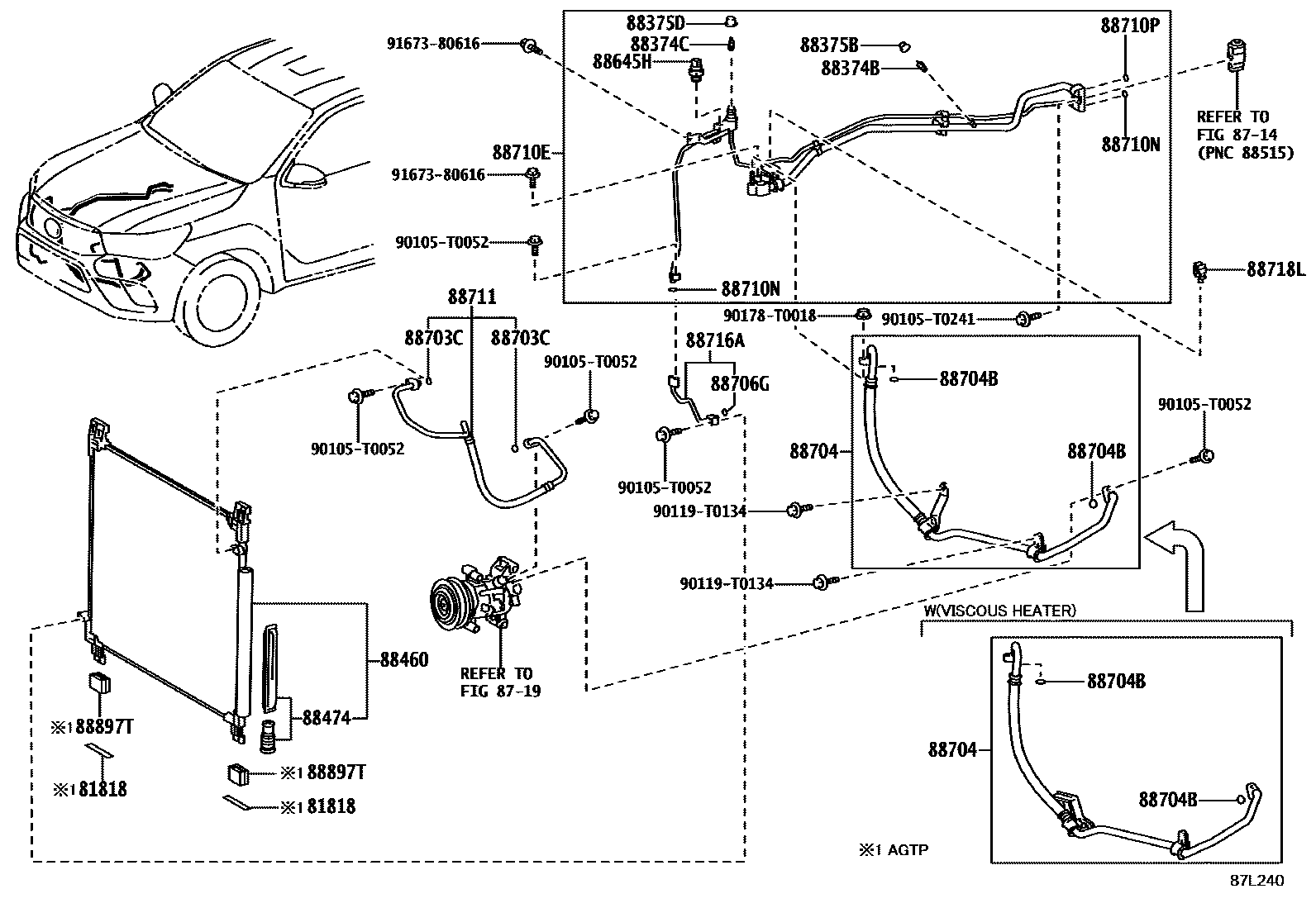

Toyota HILUX Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota HILUX EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 11 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81818 | Seals | 87417-0K070 |
| 88374B | Service valve No. 1 | 88374-02010 · 88374-02020 · 88374-30010 |
| 88374C | Service valve No. 2 | 88374-02010 · 88374-02020 · 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-02130 · 88375-02140 · 88375-02150 · 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-02120 · 88375-02140 · 88375-02150 · 88375-30280 |
| 88460 | Air conditioning condenser assembly | 88460-0K350 · 88460-0K390 · 88460-0K430 · 88460-0K460 · 88460-0K550 · 88460-0K780 · 88460-0K800 |
| 88474 | cooler dryer | 88474-0K020 · 88474-0K030 · 88474-12010 · 88474-12020 |
| 88645H | No. 1 pressure switch | 88645-0K030 · 88645-0K050 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-0K750 |
| 88703C | JOINT, TORIQUE(POUR TUYAU DECHARGE) | 90068-14022 · 90068-14044 · 90099-14120 |
| 88704 | Oil suction hose sub-assembly | 88704-0K550 · 88704-0K780 · 88704-0KB10 · 88704-0KC30 · 88704-0KC50 · 88704-0KD10 · 88704-0KD30 · 88704-0KD50 · 88704-0KD90 · 88704-0KE10 · 88704-0KE90 · 88704-0KF50 · 88704-0KG10 · 88704-0KG20 |
| 88704B | JOINT, TORIQUE(POUR FLEXIBLE ASPIRATION) | 90068-14024 · 90099-14121 |
| 88706G | JOINT, TORIQUE(POUR TUYAU LIQUIDE) | 90068-14023 · 90068-14042 · 90099-14119 |
| 88706H | JOINT, TORIQUE(POUR TUYAU LIQUIDE) NO.2 | 90099-14119 |
| 88707 | Suction pipe sub-assembly | 88707-0K680 · 88707-0K700 · 88707-0K720 |
| 88707D | JOINT, TORIQUE(POUR TUYAU ASPIRATION) | 90068-14024 · 90099-14121 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-0KB40 · 88710-0KD20 · 88710-0KE50 · 88710-0KE70 · 88710-0KF10 · 88710-0KF30 · 88710-0KF60 · 88710-0KF80 · 88710-0KL30 · 88710-0KQ30 · 88710-0KR30 · 88710-0KR40 · 88710-0KS40 |
| 88710G | No. 2 air conditioning pipe and accessories assembly | 88710-0KP20 |
| 88710N | JOINT, TORIQUE, NO.1(ENS. TUYAU & ACCESSOIRE,CLIMATIS) | 90068-14023 · 90099-14119 · 90099-14120 |
| 88710P | JOINT, TORIQUE, NO.2(ENS. TUYAU & ACCESSOIRE,CLIMATIS) | 90068-14024 · 90099-14119 · 90099-14121 |
| 88710T | JOINT, TORIQUE, NO.3(ENS. TUYAU & ACCESSOIRE,CLIMATIS) | 90099-14121 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-0K830 · 88711-0KA20 · 88711-0KB50 · 88711-0KB60 · 88711-0KC00 · 88711-0KC10 · 88711-0KC20 · 88711-0KC40 · 88711-0KC50 · 88711-0KC60 · 88711-0KC90 · 88711-0KD00 · 88711-0KD60 · 88711-0KD90 · 88711-0KE00 · 88711-0KE20 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-0KL40 · 88716-0KQ80 · 88716-0KR00 · 88716-0KR10 · 88716-0KR20 · 88716-0KR30 · 88716-0KR40 |
| 88716B | Cooler refrigerant liquid pipe B | 88710-0KE40 · 88710-0KN60 · 88716-0KT80 |
| 88716U | O-ring (for cooler refrigerant liquid pipe) | 90068-14042 |
| 88718L | Pipe clamp | 88718-0KB80 · 88718-0KF20 · 88718-0KG90 · 88718-0KW80 · 88718-0KW90 · 88718-0KX00 |
| 88718N | FIXATION, TUYAUTERIE | 88718-0KV30 |
| 88897T | cooler seal | 87128-0K270 |
