Toyota HILUX 前盘式制动器卡钳和防尘罩 — Figure 4705

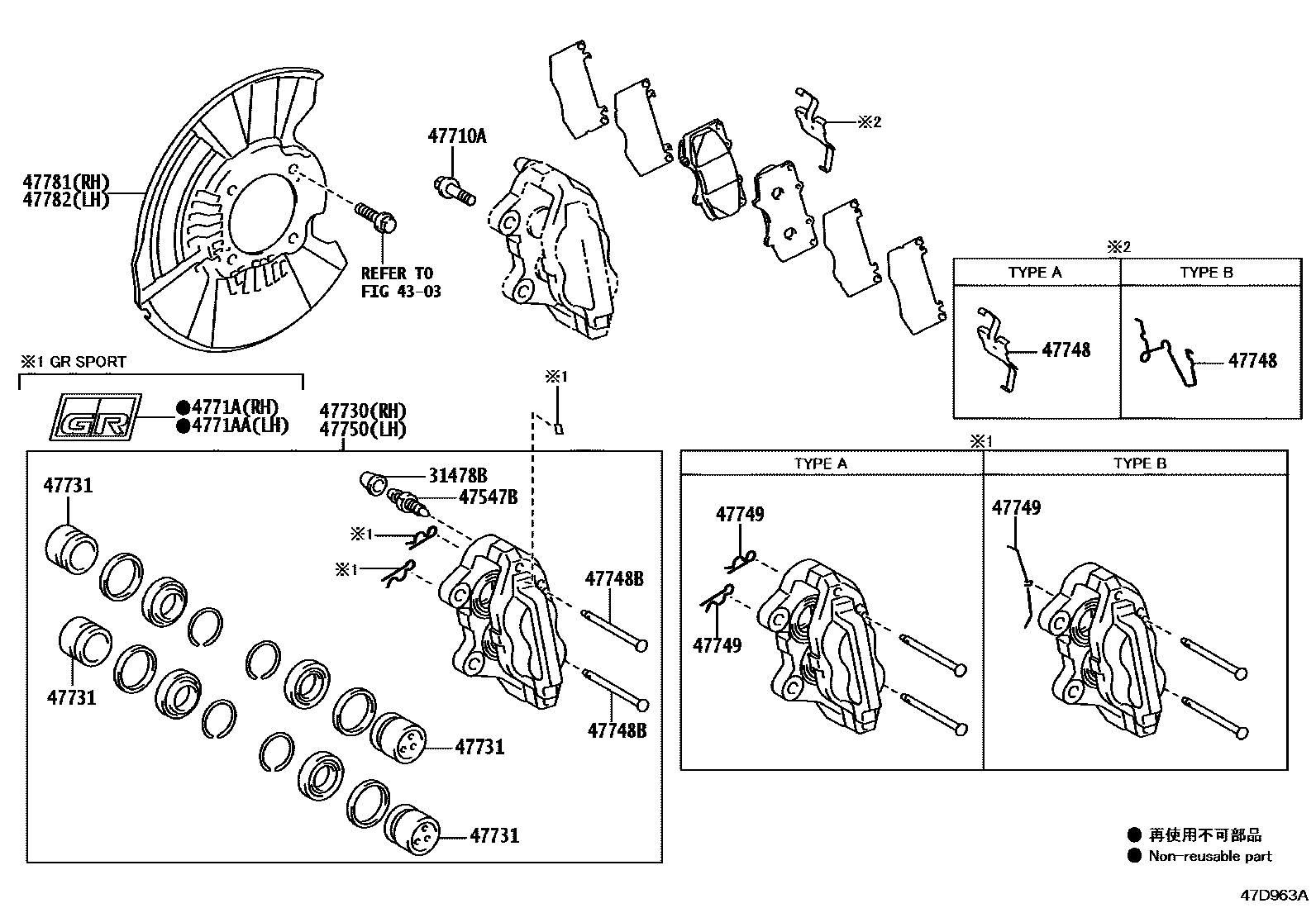

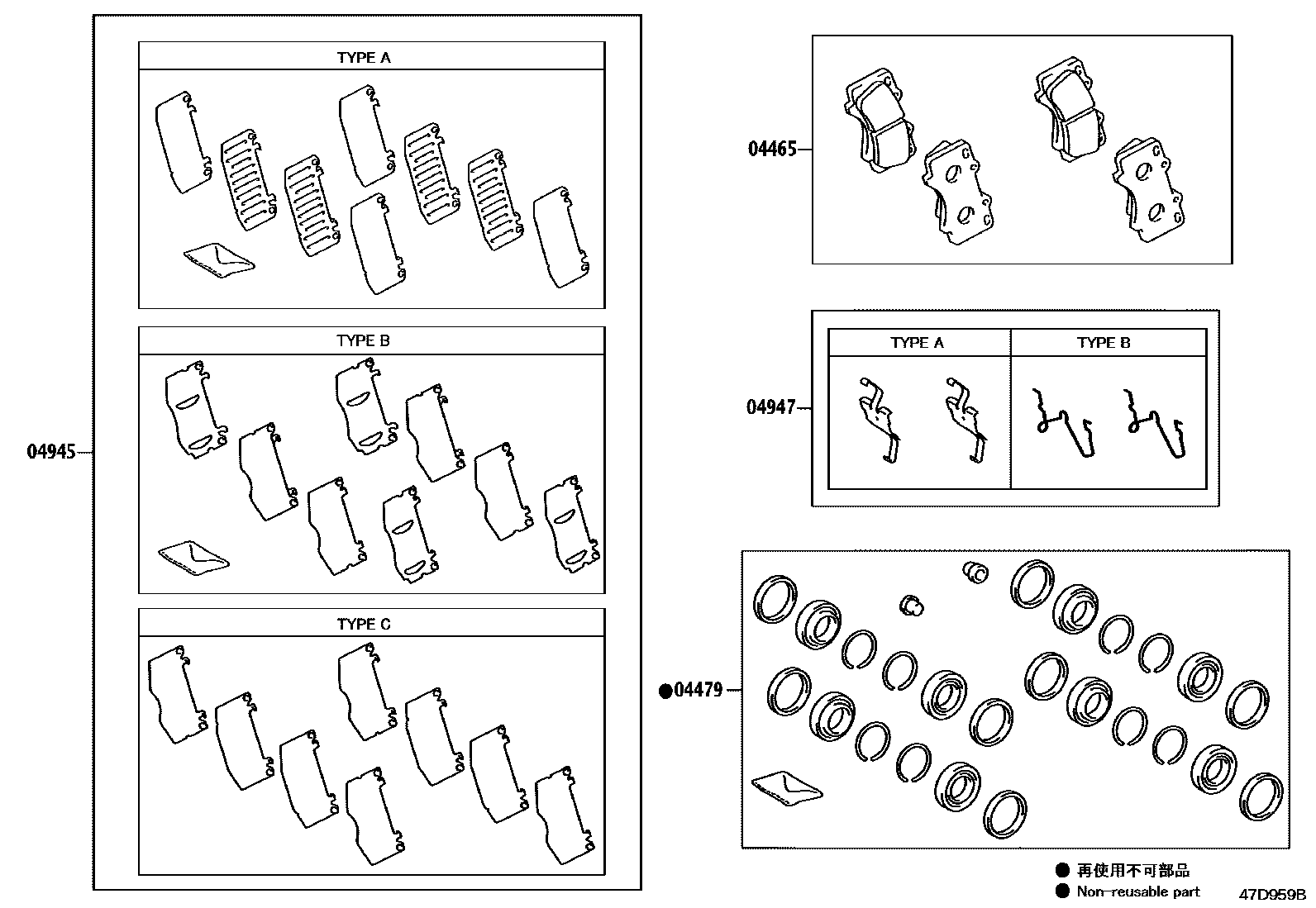

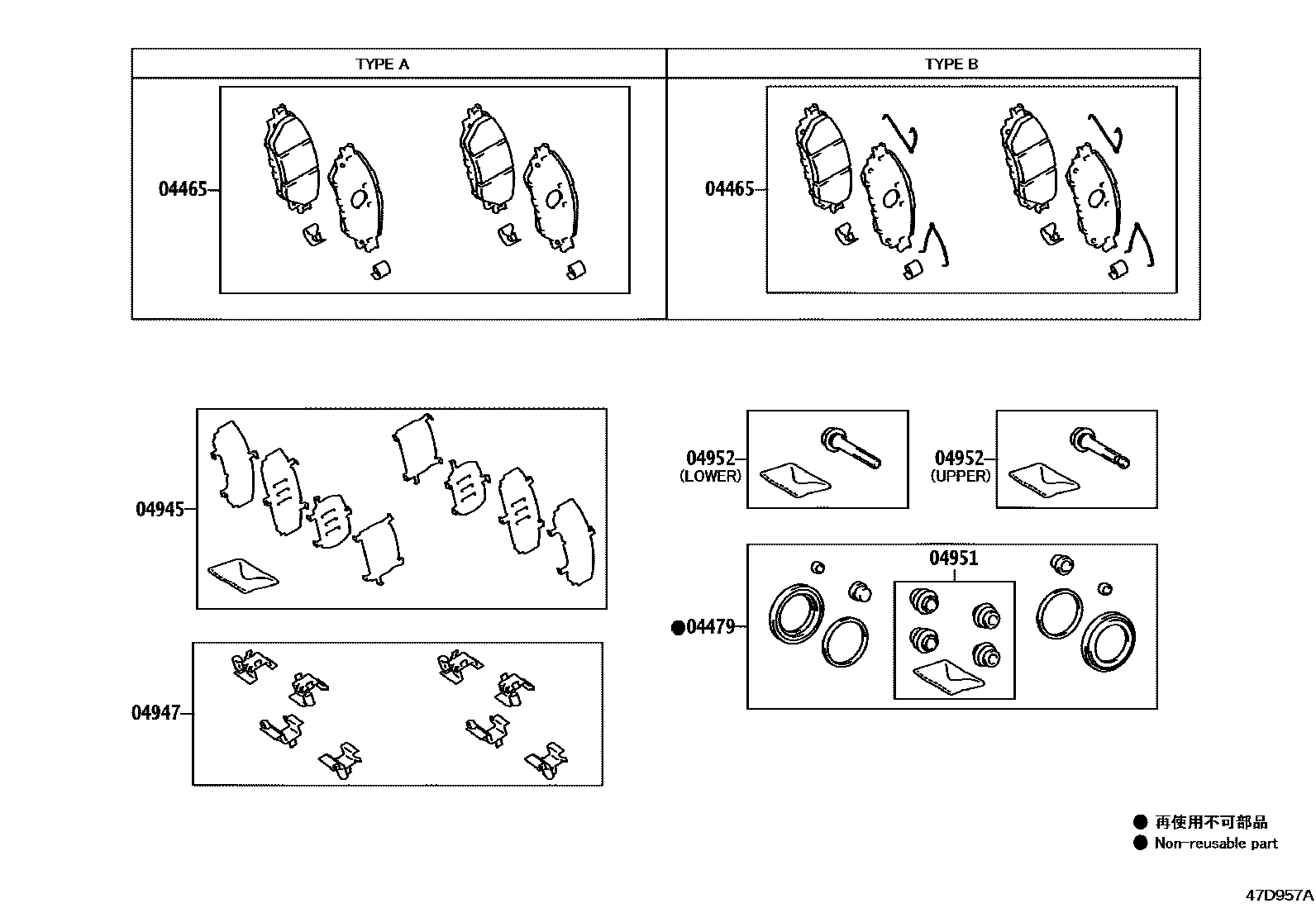

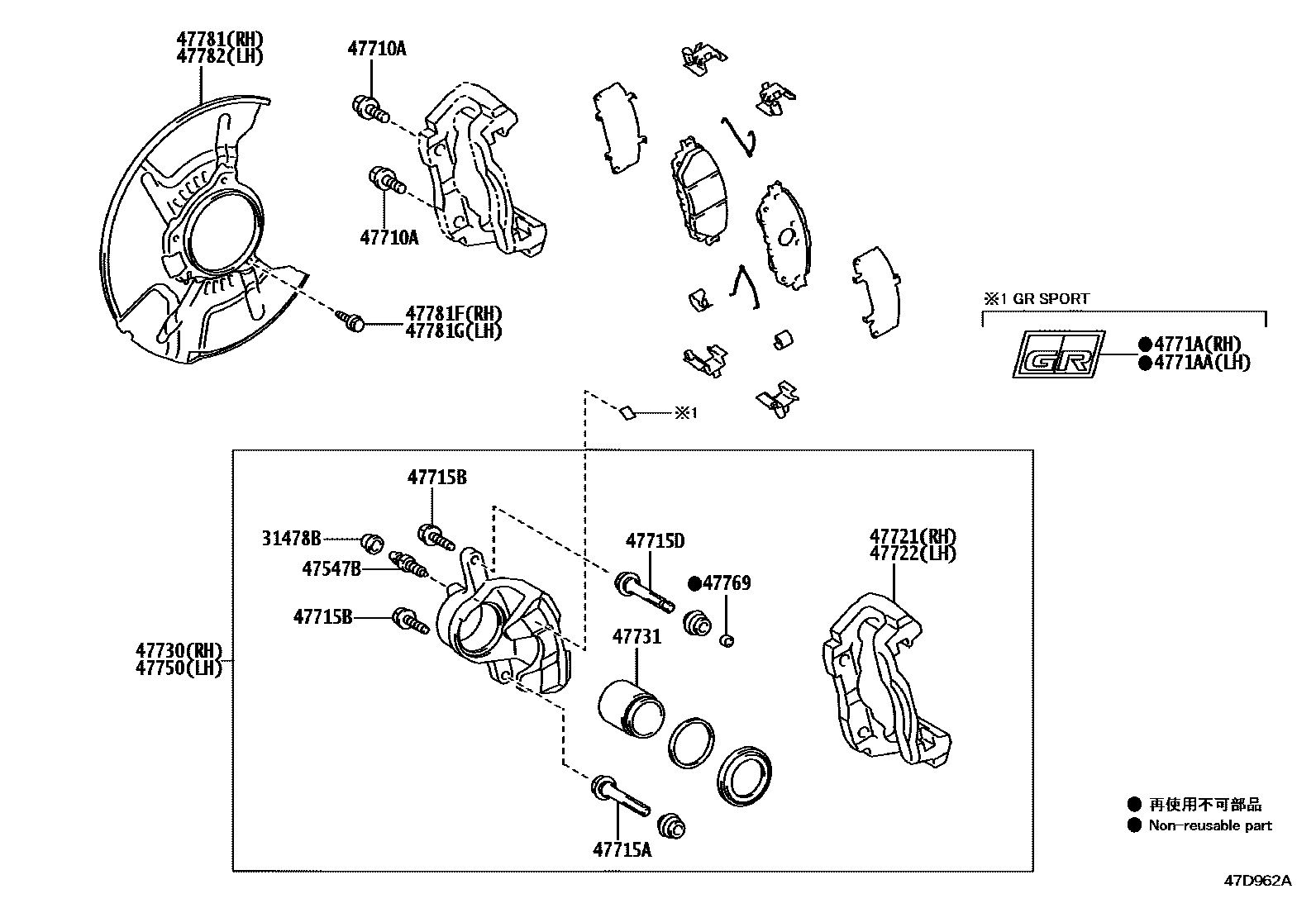

Toyota HILUX EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-0K340 · 04465-0K391 · 04465-0K401 · 04465-0K420 · 04465-0K580 · 04465-0K590 · 04465-0K610 |
| 04479 | Front disc brake cylinder assembly | 04478-0K170 · 04478-0K210 · 04478-0K220 · 04478-0K221 · 04478-0K250 |
| 04945 | Front silencer gasket assembly | 04945-0K280 · 04945-0K310 · 04945-0K321 · 04945-0K341 · 04945-0K351 · 04945-0K370 |
| 04947 | Front disc brake mounting kit | 04947-0K090 · 04947-0K100 · 04947-0K110 · 04947-0K120 · 04947-71010 |
| 04951 | Front disc brake bushing assembly | 04951-0K010 |
| 04952 | Front disc brake cylinder sliding pin assembly | 04952-0K020 · 04952-0K030 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-0D040 · 90016-AJ102 |
| 47547B | Bleed plug (for front disc brake) | 47547-0D030 · 47547-20010 · 47547-20030 · 47547-27030 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-14212 · 90105-T0322 · 90105-T0326 |
| 47715A | Front disc brake cylinder sliding pin | 47714-0K220 |
| 47715B | Slide bolt (for front disc brake cylinder) | 90016-AA603 |
| 47715D | No. 2 front disc brake cylinder sliding pin | 47715-0K220 |
| 4771A | GARNITURE, MARQUE ETRIER FREIN, MD | 4771A-0K010 · 4771A-0K030 |
| 4771AA | GARNITURE, MARQUE ETRIER FREIN, MG | 4771A-0K020 · 4771A-0K040 |
| 47721 | Right front disc brake cylinder retainer | 47721-0K220 · 47721-0K230 · 47721-0K360 |
| 47722 | Left front disc brake cylinder retainer | 47722-0K220 · 47722-0K230 · 47722-0K360 |
| 47730 | Right front disc brake cylinder assembly | 47730-0K220 · 47730-0K230 · 47730-0K260 · 47730-0K270 · 47730-0K300 · 47730-0K320 · 47730-0K330 · 47730-0K350 · 47730-0K360 · 47730-0K430 · 47730-0K440 · 47730-0K450 |
| 47731 | Front disc brake piston | 47731-0K060 · 47731-0K130 · 47731-0K220 · 47731-0K300 |
| 47748 | Anti-vibration spring No. 1 (for front disc brake) | 47748-0K300 · 47748-0K330 · 47748-71040 |
| 47748B | Pin with hole (for front disc brake vibration isolator) | 90016-AE601 · 90016-AE602 · 90069-35001 |
| 47749 | pin fixing clip | 47743-0K230 · 47743-0K260 · 47743-0K300 · 90069-49007 |
| 47750 | Left disc brake cylinder assembly | 47750-0K220 · 47750-0K230 · 47750-0K260 · 47750-0K270 · 47750-0K300 · 47750-0K320 · 47750-0K330 · 47750-0K350 · 47750-0K360 · 47750-0K430 · 47750-0K440 · 47750-0K450 |
| 47769 | No. 1 brake cylinder sliding sleeve (for front disc brake) | 47769-0K220 |
| 47781 | Right front disc brake dust cover | 47781-0K110 · 47781-0K120 · 47781-0K160 · 47781-0K170 · 47781-0K183 · 47781-0K193 · 47781-0K201 |
| 47781F | Bolt (for dust boot to right knuckle arm) | 90119-T0005 |
| 47781G | Bolt (for dust boot to left knuckle arm) | 90119-T0005 |
| 47782 | Left front disc brake dust cover | 47782-0K110 · 47782-0K120 · 47782-0K160 · 47782-0K170 · 47782-0K183 · 47782-0K193 · 47782-0K201 |
