Toyota HILUX Timing Gear Cover & Rear End Plate — Figure 1106

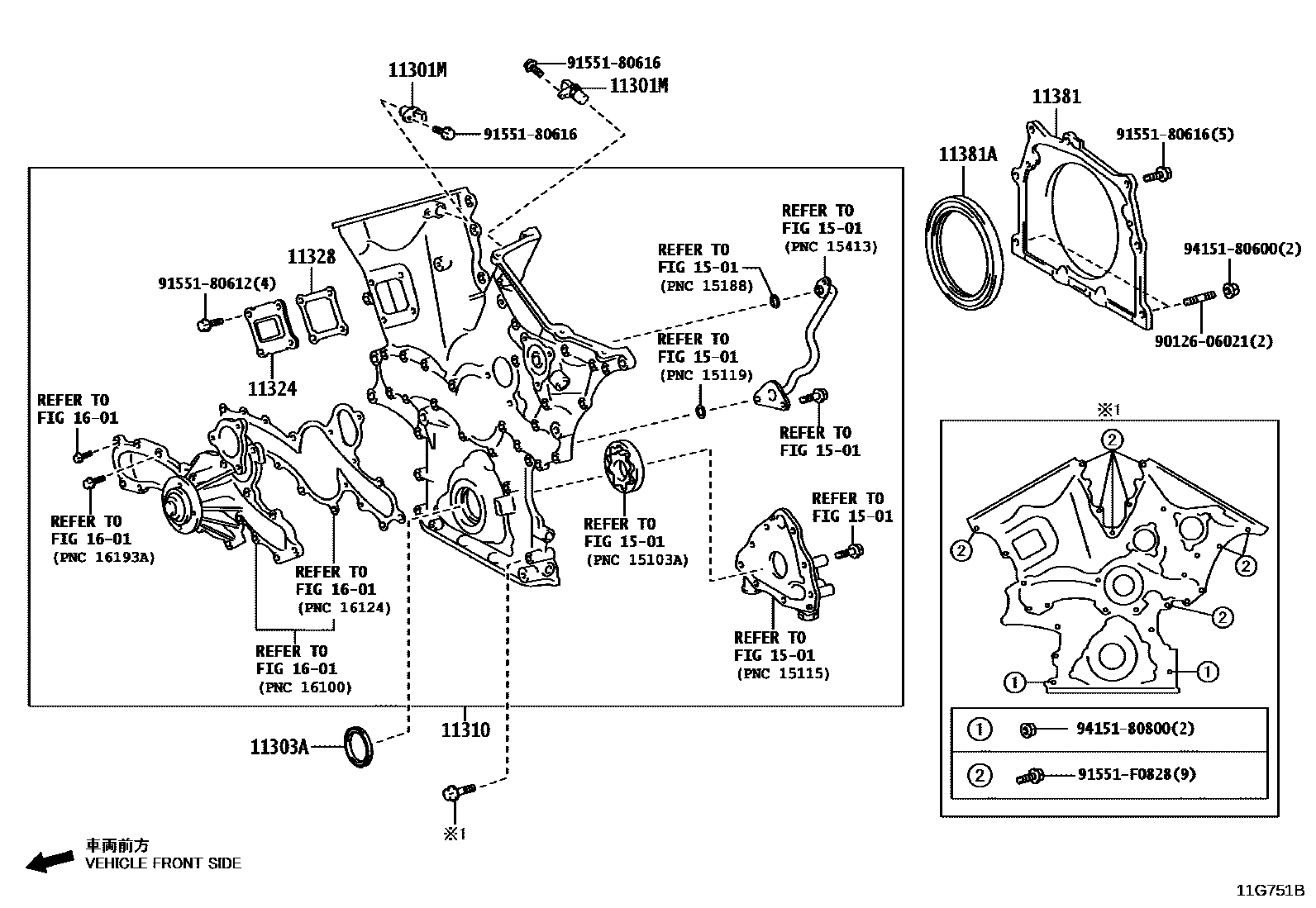

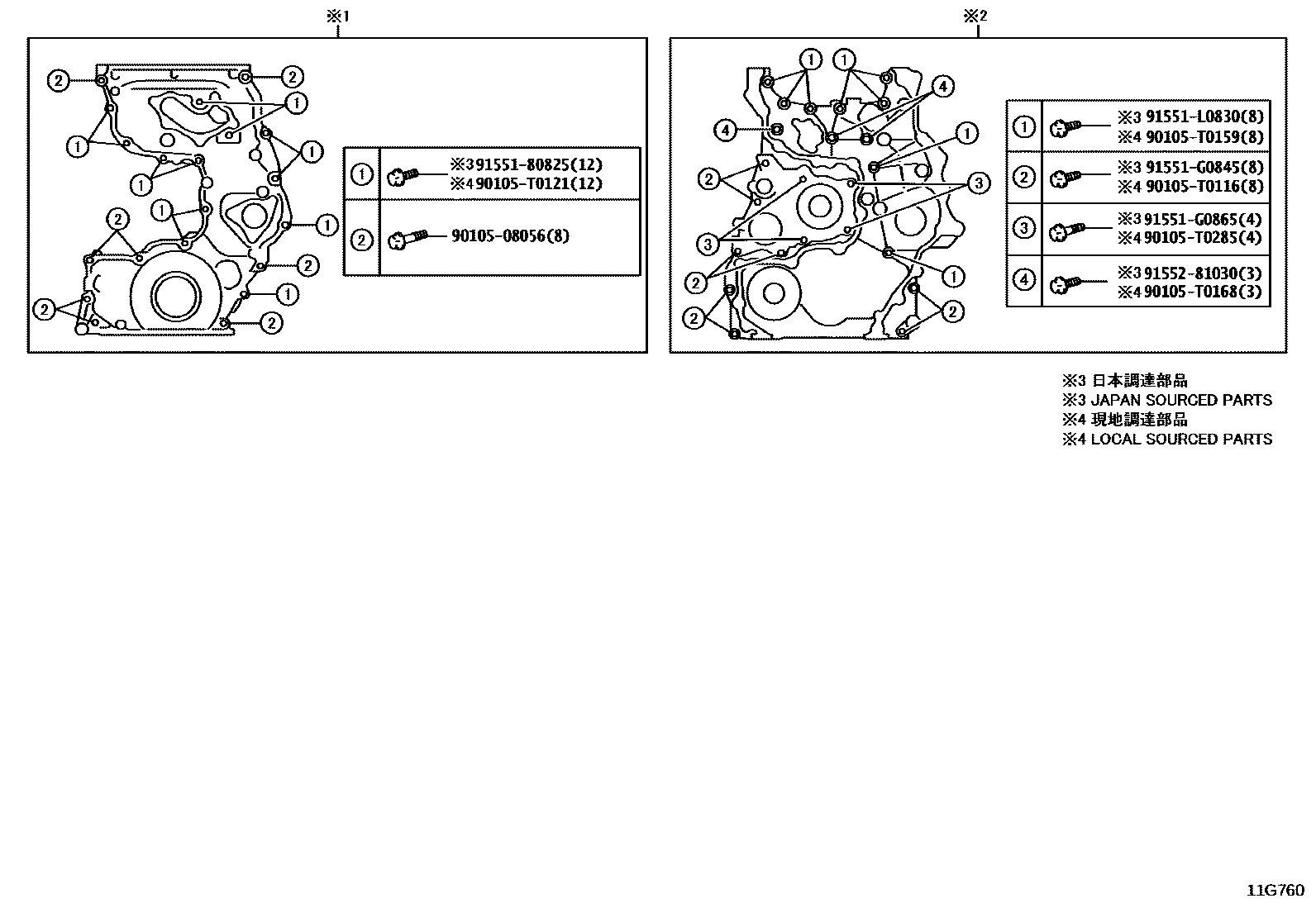

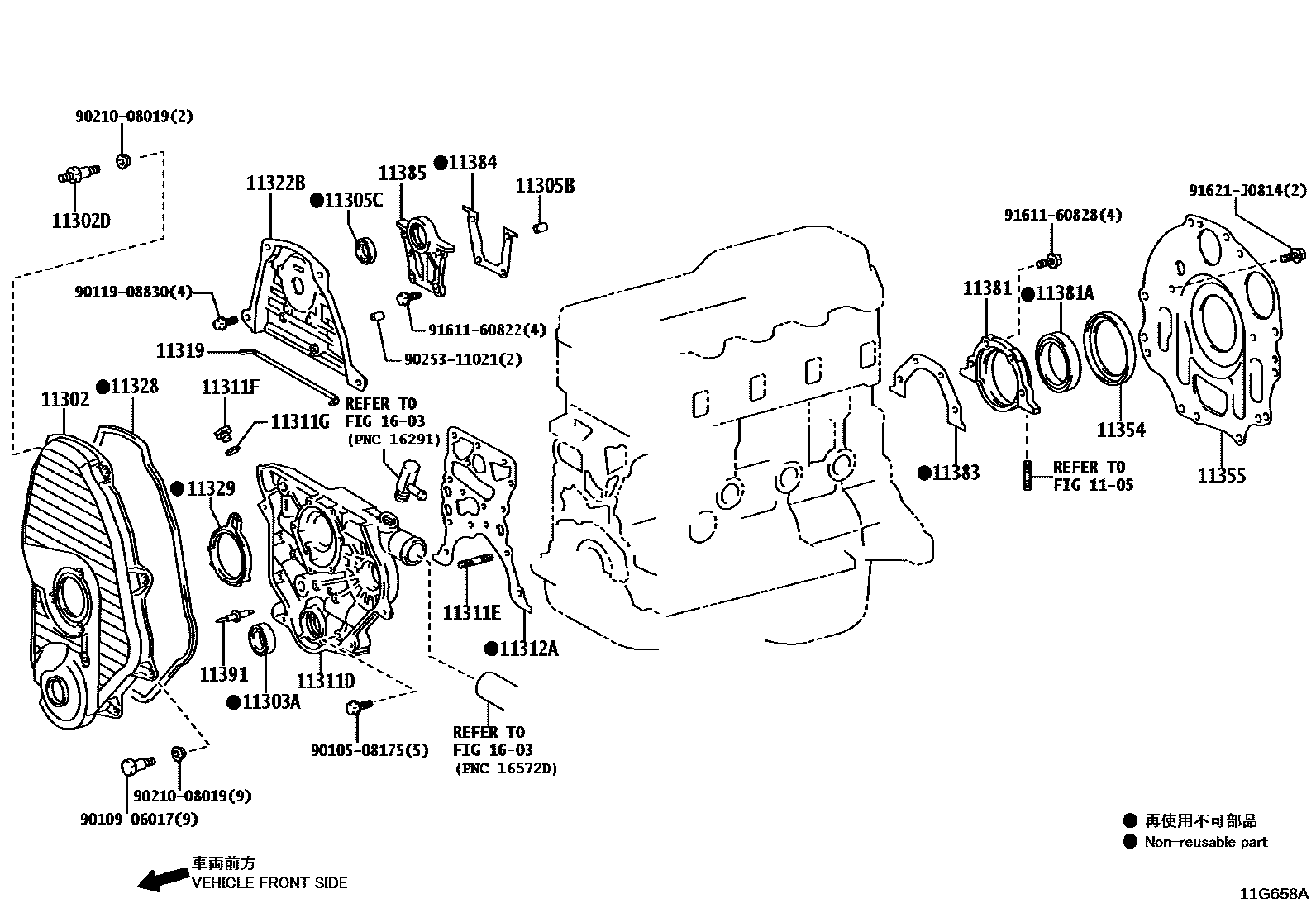

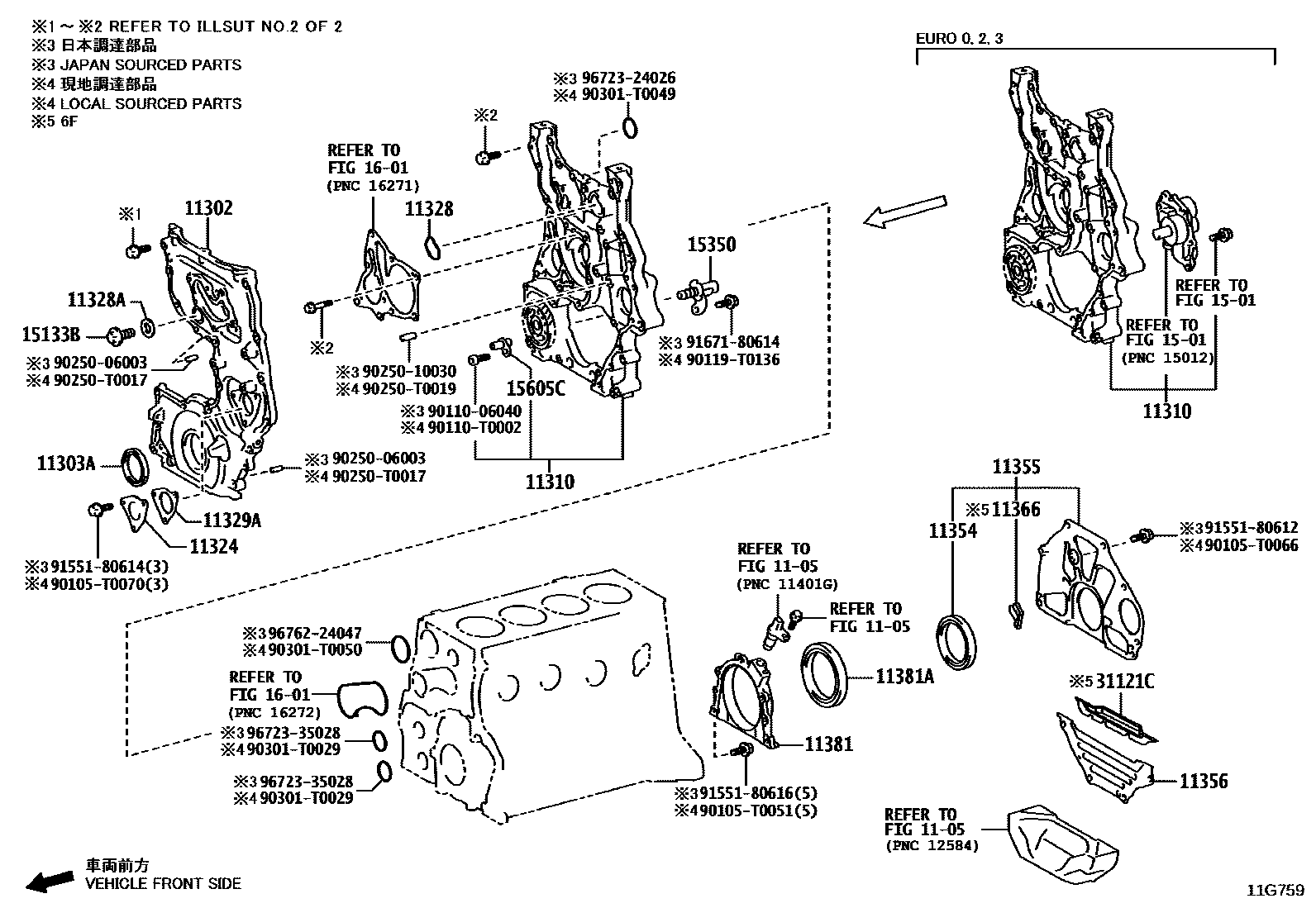

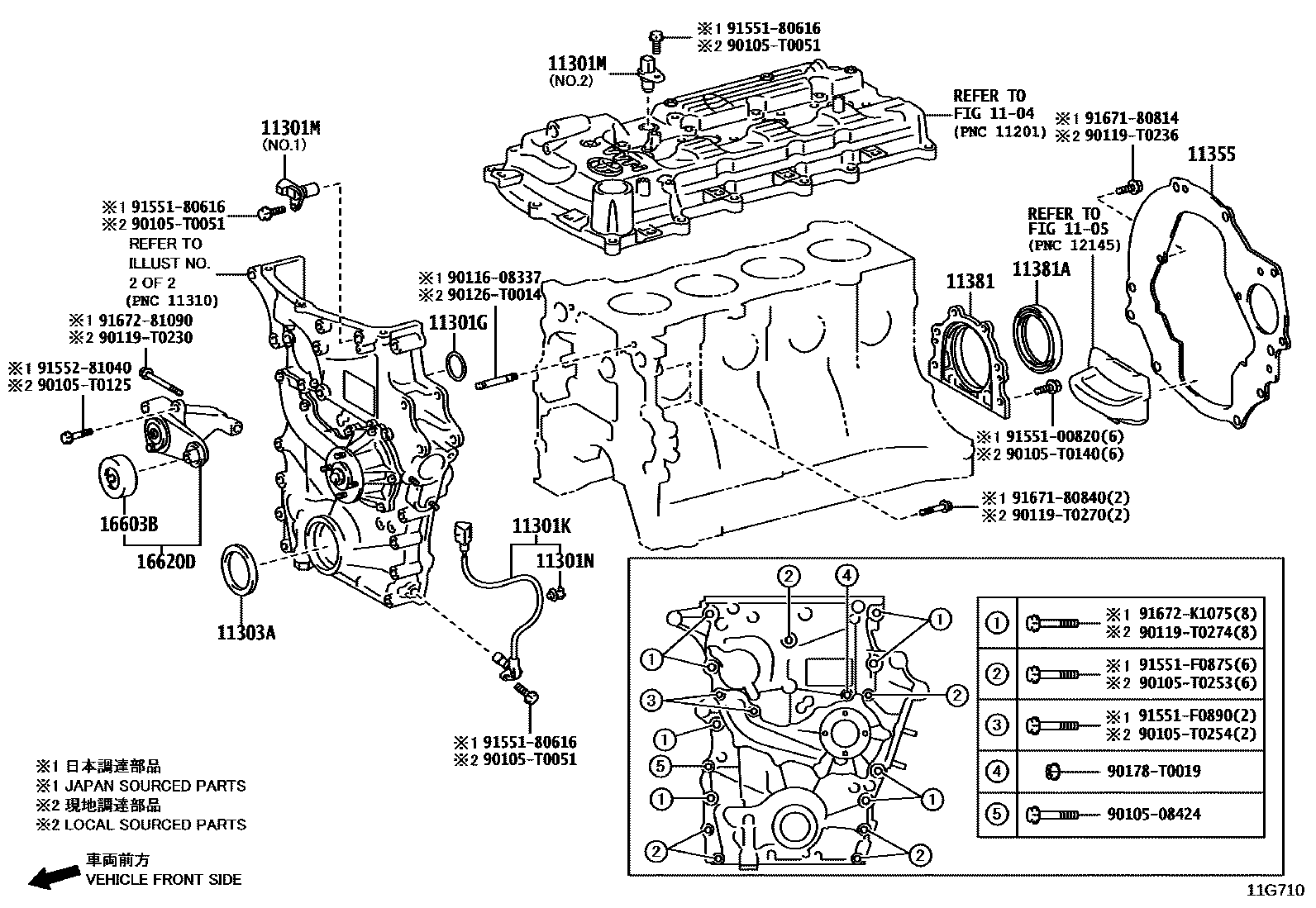

Toyota HILUX EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 6 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11301G | O-ring (for upper timing gearbox) | 90301-T0021 · 90301-T0085 |
| 11301K | crankshaft position sensor | 90919-05059 |
| 11301M | Cam position sensor | 90919-05060 · 90919-05061 · 90919-05073 · 90919-T5001 |
| 11301N | card holder | 90469-07018 |
| 11302 | TIMING CHAIN OR BELT COVER SUB-ASSY | 11321-0E010 · 11321-0E020 · 11321-11120 · 11321-54021 |
| 11302D | Studs (for timing gear cover) | 90116-06100 |
| 11303A | Front oil seal (for crankshaft) | 90311-42031 · 90311-42048 · 90311-50051 · 90311-T0054 · 90311-T0099 · 90311-T0100 |
| 11305B | Ring pin (for No. 2 oil seal seat ring) | 90253-11021 |
| 11305C | JOINT D'ETANCHEITE, HUILE(POUR ARBRE A CAMES) | 90311-32025 |
| 11310 | ENSEMBLE COUVERCLE, CHAINE DE DISTRIBUTION | 11310-0C030 · 11310-0C040 · 11310-0E010 · 11310-0E040 · 11310-0E050 · 11310-11041 · 11310-11050 · 11310-31014 |
| 11311D | LOGEMENT, COURROIE DE DISTRIBUTION | 11311-54052 |
| 11311E | BOULON, GOUJON(POUR LOGEMENT COURROIE DE DISTRIBUTION) | 92132-60828 |
| 11311F | BOUCHON, AVEC VIS A LAME PLATE(PR LOGEMENT COURROIE DISTRIB) | 90341-18004 |
| 11311G | JOINT, TORIQUE(POUR LOGEMENT DE COURROIE DE DISTRIBUTION) | 96711-19015 |
| 11312A | JOINT, LOGEMENT DE COURROIE DE DISTRIBUTION | 11312-54040 |
| 11319 | No. 3 timing belt cover gasket | 11319-54010 |
| 11322B | No. 2 timing belt cover | 11322-54033 |
| 11324 | Timing chain cover | 11324-0C010 · 11324-0E010 · 11324-0E020 · 11324-11010 · 11324-31020 |
| 11328 | GASKET, TIMING GEAR OR CHAIN COVER | 11328-05010 · 11328-0C010 · 11328-0E010 · 11328-0E020 · 11328-11070 · 11328-31030 · 11328-54021 |
| 11328A | No. 1 timing belt cover gasket | 11328-11080 |
| 11329 | Timing gear rear cover gasket | 11329-05010 · 11329-54021 |
| 11329A | No. 2 timing belt or chain cover gasket | 11329-0E010 · 11329-0E020 · 11329-11020 |
| 11354 | Flywheel housing dust seal | 11354-0L020 · 11354-30010 · 11354-54010 |
| 11355 | rear end plate | 11355-0C010 · 11355-0C020 · 11355-0E010 · 11355-0E020 · 11355-0E040 · 11355-0E050 · 11355-11040 · 11355-11050 · 11355-54120 · 11355-75021 |
| 11356 | No. 2 rear end plate | 11356-0L012 · 11356-0L022 · 11356-0L032 · 11356-0L042 |
| 11366 | Flywheel housing bottom cover dust seal | 11366-0E010 |
| 11381 | RETAINER, ENGINE REAR OIL SEAL | 11381-0C012 · 11381-0C022 · 11381-0E010 · 11381-0E030 · 11381-0E040 · 11381-11010 · 11381-31010 · 11381-54030 |
| 11381A | SEAL, ENGINE REAR OIL | 90311-85011 · 90311-95015 · 90311-99010 · 90311-T0046 · 90311-T0058 · 90311-T0098 |
| 11383 | Engine rear oil seal seat gasket | 11383-54030 |
| 11384 | No. 2 oil seal seat ring gasket | 11384-54030 |
| 11385 | Camshaft oil seal race | 11382-05010 · 11382-54020 |
| 11391 | Timing pointer | 11391-54020 |
| 15133B | PLUG, OIL PUMP RELIEF VALVE | 15133-38071 |
| 15350 | Oil pressure switch valve assembly | 15350-11010 |
| 15605C | Oil check valve sub-assembly | 15605-30040 |
| 16603B | Idler gear sub-assembly | 16603-0C032 |
| 16620D | Poly V-belt tensioner assembly | 16620-0C031 |
| 31121C | Clutch housing adapter plate cover | 31121-26030 · 31121-71080 |
