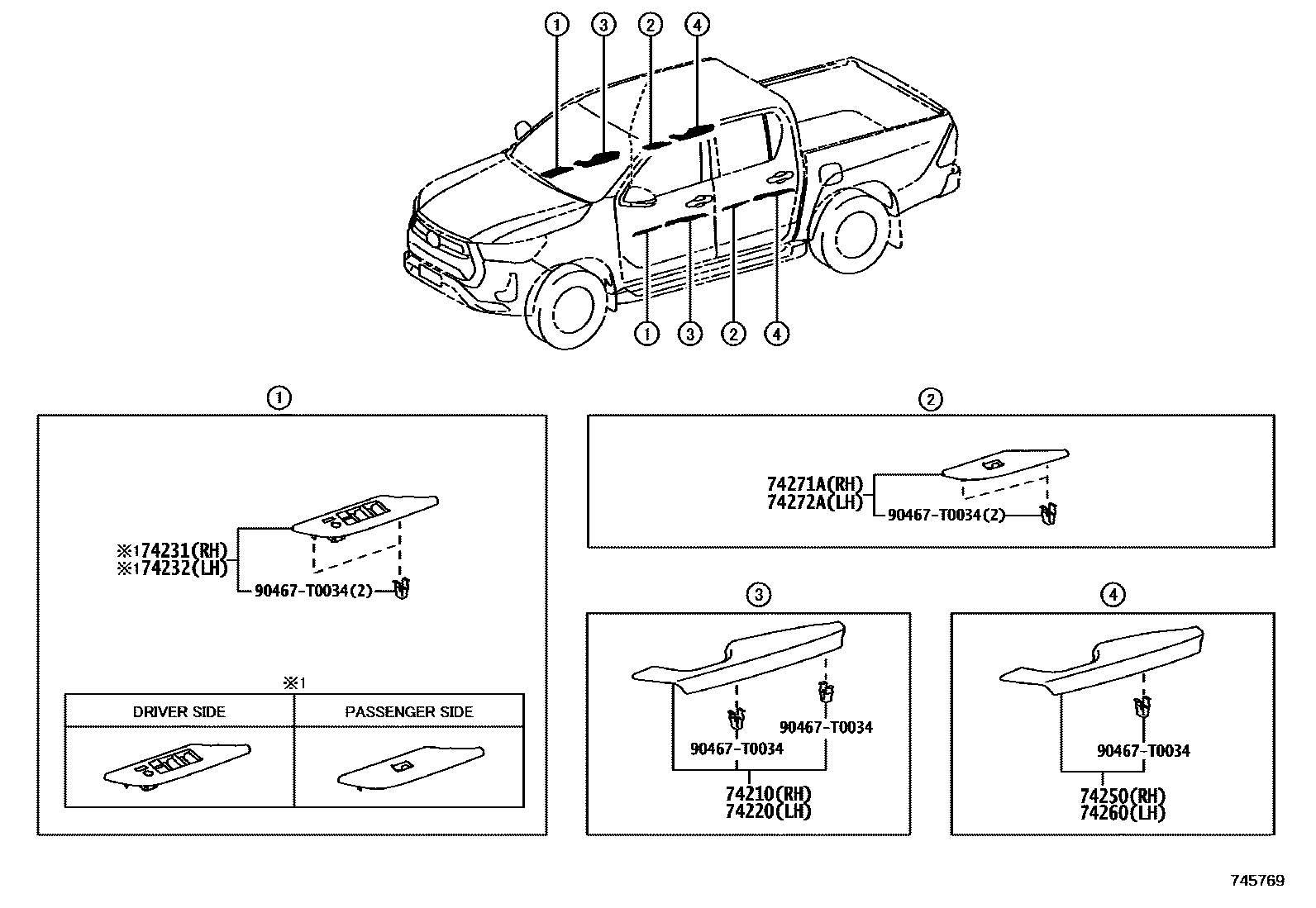

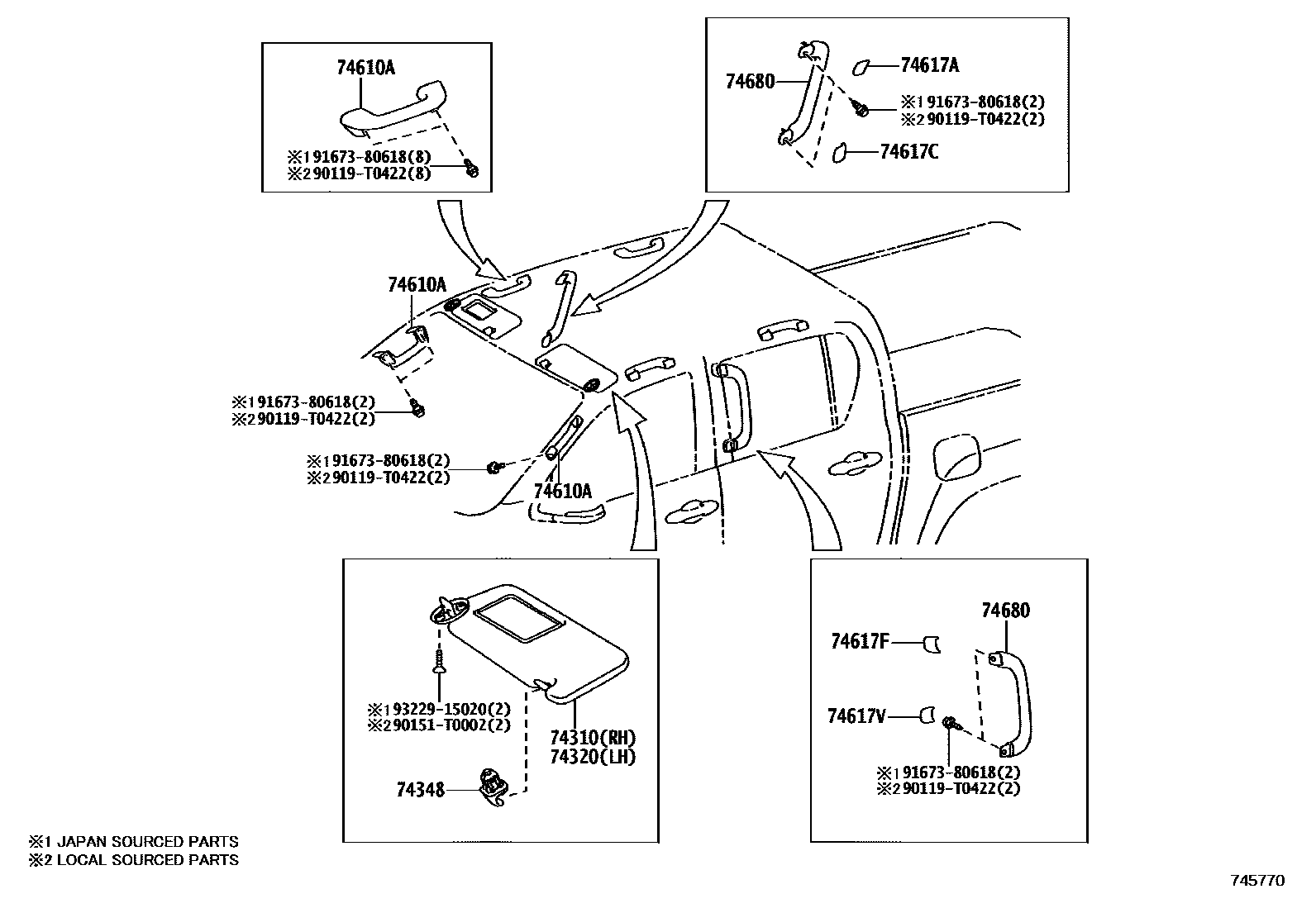

Toyota HILUX 扶手和遮阳板 — Figure 7451
Toyota HILUX EPC diagram 7451, 扶手和遮阳板, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74210 | Right front armrest assembly | 74210-0K260 |
| 74220 | Left front armrest assembly | 74220-0K260 |
| 74231 | Right front armrest upper panel | 74231-0K600 · 74231-0K611 · 74231-0K640 · 74231-0K651 · 74231-0K660 · 74231-0K671 · 74231-0K710 · 74231-0K720 · 74231-0K790 · 74231-0K800 · 74231-0K810 · 74231-0KA80 · 74231-0KA90 · 74231-0KB70 · 74231-0KB80 · 74231-0KC00 |
| 74232 | Left front armrest upper panel | 74232-0K600 · 74232-0K611 · 74232-0K640 · 74232-0K651 · 74232-0K660 · 74232-0K671 · 74232-0K700 · 74232-0K730 · 74232-0K740 · 74232-0K790 · 74232-0K800 · 74232-0K810 · 74232-0K820 · 74232-0K840 · 74232-0KB70 · 74232-0KB90 |
| 74250 | Right rear armrest assembly | 74250-0K170 |
| 74260 | Left rear armrest assembly | 74260-0K170 |
| 74271A | Right rear door armrest upper panel | 74271-0K310 · 74271-0K321 · 74271-0K360 · 74271-0K370 · 74271-0K390 · 74271-0K400 · 74271-0K480 · 74271-0K510 |
| 74272A | Left rear door armrest upper panel | 74272-0K310 · 74272-0K321 · 74272-0K360 · 74272-0K370 · 74272-0K390 · 74272-0K400 · 74272-0K480 · 74272-0K500 |
| 74310 | Right sun visor assembly | 74310-0KF10 |
