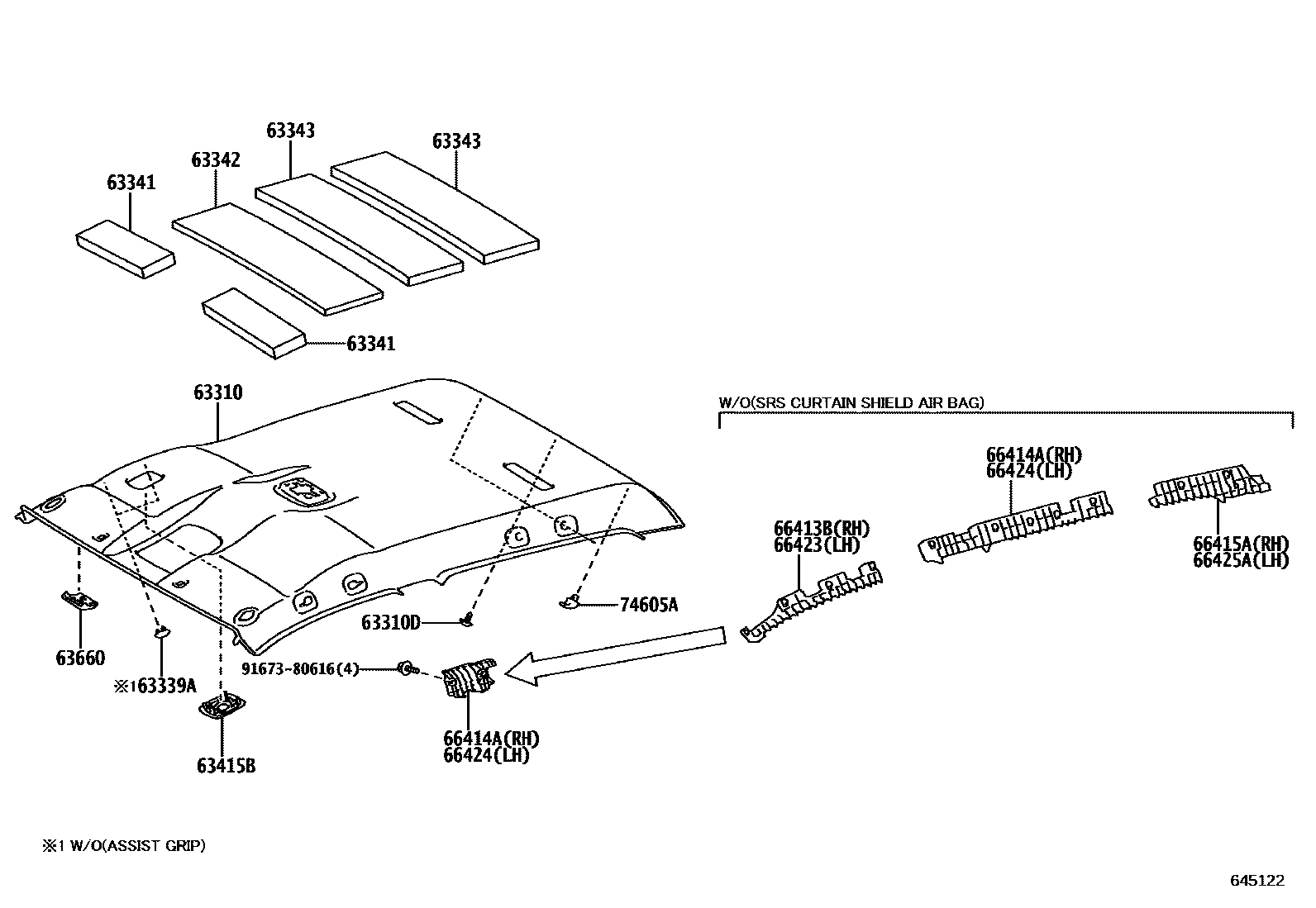

Toyota HILUX 车顶内衬和消声垫 — Figure 6452
Toyota HILUX EPC diagram 6452, 车顶内衬和消声垫, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63342-0K230 · 63342-0K360 · 63342-0K400 · 63342-0K420 · 63342-0K860 |
| 63342 | No. 2 roof muffler pad | 63342-0K240 · 63342-0K430 · 63342-0K870 |
| 63343 | No. 3 roof muffler pad | 63342-0K460 · 63342-0K490 · 63342-0K500 · 63342-0K880 |
| 66413B | Right front longitudinal member spacer | 66413-0K080 · 66413-KK020 |
| 66414A | Right rear longitudinal member spacer | 66414-0K100 · 66414-KK010 · 66414-KK020 |
| 66415A | No. 2 right rear longitudinal beam spacer | 66415-0K160 · 66415-KK020 |
| 66423 | Left front longitudinal member spacer | 66423-0K080 · 66423-KK020 |
| 66424 | Left rear longitudinal member spacer | 66424-0K100 · 66424-KK010 · 66424-KK020 |
| 66425A | No. 2 left rear longitudinal beam spacer | 66425-0K160 · 66425-KK020 |
