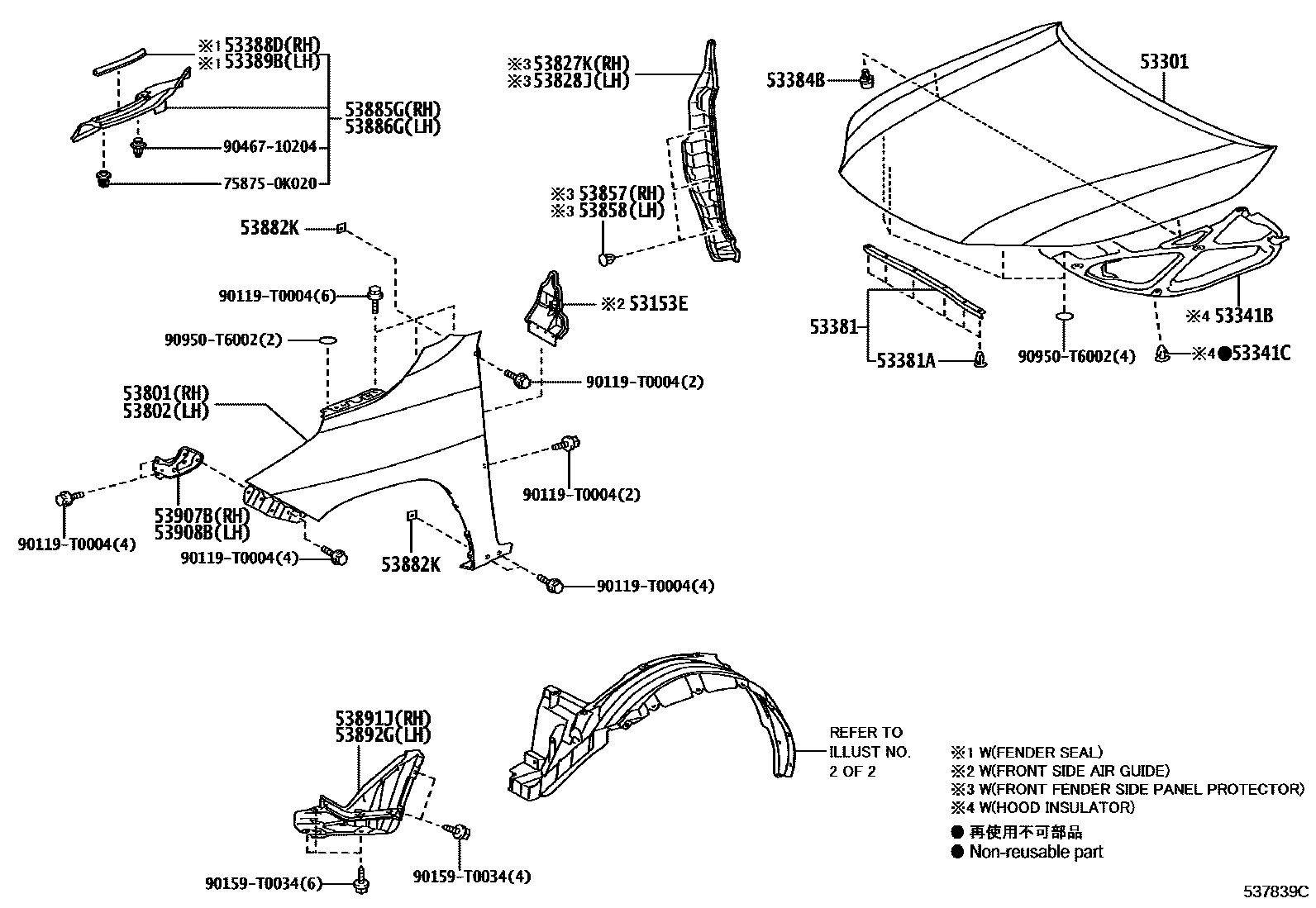

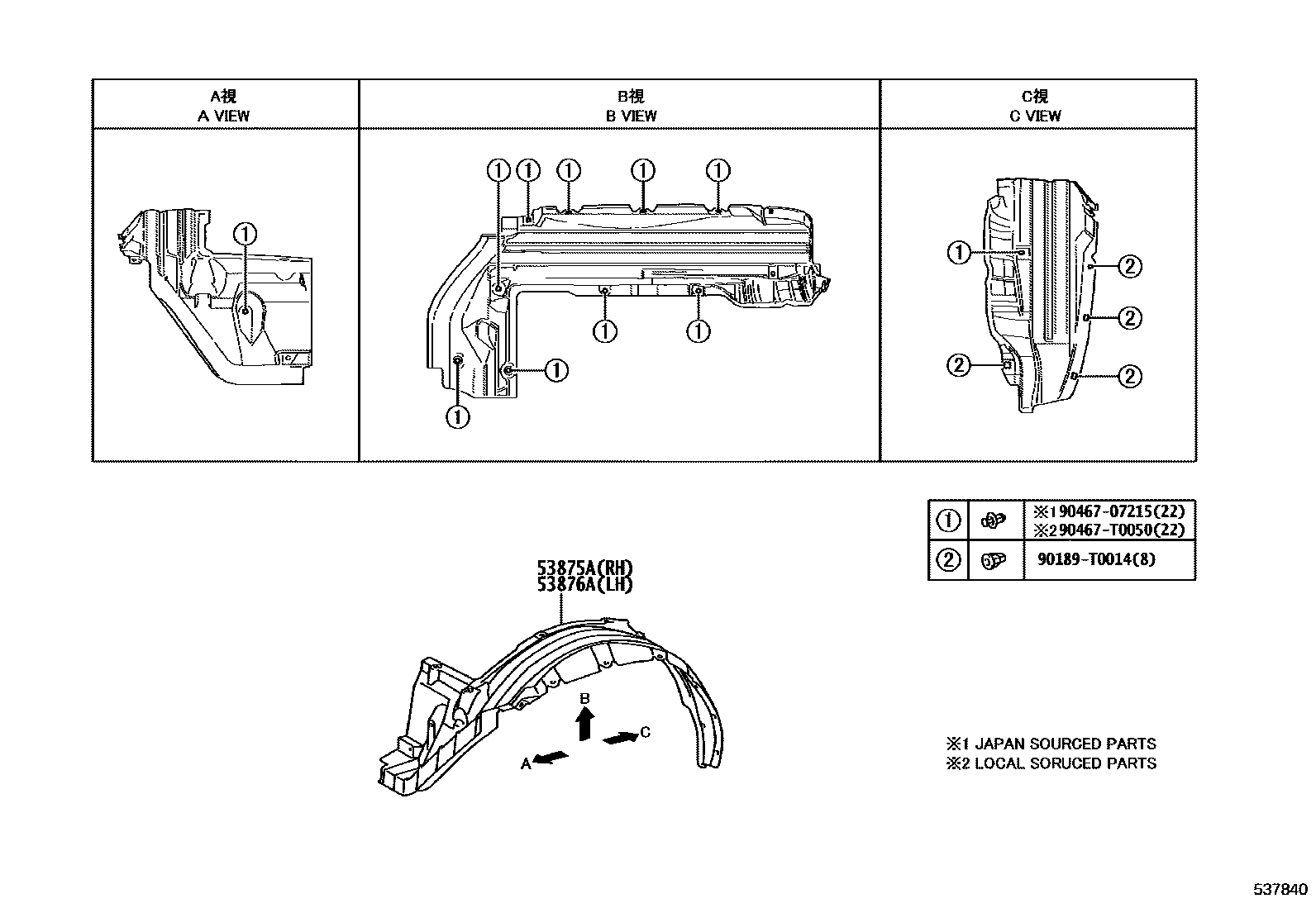

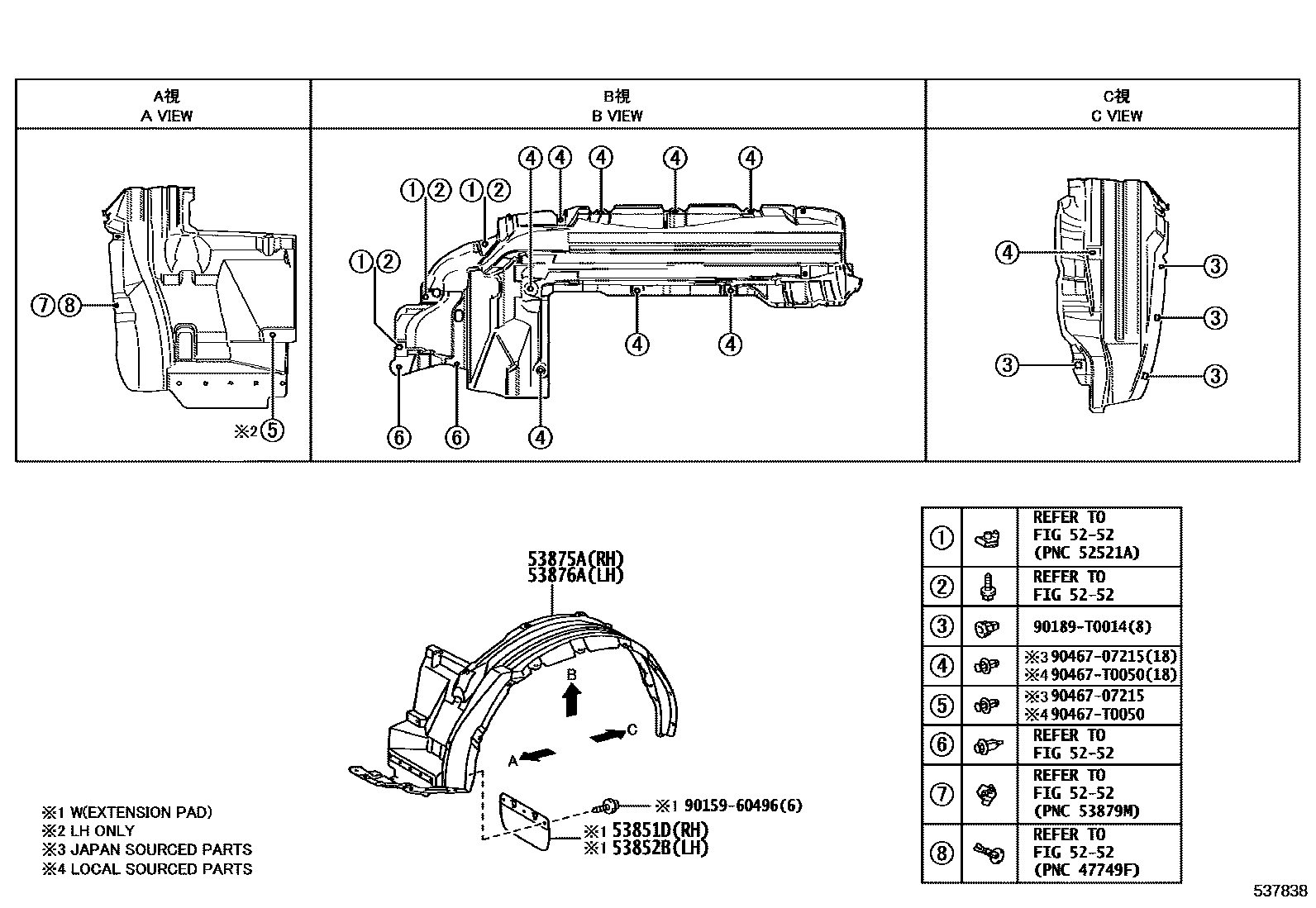

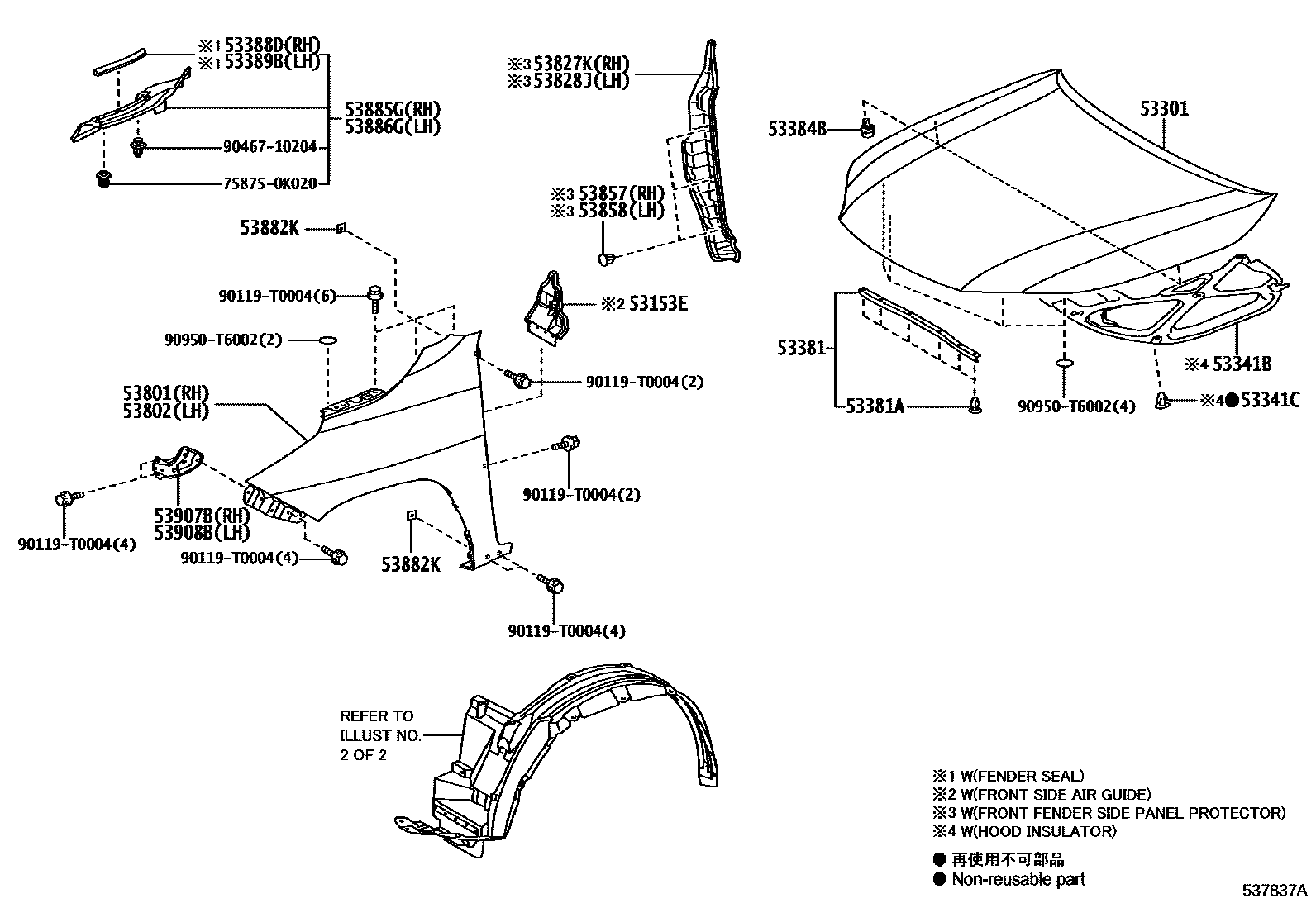

Toyota HILUX 发动机盖和前翼子板 — Figure 5353
Toyota HILUX EPC diagram 5353, 发动机盖和前翼子板, with 4 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53153E | front side deflector | 53153-0K010 · 53153-0K020 · 53153-0K090 · 53153-0K100 |
| 53301 | Engine cover sub-assembly | 53301-KK011 · 53301-KK050 |
| 53341B | engine cover gasket | 53341-0K250 · 53341-0K270 · 53341-0K290 · 53341-0K330 · 53341-0K380 · 53341-0K400 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 · 90467-T0014 |
| 53381 | Engine cover to radiator bracket seal | 53381-0K080 · 53381-0K090 · 53381-0K120 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-T0013 |
| 53384B | Engine cover center cushion | 53384-0K040 |
| 53388D | Engine cover to right front fender seal | 53388-0K010 · 53388-0K020 · 53388-0K030 |
| 53389B | Engine cover to left front fender seal | 53388-0K010 · 53388-0K020 · 53388-0K030 |
| 53801 | Right front fender sub-assembly | 53811-KK010 · 53811-KK020 · 53811-KK030 · 53811-YP010 |
| 53802 | Left front fender sub-assembly | 53812-KK010 · 53812-KK020 · 53812-KK030 · 53812-KK050 · 53812-YP010 · 53812-YP020 |
| 53827K | Right front fender side panel protector | 53827-0K010 · 53827-0K020 · 53827-0K030 · 53827-0K050 · 53827-0K090 |
| 53828J | Left front fender side panel protector | 53828-0K010 · 53828-0K020 · 53828-0K030 · 53828-0K050 · 53828-0K090 |
| 53851D | Right front fender outer panel pad | 53851-0K080 · 53851-0K090 · 53851-0K100 |
| 53852B | Left front fender exterior panel pad | 53851-0K080 · 53851-0K090 · 53851-0K100 |
| 53857 | Right front fender external panel fixing piece | 53857-06030 · 53857-0K010 · 53857-47011 |
| 53858 | Left front fender external panel fixing piece | 53857-06030 · 53857-0K010 · 53857-47011 |
| 53875A | Right front fender lining | 53805-0K140 · 53805-0K160 · 53805-0K320 · 53805-0K330 · 53805-0K340 · 53805-0K380 · 53805-YP070 · 53805-YP080 · 53875-0K190 · 53875-0K240 · 53875-0K380 · 53875-0K390 |
| 53876A | Left front fender lining | 53806-0K140 · 53806-0K160 · 53806-0K320 · 53806-0K330 · 53806-0K340 · 53806-0K380 · 53806-YP070 · 53806-YP080 · 53876-0K200 · 53876-0K240 · 53876-0K380 · 53876-0K390 |
| 53882K | front fender seal | 53882-33060 |
| 53885G | Right fender fender seal sub-assembly | 53807-0K100 · 53807-0K110 · 53807-0K120 · 53807-0K130 · 53807-0K150 · 53807-0K160 |
| 53886G | Left fender fender seal | 53808-0K100 · 53808-0K110 · 53808-0K120 · 53808-0K130 · 53808-0K150 · 53808-0K160 |
| 53891J | Right front fender splash guard front seal | 53891-0K040 |
| 53892G | Left front fender splash guard front seal | 53892-0K040 |
| 53907B | Right front end plate extension sub-assembly | 53907-KK010 · 53907-KK020 |
| 53908B | Left front end plate extension sub-assembly | 53908-KK010 · 53908-KK020 |
