Toyota HILUX 喷油泵总成 — Figure 2202

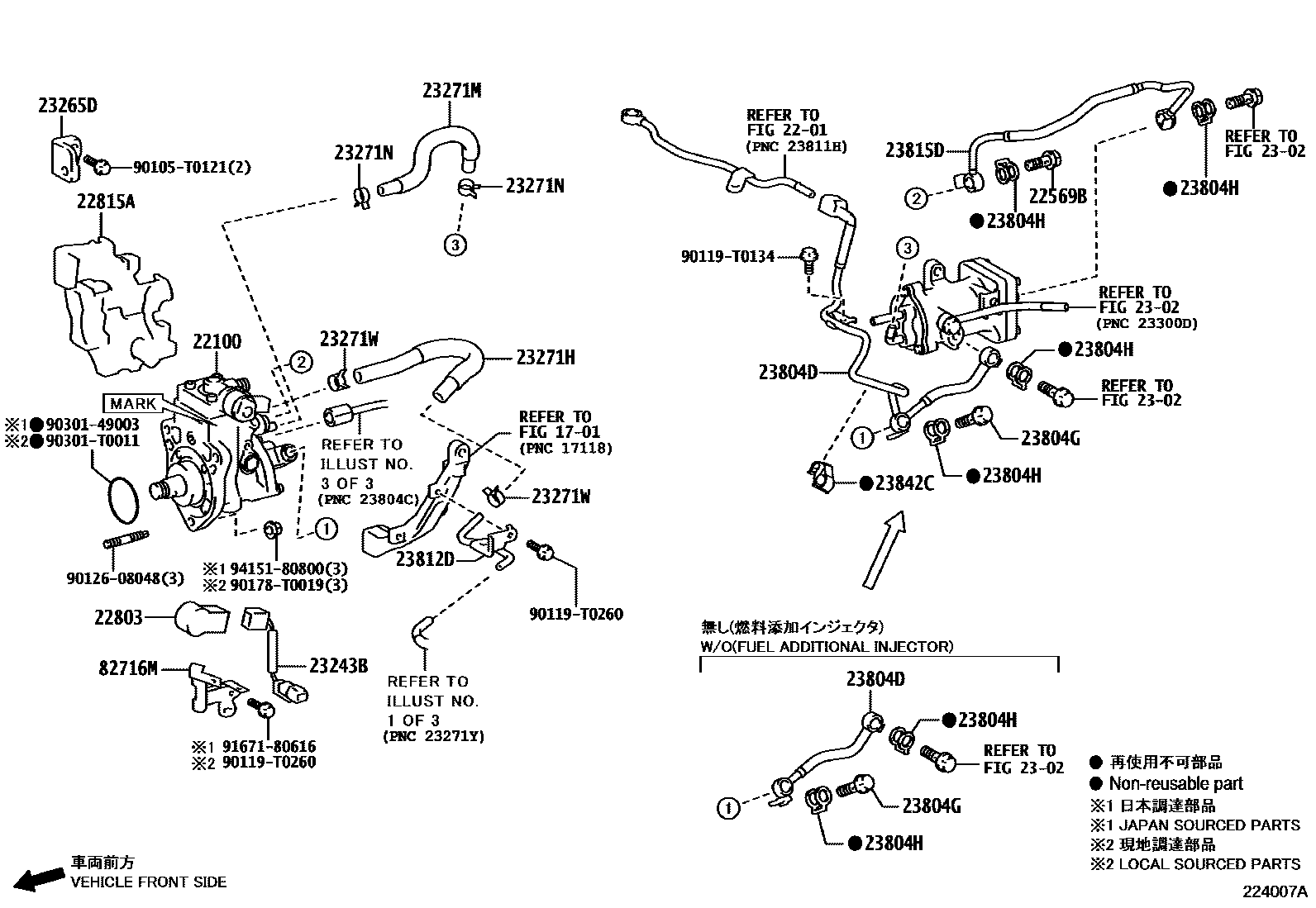

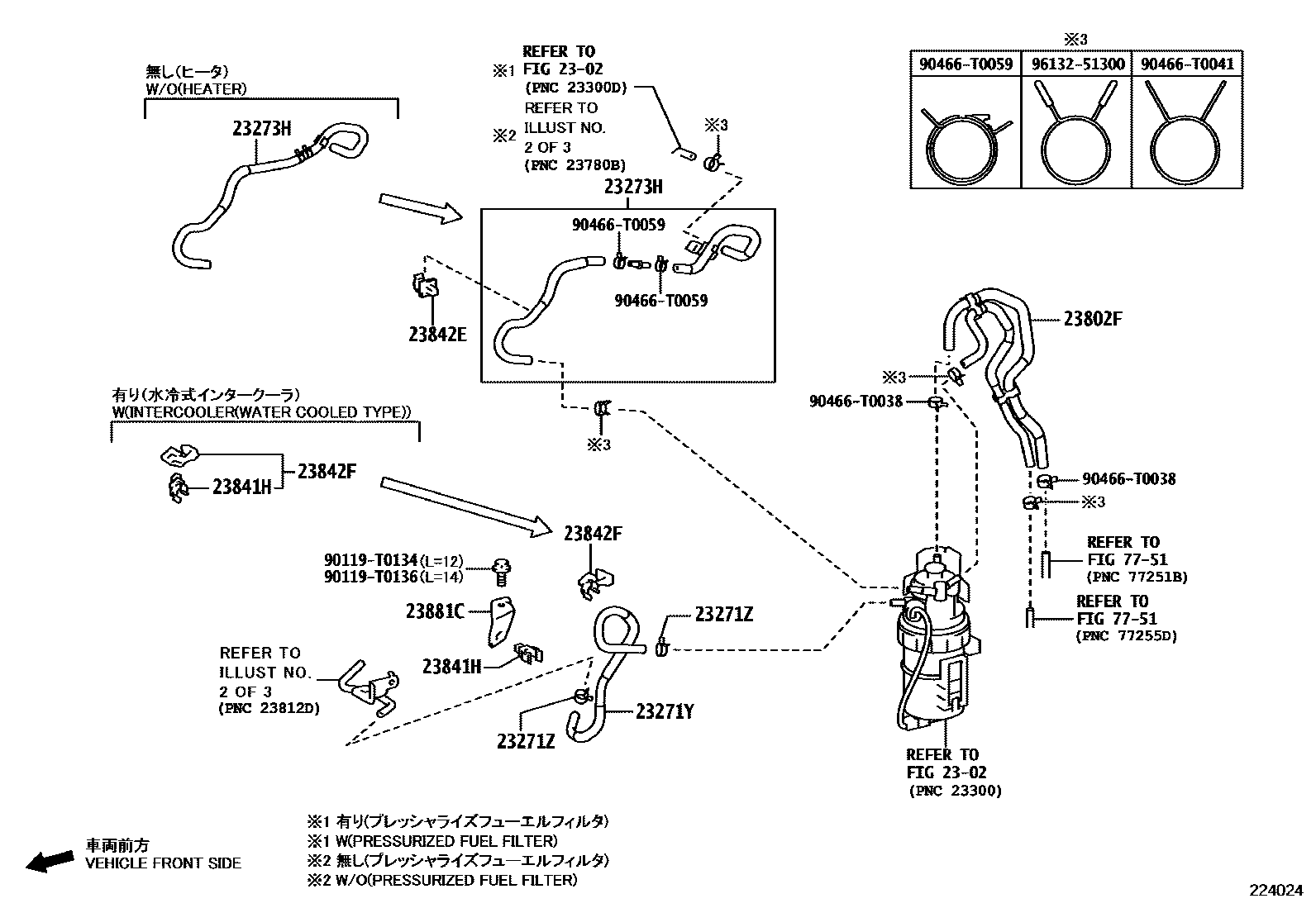

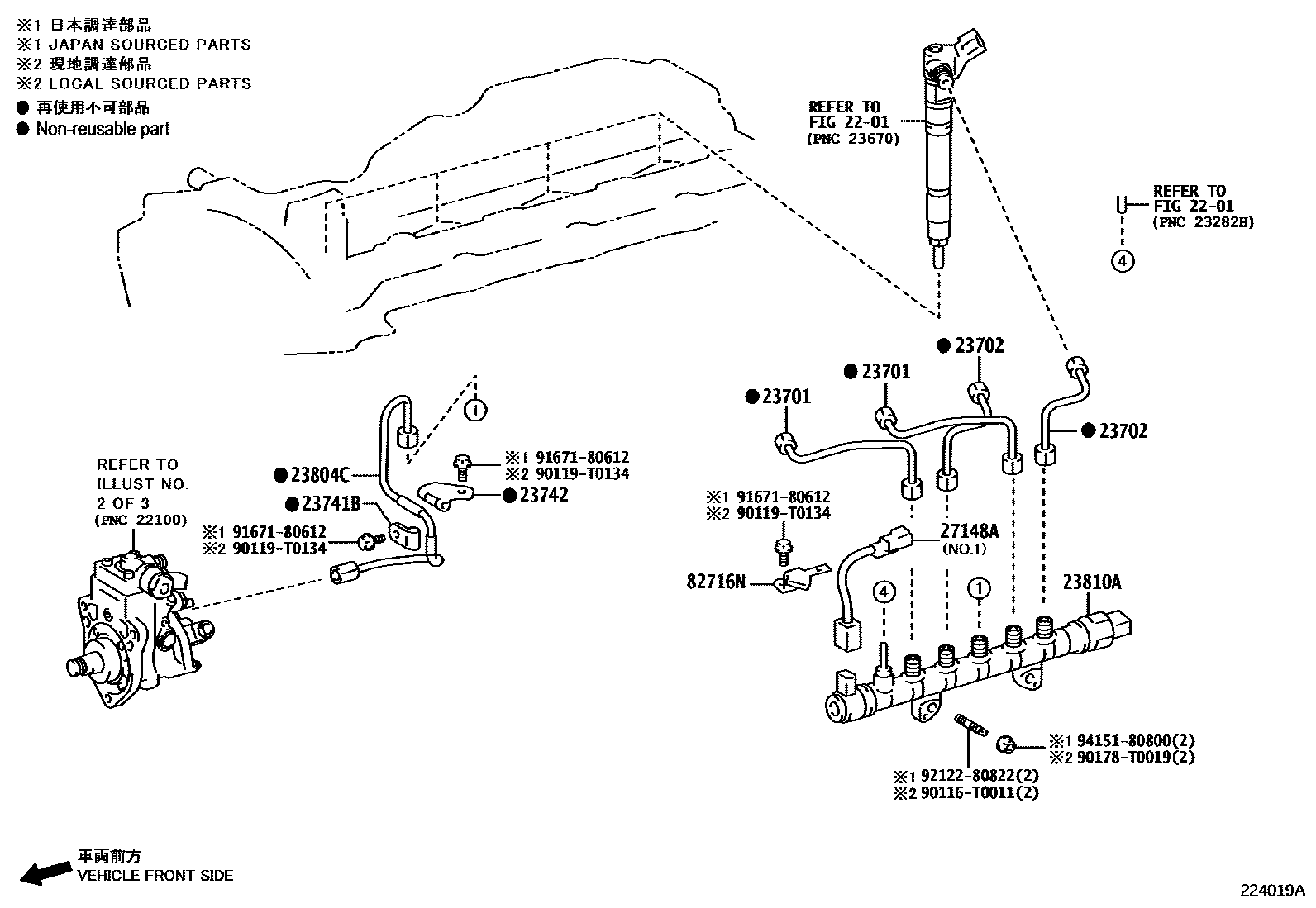

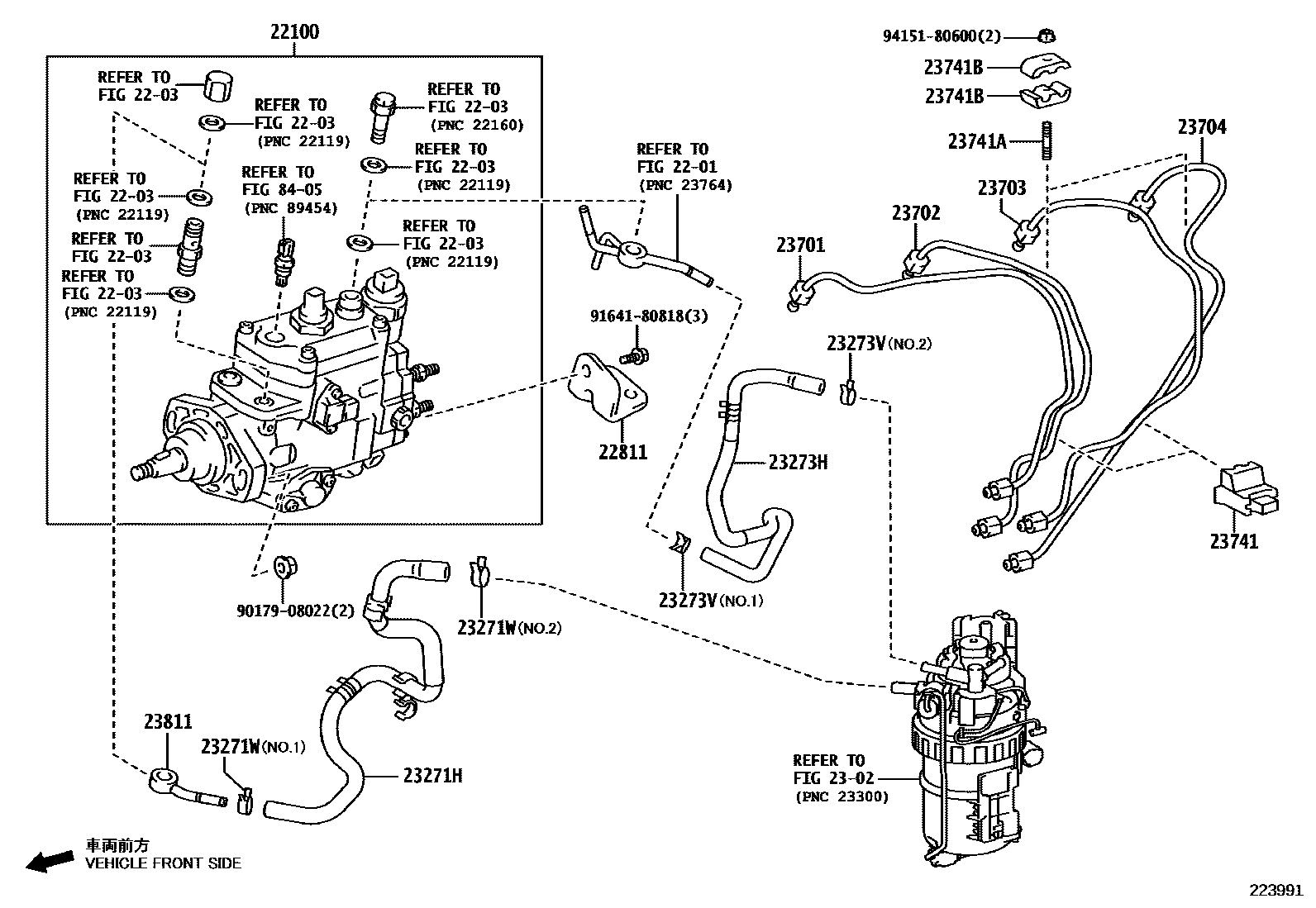

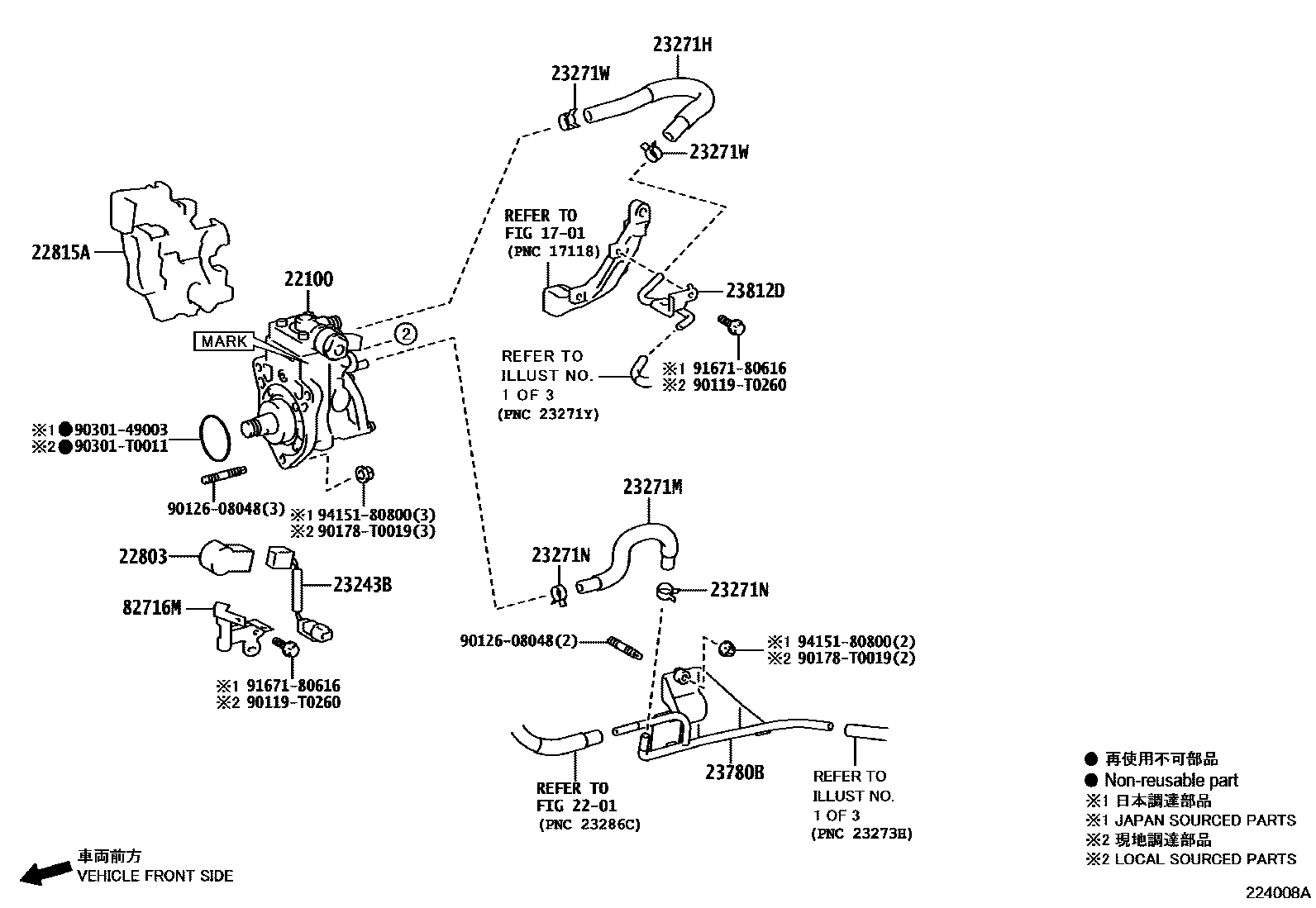

Toyota HILUX EPC diagram 2202, 喷油泵总成, with 5 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22100 | Fuel injection pump or fuel supply pump assembly | 22100-0E010 · 22100-0E020 · 22100-0E040 · 22100-5D180 |
| 22569B | VIS, CREUSE POMPE ALIMENTATION | 22569-0E010 |
| 22803 | Fuel injection pump cover sub-assembly | 22803-0E010 · 22803-0E020 · 22803-11010 |
| 22811 | No. 1 fuel injection pump bracket | 22811-05021 |
| 22815A | Fuel injection pump vibration isolation pad | 22815-0E011 · 22815-0E020 · 22815-11011 |
| 23243B | Fuel pump motor wiring harness | 23243-0E010 · 23243-0E030 · 23243-11010 |
| 23265D | No. 1 fuel pump bracket | 23265-0E010 · 23265-0E020 |
| 23271H | No. 1 fuel hose | 23271-0E011 · 23271-0L160 · 23271-11371 |
| 23271M | fuel hose | 23273-0E010 · 23273-0E020 · 23273-11030 |
| 23271N | Hose clip | 90466-T0015 · 96136-41501 |
| 23271W | Clamp (for No. 1 fuel hose) | 90466-T0023 · 96132-51300 · 96136-51801 |
| 23271Y | FLEXIBLE, CARBURANT | 23271-0E031 · 23271-0E041 |
| 23271Z | ATTACHE, FLEXIBLE | 90466-T0023 |
| 23273H | No. 2 fuel hose | 23273-0E040 · 23273-0L132 · 23273-0L200 · 23273-54190 |
| 23273V | Clamp (for No. 2 fuel hose) | 90466-T0040 · 96132-51300 |
| 23701 | No. 1 fuel injection pipe sub-assembly | 23701-0E031 · 23701-0E041 · 23701-54140 |
| 23702 | No. 2 fuel injection pipe sub-assembly | 23702-0E031 · 23702-0E041 · 23702-54140 |
| 23703 | No. 3 fuel injection pipe sub-assembly | 23703-54100 |
| 23704 | No. 4 fuel injection pipe sub-assembly | 23704-54100 |
| 23741 | No. 1 fuel injection pipe clamp | 23741-54030 |
| 23741A | Stud bolts (for fuel injection pipe clamp) | 90116-06095 |
| 23741B | Fuel injection pipe clamp | 23741-0E010 · 23741-30010 · 23741-56010 |
| 23742 | No. 2 fuel injection pipe clamp | 23742-0E010 · 23742-0E020 · 23742-11010 |
| 23780B | ENS. TUYAU, FUITE GICLEUR, NO.3 | 23780-0E010 · 23780-11010 |
| 23802F | fuel hose | 23801-0E020 · 23801-0L050 |
| 23804C | Fuel inlet pipe sub-assembly | 23804-0E041 · 23804-0E051 · 23804-11030 |
| 23804D | No. 4 fuel pipe sub-assembly | 23816-0E013 · 23816-0E014 · 23816-0E021 |
| 23804G | BOULON, RACCORD(POUR TUYAU CARBURANT NO.4) | 90401-T0006 |
| 23804H | JOINT ETANCHEITE(POUR TUYAU CARBURANT) | 90430-T0018 · 90430-T0028 |
| 23810A | Common rail assembly | 23810-0E020 · 23810-0E040 · 23810-11040 |
| 23811 | Fuel pipe (for fuel filter to injection pump) | 23811-54220 |
| 23812D | No. 2 fuel pipe | 23812-0E011 · 23812-0E021 · 23812-11010 |
| 23815D | No. 3 fuel pipe | 23815-0E014 |
| 23841H | fuel hose clamp | 23841-0L010 · 23841-0L030 |
| 23842C | No. 2 fuel pipe clamp (for fuel injection pump) | 23842-11071 |
| 23842E | COLLIER, TUYAU CARBURANT, NO.1 | 23841-0L041 · 23841-0L061 |
| 23842F | COLLIER, TUYAU CARBURANT, NO.2 | 23842-0E010 · 23842-0L010 · 23842-0L030 |
| 23881C | fuel hose bracket | 23881-0E011 |
| 27148A | Connection harness | 27148-0E030 · 27148-0E060 · 27148-0E070 · 27148-11030 |
| 82716M | SUPPORT, COLLIER FAISCEAU CABLAGE, NO.1 | 82715-0KC90 · 82715-71240 |
| 82716N | SUPPORT, COLLIER FAISCEAU CABLAGE, NO.2 | 82715-0KD00 · 82715-0KD60 · 82715-6AC20 |
